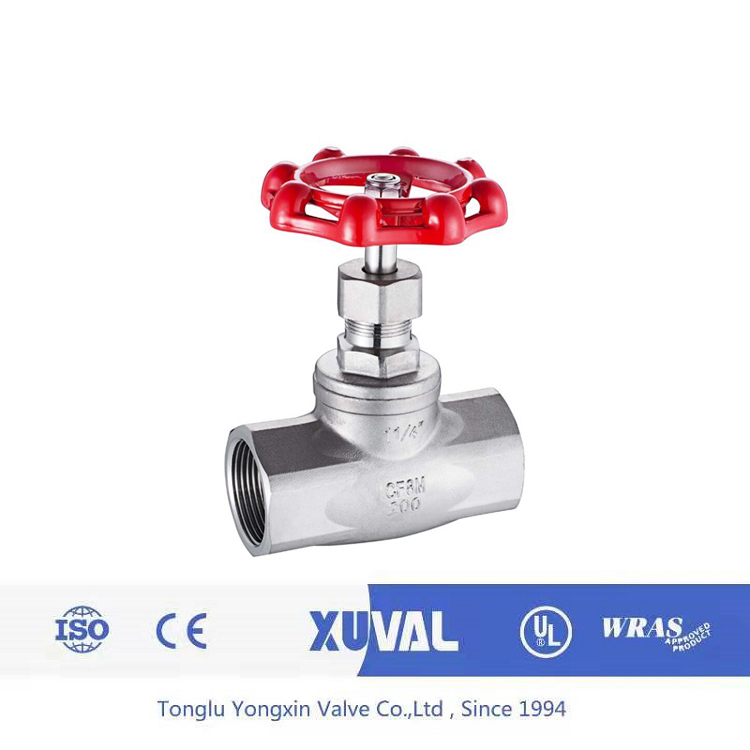

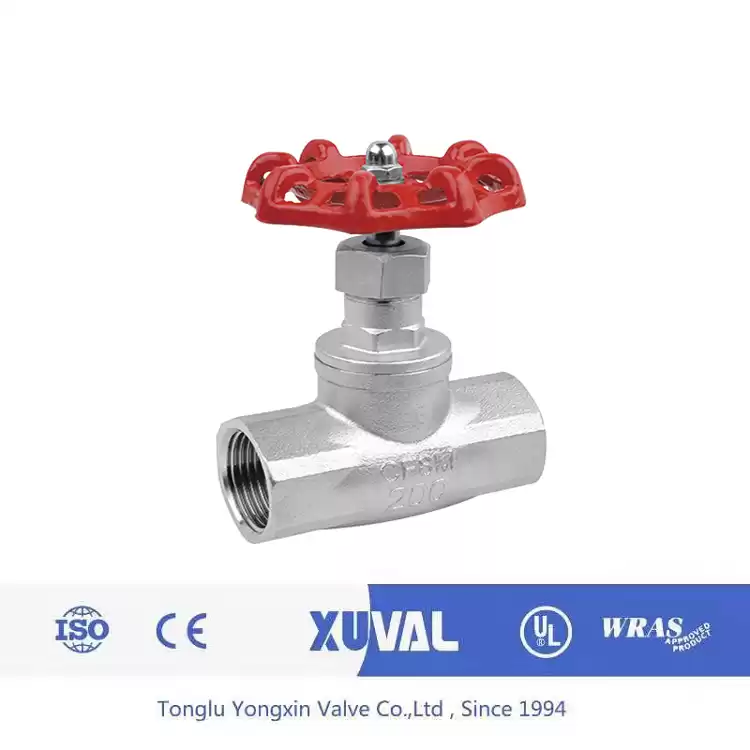

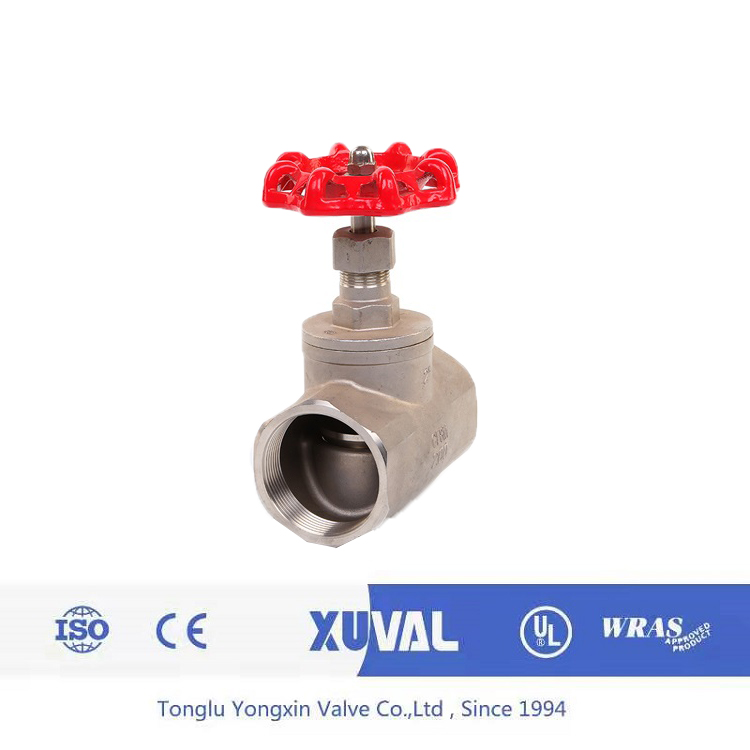

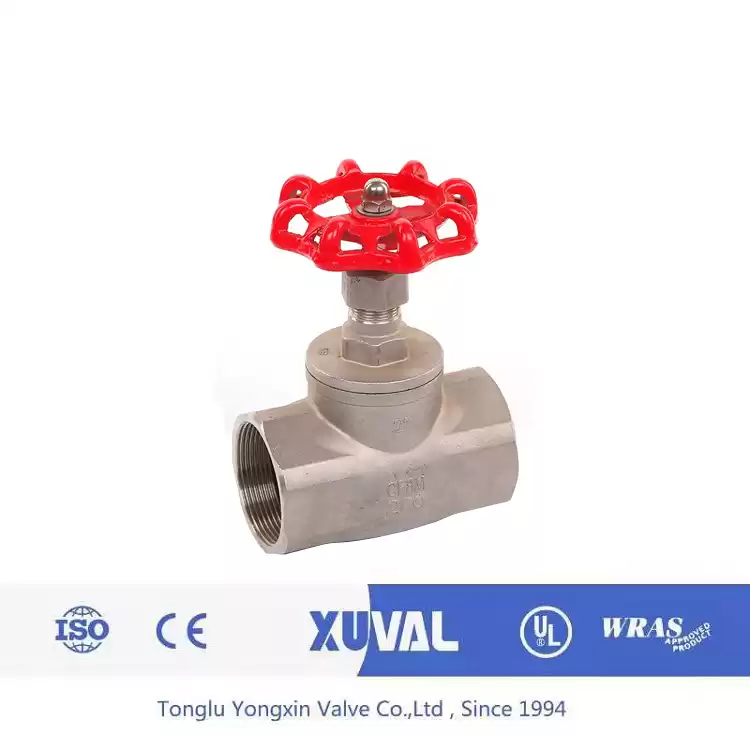

Thread end Stainless steel globe valve
The globe valve belongs to the forced seal type valve, so when the valve is closed, pressure must be applied to the disc to force the sealing surface not to leak.
Advantages:
1. structure is simple, manufacturing and maintenance is more convenient.
2. work trip is small, opening and closing time is short.
3.Good sealing small friction between sealing surfaces, long life.
Disadvantages of B, internal thread globe valves are as follows:
1. fluid resistance is large, the force required when opening and closing is large.
2. is not suitable for medium with particles, high viscosity and easy coking.
3. regulation performance is better.
The types of stop valves are divided into external thread type and internal thread type according to the position of valve stem thread. According to the flow direction of media, there are straight-through, direct-flow and angular types. Stop valves are divided according to the sealing form, with packing sealed stop valves and bellows sealed stop valves.
Features:
Material List
|
No.
|
PARTS
|
MATERIAL
|
1
|
BODY
|
WCB
|
CF8
|
CF8M
|
|
2
|
DISC
|
CF8
|
CF8
|
CF8M
|
|
3
|
STEM
|
304
|
304
|
316
|
|
4
|
GASKET
|
PTFE
|
5
|
BONNET
|
WCB
|
CF8
|
CF8M
|
|
6
|
WASHER
|
304
|
304
|
316
|
7
|
PACKING
|
PTFE
|
|
8
|
GLAND
|
304
|
|
9
|
BONNET NUT
|
WCB
|
CF8
|
CF8M
|
|
10
|
HANDWHEEL
|
ZL101
|
|
11
|
FLAT PAD
|
304
|
|
12
|
NUT
|
304
|
Unit:mm
Dimensions
|
SIZE
|
d
|
L
|
H
|
W
|
D
|
J
|
1/2"
|
DN15
|
15
|
60
|
88
|
70
|
21.8
|
9.5
|
3/4"
|
DN20
|
20
|
70
|
93
|
70
|
27.2
|
12.5
|
|
1"
|
DN25
|
25
|
80
|
110
|
70
|
33.9
|
12.5
|
|
1-1/4"
|
DN32
|
32
|
89
|
116
|
80
|
42.7
|
12.5
|
|
1-1/2"
|
DN40
|
40
|
104
|
132
|
100
|
48.8
|
12.5
|
|
2"
|
DN50
|
50
|
118
|
145
|
100
|
61.2
|
16
|
Packing & Delivery :
Packing Details : all thread end Stainless steel globe valve by seaworthy plywood case and packed strongly by packing belt as below
Delivery Details : Generally it is 5-10 days if the goods are in stock. or15-30 days if the goods are OEM or not enough subject to the order quantity. But anyway, normally, we are able to make sure the delivery will not exceed 45days.
