Key Features:

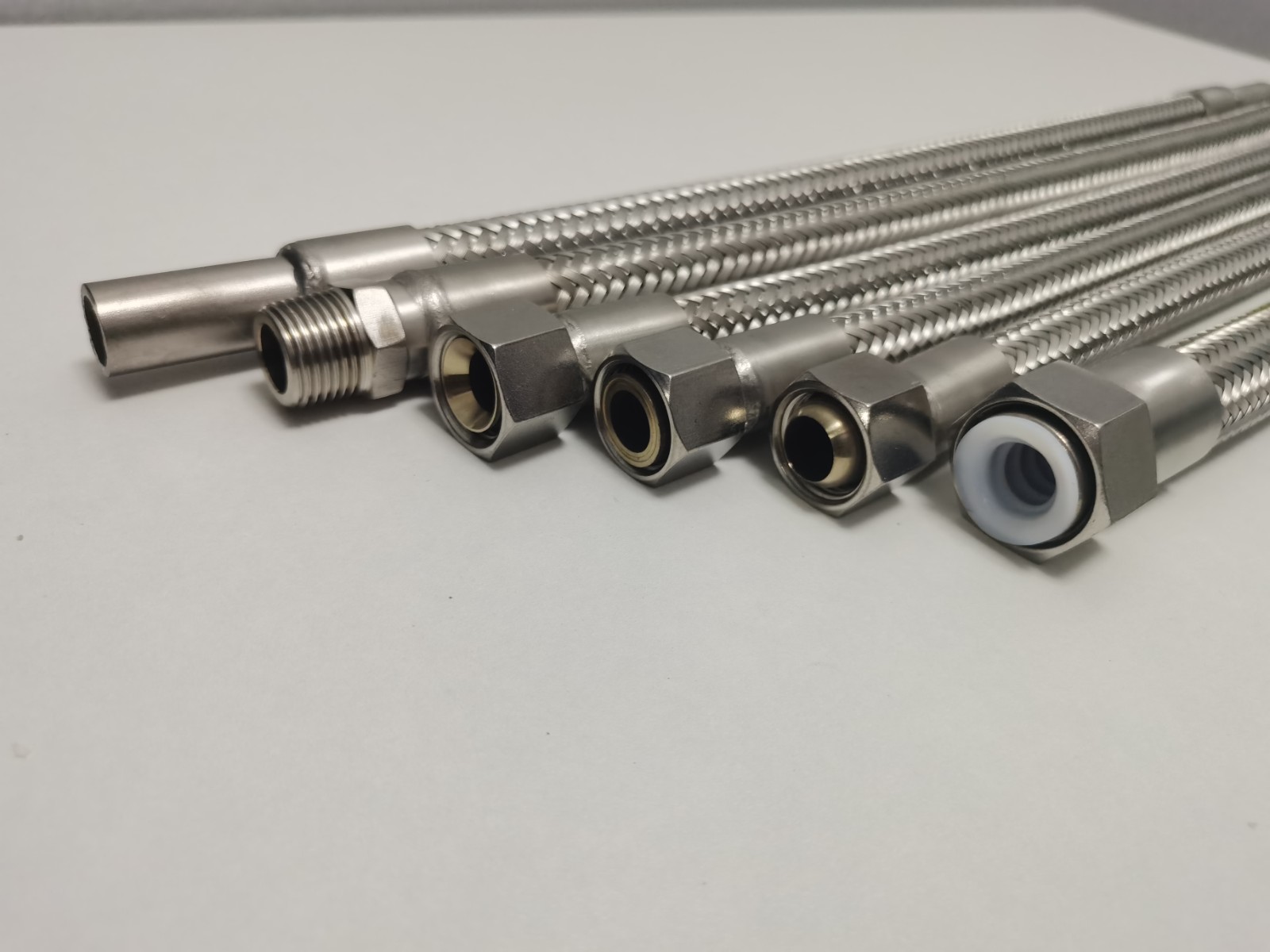

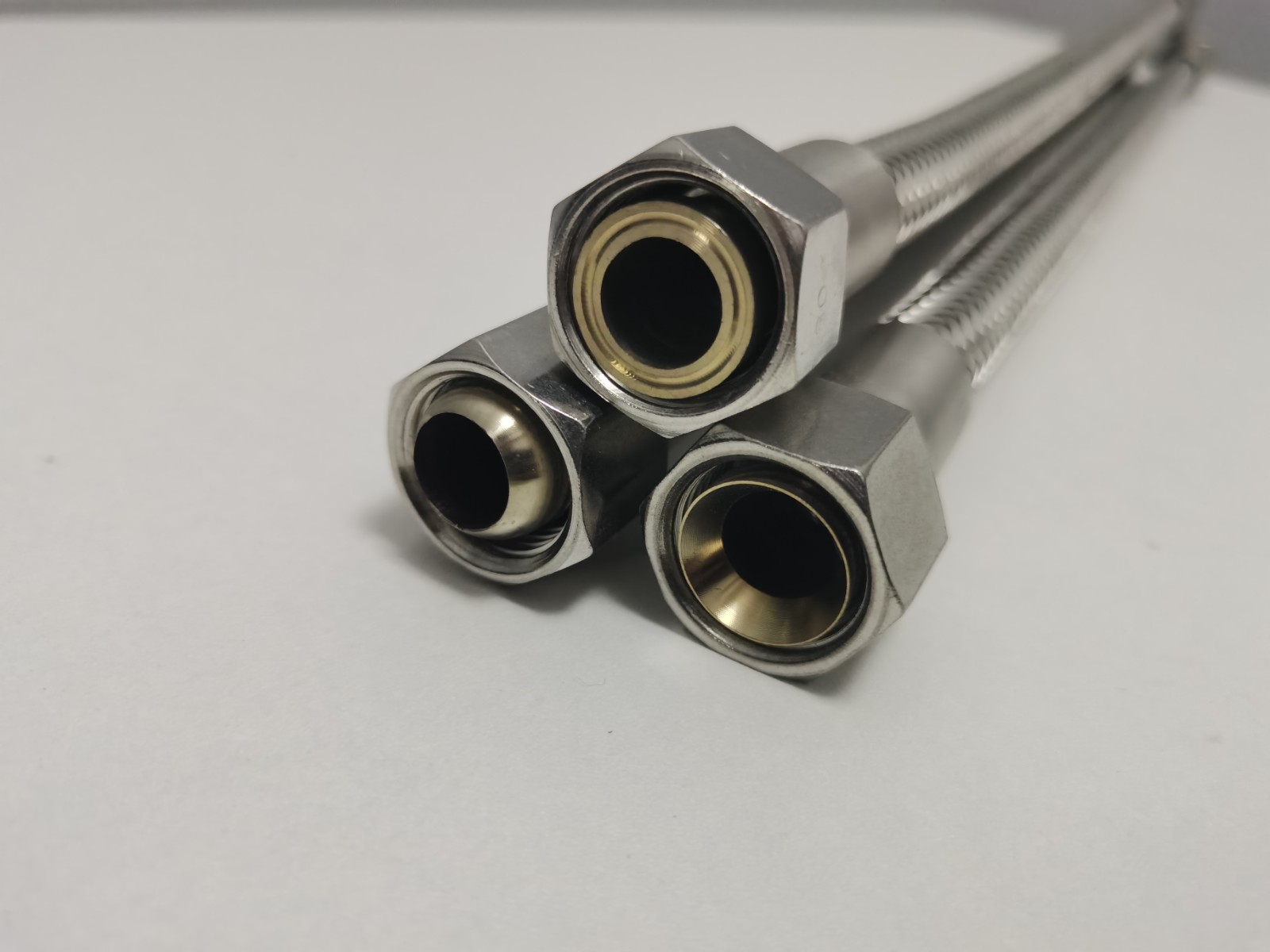

Threaded Connection: Both ends of the flexible metal hose are equipped with internal screw threads, allowing for easy and secure connections. The available connection modes include plane (type A), horn (type C), and sphere (type D).
Customization Options: We offer customization services to suit your specific requirements. You can tailor the hose's inner diameter (I.D.), outer diameter (O.D.), length, connections, materials, printed tags, packaging, and more. With our comprehensive customization options, you can optimize the hose for your unique needs.
Indispensable Functionality:
Braided flexible metal hoses, also known as jacketed hoses, serve as essential components in industrial pipelines. They offer exceptional flexibility, corrosion resistance, high and low temperature resistance, and resistance to acids and alkalis. These hoses are widely used in gas transmission, infusion pipeline systems, and compensation systems involving length, temperature, position, and angular adjustments. They serve as compensation elements, sealing elements, connection elements, and shock absorption elements.
Construction:
Our braided flexible metal hose comprises corrugated bellows, braided layers, and joints. The inner tube is made of thin-walled stainless steel bellows with a spiral or annular waveform. The bellows' outer braided layers are manufactured from stainless steel wire or steel belts, woven according to specific parameters. The hose's ends are equipped with joints or flanges tailored to match the customer's piping configuration.
Flexible Metal Hose Assembly Construction:
Inner Core: Corrugated Stainless Steel
The flexible metal hose's inner core is made of corrugated stainless steel. We offer materials such as 304, 321, and 316L stainless steel, with the option of annular or spiral corrugation based on your requirements. The stainless steel bellows are formed into corrugations parallel to one another.
Outer Core: Braided Stainless Steel Layers
The outer core of our braided flexible metal hose comprises single or double braided layers. The braided layers are typically made from the same materials as the corrugated bellows, including 304, 321, and 316L stainless steel. These layers play a crucial role in reinforcing the hose and providing shielding.

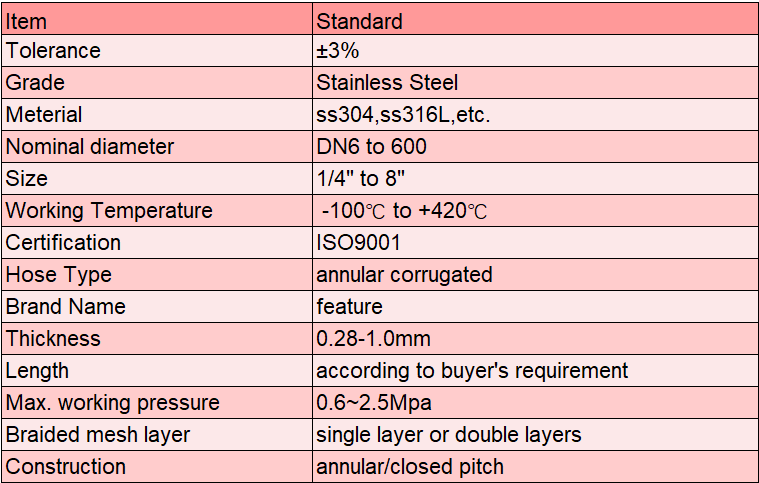

Product Standards:
Advantages:
Suitable for Complex Environments: Our hose is designed to function effectively in various challenging indoor and outdoor environments.
Corrosion Resistance: The hose remains free from oxidation stains when in contact with water, ensuring corrosion resistance.
Superior Sealability: The hose delivers excellent sealability, ensuring reliable performance.
High Pressure and Temperature Resistance: It is engineered to withstand high pressure and temperature variations, making it reliable in demanding applications.
Corrosion Resistance: The hose exhibits excellent resistance to corrosion.

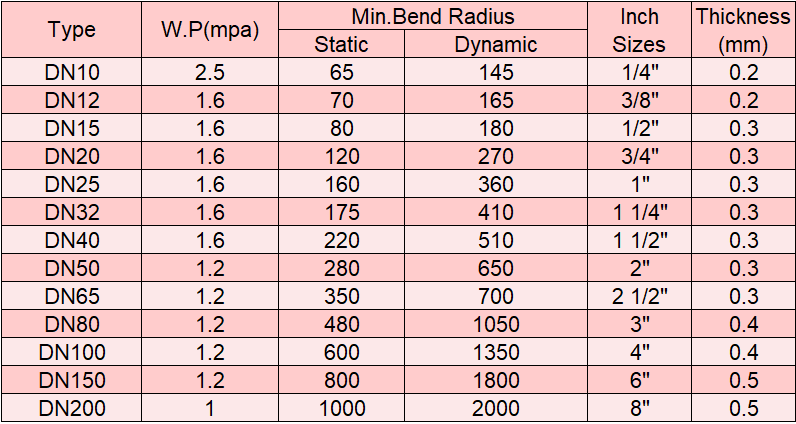

Flexible Metal Hose Performance Parameters As Below:
Reliable Quality and Custom Service:
At Feature, we prioritize the high quality of our industrial flexible metal hoses. We ensure on-time delivery, offer non-standard customization options, and maintain a steady supply from a reliable and qualified supplier. All our processes are certified by ISO9001, and our products undergo rigorous quality checks before shipping.
Custom Service:
Customization: We offer a wide range of customization options, including I.D., O.D., length, connections, materials, printed tags, packaging, and more.
OEM/ODM Service: We provide OEM/ODM services, enabling design customization tailored to your specifications.
Sample Order: You can purchase a free sample order to test the quality before placing a full order.
Choose our threaded braided flexible metal hose for superior performance and reliability in your industrial applications. Experience the benefits of our high-quality products, prompt delivery, and exceptional customer service.
