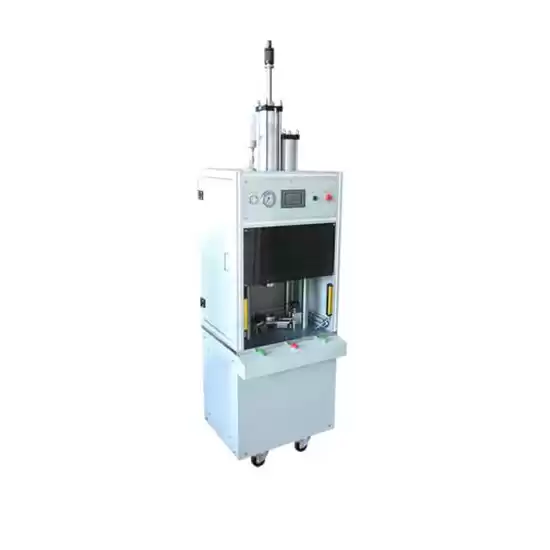

Threaded Cylindrical Supercapacitor Final Sealing Machine Suitable for 60 Series

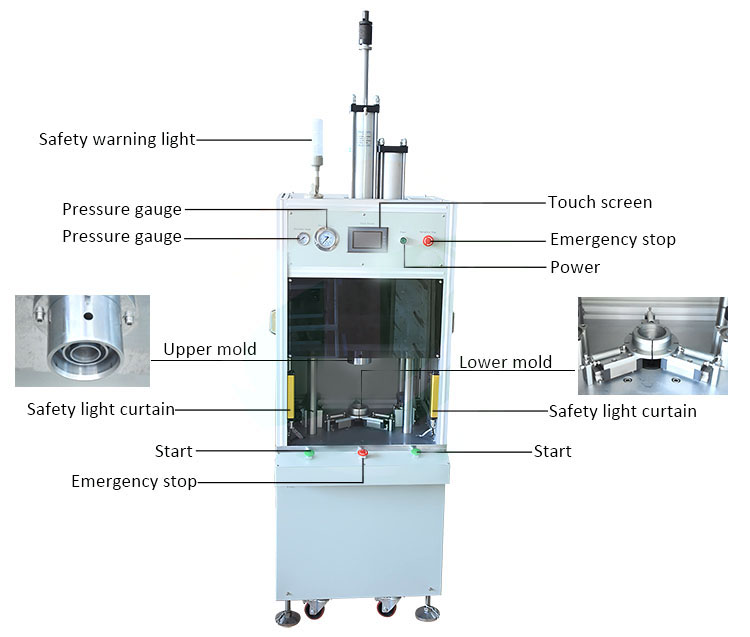

Main features
* Use the mold ring to clamp the sealing, so that the side wall of the O-ring of the shell is carried out unt require the hydraulic system to refuel and cumbersome pollution, and is easy to form an automation;
* Super capacitor sealing height is adjustable to suit different specifications;
* Sealing pressure, the holding time can be adjusted;
* The equipment adopts PLC control system to ensure stable and reliable operation and easy operation.
*Color touch screen LCD display operation, device parameter setting browsing intuitive.
*The frame is made of high-quality steel, welded firmly, polished smooth and clean, and the surface is beautifully painted.
* With safety grating and protective door, the equipment is safe and reliable.
der the omnidirectional clamping and clamping mode. The size of the side of the shell after sealing is small change, the sealing is even, and the airtightness is ensured;
* Guided by precision mold guide post guide sleeve, the guide precision is extremely high to ensure the parallelism of the upper and lower molds;
*The booster cylinder control mold has a large sealing force for the sealing of the capacitor, and does no
Specificaitons
|
Model
|
TMAX-MFK60 Sealing machine
|
|
Applicable products
|
diameter 60 mm batteries, super capacitor (diameter can be customized),height 50-180mm
|
|
The size of the sealing shell is changed
|
≦±0.03mm
|
|
The height accuracy of the capacitor after sealing
|
≦0.1mm
|
|
Service life
|
The normal service life of tooling molds needs to reach more than 5 million times
|
|
Capacity
|
≥ 3PCS
|
|
Activity rate
|
98%
|
|
Air source
|
adjustable from 0.5 to 0.7 MPa
|
|
Power supply
|
220V/50HZ
|
|
Air consumption
|
0.4 m3/min
|
|
Power
|
500W
|
|
Dimensions
|
L650mm *W 600mm * 1900mm
|
|
Weight
|
500kg
|
|
Sealing and flanging process adopts mold sealing method
|
