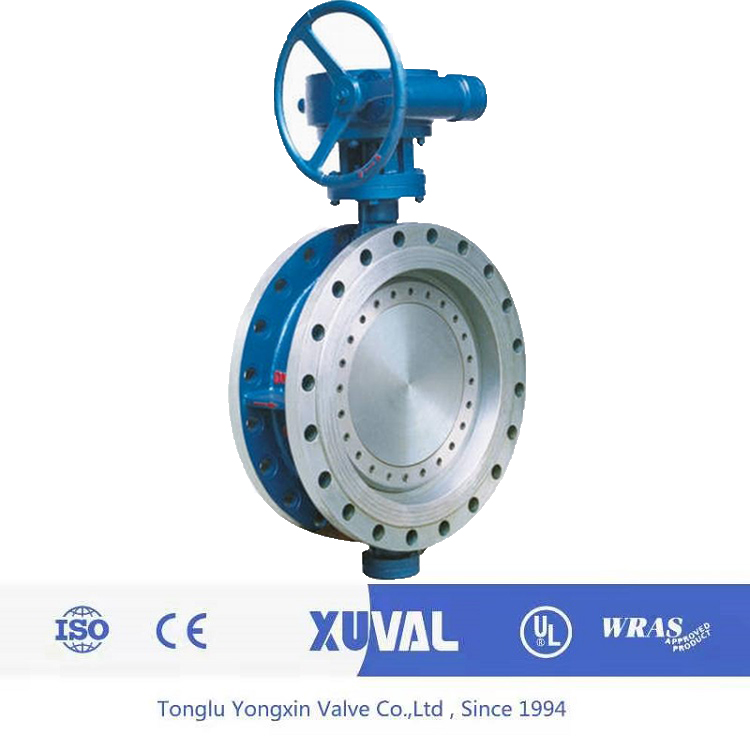

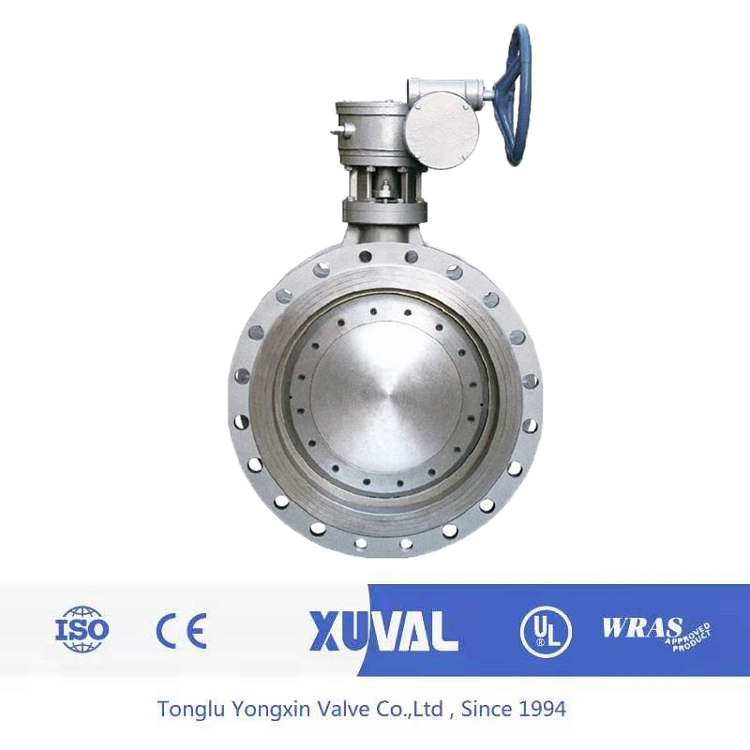

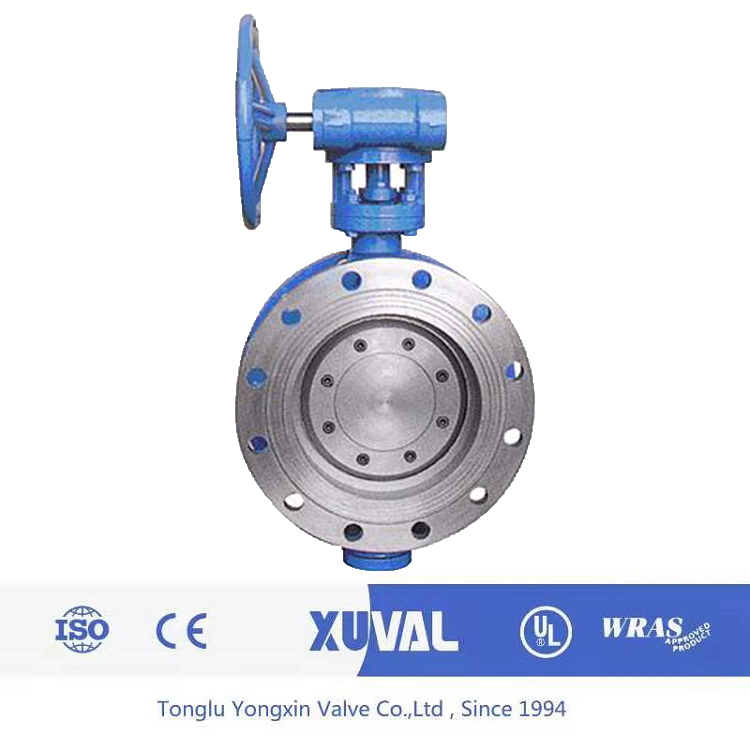

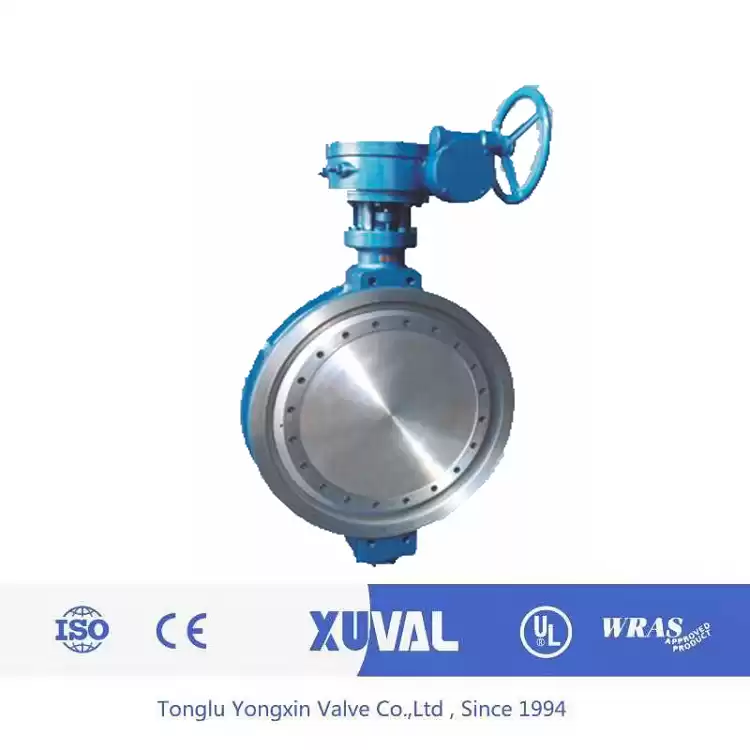

Three eccentric multi layer worm gear flange type butterfly valve

Three biased multi-level metals hard seal butterfly valve series,is the long life which the our company newly develops,the energy conservation butterfly valve.



Three eccentric multi layer worm gear flange type butterfly valve

Features and usage:

Three biased multi-level metals hard seal butterfly valve series,is the long life which the our company newly develops,the energy conservation butterfly valve.The product conforms to national standard JB/T8527-97(metal hardly to seal reed valve),GB/T13927-2008(general valve pressure test)the standard and the valve other correlation standards stipulations,unifies the domestic and foreign advanced technologies,uses the three dimensional eccentric principle design,the seal packing collar uses hardy softly seals the concurrently multi-level structure,is suitable to the medium temperature≤600℃metallurgy,the electric power,the petroleum chemical industry,the air,teh coal gas,as well as for medium pipeline on and so on the draining water makes the adjustment current capacity and the interruption fluid,the sealing property is rellable,is the general reed valve pressure,center high temperature domain extending to the cemter with the development.

In this structure foundation,may use the teflon to substitute the multi-level seal packing collar,forms the new generation of three biased four fluorine seals reed valves,widespread application in temperature≤200℃ corrosive medium environment.


Features:

1.The butterfly board seal packing collar for hard is soft double-decked,has the hard soft seal dual seal merit,regardless of in the low temperature or under the high temperature operating mode,has the fine sealing property.

2.Uses three eccentric structures,the valve seat and the butterfly board nearly no friction,has the pass tighter sealing property,achieved zero divulges.

3.Opens shuts the moment of force slightly,the operation nimble,the vigor energy conservation,the service life is longer.

4.Thermostable,bears the high pressure,the air-corrosive applicable scope is broad.

5.the new generation of three biased four fluorine seals reed valve concurrently has had three biased seals structure and the soft seal merit,the sealing property more realiable,the applicable scope broader,the service life is longer.

6.electrically operated,the pneumatics uses the domestic and foreign famous products,the performance is more reliable (may assign by user).


Applicable standard
Standard respective country Manufacture standard Flange standard Face to face standard Inspection standard
GB GB/T12238-2008 GB/T9113.1-2000 GB/T12221-2005 GB/T13927-2008
API

API 609-91

ANSI B16.34-96

ANSI B165a-92

MSS-SP-44

ANSI B16.10-92 API 598-94
JIS JIS B2064-84 JIS B2212~2216 JIS B2002-87 FIS B2003-87
Note:May use other standard processing products according to the user request or process the non-sign class butterfly valve.


Material for main parts
Parts name Parts material
Body Carbon steel,Stainless steel,Cr-Mo steel,Alloy steel
Disc Carbon steel,Stainless steel,Cr-Mo steel,Alloy steel
Seal ring 316 stainless steel+flexible graphite,Teflon
Stem
2Cr13,Stainless steel,Cr-Mo steel
Packing Flexible graphite,Teflon
Note:WCB,WC6,WC9,ZG1Cr5Mo,ZG20GrMo,CF8,CF8M,CF3CF3M

Main technical parameter
Nominal diameter DN (mm) 100~3000
100~600
Nominal pressure PN (Mpa) 0.6 1.0 1.6 2.5 4.0
Test pressure Shell structural testing 0.9 1.5 2.4 3.75 6.0
Seal test 0.66 1.1 1.76 2.75 4.4
Air test 0.6 0.6 0.6 0.6 0.6

Applicable medium

Applicable temperature

Water,steam,oil quality,acids corrosive medium and so on and dust peliet

-29℃≤Carbon steel≤425℃,-196℃≤Stainless steel≤600℃,Cr-Mo steel≤550℃

Actuation form Handle,worm gear, electrically operated,air operated

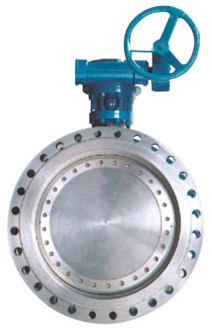

Three eccentric worm gear flange butterfly valve

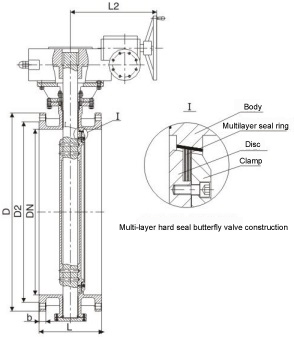

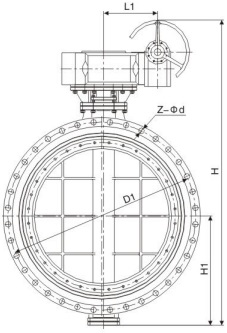

D343H-PN2.5,D343Y-PN2.5,D343F-PN2.5(DN50-2000)Contour and connection size


DN(mm)

Nominal diameter

L
Main contour and connection size (mm)
H1
D343H
PN0.25Mpa
La Lb H L1 L2 D D1 D2 Z-φd b
50 108 150 70 285 40 130 140 110 90 4-14 12
65 112 170 80 305 40 130 160 130 110 4-14 14
80 114 180 95 335 50 145 185/190 150 125 4-18 14
100 127 190 105 355 50 145 205/210 170 145 4-18 14
125 140 200 120 385 70 175 235/240 200 175 8-18 14
150 140 210 135 410 70 175 260/265 225 200 8-18 16
200 152 230 160 595 90 200 315/320 280 255 8-18 18
250 165 250 180 650 90 200 370/375 335 310 12-18 22
300 178 270 220 715 130 240 435/440 395 362 12-23 22
350 190 290 245 815 130 240 485/490 445 412 12-23 22
400 216 310 270 865 130 240 535/540 495 462 16-23 22
450 222 330 300 920 175 280 590/595 550 518 16-23 24
500 229 350 325 1015 175 280 640/645 600 568 20-23 24
600 267 390 380 1130 200 365 755 705 670 20-25/26 24
700 292 430 430 1235 200 365 860 810 775 24-25/26 26
800 318 470 490 1345 225 440 975 920 880 24-30 26
900 330 510 540 1560 225 440 1075 1020 980 24-30 28
1000 410 550 590 1660 290 490 1175 1120 1080 28-30 30
1200 470 630 690 1890 290 490 1375 1320 1280 32-30 30
1400 530 710 760 2670 290 490 1575 1520 1480 36-30 32
1600 600 790 900 2810 410 600 1785/1790 1730 1690 40-30 32
1800 670 870 1000 3020 500 600 1985 1930 1890 44-30 34
2000 760 950 1100 3220 500 800 2185 2130 2090 48-30 34


Packing & Delivery :

Packing Details : all by seaworthy plywood case and packed strongly by  packing belt as below

Delivery Details : Generally it is 5-10 days if the goods are in stock. or 15-30 days if the goods are OEM or not enough

subject to the order quantity. But anyway,normally, we are able to make sure the delivery will not exceed 45 days.
