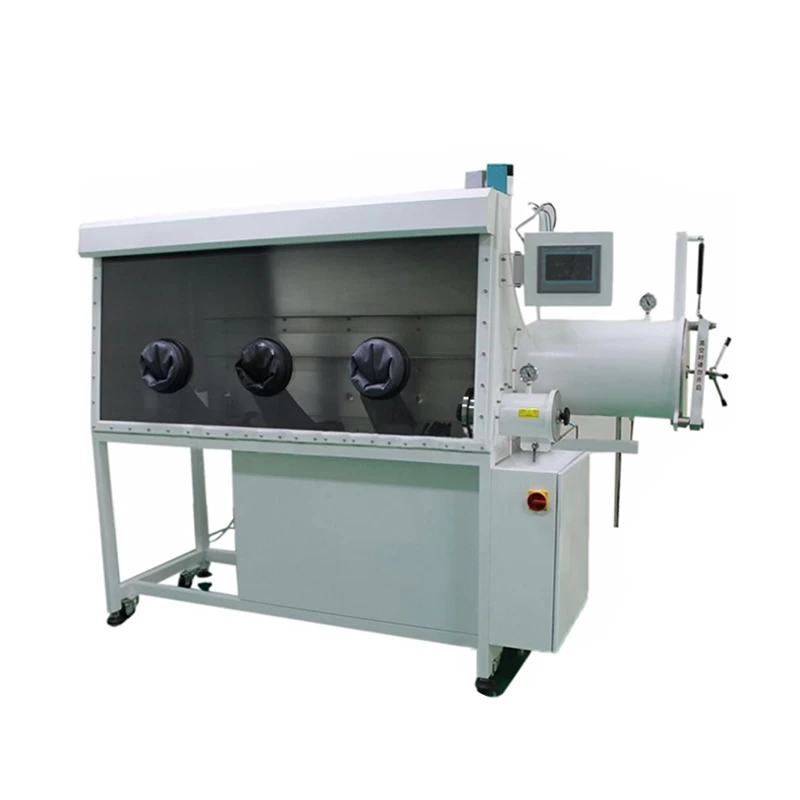

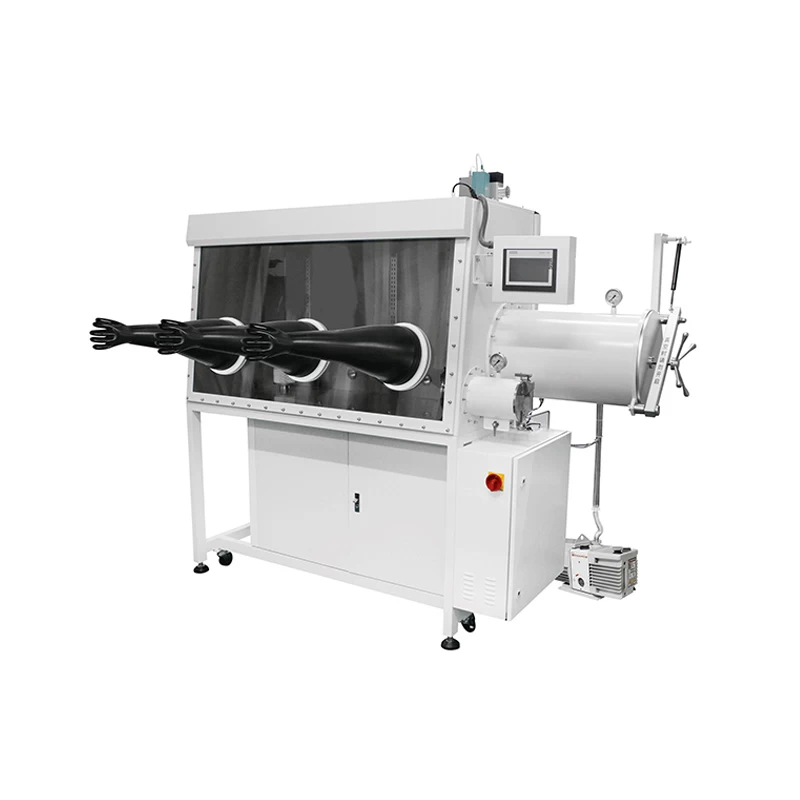

Three Gloves Stainless Steel Vacuum Glove Box with Gas Purify System
1 AOT-VGB-3 Lab glove box is a kind of equipment with anhydrous and anaerobic environment.
2 The lab glove box device is mainly composed of display system, transfer chamber, vacuum system, control system,box, circulation purification regeneration system components.
SPECIFICATIONS:
|
Model
|
Vacuum Glove Box AOT-BGB-3
|
|
Source voltage
|
AC110V-240V, Customized
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Type
|
Single section single station
|
|
Dimension(L*W*H)
|
SUS304 stainless steel plate, 1500*800*930mm
|
|
Total dimension(L*W*H)
|
SUS304 stainless steel plate, 2215*830*1830mm
|
|
Big transitive cabin
|
SUS304 stainless steel, DN385*588mm
|
|
Small transitive cabin
|
SUS304 stainless steel, DN150*350mm
|
|
Gloves
|
3 pcs, butyl material, thickness : 0.4mm
|
|
Gloves port
|
DN215mm, Acid and alkali resistant material PPS
|
|
Purification system
|
Single purifying column,
With the remove of water, oxygen function
|
|
Control system
|
6 inch color touch screen, SIEMENS
|
|
Vacuum pump
|
4L/S
|
|
Pressure sensor
|
-2500~2500Pa, Touch screen
|
|
H2O concentration
|
<1 ppm (20 °C, 1 atm) Touch screen
|
|
Oxygen concentration
|
<1 ppm (20 °C, 1 atm) Touch screen
|
|
Organic solvent filter
|
21 L
|
|
Working gas
|
N2,Ar,He
|
Notes:
Cabinet water and oxygen content under the standard condition:
Water content≤1ppm, oxygen content≤1 ppm (Note: Standard condition is that an atmospheric pressure, constant temperature of 20 degree).
Leakage Rate:≤0.05Vol%/ h (subject to change value of oxygen content in box)
Used Gases
a) Working Gas: N2,Ar,He and etc.
b) Controlling Gas: Compressed air or Inert Gas.
C) Restoring Gas: Mixed gas of working gas and hydrogen.
Restoring gas is as same as working gas if there is only water removal system or oxygen removal system.
