Product Name: Quick Change Small Steel Profile Roll Forming Machine
Machine Details

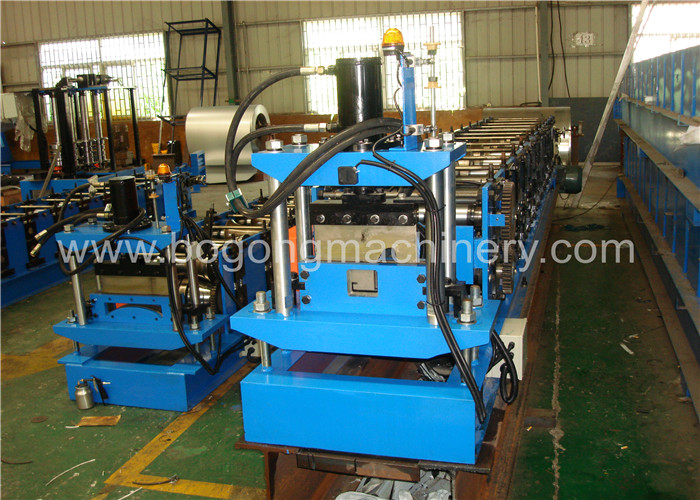

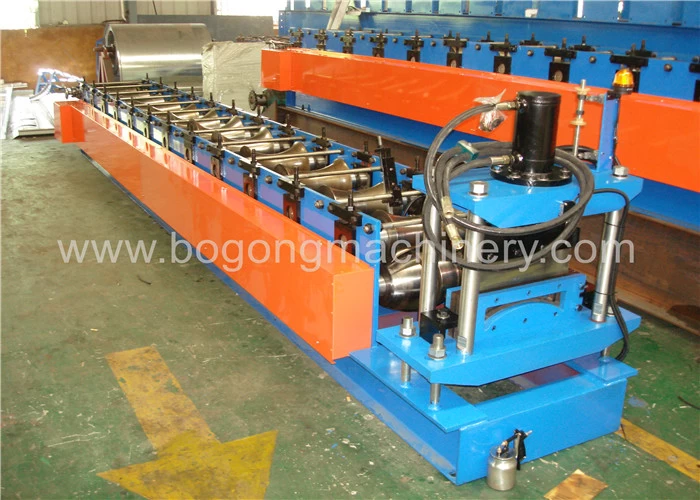

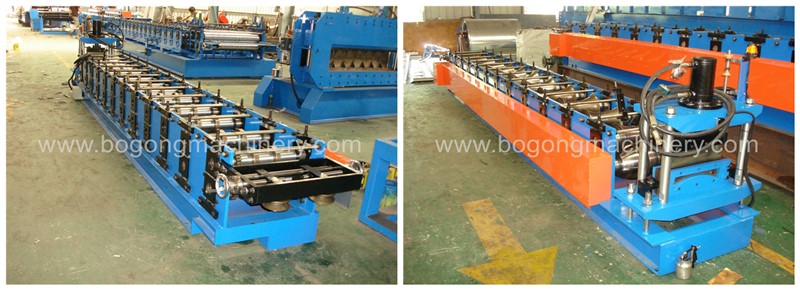

This design is for total three types of steel profiles, each profile used roll forming section has its own small machine frame with rollers and shafts, but three profiles share the electric control system and hydraulic system. After finished the current design producing take, worker only need to lift the current small machine up and change another needed profile set on big frame, very easy to operate, no need change any rollers and adjust again, that why we call it into Quick Change Small Steel Profile Roll Forming Machine.
On this Quick Change Small Steel Profile Roll Forming Machine, everything are the same as common used roll forming machines, separated roll forming part for each profile design, and has their own small machine frame also. But the cutting blades is different, each profile has alone cutting blades.So the quick change type roll forming machine normally is suitable for small designs to save layout place better.
Technical Parameters
|
Parameters
|
Specification
|
|
Voltage
|
380V/50HZ/3PH or customized
|
|
Driving Motor
|
4KW
|
|
Forming Steps
|
10,12 steps
|
|
Working Speed
|
10-15m/min
|
|
Thickness for Steel
|
0.5-0.8mm
|
|
Shaft Diameter
|
65mm
|
|
Shaft Material
|
High grade 45# forged steel
|
|
Roller Material
|
G45# steel, CNC lathe,polished and chrome plated
|
|
PLC Cabinet
|
Schneider, Delta
|
|
Encoder
|
Omron
|
|
Sprocket Wheel
|
45 steel high-frequencies quench
|
|

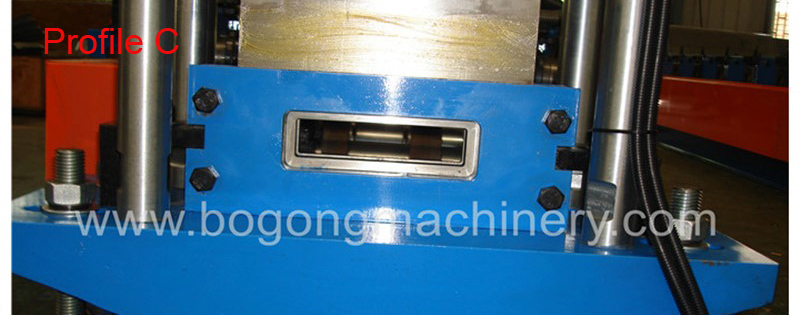

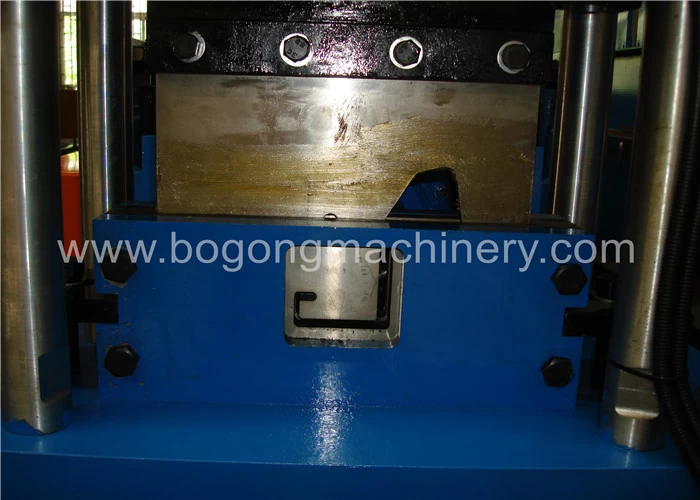

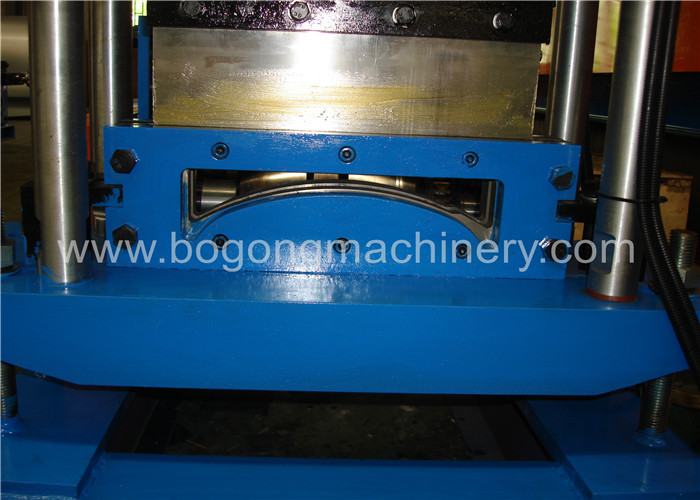

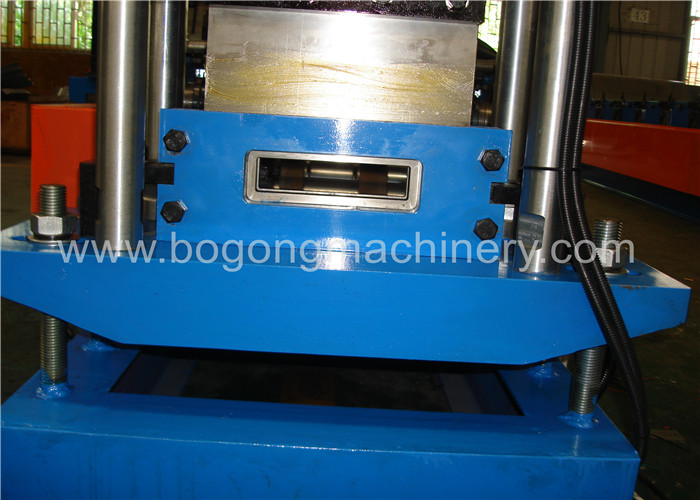

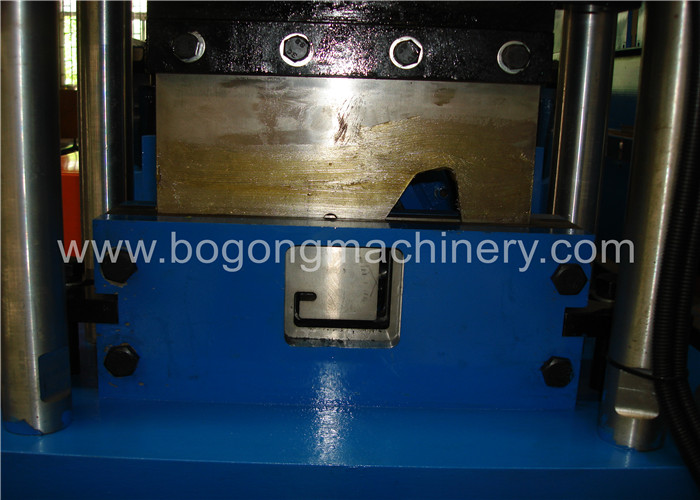

Cut-off System
|
Post cutting, no waste cutting
|
|
Cutting Blade Material
|
Cr12 steel
|
|
Machine Frame Material
|
Fine welded structural steel;
|
|
Raw Material
|
Galvanized steel
|
|
Painted Color
|
Blue+Orange Or Customization
|
|
Overall Size
|
6500*950*1050mm
|
|
Weight
|
4550KGS
|
