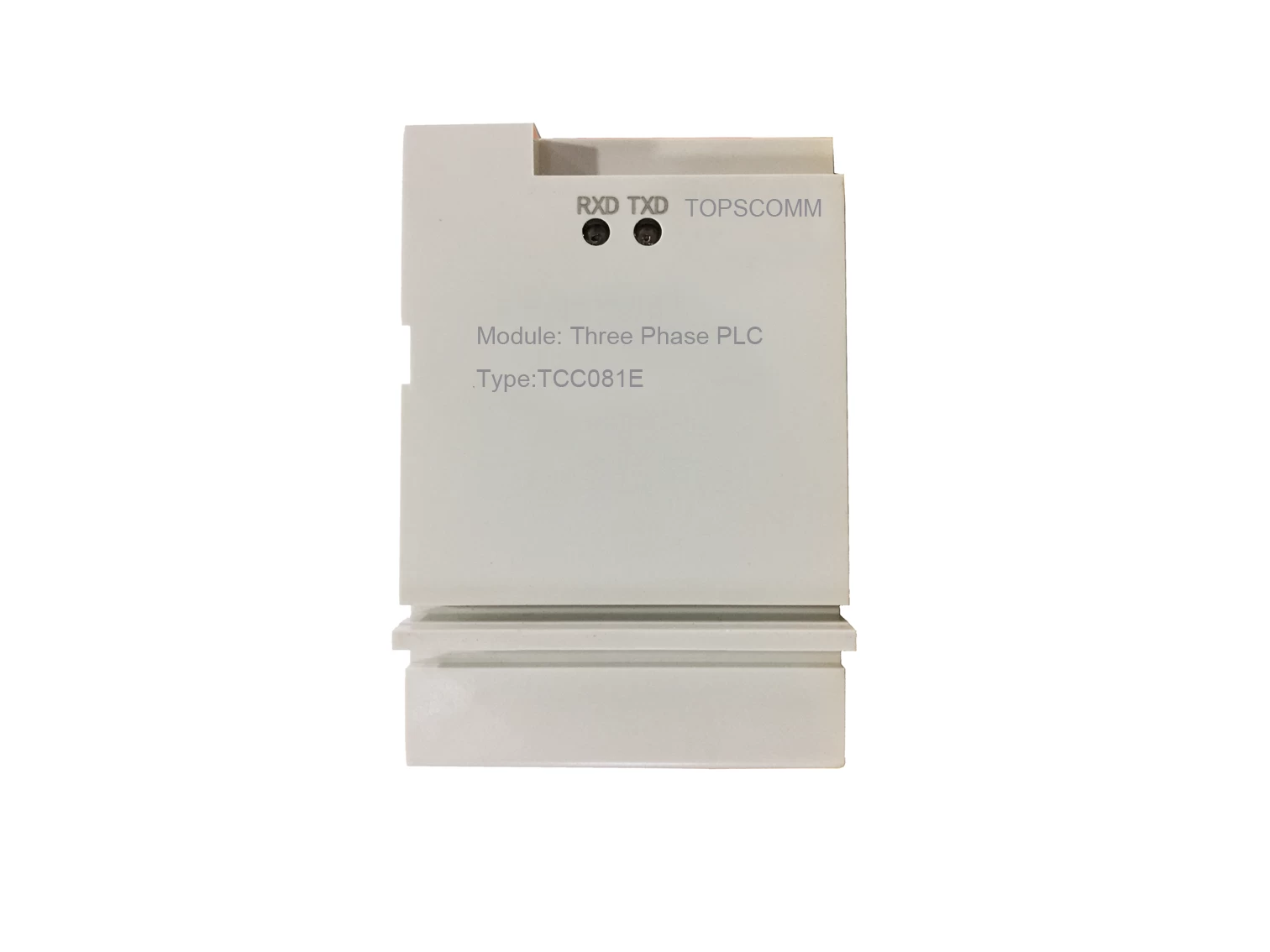

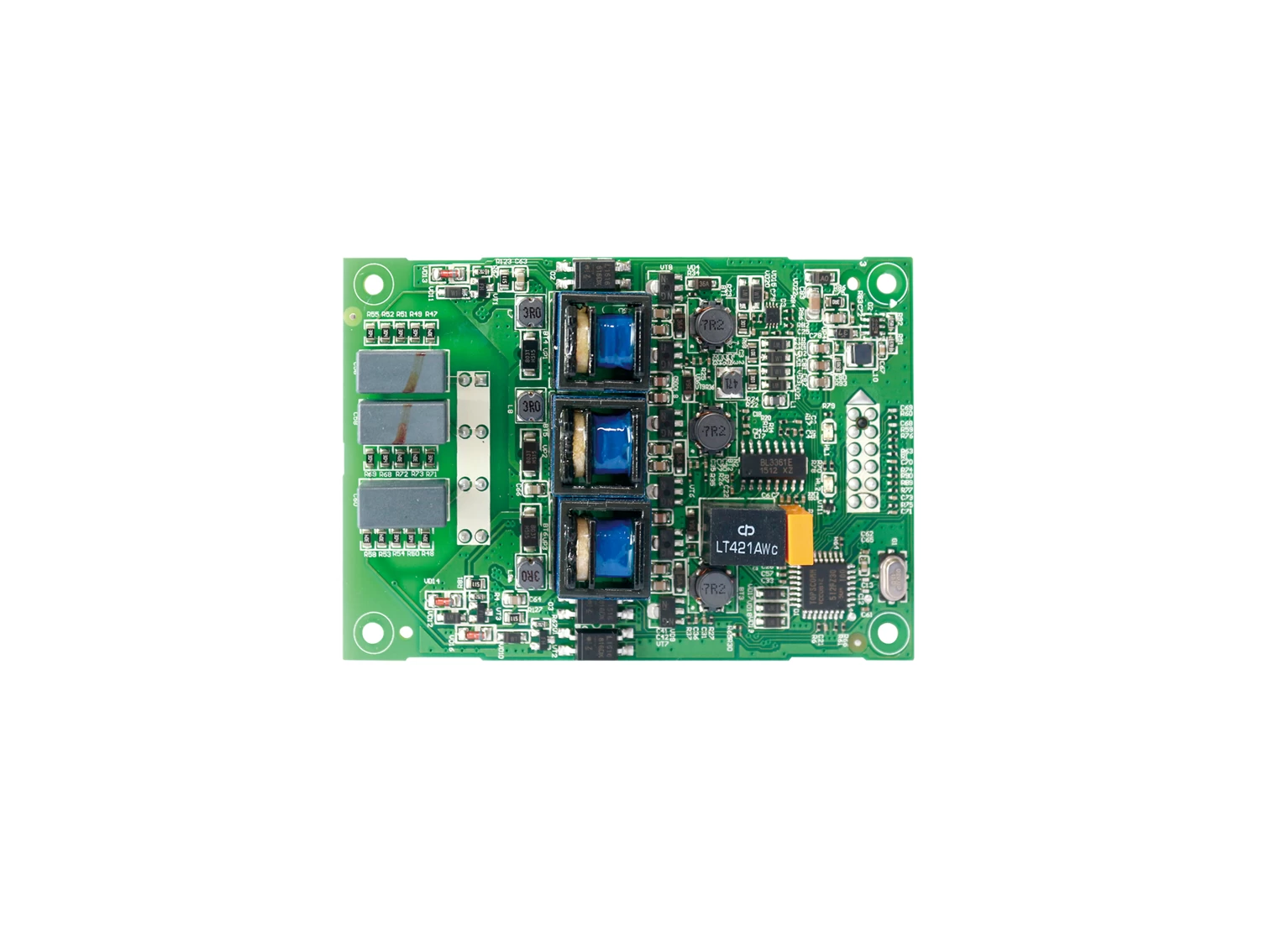

Main technical parameters for Three phase PLC communication module
|
Serial port rate
|
1200bps, 2400bps, 4800bps, 9600bps
|
|
Carrier communication rate
|
50bps, 100bps, 600bps, 1200bps
|
|
Frequency
|
45Hz~54Hz, 56Hz~64Hz
|
|
Operating voltage
|
Strong electric power interface: Three phase four wire, Un=220VAC
|
|
Feeder return circuit power source:DC+12V
|
|
Operating voltage:DC+5V
|
Operating voltage range
|
Strong electric power interface: Three phase four wire, 0.8Un~1.2Un
|
Feeder return circuit power source:DC+12V, Udc=6.5V~24V
|
Operating voltage:DC+5V, Udc=5V±0.25V
|
|
Operating temperature
|
-40℃~﹢85℃
|
|
Relative humidity
|
≤95%
|
Power consumption
|
On communication ＜1.4W（Full load on feeder return circuit, voltage 10.5V）
|
|
Communication range
|
The whole transformer area
|
