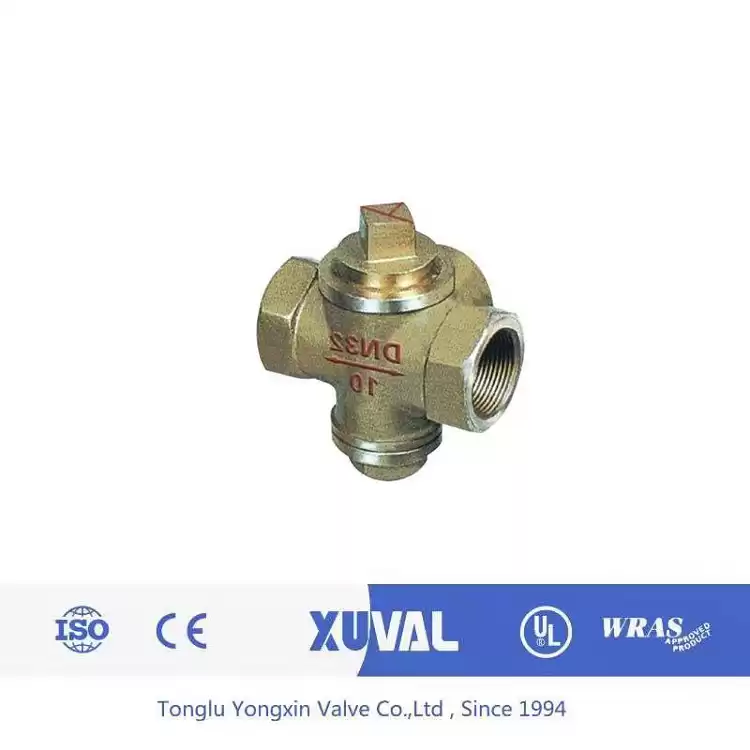

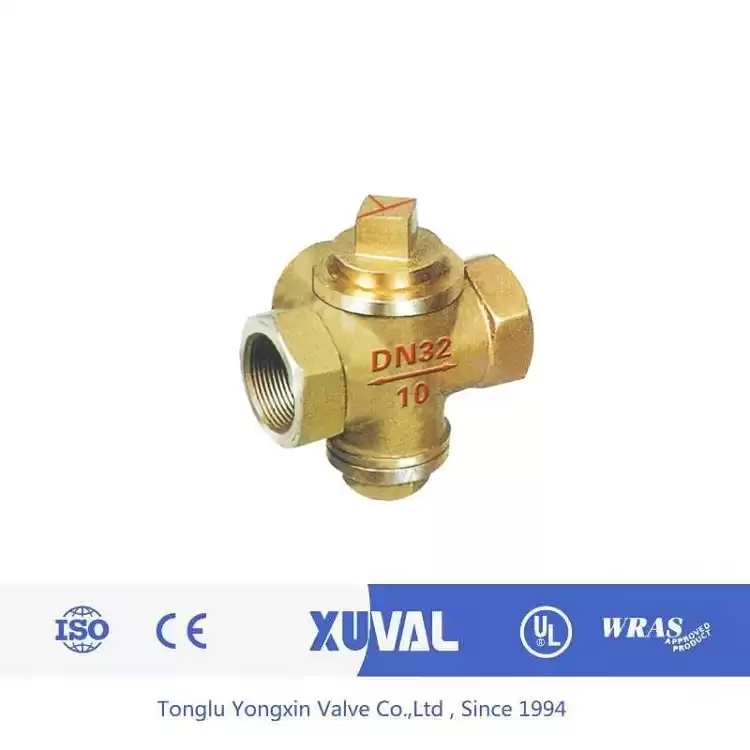

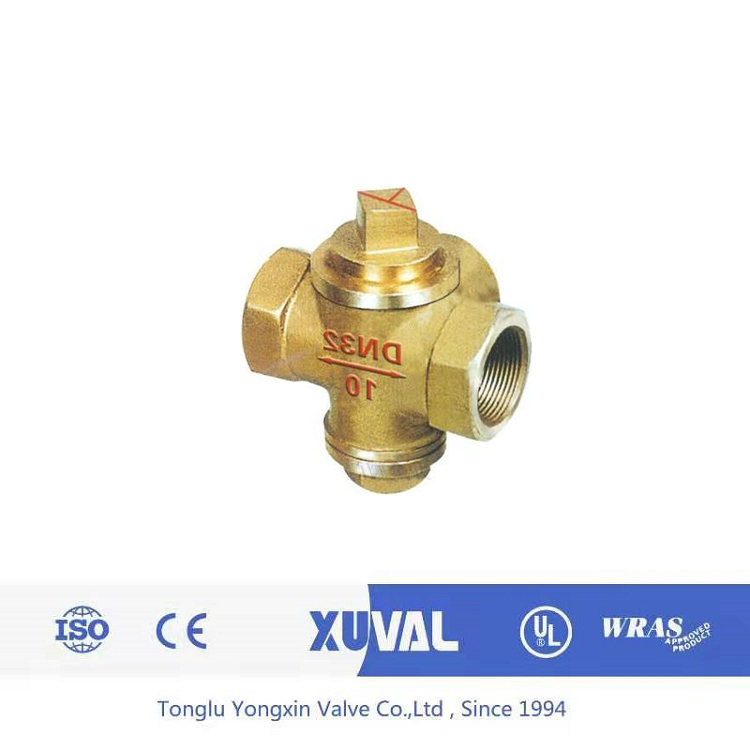

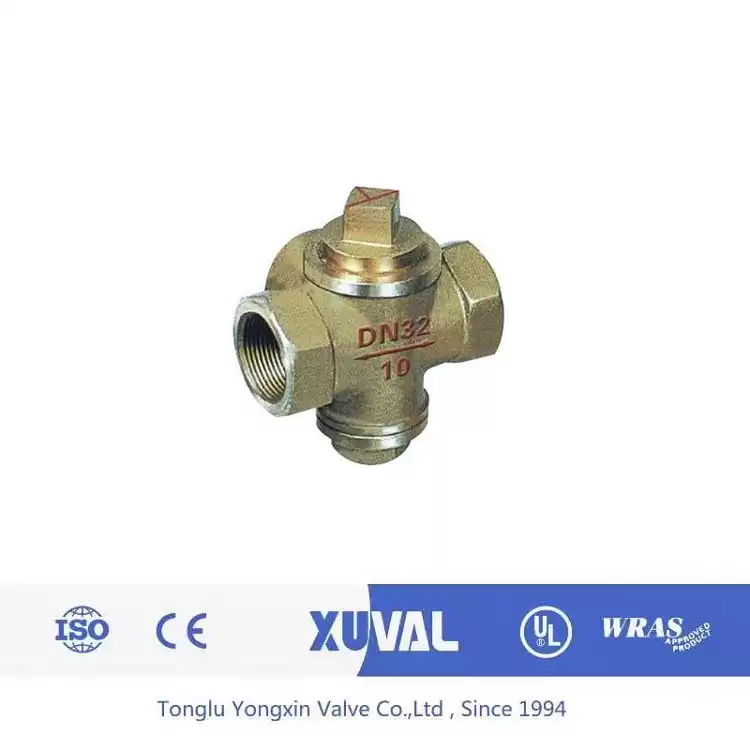

The purpose of three-way all-copper plug valve is to be installed in the pipeline mainly for cutting, distributing and changing the direction of medium flow.Applicable medium is water, oil, steam, no pulsating working pressure.Medium temperature ≤100℃, nominal pressure 0.6, 1.0, 1.6Mpa.
Main parts and materials:
|
Part name
|
Body,plug
|
packing
|
Applicable medium
|
Working temperature (℃)
|
|
Material
|
Cast copper
|
Oil-soaked asbestos packing
|
Water,steam,oil
|
≤100
|

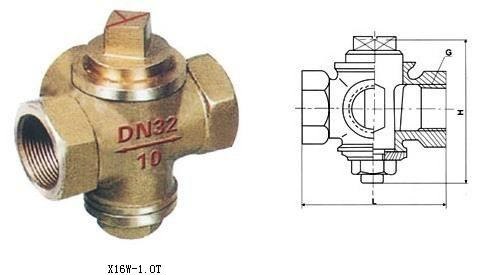

Main dimensions:
|
Nominal diameter
DN
|
Threaded pipe
G
|
L
|
H
|
|
PN6
|
PN10
|
PN16
|
PN6
|
PN10
|
PN16
|
|
15
|
1/2
|
70
|
70
|
70
|
78
|
78
|
78
|
|
25
|
1
|
100
|
100
|
100
|
123
|
123
|
123
|
|
32
|
1 1/4
|
120
|
120
|
120
|
150
|
150
|
150
|
|
40
|
1 1/2
|
130
|
130
|
130
|
160
|
160
|
160
|
|
50
|
2
|
143
|
143
|
143
|
186
|
186
|
186
|
Packing & Delivery :
Packing Details : all by seaworthy plywood case and packed strongly by packing belt as below
Delivery Details : Generally it is 5-10 days if the goods are in stock. or 15-30 days if the goods are OEM or not enough subject to the order quantity. But anyway, normally, we are able to make sure the delivery will not exceed 45 days.
