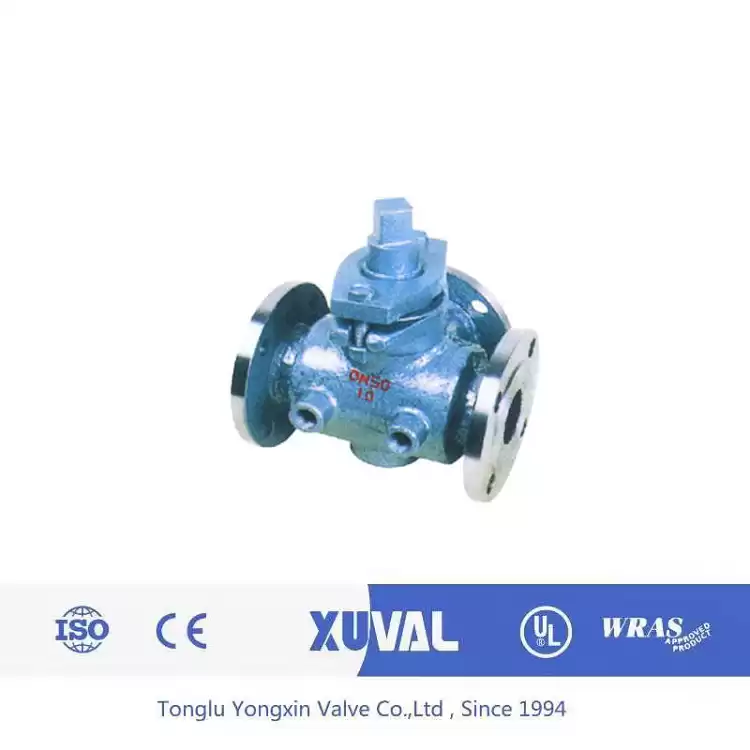

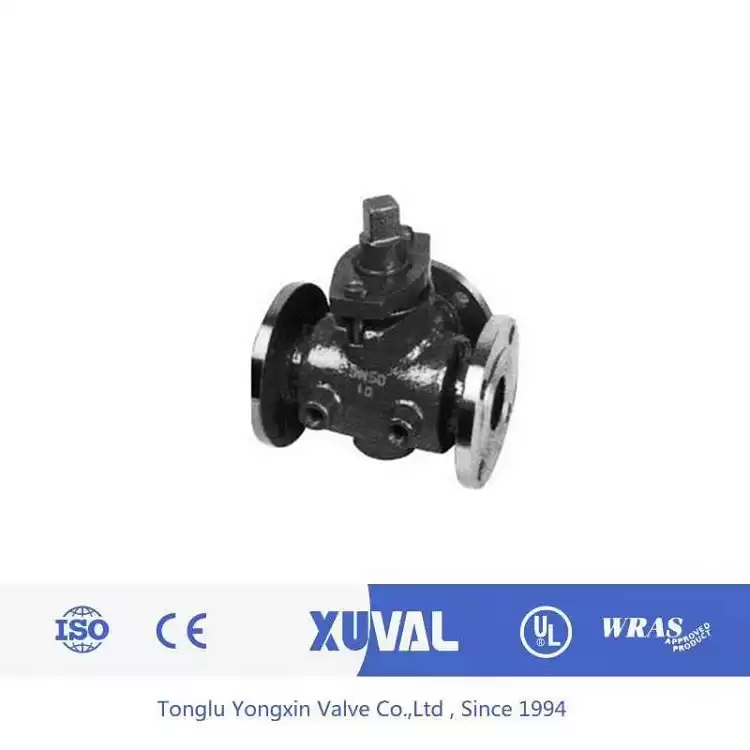

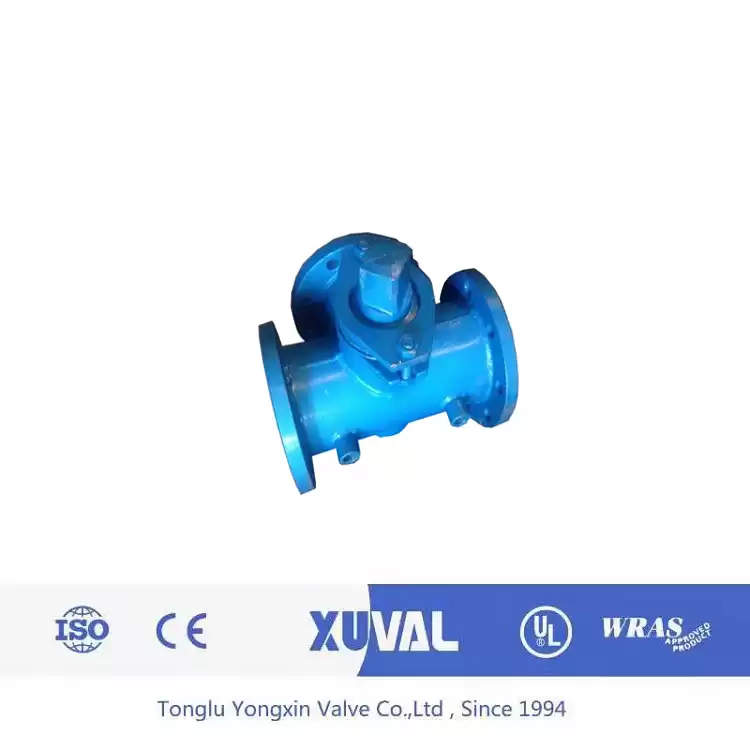

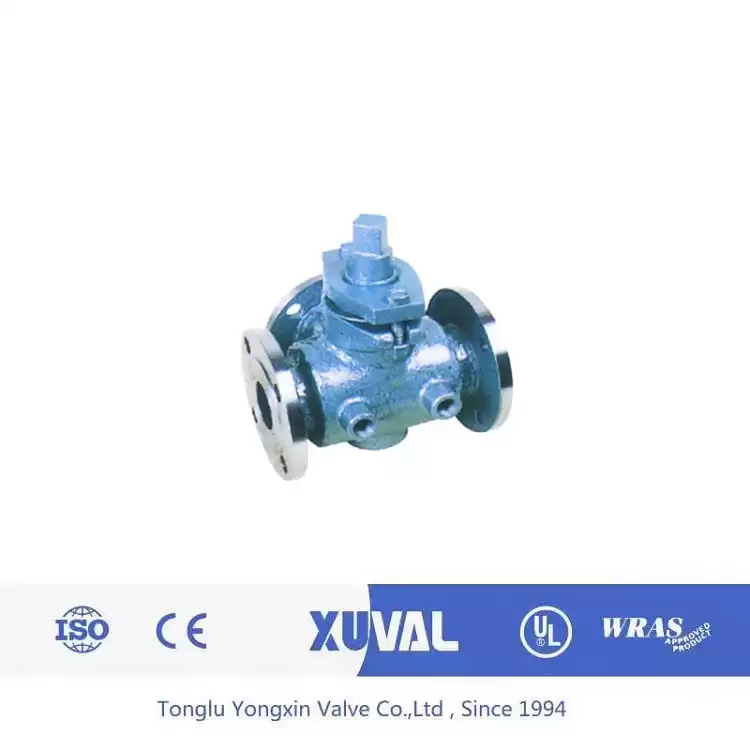

The opening and closing part of the insulation plug valve is a perforated cylinder that rotates perpendicular to the axis of the passage to achieve the purpose of opening and closing the passage.Steel plug valves are mainly used for opening and closing pipes and equipment media.Mainly used in chemical, petroleum, pharmaceutical, metallurgy and other industries in the system pipeline, the main role is to transport at room temperature will solidify, easy to crystallization of the medium.
Main performance specification:
Model
|
Nominal pressure
PN (Mpa)
|
Test pressure PS (Mpa)
|
Working pressure
P (Mpa)
|
Applicable medium
|
Working temperature
(℃)
|
|
Shell
|
Seal
|
|
BX44W-1.0P
|
1.0
|
1.5
|
1.1
|
1.0
|
Nitric acid etc
|
≤250
|
|
BX44W-1.0C
|
1.0
|
1.5
|
1.1
|
1.0
|
Non-corrosive,weak corrosive
|
≤250
|

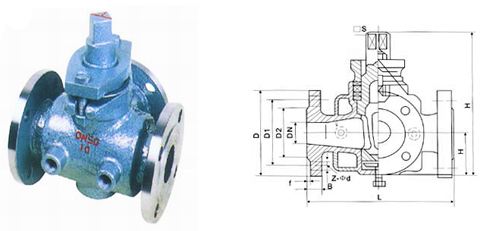

Main dimensions:
|
DN
|
L
|
D
|
D1
|
D2
|
Z-φd
|
|
20
|
145
|
150
|
105
|
75
|
55
|
4-14
|
|
25
|
145
|
160
|
115
|
85
|
65
|
4-14
|
|
32
|
165
|
190
|
135
|
100
|
78
|
4-18
|
|
40
|
190
|
200
|
145
|
110
|
85
|
4-18
|
|
50
|
200
|
200
|
160
|
125
|
100
|
4-18
|
|
65
|
220
|
280
|
180
|
145
|
120
|
4-18
|
|
80
|
250
|
300
|
195
|
160
|
135
|
4-18
|
|
100
|
300
|
340
|
215
|
180
|
155
|
8-18
|
|
125
|
350
|
245
|
210
|
185
|
8-18
|
|
150
|
400
|
280
|
240
|
210
|
8-23
|
|
200
|
450
|
335
|
295
|
265
|
8-23
|
250
|
530
|
390
|
350
|
320
|
12-23
|
|
300
|
580
|
440
|
400
|
368
|
12-23
|
Main parts and materials:
|
Part Name
|
Body,Plug
|
Packing
|
|
BX44W-1.0P
BX44W-1.0R
|
Stainless steel
|
Graphite packing+304
|
|
BX44W-1.0C
|
Cast steel
|
Packing & Delivery :
Packing Details : all by seaworthy plywood case and packed strongly by packing belt as below
Delivery Details : Generally it is 5-10 days if the goods are in stock. or 15-30 days if the goods are OEM or not enough subject to the order quantity. But anyway, normally, we are able to make sure the delivery will not exceed 45 days.
