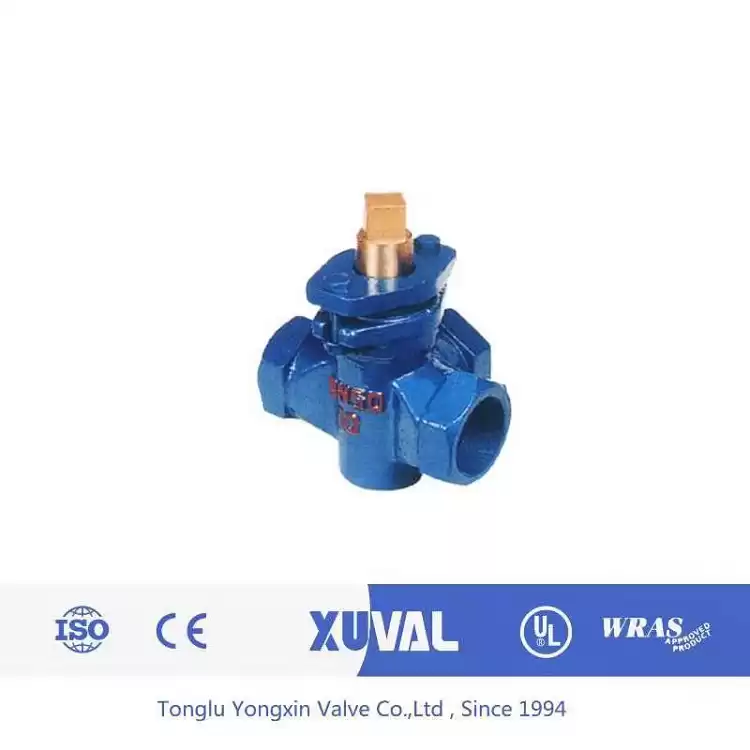

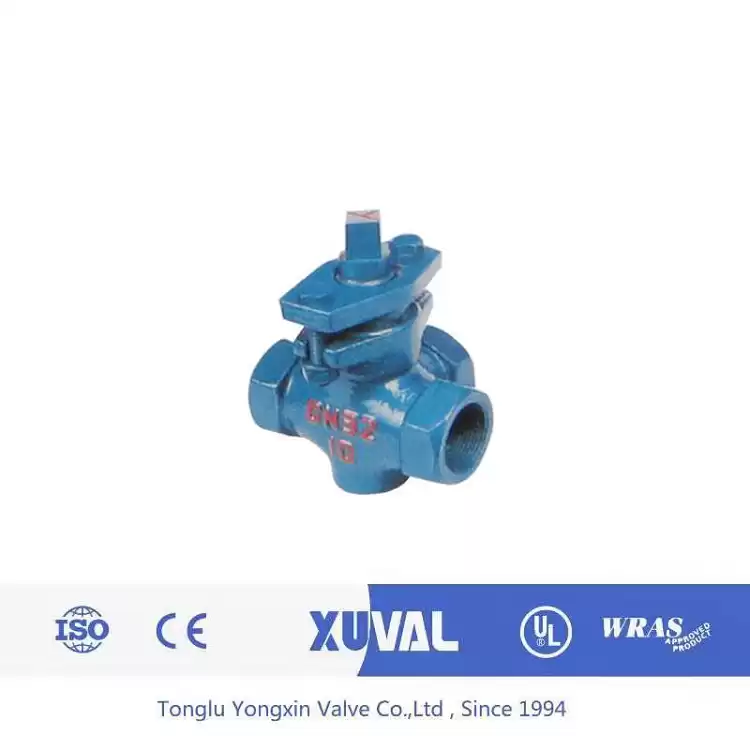

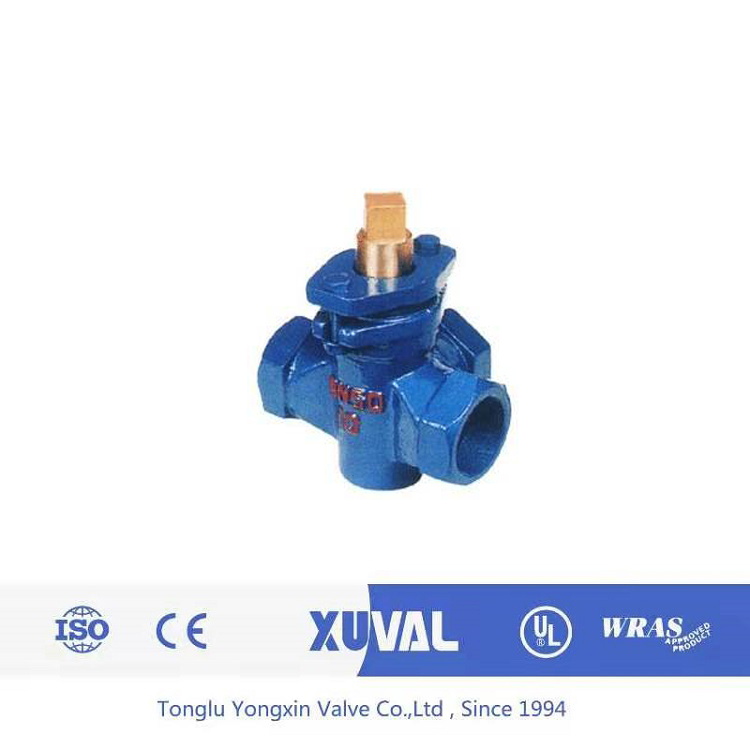

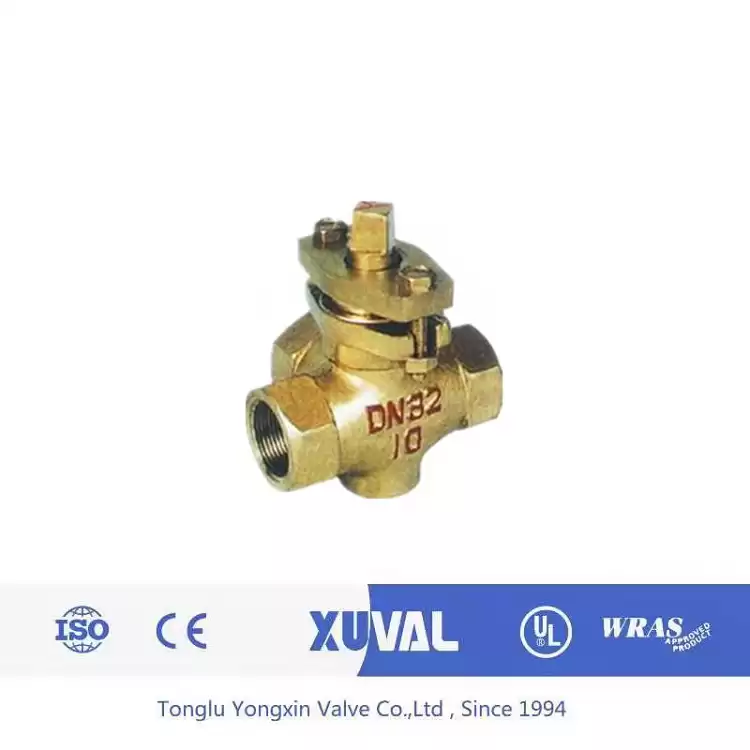

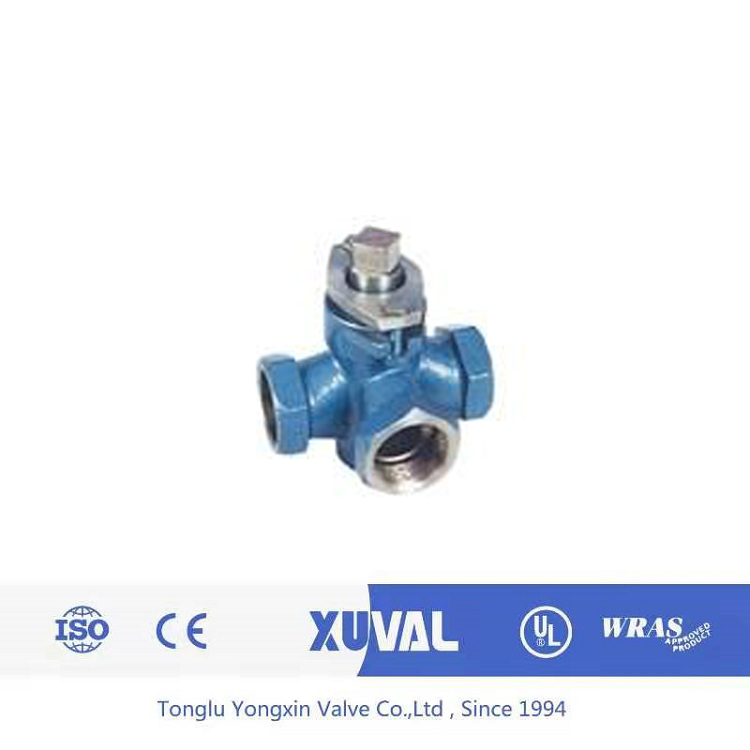

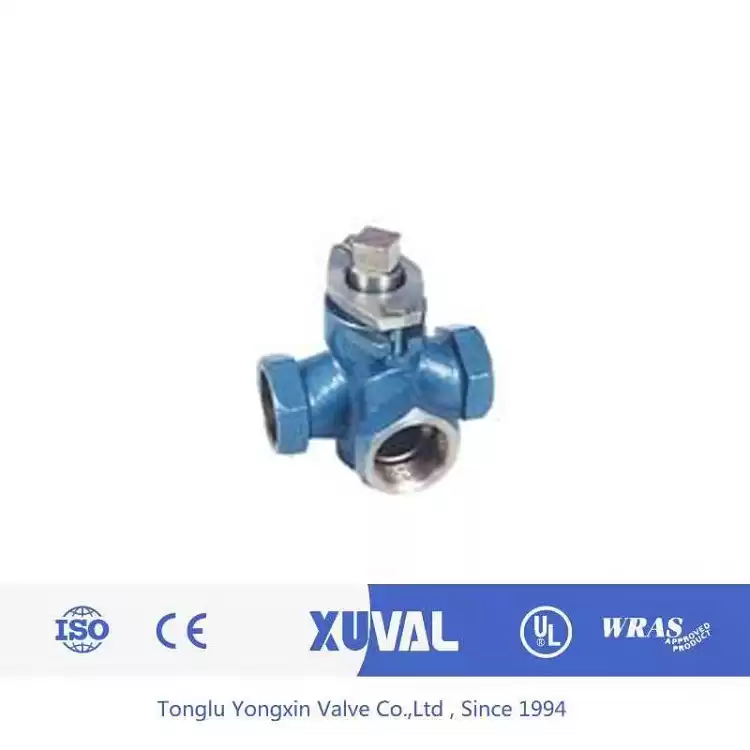

Three - way internal screw plug valve in the pipeline is mainly used for cutting, lifting and changing the direction of medium flow.
It can be easily adapted to a multi-channel structure so that one valve can have two, three, or even four different flow lanes, which simplifies the design of the piping system and reduces the amount of valve door use and some connections required in the equipment.The purpose of the three-way internal screw plug valve is to be installed in the pipeline mainly for cutting, distributing and changing the direction of medium flow.Applicable medium for water, oil, steam, no pulsating working pressure.Medium temperature ≤100℃, Nominal pressure 0.6, 1.0, 1.6MPa.
Main performance specification:
|
Model
|
Nominal pressure
PN (Mpa)
|
Test pressure(Mpa)
|
Applicable medium
|
Working temperature
(℃)
|
|
Shell
|
Seal
|
|
X14W-1.0
|
1.0
|
1.5
|
1.1
|
Gas,Oil
|
≤100
|
|
X14T-1.0P
|
1.0
|
1.5
|
1.1
|
Nitric acid,Acetic acid
|
Main dimensions:
|
Nominal diameter
DN(mm)
|
Threaded pipe
G
|
Size(mm)
|
|
H
|
L
|
h
|
□S
|
|
15
|
1/2
|
117
|
85
|
30
|
12
|
|
20
|
3/4
|
126
|
90
|
34
|
16
|
|
25
|
1
|
160
|
110
|
42
|
18
|
|
32
|
1 1/4
|
176
|
130
|
48
|
18
|
|
40
|
1 1/2
|
210
|
150
|
64
|
26
|
|
50
|
2
|
238
|
170
|
76
|
28
|
|
65
|
2 1/2
|
250
|
220
|
80
|
30
|
|
80
|
3
|
340
|
250
|
115
|
38
|
|
100
|
4
|
350
|
300
|
125
|
42
|
Main parts and Materials:
|
Part Name
|
Body
|
Plug
|
Packing gland
|
Packing
|
|
X14W-0.6T
|
Cast copper
|
Cast copper
|
Cast copper
|
Oil- soaked asbestos packing
Flexible graphite
|
|
X14W-1.0
|
Cast iron
|
Cast iron
|
Cast iron
|
|
X14W-1.0P
|
Stainless steel
|
Stainless steel
|
Stainless steel
|
|
X14W-1.0C
|
Cast steel
|
Cast steel or Cast iron
|
Cast steel
|
