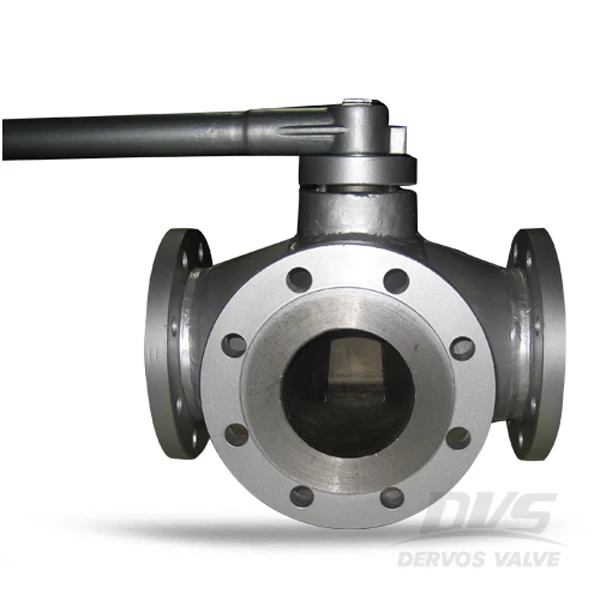

The 3 way plug valve is made of WCB body and stainless steel trim as per API 599. The plug valve that could connect any two ports together is applicable for natural gas service, water, oil and so on.
Quick Detail
|
Type
|
Plug
Valve
|
|
Size
|
4''
|
|
DesignPressure
|
150LB
|
|
Construction
|
Three
Way Type Plug Valve
|
|
ConnectionType
|
Flange
Connection
|
|
Operation
|
Lever/Wrench
|
|
Design Code
|
API 599
|
|
Face to Face
|
ASME
B16.10
|
|
End Connection
|
ASME
B16.5
|
|
Pressure &
Temp
|
ASME
B16.34
|
|
Test &
Inspection
|
API
598
|
|
Body Material
|
A216
WCB
|
|
TemperatureRange
|
-29β~+425β
|
|
Application
|
WOG
|
Related Knowledge
What are types of plug valves?
Lubricated Plug Valve
The plug gets lubricated by injecting sealant through injection fitting. The lubricant make sure the smooth movement and prevent the corrosion of plug. Usually, the seat of lubricated plug valve is metal, thus they can withstand higher temperature, available in larger size and higher pressure.
Non-Lubricated Plug Valve
A non-metallic sleeve or liner is installed in the body cavity of the plug valve. This sleeve reduce the fricion beween plug and body. Meanwhile it prevents the corrosion of plug. Due to non-metallice sleeve, the non-lubricated plug valve cannot be used in high temperature condition.
Multiway Plug Valve
The multiway plug valve is used for diverting flow in transfer lines. The multiway plug valves we often see are 3 way plug valve or 4 way plug valve.
Dervos Packaging
Based on sufficient experience, we have developed complete packing specifications and procedures to ensure clear and safe transportation so that you can receive good and sound products. And this is also an important factor that we earn good reputation from our customers.
