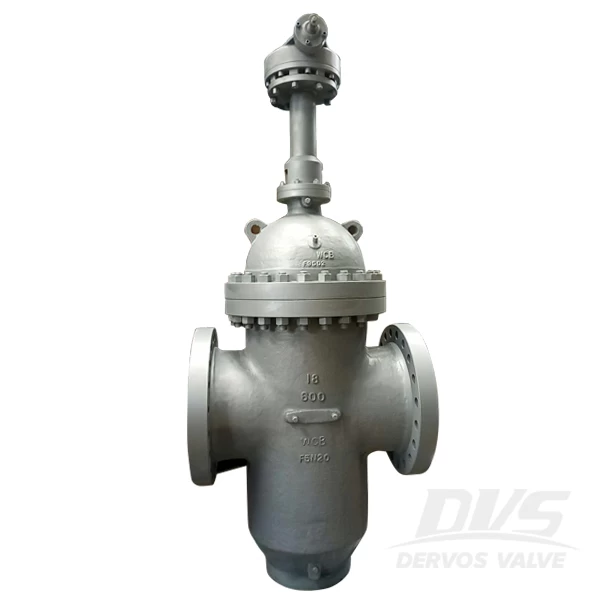

The API 6D through conduit gate valve is designed with double expanding wedges, metal to metal seat and diversion hole for pigging. The valve has good performance on sealing, less flow resistance and is suitable for application with some solids or particles.
Quick Detail
|
Type
|
Gate
Valve
|
|
Size
|
18''
|
|
Design Pressure
|
ANSI
600
|
|
Construction
|
Double
Expanding Wedges, Fully Metal Seat, With Diversion Hole
|
|
ConnectionType
|
RTJ
Flange
|
|
OperationType
|
Gearbox
Operated
|
|
Body Material
|
WCB
|
|
WedgeMaterial
|
A105+STL+ENP
|
|
StemMaterial
|
17-4PH
|
|
SeatMaterial
|
A105+STL+ENP
|
|
Design Code
|
API 6D
|
|
Face to Face Dimension
|
ASME
B16.10
|
|
End Connection
|
ASME
B16.5
|
|
Pressure & Temp
|
ASME
B16.34
|
|
Medium
|
Water,
Oil and Gas
|
|
Origin
|
China
|
