PRODUCT:G-series,G-12
Main Features

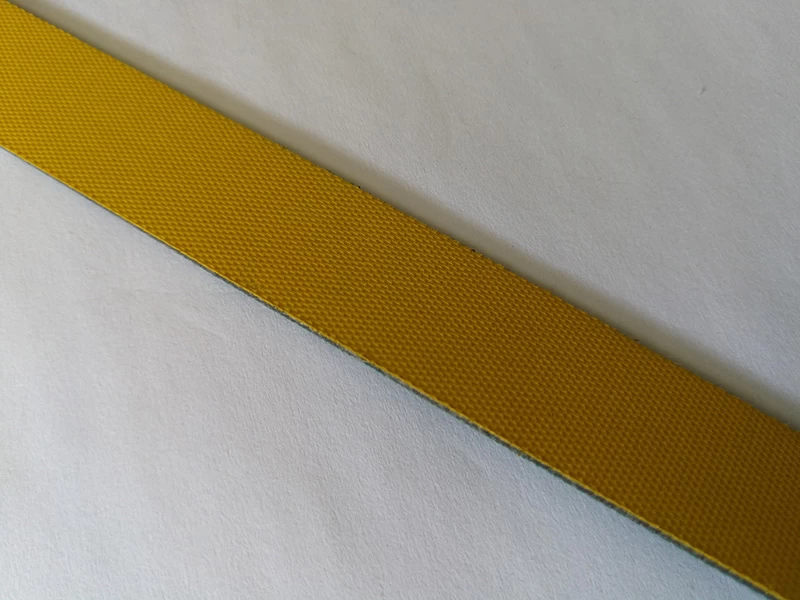

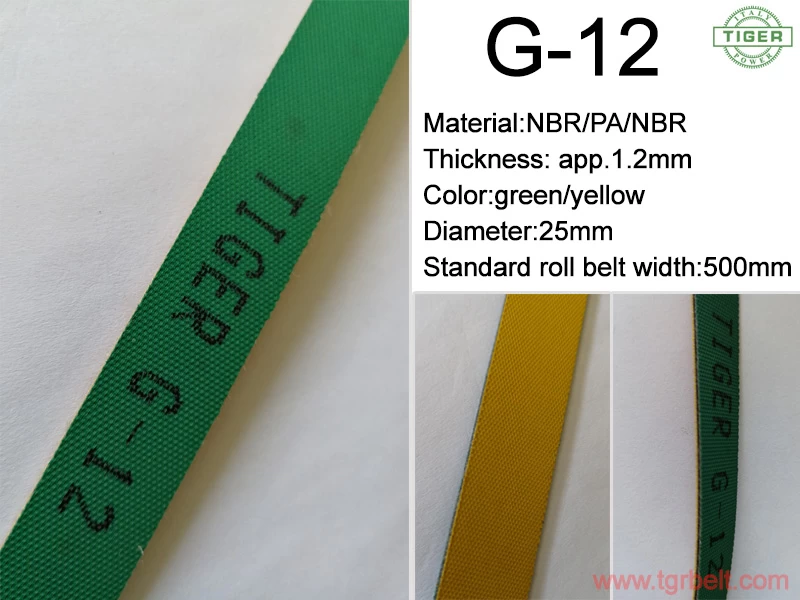

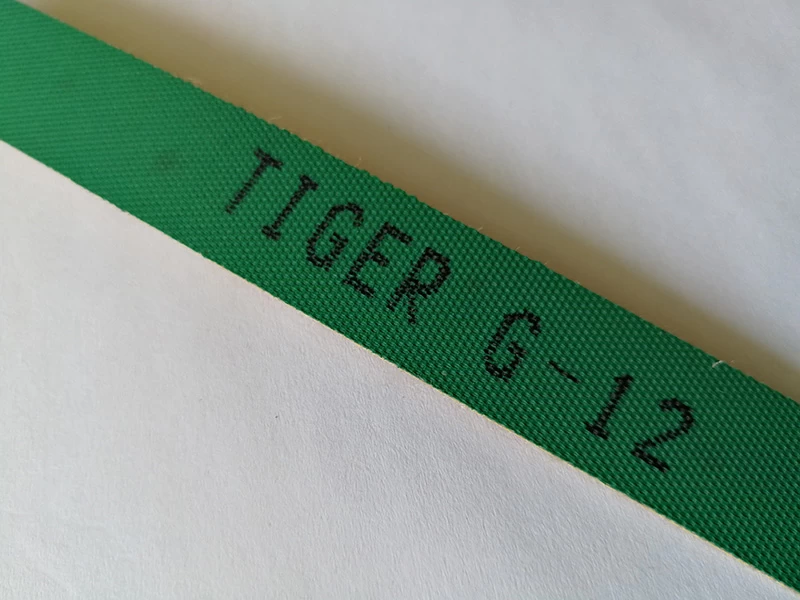

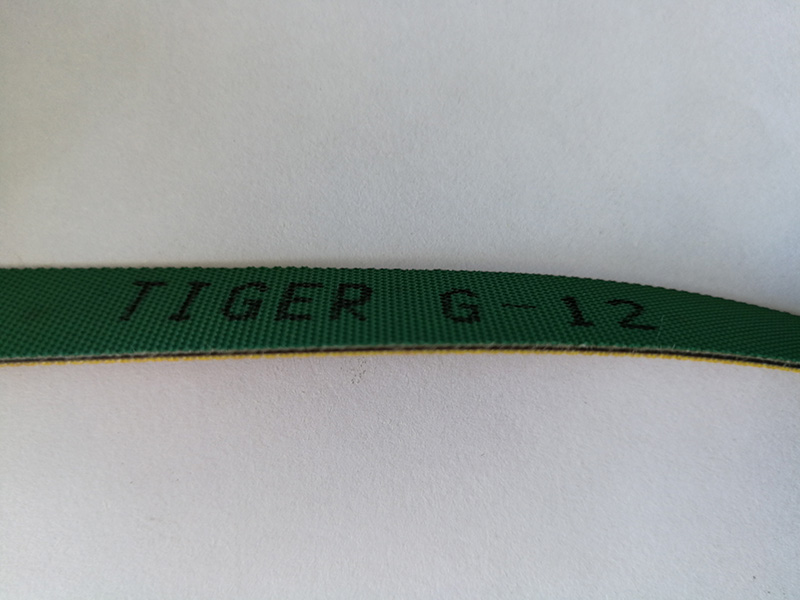

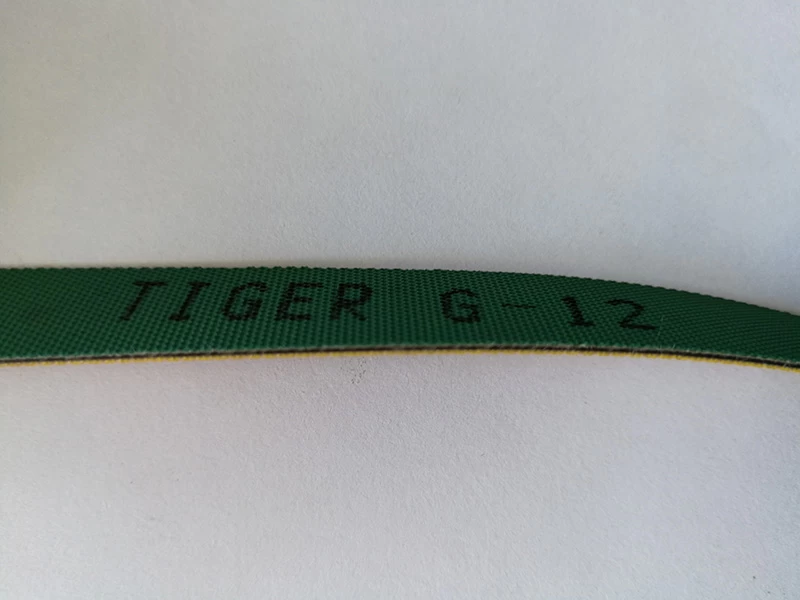

Tiger 1.2mm sandwich flat belt is 25mm diameter,specially used for small diameter drive.
Technical datas
|
Type
|
G-12
|
|
Belt thickness
|
1.2mm
|
|
Color
|
green,yellow
|
|
Surface
|
rough structure
|
|
Weight
|
1.4kg/m2
|
0.2865 lbs./ft.2
|
|
Force at 1% elongation
|
3N/mm
|
16.797 lbs./in.
|
|
Temperature range
|
-10 to 110°C
|
14 to 230°F
|
|
Min. pulley diameter
|
25mm
|
0.984in.
|
|
Standard roll belt width
|
500mm
|
19.685in.
|
|
Max. roll belt width
|
540mm
|
21.26in.
|
|

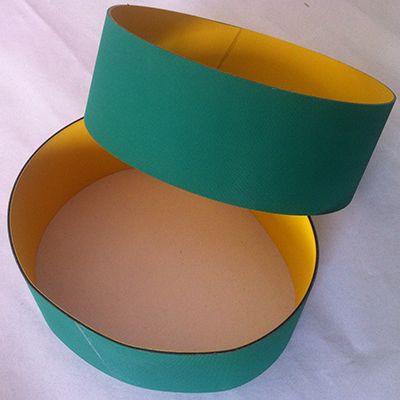

Endless instructions
|
Hot splicing with overlap is
always preferable.
|
1.2mm transmission belt joint system
The belt can be cut into any sizes from the roll belt,and then joint together.
But please fix the belt to the machine matching with the belt running direction.
1.2mm yellow green power belt special processing

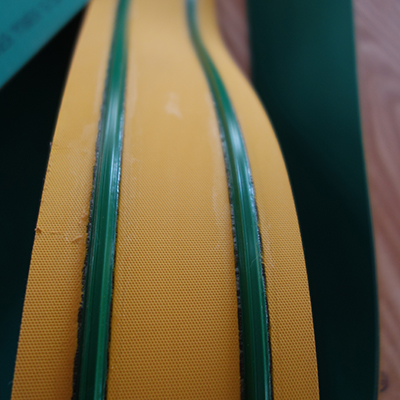

The profiles 6*4,10*6 or others can be glued in the friction cover.

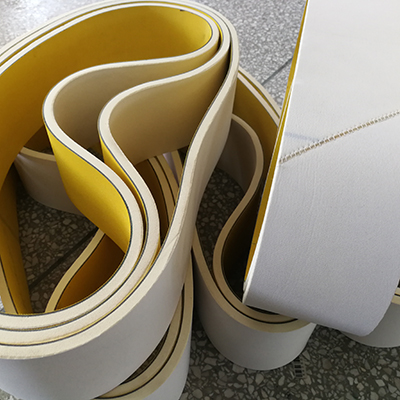

The white,blue or green sponge can be glued in the belt reverse cover, also the red, blue or black rubber is glued sometimes.

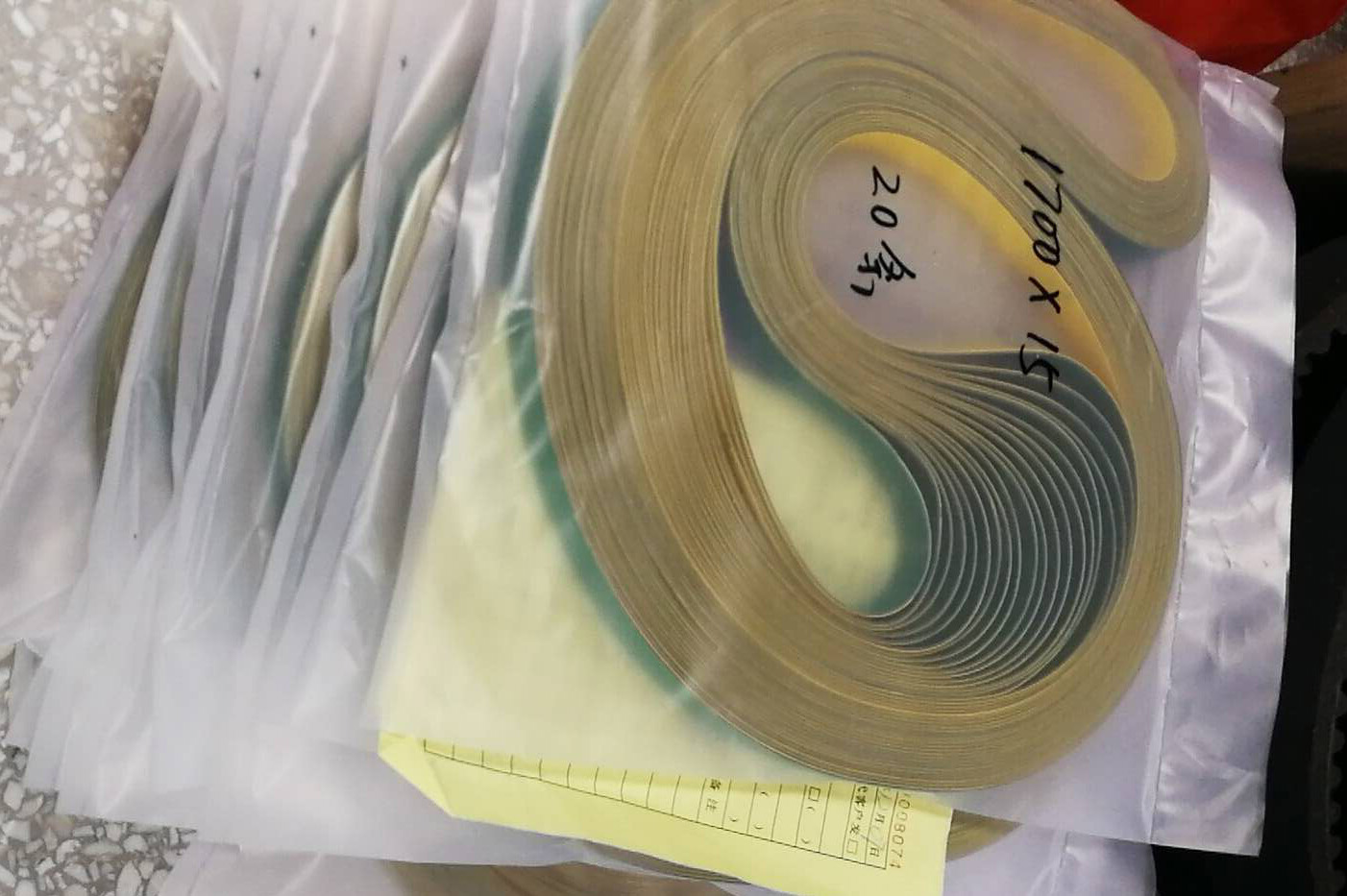

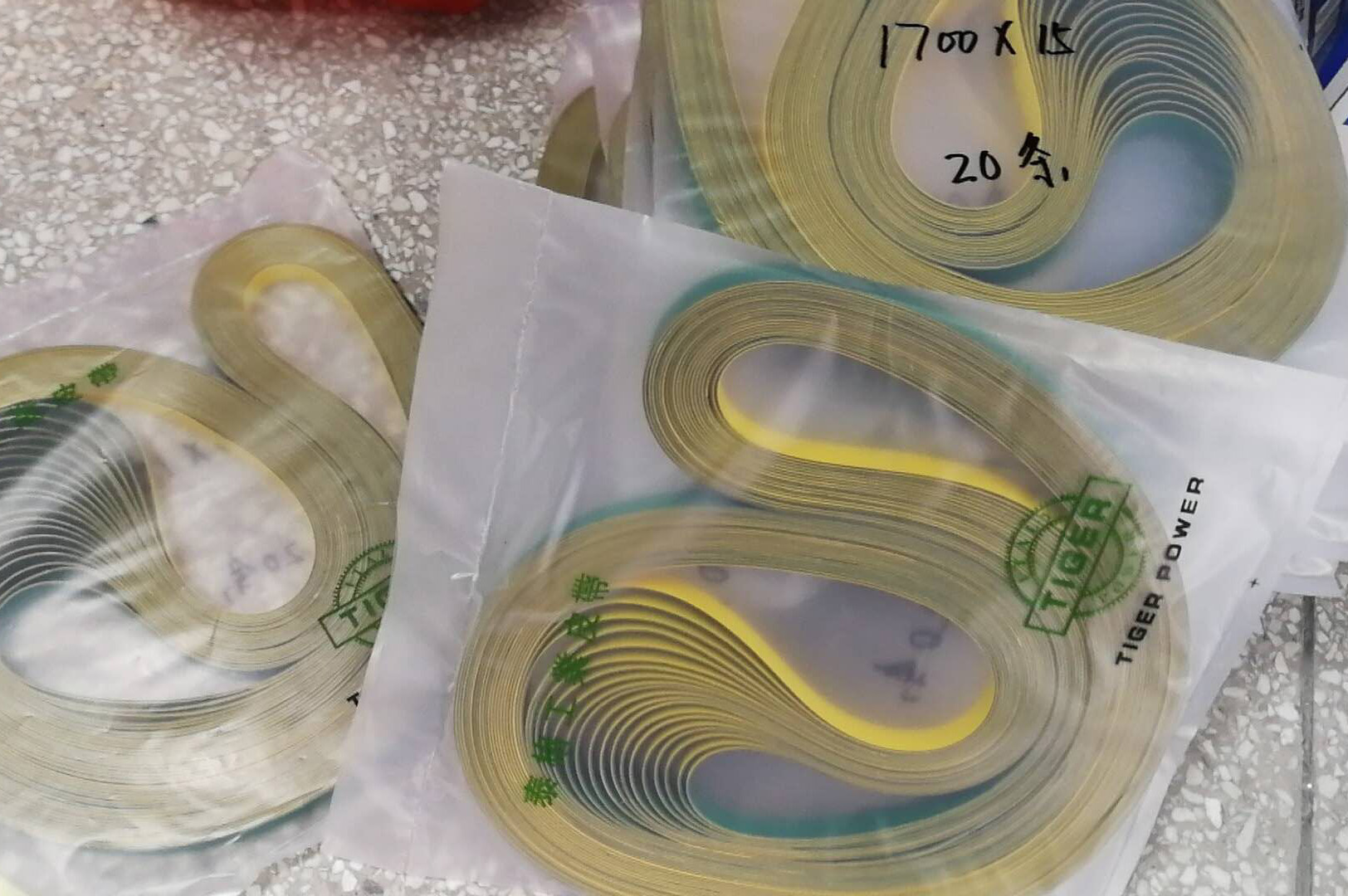

Packages
APPLICATION
1.2mm sandwich flat belt G-12 is largely used in paper straws production machine,and other machinery.
