PRODUCT: PVC conveyor belt,P-15GB/YY
Main Feature

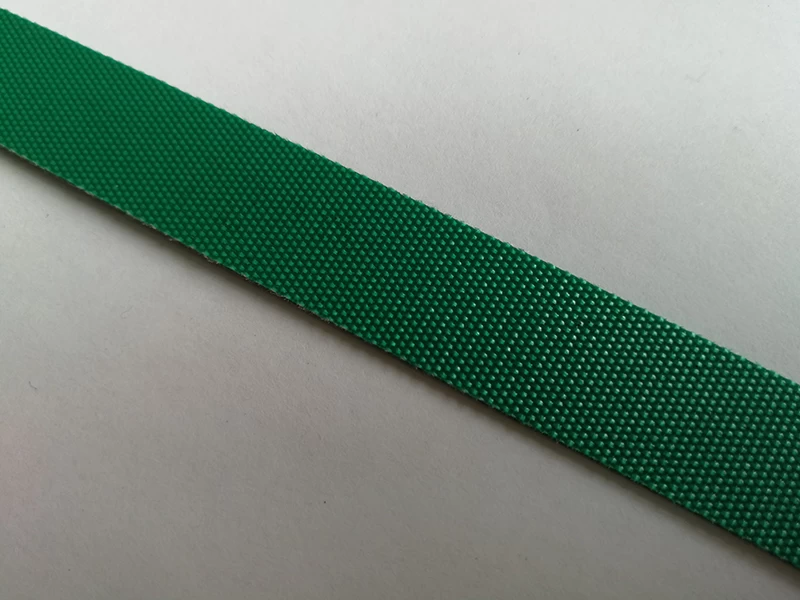

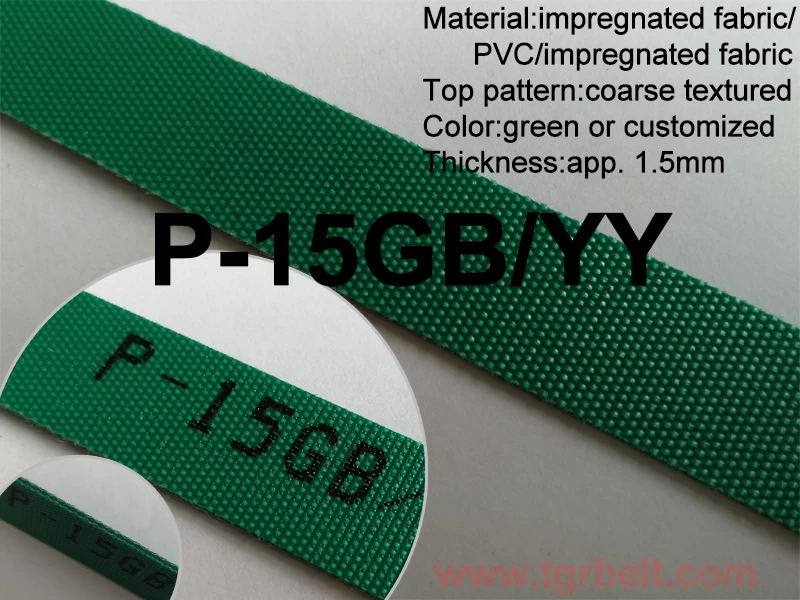

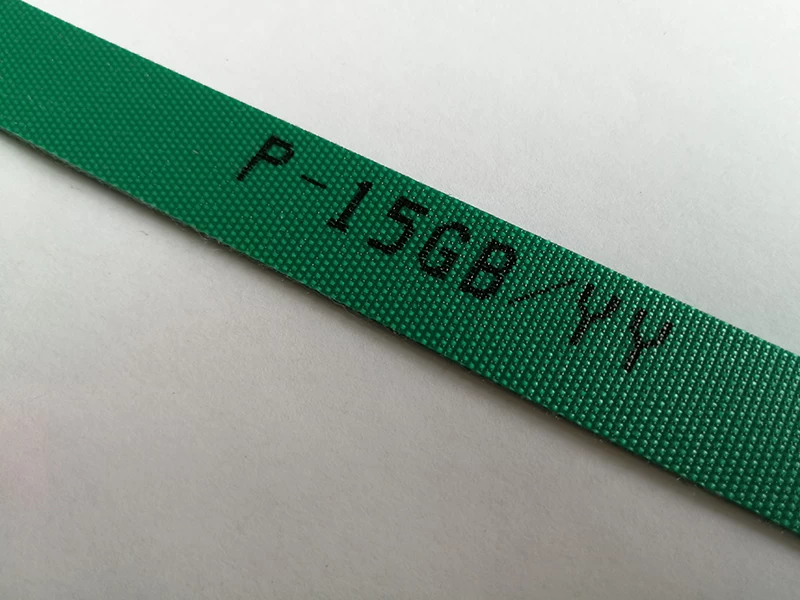

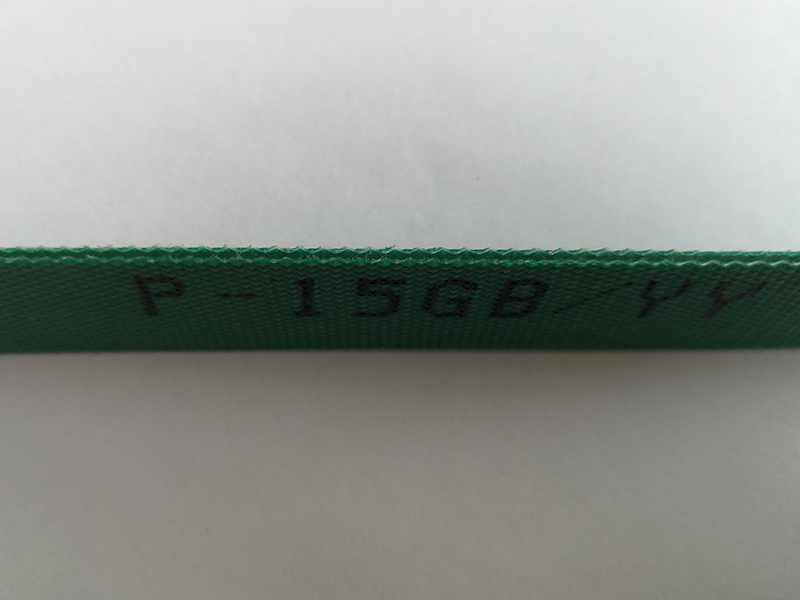

Tiger 1.5mm popular green PVC curtain belt is a popular PVC fabric conveyor belt as a curtain belt for shutter roller door.
Technical datas
|
Type
|
P-15GB/YY
|
|
Belt thickness
|
1.5mm
|
|
Colorw
|
green
|
|
Surface
|
coarse textured
|
|
Weight
|
1.8kg/m2
|
0.368 lbs./ft.2
|
|
Force at 1% elongation
|
8N/mm
|
44.79 lbs./in.
|
|
Temperature range
|
-15 to 80°C
|
5 to 176°F
|
|
Min. pulley diameter
|
40mm
|
1.57in.
|
|
Standard roll belt width
|
2000mm
|
78.74in.
|
Application in shutter roller door and other conveyors
We are a reputed belting manufacturer and supplier, we make sure the following conditions for you:
-
QUALITY
ASSURANCE:Guarantee that the
commodity hereof complies in all respects with the quality and specification
stipulated in the contract.
-
DELIVERY GUARANTEE:Ship the goods
within the shipment time from the port of shipment to the destination in the
contract.
-
FACTORY PRICE:Prices refer to
the cost of raw materials directly from factory.
-
TEAM OF
PROFESSIONALS:Offer experienced
customer service and technical support including belts selection, calculation,
application and after-sale service.
-
FABRICATION
WORKSHOP:Provide belts
cutting, jointing, as well as belt perforations, belt sealed, belt coated with
rubber and sponge, belt guides,etc.
