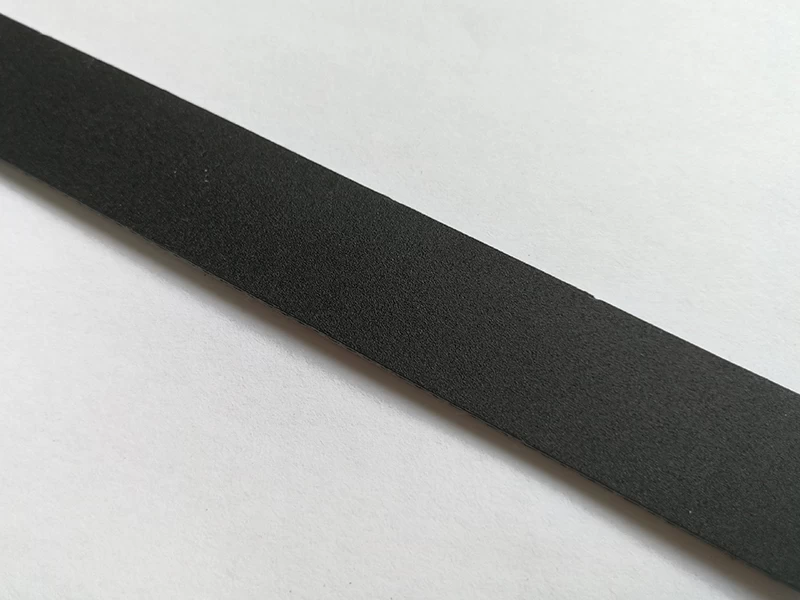

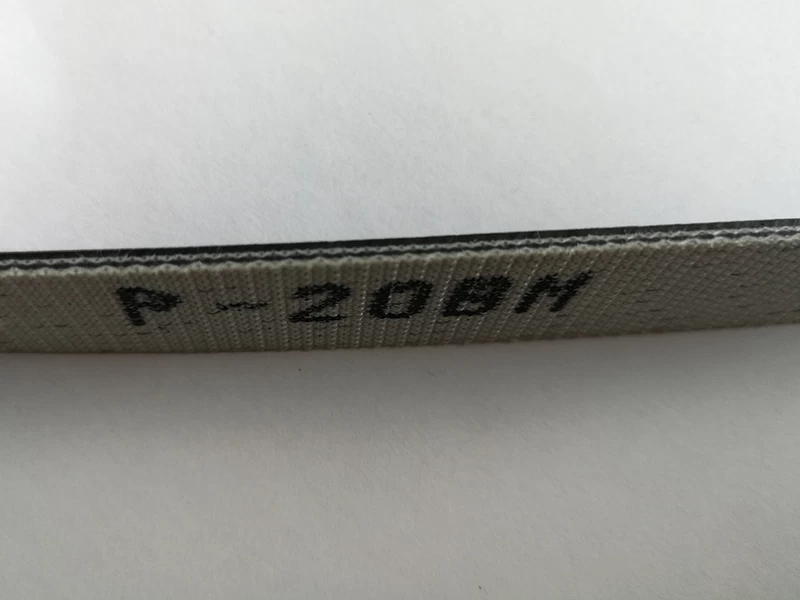

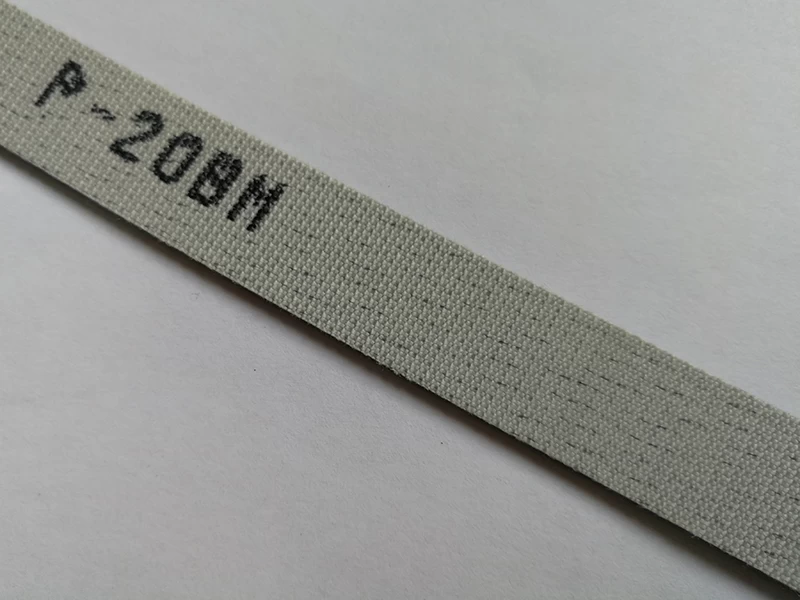

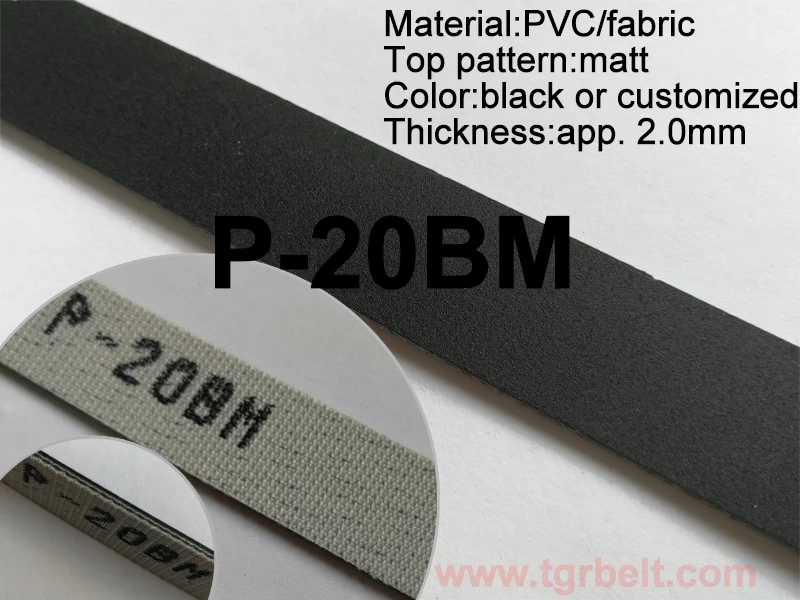

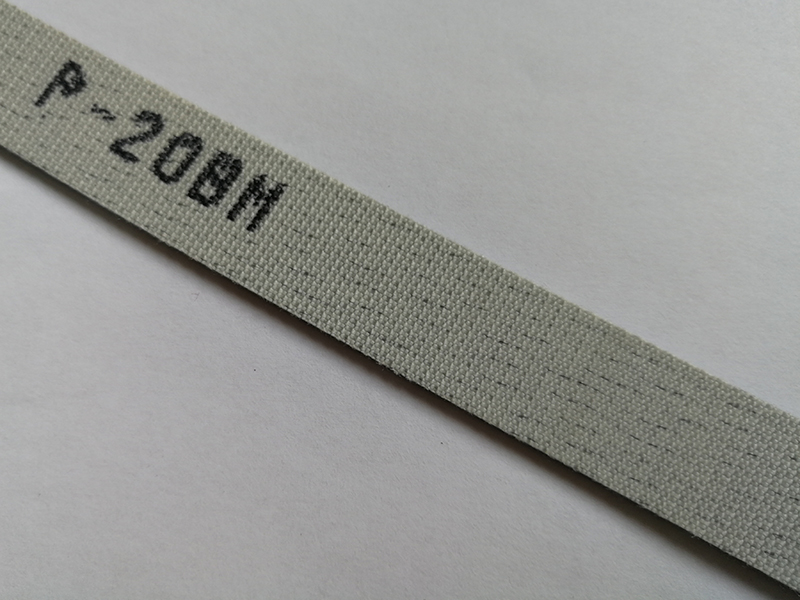

PRODUCT: PVC coated fabric conveyor belt,P-20BM
Main Feature
Tiger 2.0mm matt logistics conveyor belt is a popular type in airport and material handling transportation.
Technical datas
|
Type |
P-20BM |
|
|
Belt thickness |
2.0mm |
|
|
Color |
black |
|
|
Surface |
matt | |
|
Hardness top |
55 shore |
|
|
Weight |
2.2kg/m2 |
0.45 lbs./ft.2 |
|
Force at 1% elongation |
8N/mm |
44.79 lbs./in. |
|
Temperature range |
-15 to 80°C |
5 to 176°F |
|
Min. pulley diameter |
40mm |
1.57in. |
|
Standard roll belt width |
2000mm |
78.74in. |
|
Processing |
cut to length or endless ,welded guides on the bottom, and other special processing requirement |
|
|
Endless instructions |
Hot splicing is always preferable. |
|
Application:
- logistics transportation processes of loading,unloading,merging,inclinded and other conveyors.
- printing and paper conveyors
As a reputed belting manufacturer and supplier,we own our experienced R&D team,production factory and workshop.
QUALITY ASSURANCE
Guarantee that the commodity hereof complies in all respects with the quality and specification stipulated in the contract.
DELIVERY QUARANTEE
Ship the goods within the shipment time from the port of shipment to the destination in the contract.
FACTORY PRICE
Prices refer to the cost of raw materials directly from factory.
TEAM OF PROFESSIONALS
Offer experienced customer service and technical support including belts selection, calculation, application and after-sale service.
FABRICATION WORKSHOP
Provide belts cutting, jointing, as well as belt perforations, belt sealed, belt coated with rubber and sponge, belt guides,etc.
SERVICE NETWORK
Set up office, branches in Foshan, Suzhou, Wenzhou, Hongkong, etc, service locations for processing industrial belts in Foshan,Wuxi,Yongbo etc.
