PRODUCT:HNI-series,HNI-5G
MAIN FEATURE
Tiger 2.5mm hard-working polyamide driving belt is green and yellow NBR material,and polyamide tension layer.
TECHNICAL DATAS
|
Type
|
G-25
|
|
Belt thickness
|
2.5mm
|
|
Color
|
green,yellow
|
|
Surface
|
rough
|
|
Weight
|
2.5kg/m2
|
0.0984 lbs./ft.2
|
|
Force at 1% elongation
|
9N/mm
|
50.39 lbs./in.
|
|
Temperature range
|
-10 to 110°C
|
14 to 230°F
|
|
Min. pulley diameter
|
80mm
|
3.15in.
|
|
Standard roll belt width
|
500mm
|
19.685in.
|
|
Max. roll belt width
|
540mm
|
21.26in.
|
|
Processing
|
Rubber coated on the top or other special processing requirement.
|
|
Endless instructions
|
Hot splicing with overlap is
always preferable.
|

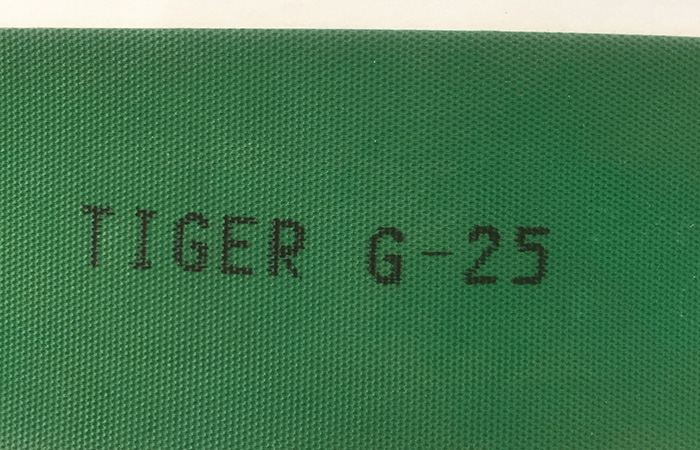

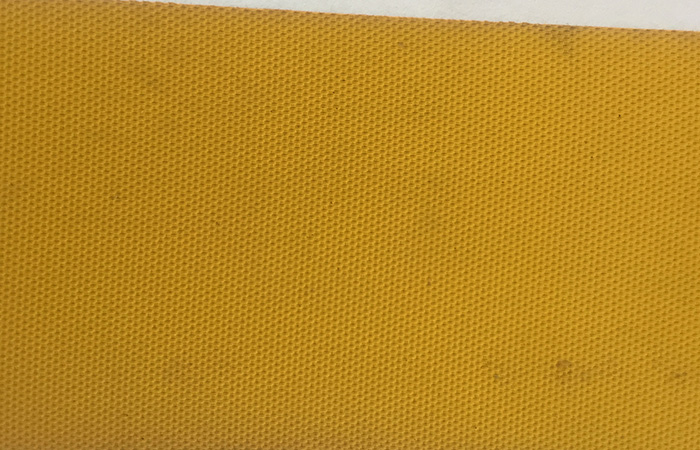

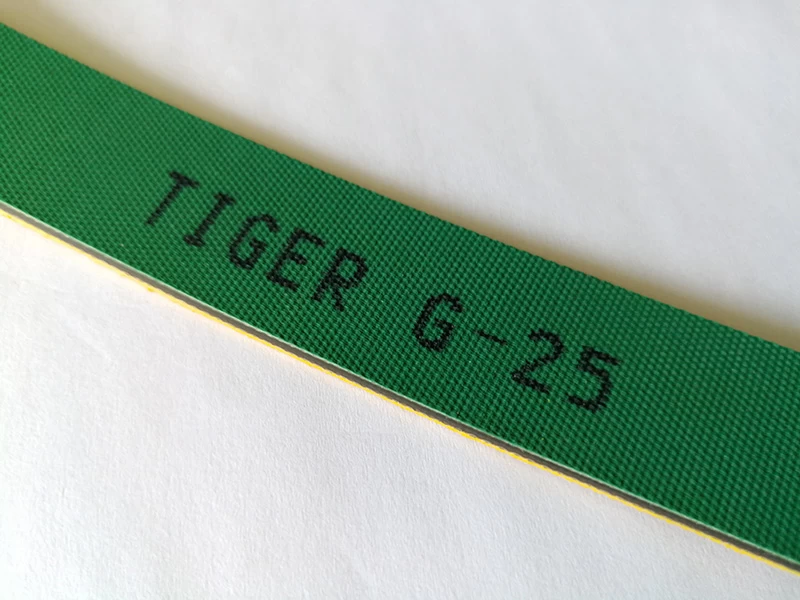

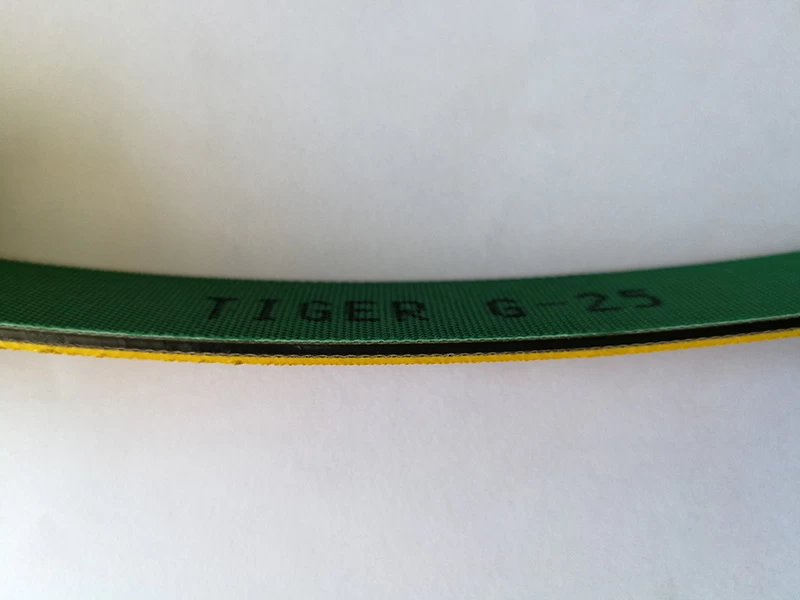

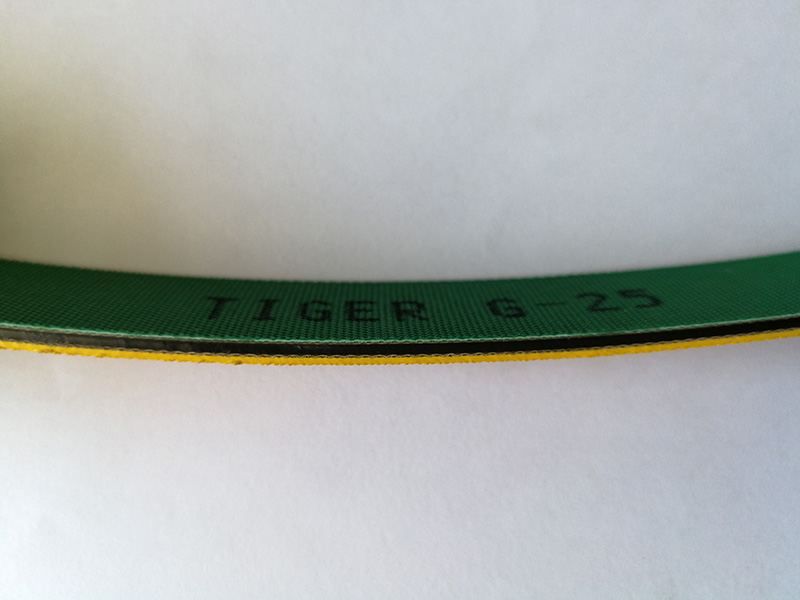

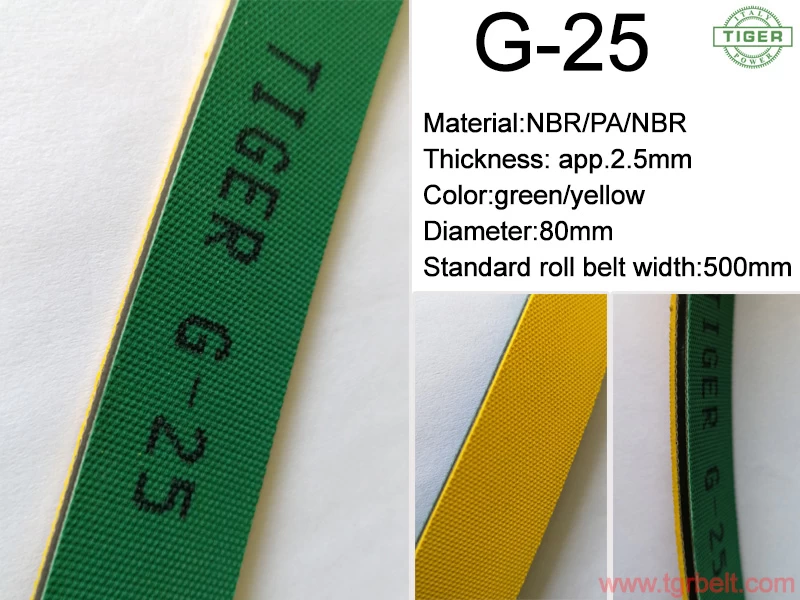

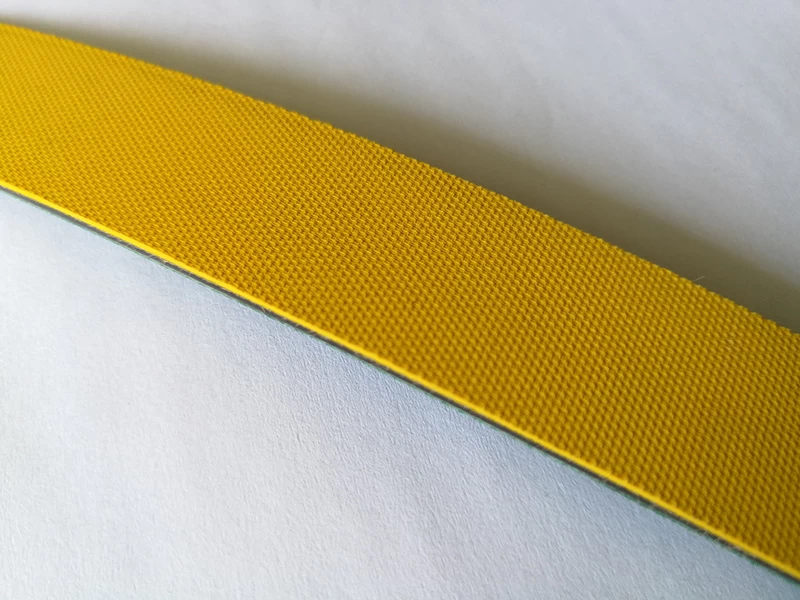

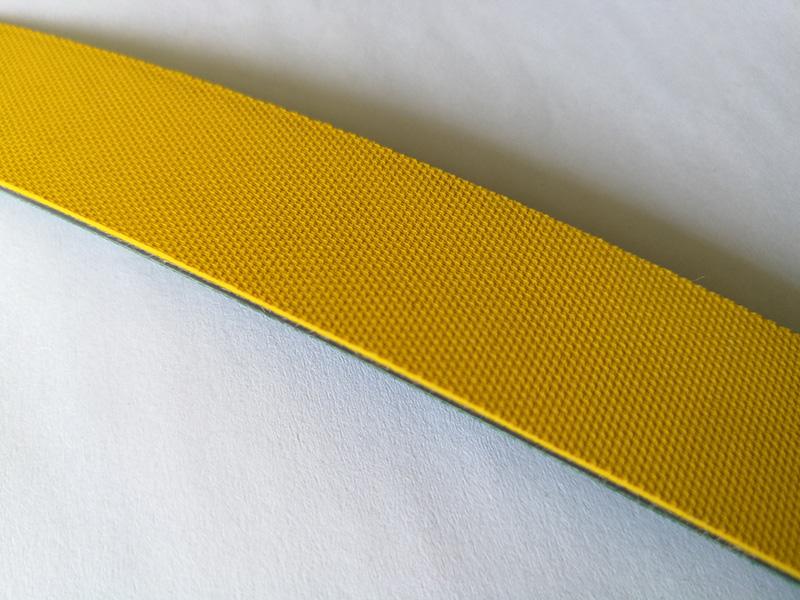

PRODUCT PICTURES
APPLICATION
Tiger 2.5mm hard-working polyamide driving belt is used as common transmission belt or tangential belt.
