Expert support of over 10 years belting experience.
95% 0f the online suppliers are trading companies, but we are a light-duty conveyor belt and timing belts manufacture specialty on designing, producing and processing the belting products.

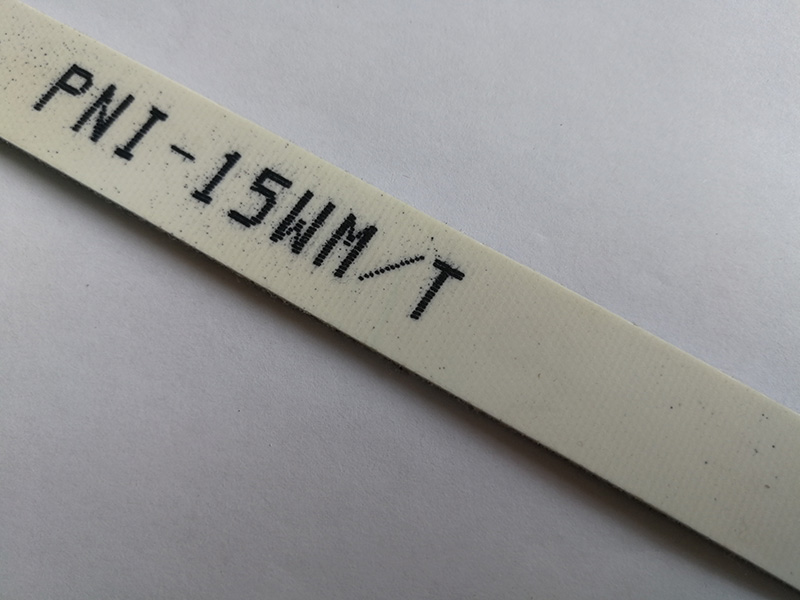

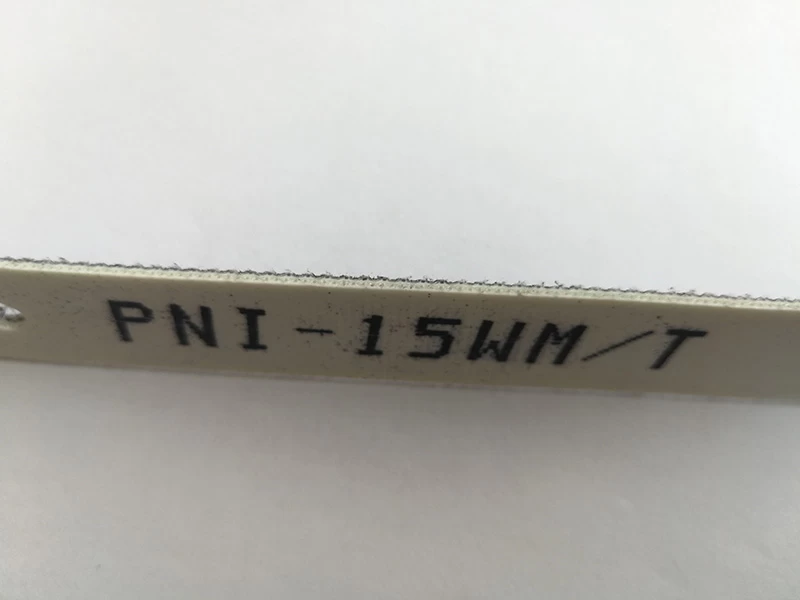

PRODUCT: hard PVC conveyor belt, PNI-15WM/T
MAIN FEATURE
Tiger anti-static hard PVC for paper conveyor system is excellent antistatic,made of hard PVC.
TECHNICAL DATAS
|
Type |
PNI-15WM/BB/T |
|
|
Belt thickness |
1.5mm |
|
|
Color |
white top,black bottom |
|
|
Surface |
matt |
|
|
Hardness top |
80 shore |
|
|
Weight |
1.6kg/m2 |
0.327 lbs./ft.2 |
|
Force at 1% elongation |
8N/mm |
44.79 lbs./in. |
|
Temperature range |
-15 to 80°C |
5 to 176°F |
|
Min. pulley diameter |
30mm |
1.181in. |
|
Standard roll belt width |
2000mm |
78.74in. |
|
Max. roll belt width |
3000mm |
181.11in. |
|
Processing |
cut to length or endless ,welded guides on the top or bottom, and other special processing requirement |
|
|
Endless instructions |
Hot splicing is always preferable, finger splice, overlap or fasteners are all done according to the application. |
|
APPLICATION
Tiger anti-static hard PVC for paper conveyor system is mostly applied to input the paper for paper industry.
PACKAGE
 |
 |
 |
 |
SHIPPING
|
Shipping method |
Load port |
|
DHL,FEDEX,UPS,TNT |
-- |
|
By Air |
Xiamen,Guangzhou,Shanghai port |
|
By sea |
Xiamen,Guangzhou,Shanghai port |
PAYMENT METHODS
|
Terms |
Bank charges |
Remark |
|
100% T/T advance payment |
30-100USD |
For new customers and less than 5000USD amount |
|
50% T/T advance payment and balance before shipping |
60-200USD |
Regular customers and 5000-15000USD amount |
|
30% T/T advance payment and balance before shipping |
60-200USD |
Regular customers and over 15000USD amount |
|
Western Union |
15-40USD |
- |
|
Moneygram |
8-25USD |
- |
ABOUT US
Overview
|
Production lines-capacity |
2 |
|
Facilities-machines conditions |
50sets |
|
Quality Assurance System |
Tiger Standard |
|
Sales staffs |
10-20 |
|
Annual turnover |
250-400USD |
|
Telephone |
86(0595)68883000,(0595)88811642 |
|
Fax |
86(0595)83112333 |
|
|
info@tgrbelt.com |
|
Trademark |
TGRBELT |
|
Managing Director |
Mr. Li |
Factory Profile
|
Date of foundation |
2002-8-6 |
|
|
Location |
Wuxi, Jiangsu Province,China |
|
|
Legal status |
Private Owned |
|
|
Registered capital |
10,000,000RMB |
|
|
Area |
3000m2 |
|
|
Factory manager |
Mr. Lu |
|
|
Main products (Units per month last 12 months) |
Conveyor belts |
20,000m2 |
|
Timing belts |
8000m2 |
|
|
Business license |
91320206740664312U |
|
|
Factory workers |
11-50 |
|
|
Engineers |
2 |
|
|
QC staff |
1 |
|
Workshop Profile
|
Date of foundation |
2007-2-2 |
|
Location |
Yangcuo Industrial Area,Yongning,Shishi City,Fujian,China |
|
Legal Status |
Private Owned |
|
Registered capital |
10,000,000RMB |
|
Area |
3000m2 |
|
Workshop Manager |
Jason Li |
|
Main products |
Conveyor belts, power transmission belts, timing belts, teflon belts, round belts, modular chains, machines and components |
|
Business license |
91350581798369287L |
|
workshop workers |
20-50 |
|
Engineers |
2 |
|
QC staff |
1 |
WHY CHOOSE US
QUALITY ASSURANCE
Guarantee that the commodity hereof complies in all respects with the quality and specification stipulated in the contract.
DELIVERY GUARANTEE
Ship the goods within the shipment time from the port of shipment to the destination in the contract.
FACTORY PRICE
Prices refer to the cost of raw materials directly from factory.
TEAM OF PROFESSIONALS
Offer experienced customer service and technical support including belts selection, calculation, application and after-sale service.
FABRICATION WORKSHOP
Provide belts cutting, jointing, as well as belt perforations, belt sealed, belt coated with rubber and sponge, belt guides,etc.
SERVICE NETWORK
Set up office, branches in Foshan, Suzhou, Wenzhou, Hongkong, etc, service locations for processing industrial belts in Foshan,Wuxi,Yongbo etc.
KEY PRODUCTS
Light-duty conveyor fabric belts, flat power transmission belts, PU & rubber timing belts, Teflon PTFE belts, PU round belts & V belts, profiles & cleats, other supplementary products and components.
