Tile roof hook POW-TRH-T10
Product Description:

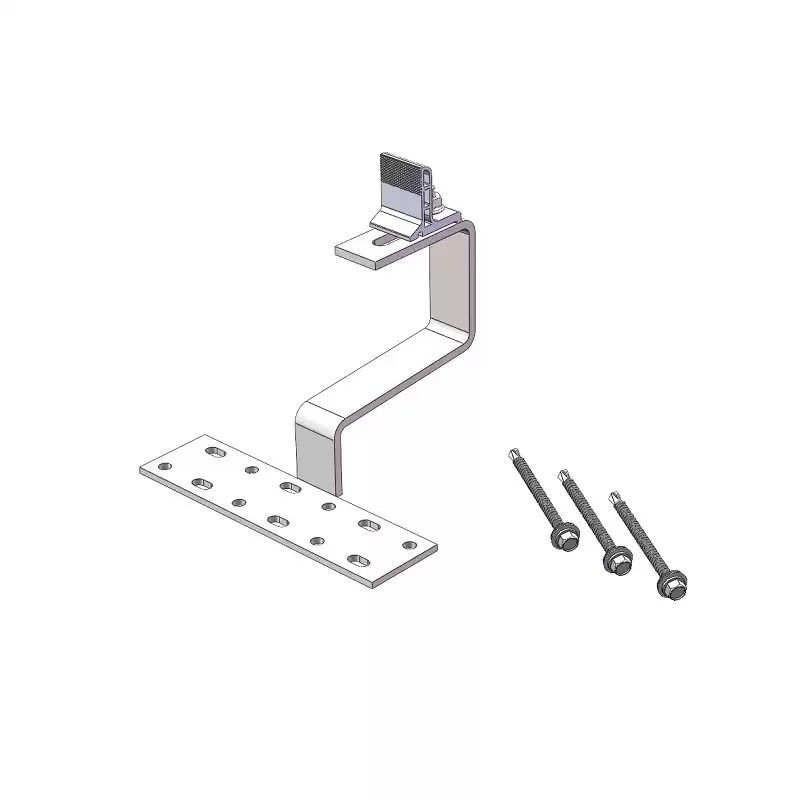

A tile roof hook is a metal bracket used to secure the track to a tile roof. It features a curved design that fits tightly around the edges of the tiles. The hooks are then secured to the roof with screws, providing a secure connection to the track clips and providing additional stability and support.
Product Category:
Tile interface
Product Code:
POW-TRH-T10
BOM:
| Product name |
Material |
Quantity |
| 10# Tile roof hook |
SUS 304 |
1 |
| M8x25 the carriage bolt |
SUS 304
|
1 |
| M8 hexagon nuts with flange |
SUS 304
|
1 |
| POW rail clamp |
Al6005-T5
|
1 |
SC6.3x80 hex head wood screw
|
20#
|
3 |
Suitable for:
Tile roof, Flat tile roof, Slate roof;
Why choose us:
Powerack have many types of Tile Roof Hooks, suitable for most roof types of Tile, Flat Tile, Slate Tile, Asphalt Shingle Tile. Unique designed of Mid&End clamps are used for 30-40mm thickness solar modules. A design that includes major specifications saves you inventory cost, quick and easy to install. Innovative design of rail connect base-support can effectively increase the product strength, ensure the safety of the product use. Powerack have a large variety of roof hooks provide customers options. Customized allowed according to customer needs to meet special installation requirements.
