Tile Roof Solar Mounting System

Solar Mounting System: Aluminum Solar sturcutrue Power Plant for pitched tile roof.

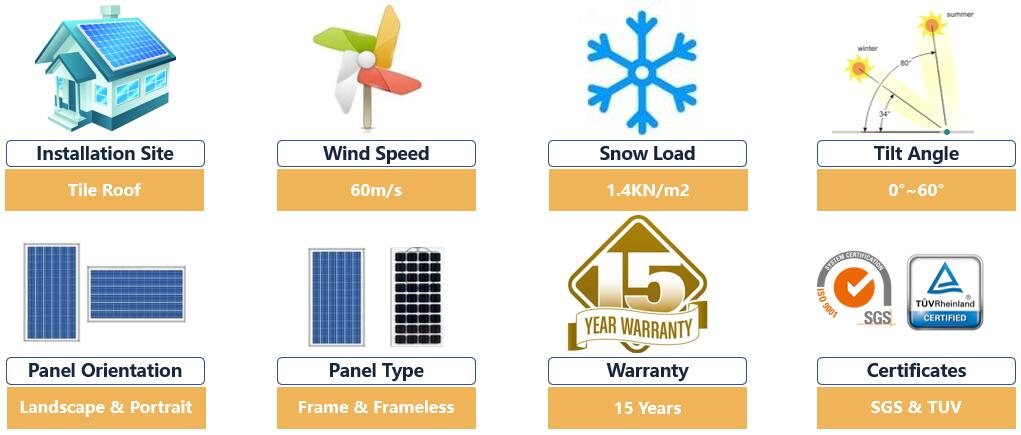

  • Installation SiteTile Roof
  • HS Code76109000
  • Panel TypeFramed & Frameless
  • FoundationClamp/Hook
  • Tilt Angle0°~60°

Tile Roof Solar Mounting System

Aluminum Solar sturcutrue Power Plant for pitched tile roof.

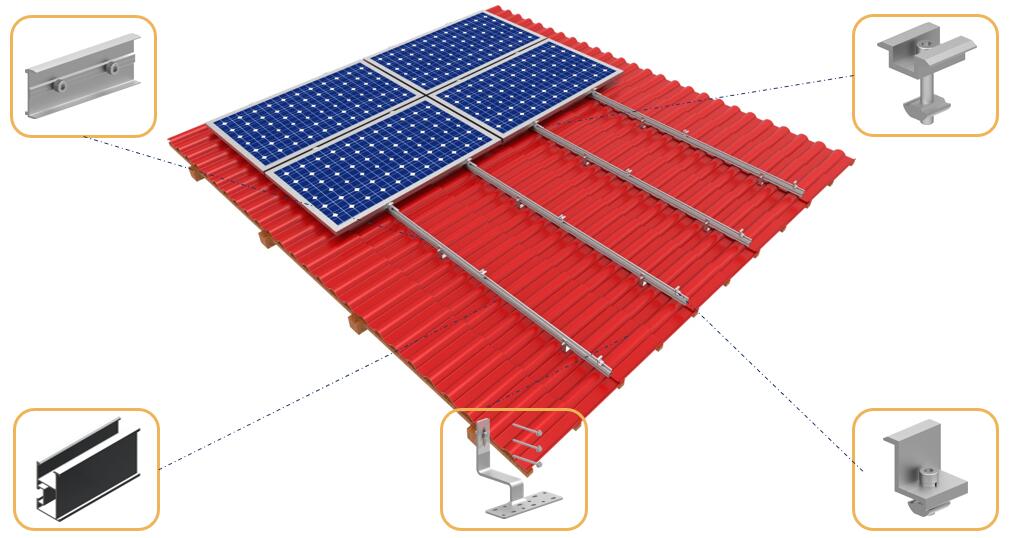

flat tile roof hook mounting system



Material
   AL 6005-T5/SUS304
Surface Treatment

   Average Anodizing Coating Thickness12μm Average

Panel Type
   Framed & Frameless
Wind Load
   ≤60m/s
Snow Load
   1.4KN/m2
 Panel Orientation
   Landscape/Portrait
 Tilt Angle
   0°~60°
Seismic Load
   Lateral seismic factor: Kp=1;  seismic coefficient: Z=1; Use coefficient: I=1
Standards

   JIS C 8955 : 2017

   AS/NZS 1170

   DIN1055

   ASCE/SEI 7-05

   International Building Code: IBC 2009

 Warranty

  15years quality warranty, 25years life span warranty

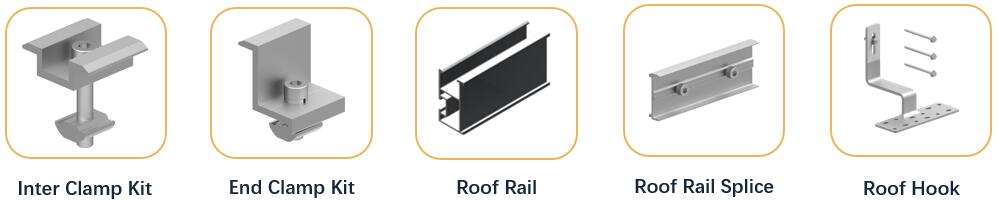

rails for tile roof

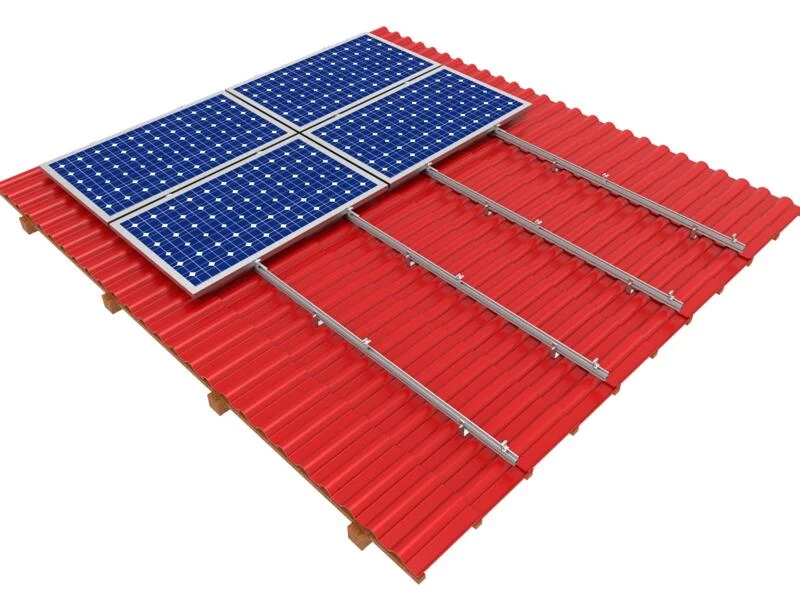

System Overview

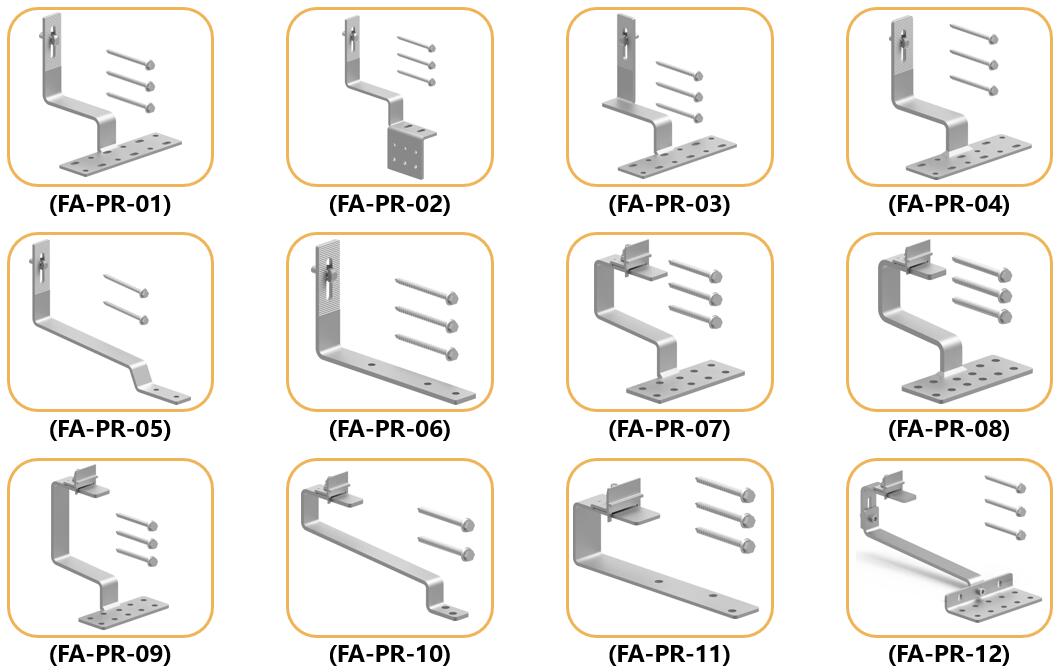

various tile roof hooks






Highly pre-assembled before shipment ensure an quicker installation work


Check and test Structure strictly for the use in extreme weather condition


Simpler design and less components make the solution more competitive


15 years' warranty, 25 years' life span

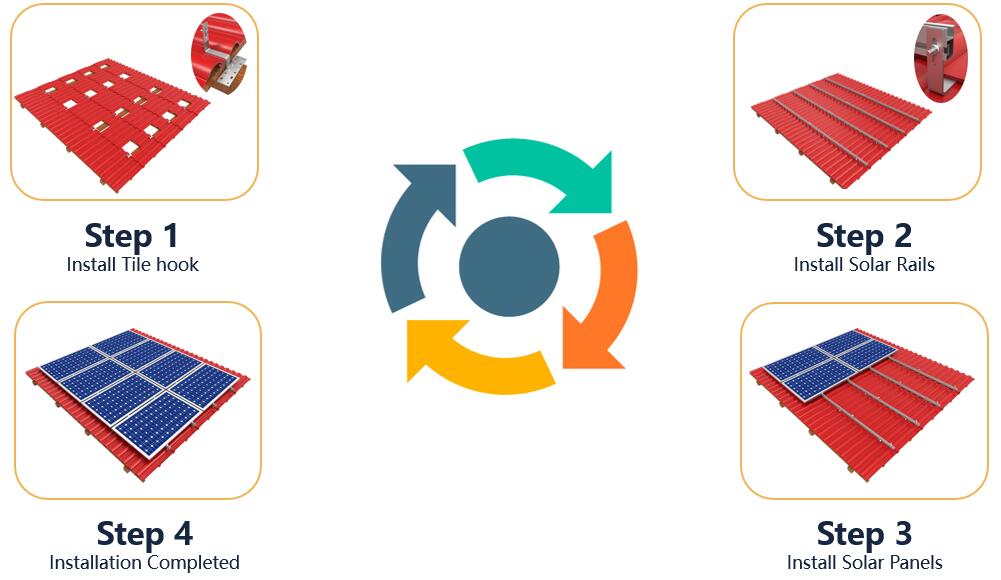

roof installation process
