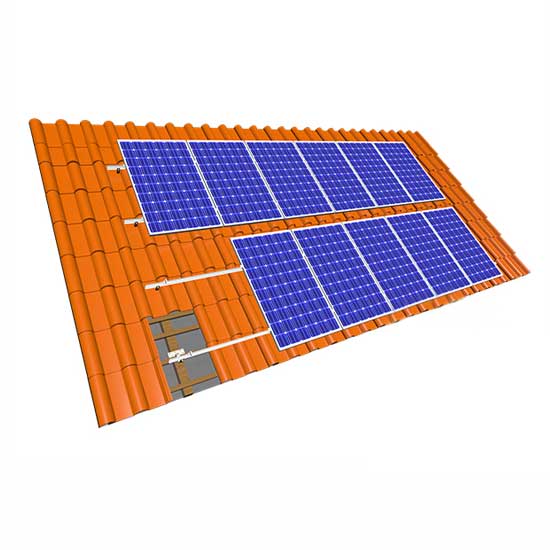

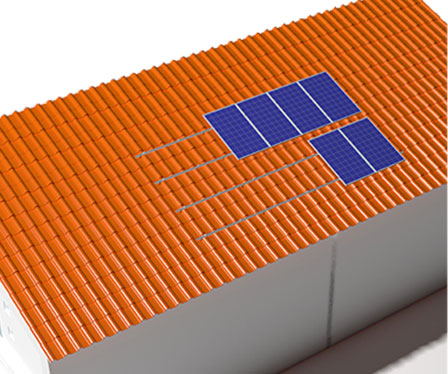

Tile Roof Hook Solar Bracket System
--Applicable for Different Metal Roofs
Design project by project, selecting configuration of mounting
system components flexibly.
-Save Installation Time and Cost
Pre-assembled components and clear installation manuals are
supplied to save the onsite installation time and cost, lead to
better RoI.
-Compatible to Different Types of Solar Modules
Compatible to most kinds of framed 60-cell, 72-cell, half-cut
cells modules and frameless modules.
Component List
Rail: Spec:43*50*L. 3100/4100/5100mm
Splice for Rail: Length:260mm,Hexa Self-Tapping Screw,ST6.3*19
End Clamp Kit: End Clamp,Cross Module,Spring Washer M8,Hex Socket Head Bolt
Inter Clamp Kit: Inter Clamp,Cross Module,Spring Washer M8,Hex Socket Head Bolt
C Clamp Kit: C Clamp,Cross Module,Spring Washer M8,Hex Socket Head Bolt

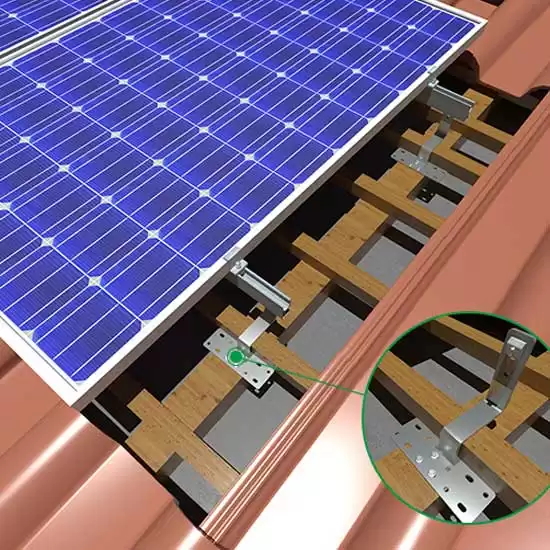

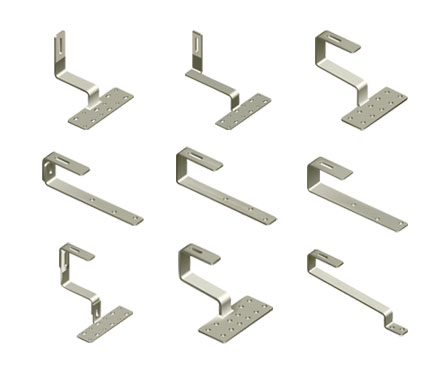

Hook: Highly Customized, Customized Products According To Roof Details
Flat Roof Mountings System Meet Certifications:
Certified by TUV, SGS and qualified consultants in AU, JP, ASEAN, CN, UK, EU, US
