Tile Rooftop Solar Mounting Structure

Tile Rooftop Solar Mounting Structure is specially developed for both residential and commercial rooftop solar installations.


  • Tilt Angle0°~60°
  • Panel TypeFramed & Frameless
  • HS Code76109000
  • FoundationClamp/Hook
  • Installation SiteTile Roof

Tile Rooftop Solar Mounting Structure


Tile Bracket



Material
   AL 6005-T5/SUS304
Surface Treatment

   Average Anodizing Coating Thickness12μm Average

Panel Type
   Framed & Frameless
Wind Load
   ≤60m/s
Snow Load
   1.4KN/m2
 Panel Orientation
   Landscape/Portrait
 Tilt Angle
   0°~60°
Seismic Load
   Lateral seismic factor: Kp=1;  seismic coefficient: Z=1; Use coefficient: I=1
Standards

   JIS C 8955 : 2017

   AS/NZS 1170

   DIN1055

   ASCE/SEI 7-05

   International Building Code: IBC 2009

 Warranty

  15years quality warranty, 25years life span warranty

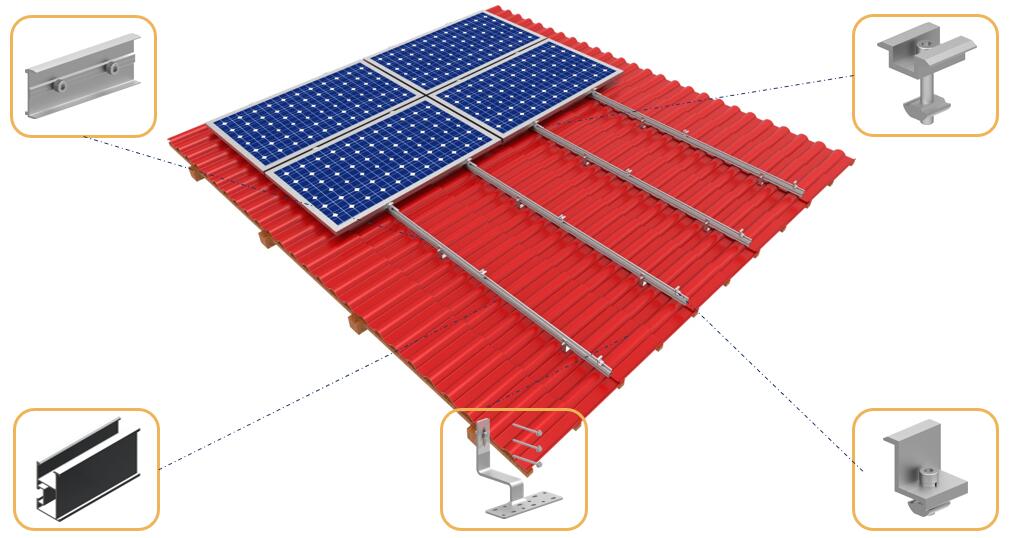

rails for tile roof


System Overview

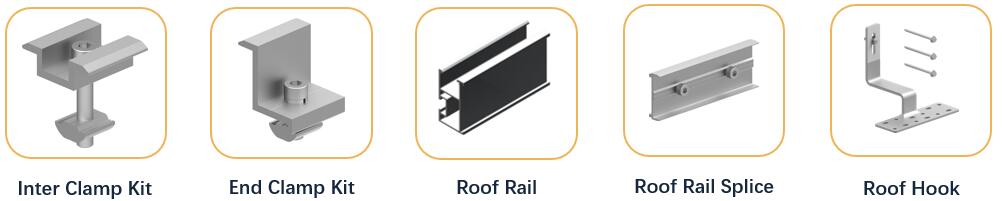

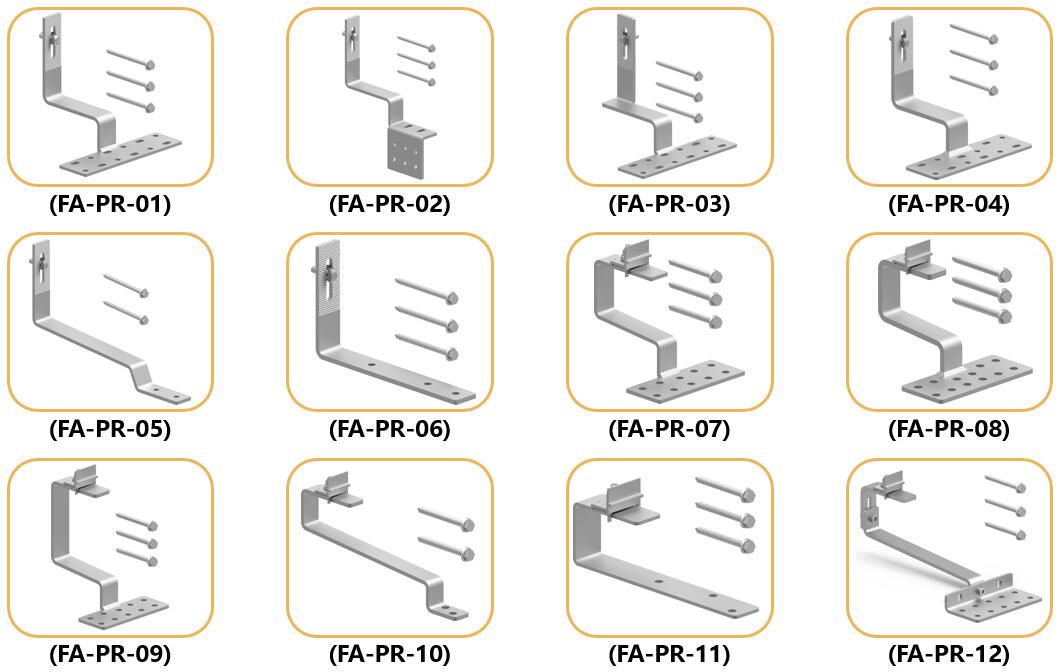

various tile roof hooks






Highly pre-assembled before shipment ensure an quicker installation work


Check and test Structure strictly for the use in extreme weather condition


Simpler design and less components make the solution more competitive


15 years' warranty, 25 years' life span

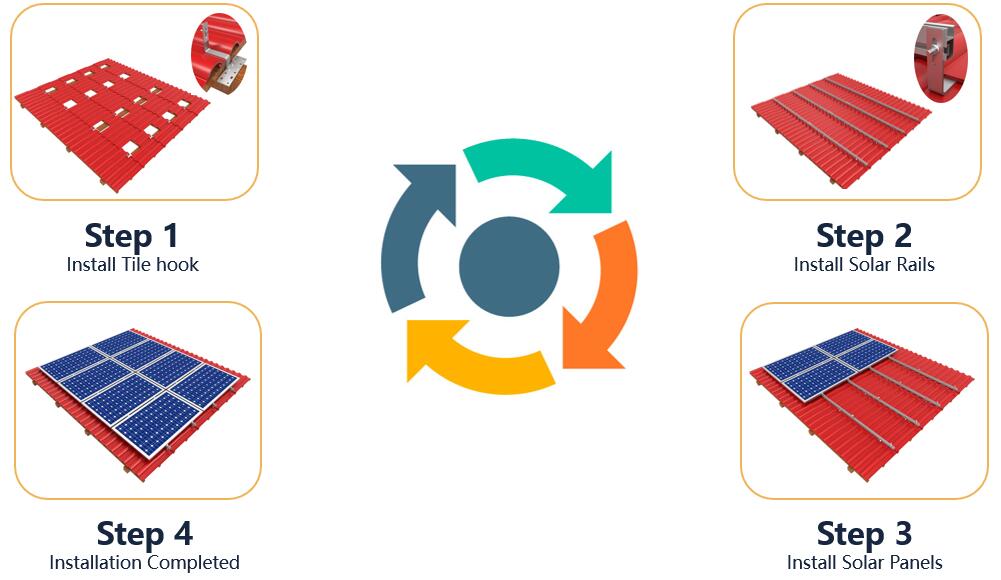

roof installation process
