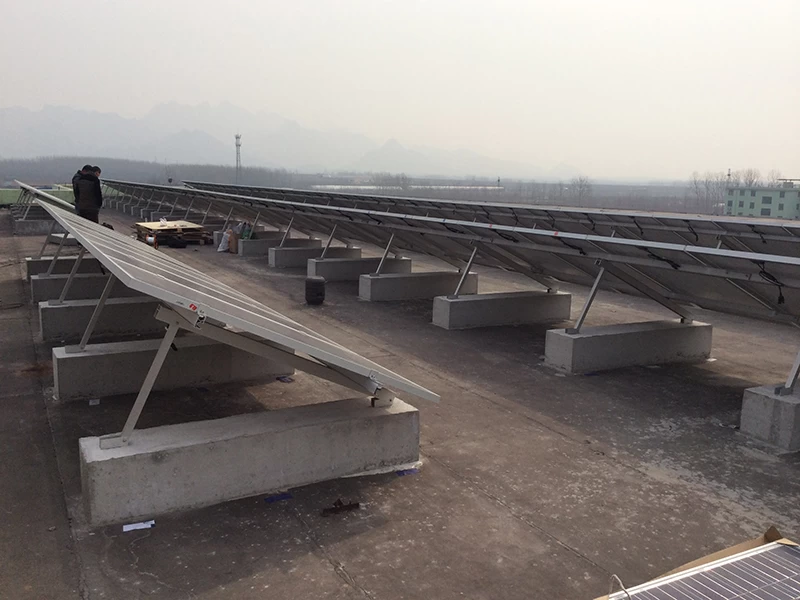

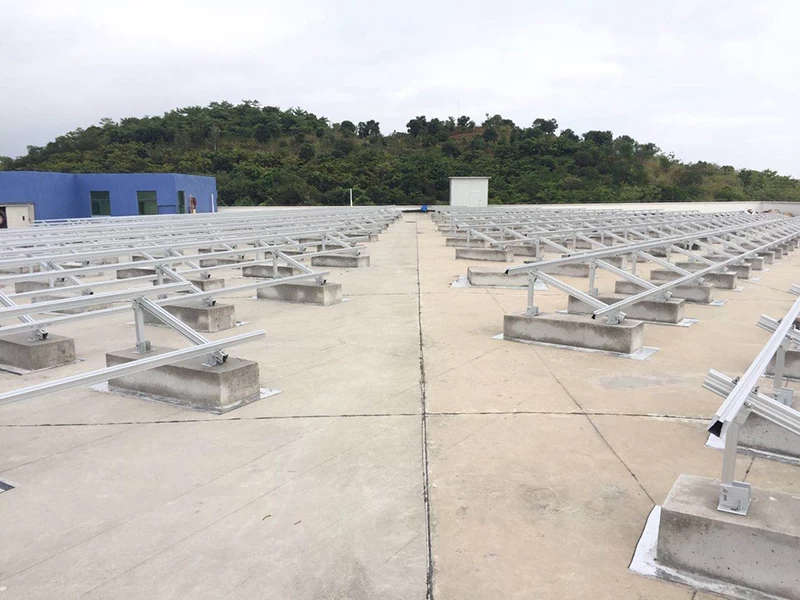

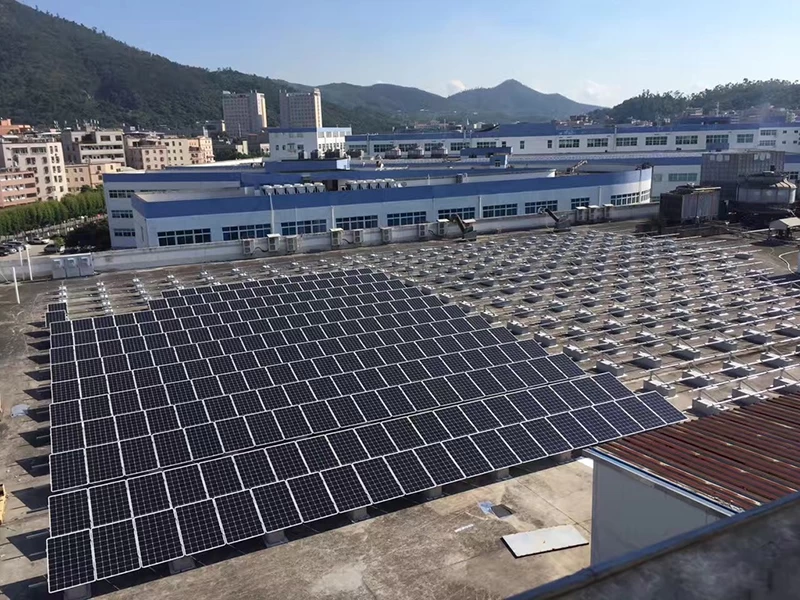

Tilt Wind System for Flat Roof
| Project Site: |
Flat Roof |
| Slope of roof: | Up to 60° |
| Max Building Height: | Up to 20m |
| Wind Load: | 88m/s |
| Snow Load: | 1.4kn/㎡ |
| Applicable Module: | Frame / frameless, crystalline/ thin film module |
| Module Orientation: | Landscape or Portrait |
| Standard: | AS/NZS 1170, MCS, JIS &SGS |
| Material: |
Stainless steel 304, Al6005-T5 |
Product Features
1. Tilt wind flat roof mounting structures are widely used for both crystalline and thin film module
2. Easy & quick installation
3. Only 2-3 kinds of components and no more than two kinds of tools in whole system fixation
4. All flat roof components are made with high quality aluminum & stainless steel

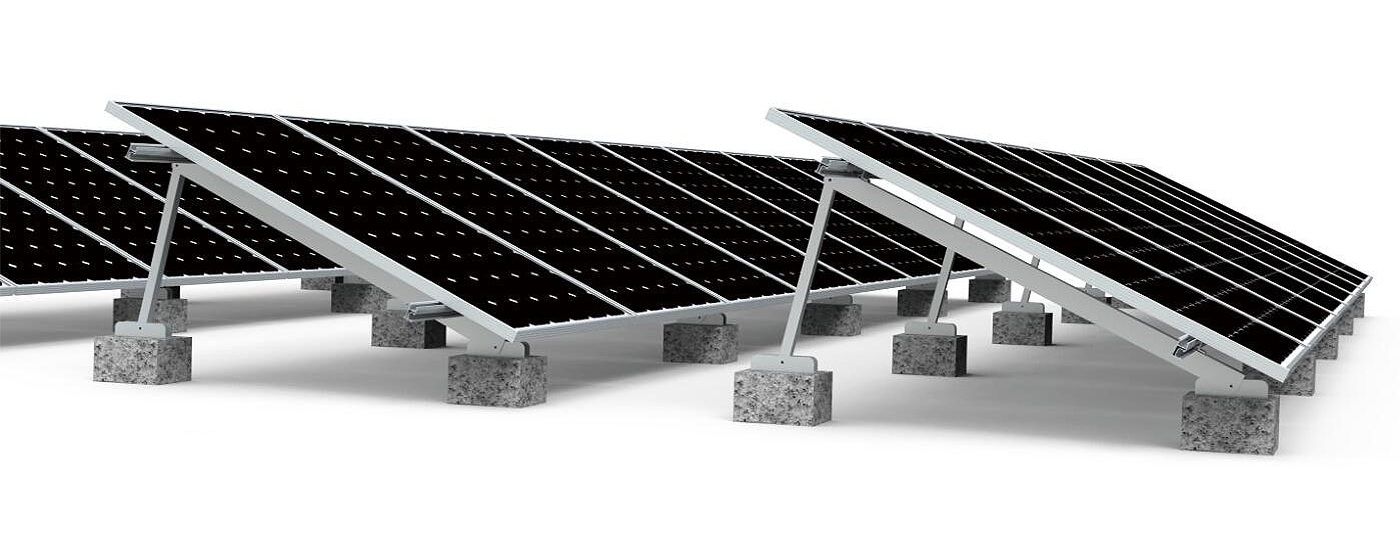

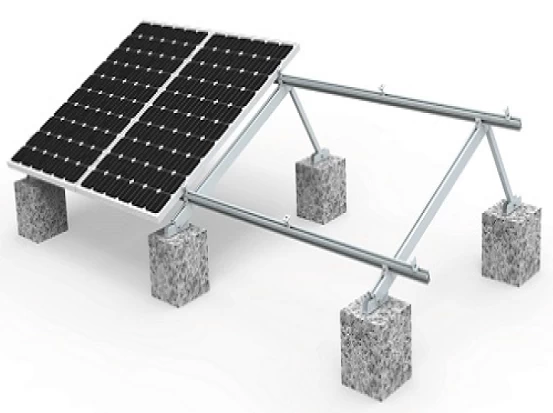

System Overview
Key Components
 |
 |
 |
 |
 |
|
Rail in Customized Length |
Rail Clamp |
Mid Clamps |

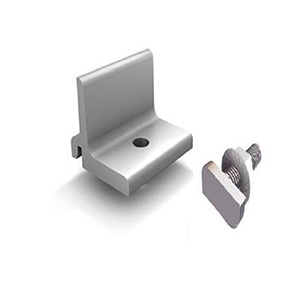

End Clamps |

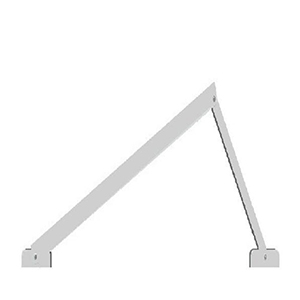

Tripod Support Kit |
