Tiltable Solar Mounting System With Adjustable Legs For Metal And Concrete Rooftop

The Tiltable Solar Mounting System is designed with adjustable legs to make the brackets  flexible tilting, so that PV panels can be positioned at the best angle towards the the sunshine. This mounting system can be installed on both metal roof and flat concrete rooftop. With main parts made of surface anodized aluminum AL6005/T5, the system can stand firm and keep a long life service.


  • StandardAS/NZS 1170
  • CertificationsISO9001/CE
  • ApplicationMetal Roof
  • Service Life>25 Years
  • Warranty10 Years

Product Introduction

The Tiltable Solar Mounting System is designed with adjustable legs to make the brackets  flexible tilting, so that PV panels can be positioned at the best angle towards the the sunshine. This mounting system can be installed on both metal roof and flat concrete rooftop.

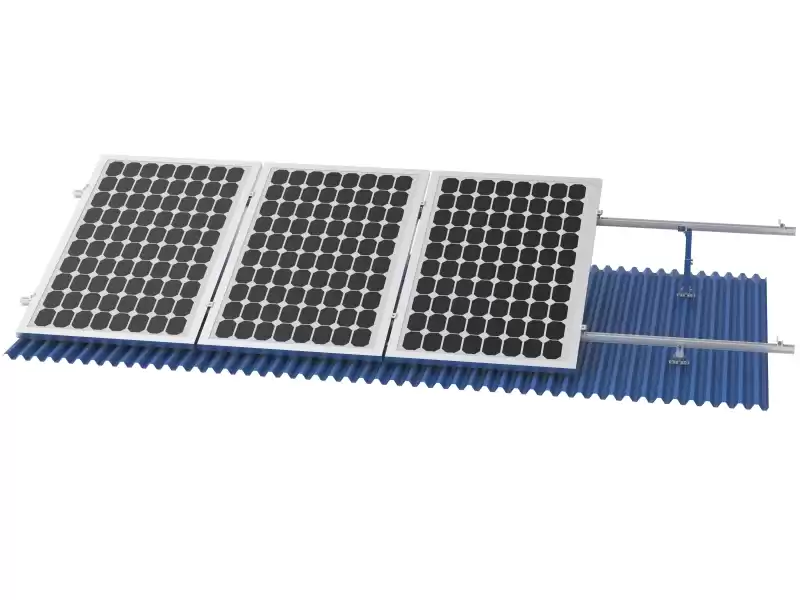

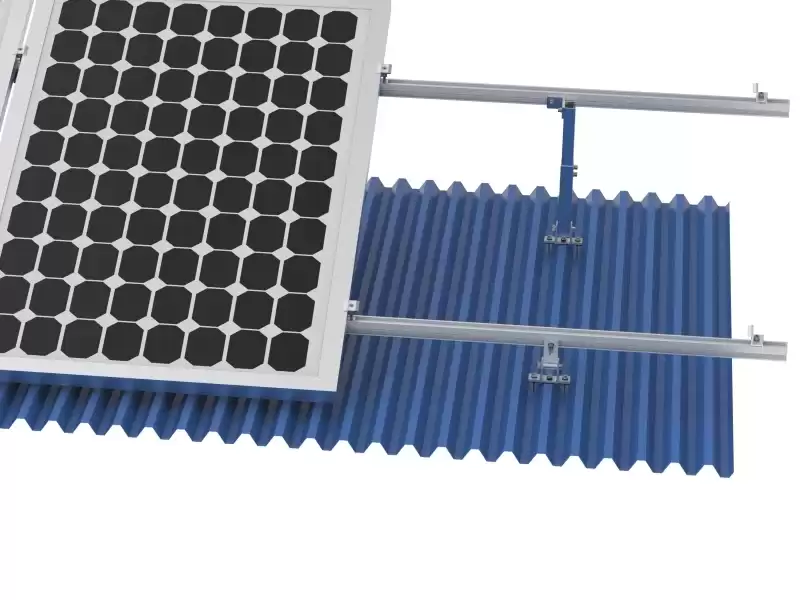

Adjustable Leg Roof Solar Mounting System

The main parts are Adjustable Front Leg, Adjustable Rear Leg, Rail, Rail Connector, Mid Clamp and End Clamp.With main parts made of surface anodized aluminum AL6005/T5, the system can stand firm and keep a long life service.

Product Parameters

Brand ZIYUAN
Material Al6005/T5 & SUS304 &SUS410
Surface Coating Anodized
Design Code JIS C 8955 2017
Standard AS/NZS 1170
Max. Wind Speed 60m/s
Max. Snow Load 1.4KN/m2
Warranty 10 years
Service life >25 years
Mounting Type Roof Mounting
Tile Angle Other

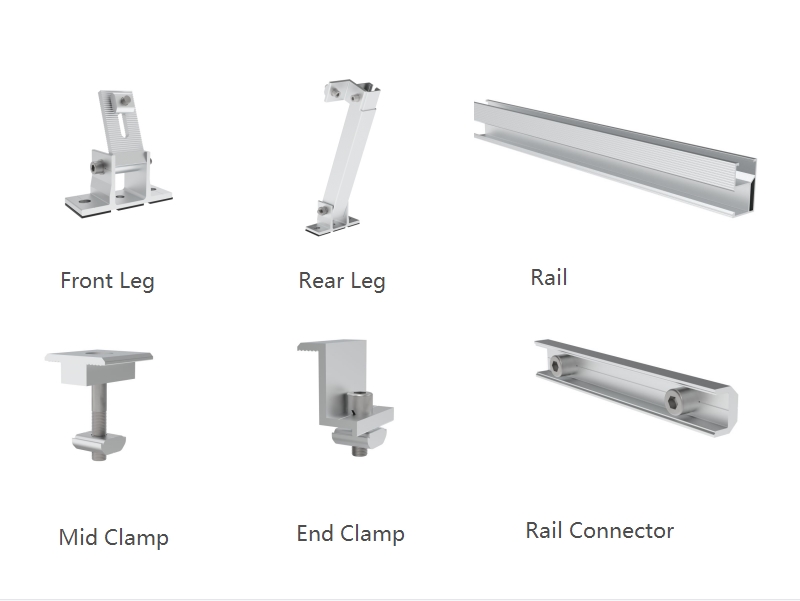

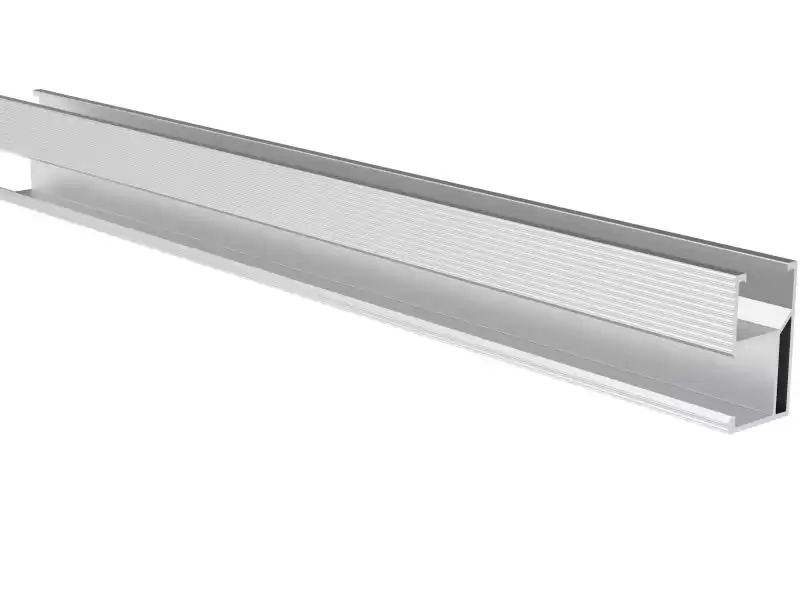

Mounting Parts Details

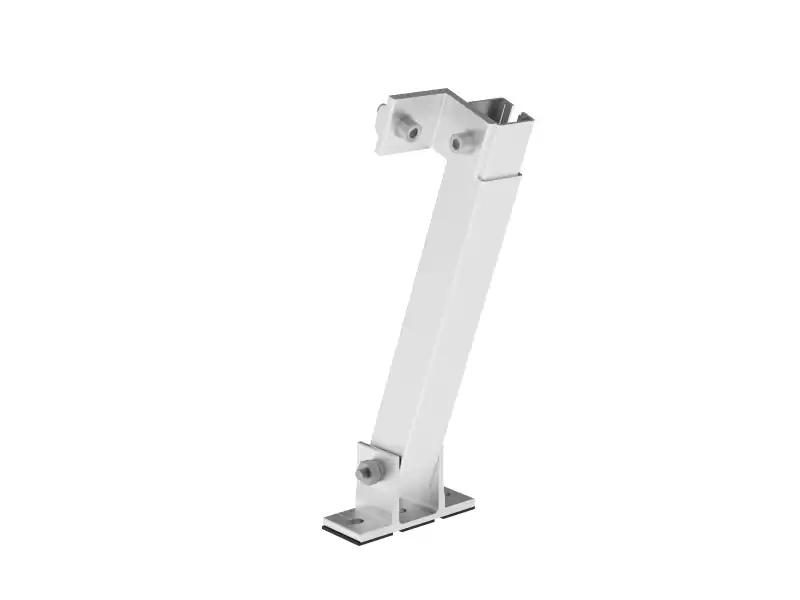

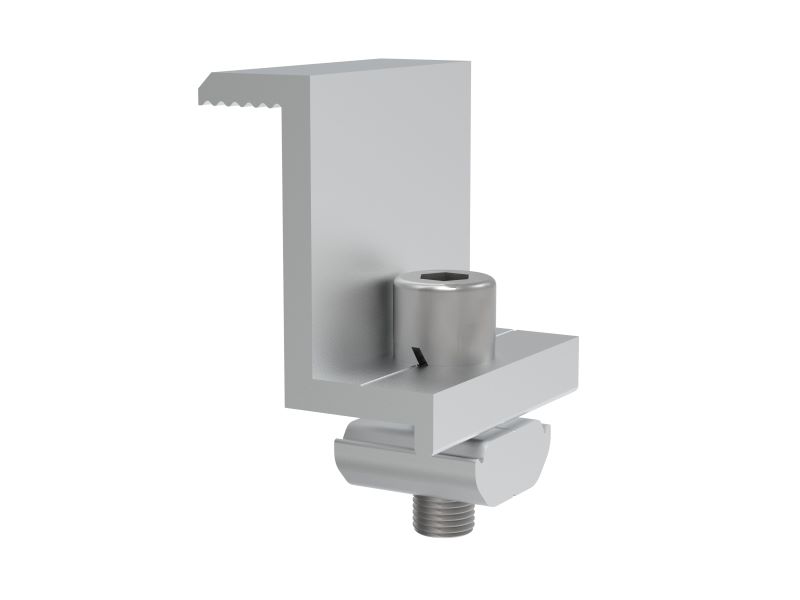

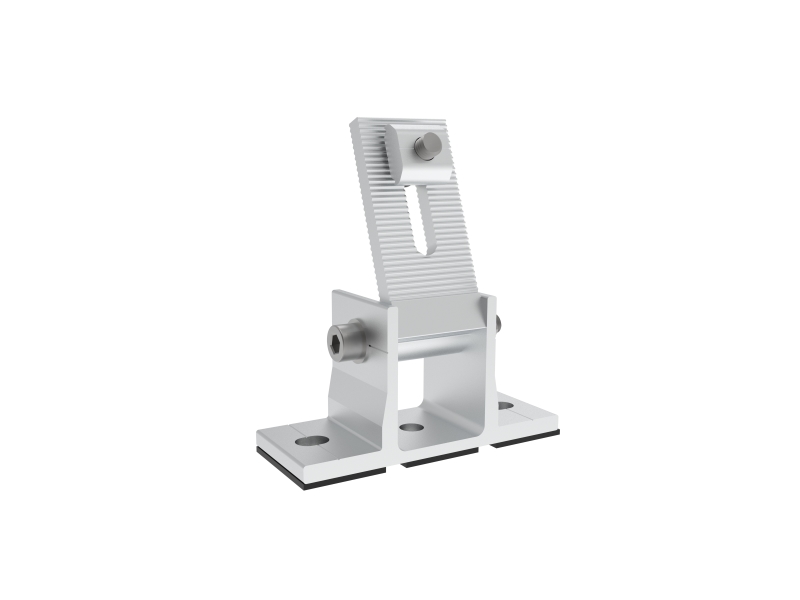

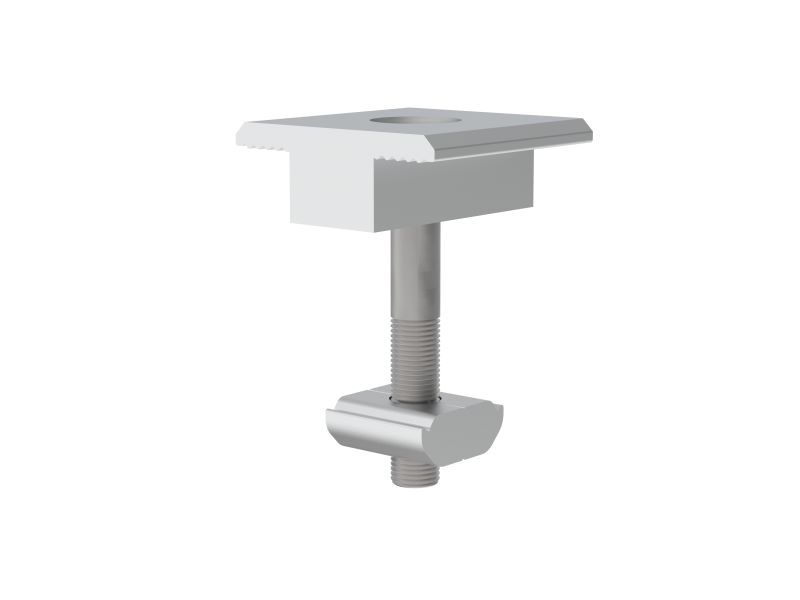

The main parts are Adjustable Front Leg, Adjustable Rear Leg, Rail, Rail Connector, Mid Clamp and End Clamp.

Adjustable Leg Roof Solar Mounting KitsMain Features

•√  Dominated by adjustable legs, the system is flexible and easy for roof owners to install and control it to an appropriate angle.

•√ Modular & preassembled & simple components make the installation easy and fast, which be cost and labor saving.

•√ Highly optimized for its strength, durability and corrosion resistance.

Install Steps



1.Adjustable Leg Metal Roof Solar Mounting System

①If trapezoid metal roof, install the Adjustable Front Leg and the Adjustable Rear Leg on the rooftop in the correct position as planned, drilling the screw into the roof beam below.

②If non trapezoidal metal rooftop, install the Clip Lock on the rooftop first then install the Adjustable Front Leg and the Adjustable Rear Leg on the Clip Lock.

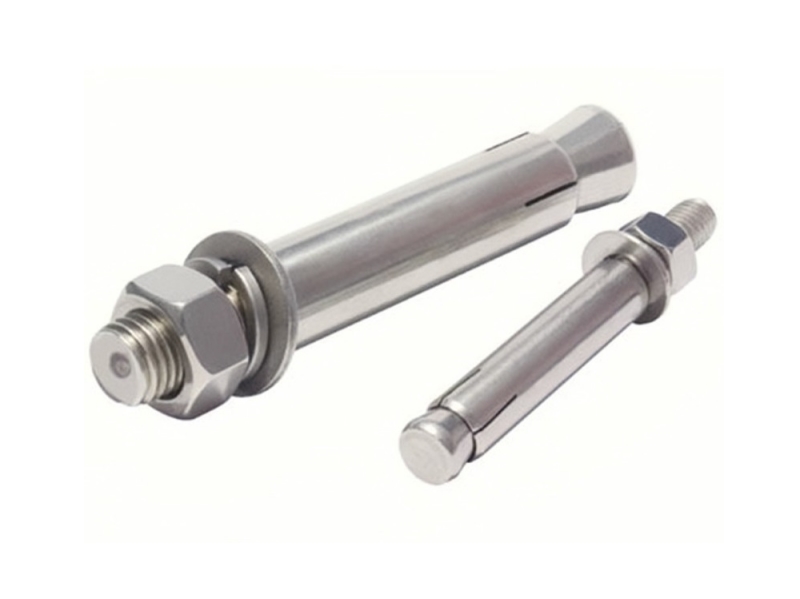

③If flat concrete rooftop, install the Adjustable Front Leg and the Adjustable Rear Leg on the rooftop directly with the expansion bolt, or install them on the cement block through embedded bolt.

2.

Adjust the length of the adjustable rear leg according to the required optimal tilt angle, lock the bolt to fix the length.

3.

Install the Rail on the Adjustable Front Leg and the Adjustable Rear Leg , lock the bolt tightly and make sure all Rails are in same level.

4.

Install the solar panel on the Rails with the End Clamp and Mid Clamp, lock the bolt tightly.

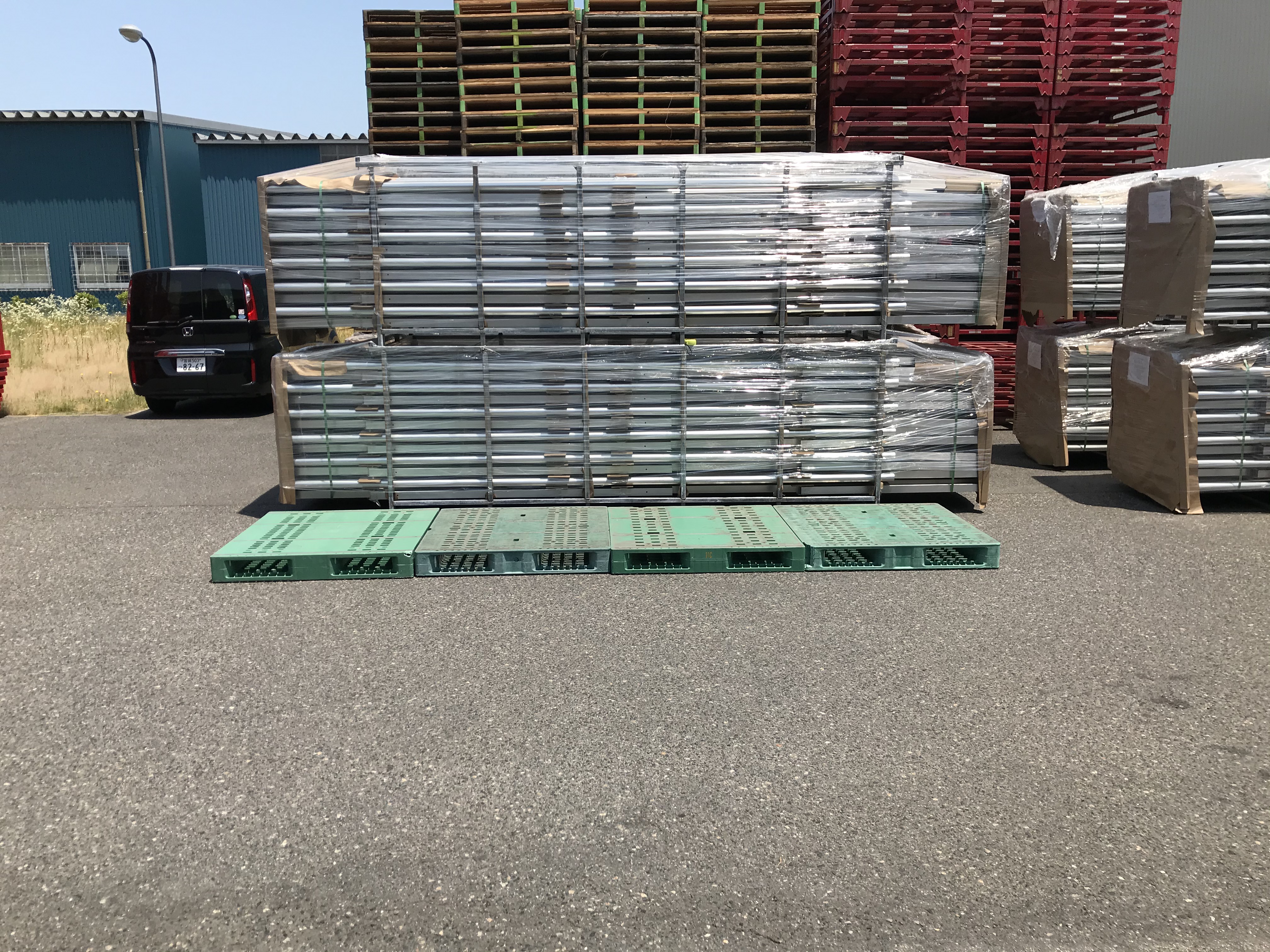

Packaging & Shipping

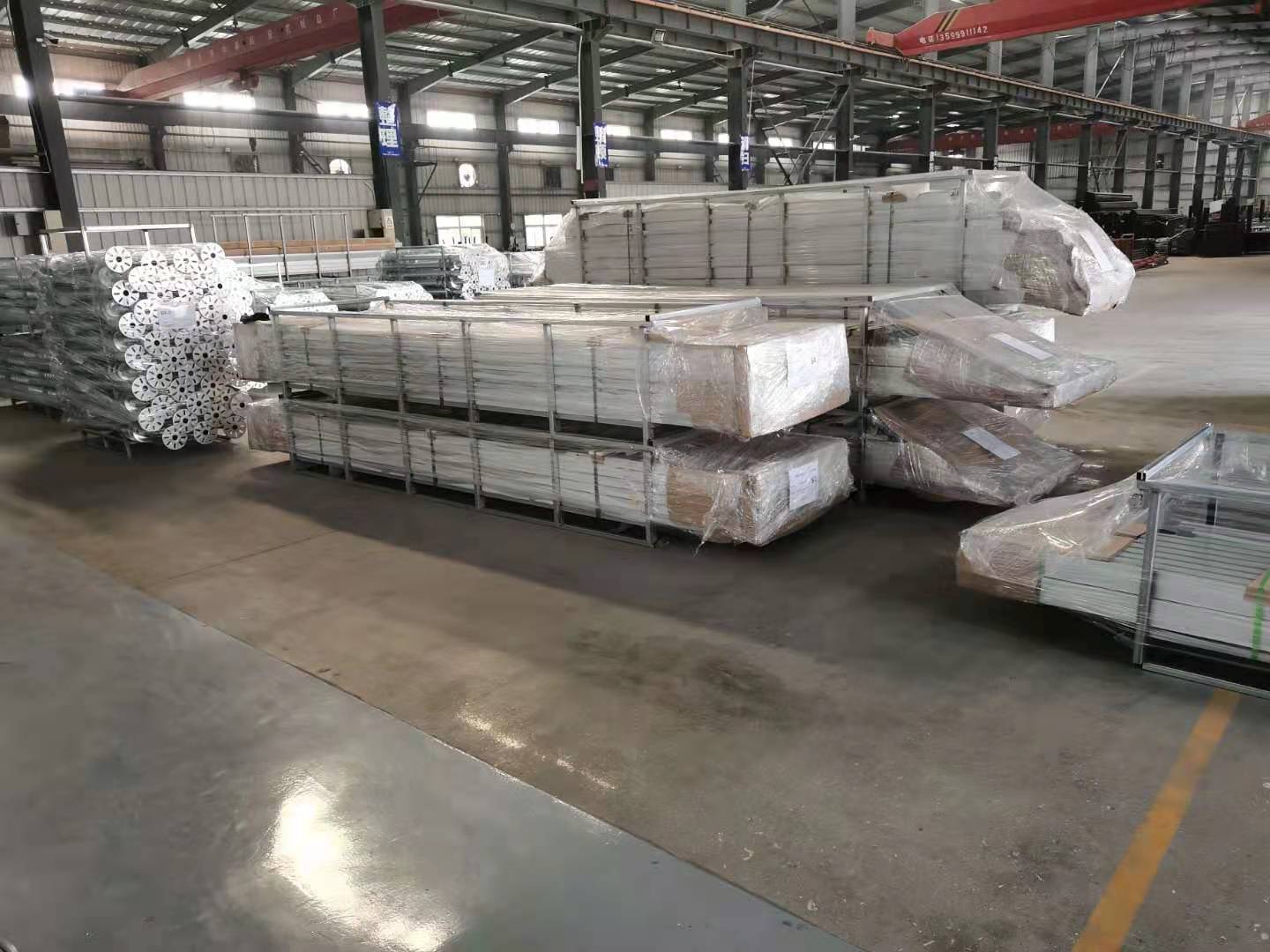

  • PV Brackets In Stock
  • PV Brackets Ready To Ship
  • PV Brackets Loading for Shipping

Our Advantages

  • Solar Brackets Factory
    Own Factory & QC
    ZIYUAN has its own factory with more than 100 skilled workers. the production line is strictly in accordance with high standards and attach great importance to quality control and inspection.
  • Engineer Team For Solar Brackets
    Experienced Engineer Team
    The first-class production engineers, technicians and R & D team offer innovative design and reliable solutions to customers based on more than 8 years of experience.
  • Professonal Customer Service Team
    Professional Service
    ZIYUAN has an excellent sales team, can quickly respond to customers' inquiries and provide professional advice.

FAQ





FAQ about the product

1/

Is it necessary to panetrate the metal roof during installation?

Penetration is not always necessary for metal roof installations. The adjustable leg can be mounted upon a roof clamp which can securely grasp the roof without the need for roof penetration. It depends on your roof type to determin if your roof can use clamps and the kind of clamp for your roof if yes.

2/

What angles can the structure be adjustable?

The adjustable metal roof racking system can have several options 10 – 15° / 15 – 30° / 30 – 60° … This mounting structure design can help to choose optimized solar installation solution base on local exact requirements .

3/

Should I hire a professional installer for a metal roof solar installation?

It is highly recommended to hire a professional solar installer with experience in working with metal roofs. They have the expertise to properly assess the roof, select the appropriate mounting system, and ensure a safe and efficient installation.

3/



Can I get the structure components pre-assembled by your factory?

Sure. All components like alum rails, clamps, front and rear legs can be pre-assemble before shipment .





FAQ about company

01 Q: Do you have your own factory?

A: ZIYUAN has own factory with more than 100 skilled and experienced workers the production line is strictly in accordance with high standards and attach great importance to quality control and inspection.


02 Q: Do you have an experienced design team?

A: Of course,our first-class production engineers,technicians and R&D team offer innovative design and reliable solution to customers based on more than 8vears of experiences.


03 Q: Do you have any experience in OEM?

A: Yes, ZIYUAN has provided OEM service design service and buyer label service for more than10 years.


04 Q: Have your products been certified?

A: Yes the products of ZIYUAN have been certified by ISo, sGS, TUV and AS/NZS1170.2


05 Q: How long is your delivery time?

A: It depends on actual order quantity and your special requirements.Generally, it will be 1-2weeks.


06 Q: How is your payment term?



A: If total amount is less than US$5000, we need 100% in advance; if total amount is more than US$5000, we need 30%T/Tin advance and balance before shipment. Other payment term can also be negotiated based on actual.
