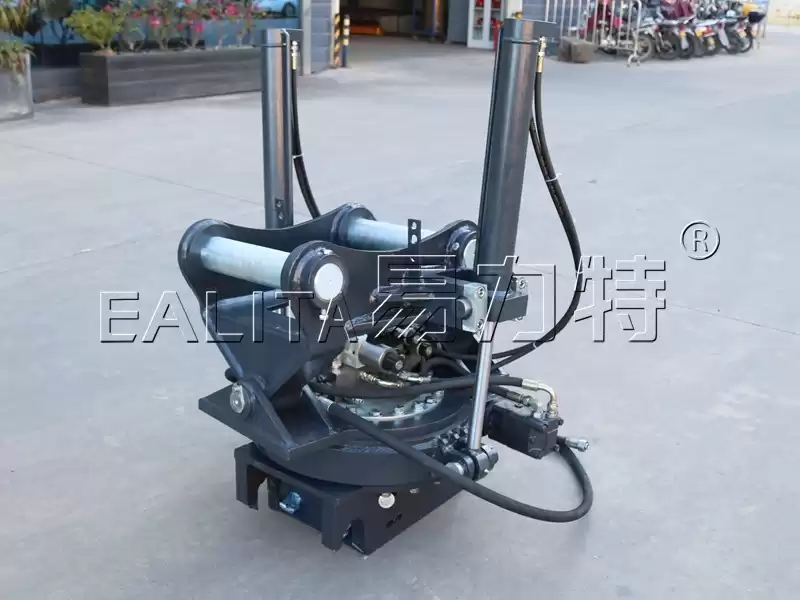

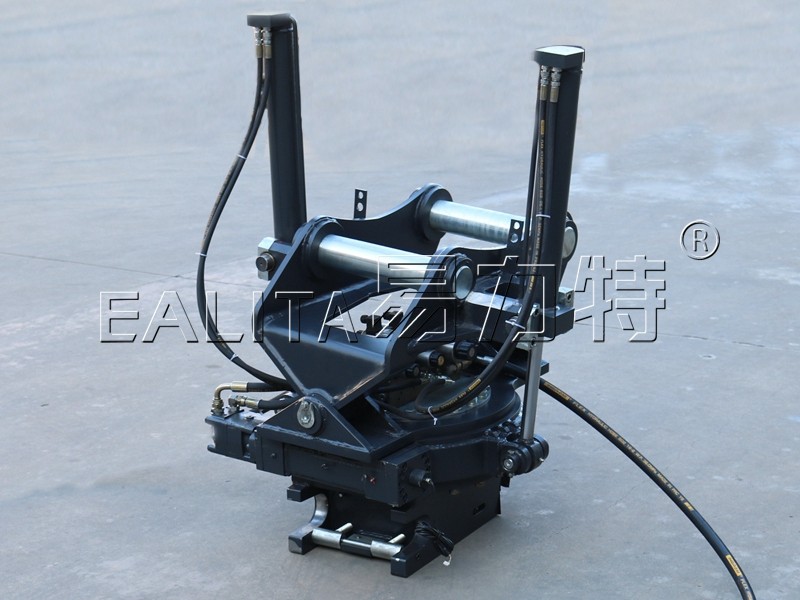

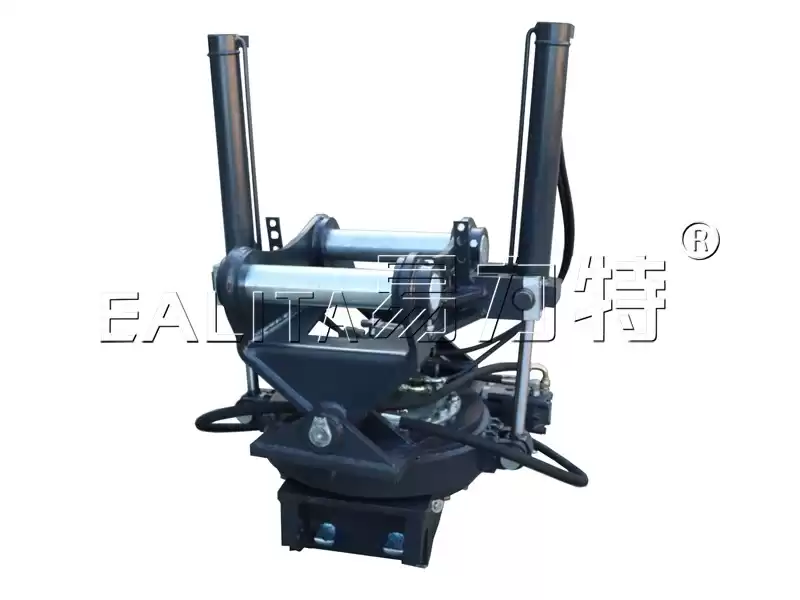

Tiltrotator for excavators and backhoe loaders between 7 and 10 tonnes
The tiltrotator is designed to deliver the power and durability that is a must for larger excavators. A well thought-out design, raw power, precision and smoothness are combined in 360° rotation, tilt and quick coupling
functions. This facilitates your work and makes you flexible to take on a variety of challenging new jobs.
Gear housing, bottom and top in solid cast steel, hardened shafts and piston rods, dual acting tilt cylinders.
Measurement
|
Type
|
E-X12-S50
|
|
Width
|
567mm
|
|
Length
|
689mm
|
|
Building Height
|
494mm
|
|
Cylinder Width
|
678mm
|
|
Weight From
|
327kg
|
|
Pin Distance
|
240-365cc-meassure
|
|
Width Dipper Arm
|
272mm
|
|
Shaft Diameter Dipper
|
40-60mm
|
Technical Specification
Type
|
E-X12-S50
|
|
Recommended Weight
|
7-12tonnes
|
|
Attachment Coupler
|
S50
|
|
Maxtimum Tilt Angle
|
45degrees
|
|
Necessary Flow
|
70-90litre/min
|
|
Pressure
|
210bar
|
|
Hydraulic Extras without Grip
|
2
|
|
Hydraulic Extras with Grip
|
1
|
|
Rotational Speed
|
8r/m
|
|
Rotational Force
|
29kNm
|
|
Lubrication of the Gear Housing
|
Grease
|
