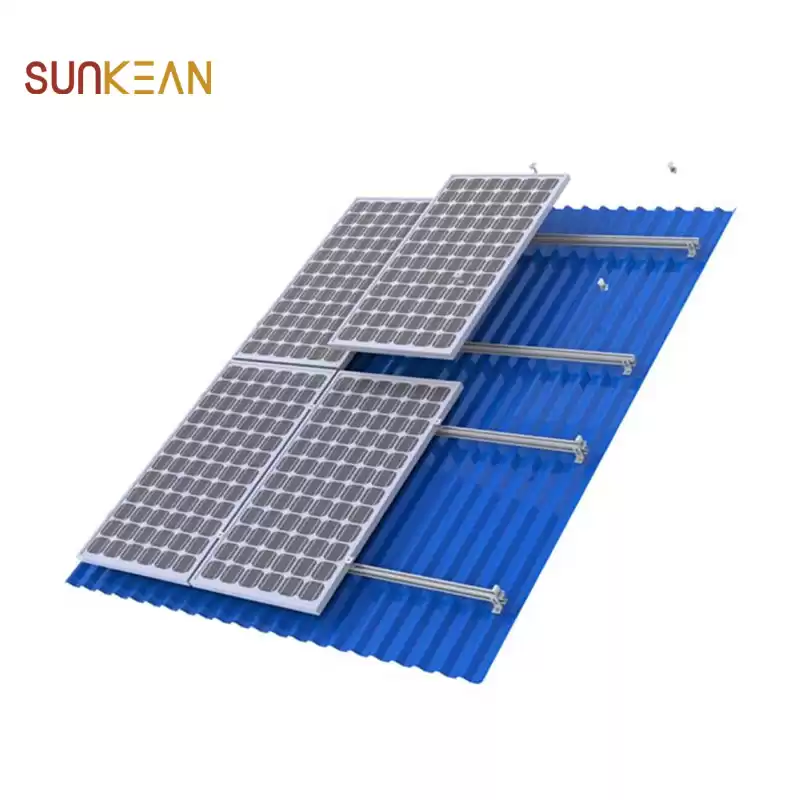

Tin roof Mounting system
Tin (Metal) Roof Mounting Solution provides a simple and cost-effective solution for mounting all framed and unframed solar panels currently on the market. The Mount Makers wide range of mounting brackets provide for fast and secure fixing to sheet metal, purlins or rafters and for different roofing types at angles from 10 to 60° . To simplify connection of support rails to tin brackets, The Mount Makers SolaStrut and SolaStrut Plus rails are designed to allow standard T bolts to be simply swiveled into the rails.

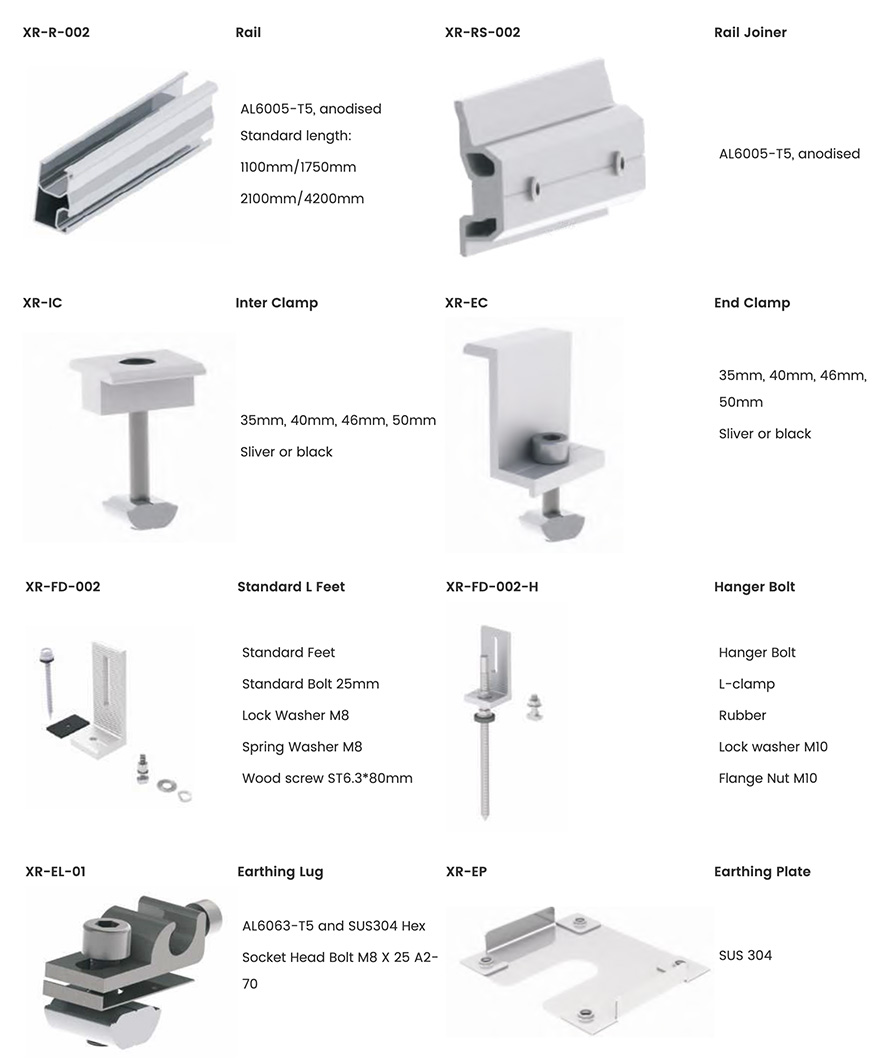

Product Accessories:
Technical Features:
|
Installation Site
|
Tin roof
|
|
Wind Load
|
88m/s
|
|
Snow Load
|
20cm
|
|
Span range
|
1.2m~1.7m
|
|
Distance between
modules and roofs
|
About 100mm
|
|
Applicable Module
|
Framed or frameless
|
|
Module Orientation
|
Landscape or portrait
|
|
Standards
|
AS/NZS1170 GB50009-2012 DIN1055
|
|
Material
|
AL6005-T5, anodised
|
Service Life
|
25 Years
|
Key Benefits:
------Easy Installation
Planning and highly pre-assembled system making the solution time and cost effective.
------Versatile Application
With a full range of hooks or brackets,Tile Roof Mounting System is suitable for most roofing types.
------Great Compatibility
Design as a universal PV mounting system, Tile Roof is compatible with most of the framed or frameless PV modules on the market.
------High Quality
Strict quality control over materials and finished products ensure optimum strength and long life for your installation.
------10 Years Warranty
The Mount Makers provides a 10 years product warranty for your peace of mind.

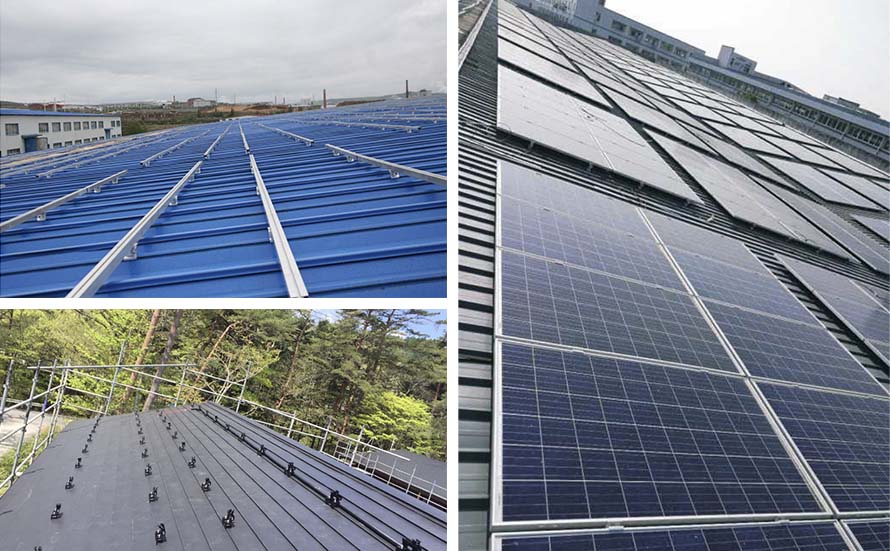

Application Scenario:
Global Exhibitions:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover PV modules,Tile Roof Mounting System, single phase full bridge inverter, half cell solar module, mini solar inverter for home, inverters etc solar products .
SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
