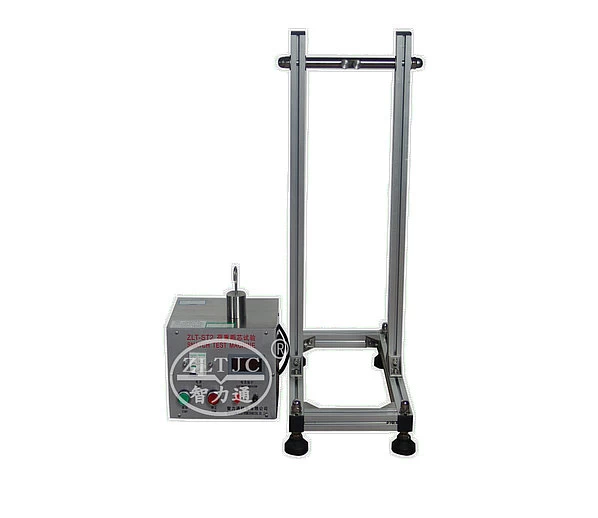

Tinsel Cord Snatch Test Device
Product details: Model ZLT-ST2
To determine the impactive effect of the tinsel cord,in accordance with IEC 60227-2 clause 3.3 and IEC 60227-1 clause 5.6.3.4.
A sample of cord of appropriate length shall be attached by one to a rigid support and a weight having a mass of 0.5 kg shall be secured to the sample 0.5 m below the point of attachment. A current of about 0.1 A shall be passed through the conductors. The weight shall be raised to the point of attachment and then dropped, five times.
Standard Outfit:
1 weight, 0.5 kg,
1 output current, approximately 0,1 A, Power Supply: A.C.220V 50Hz, other voltages and frequencies on request.
