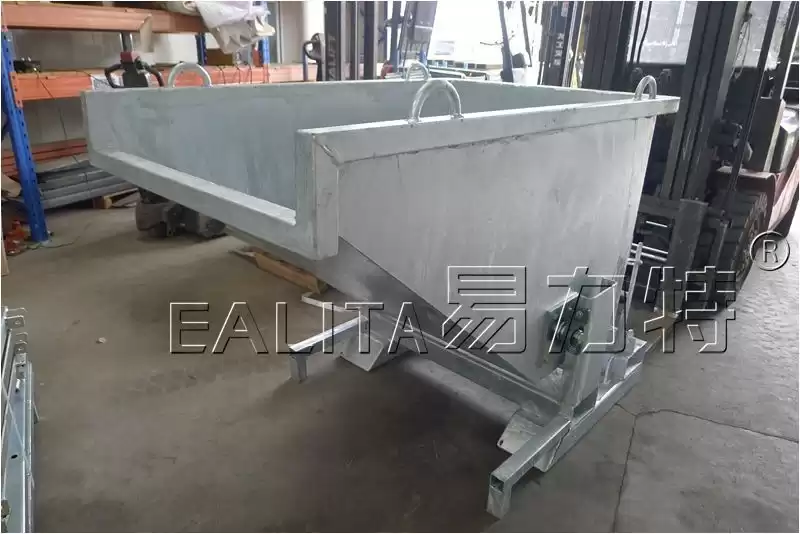

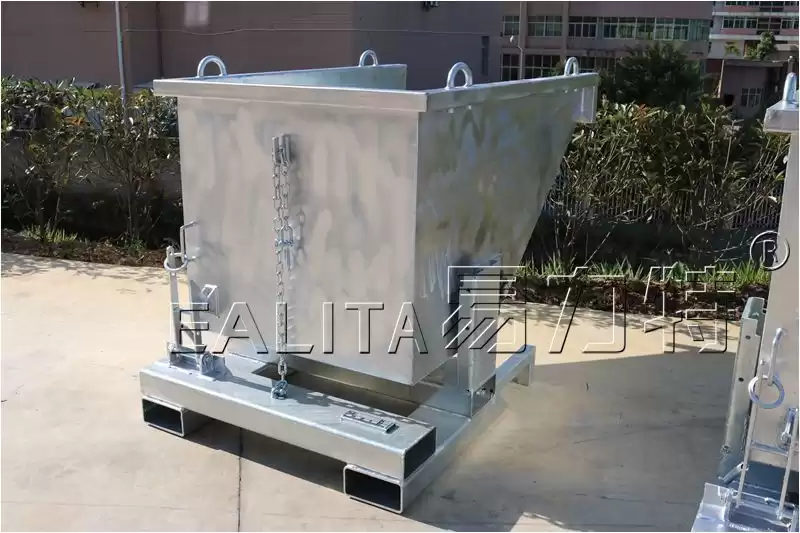

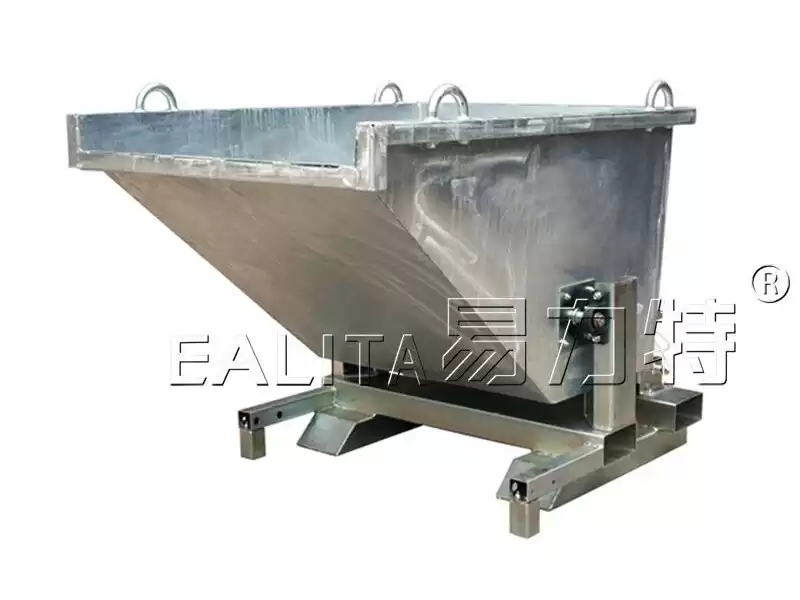

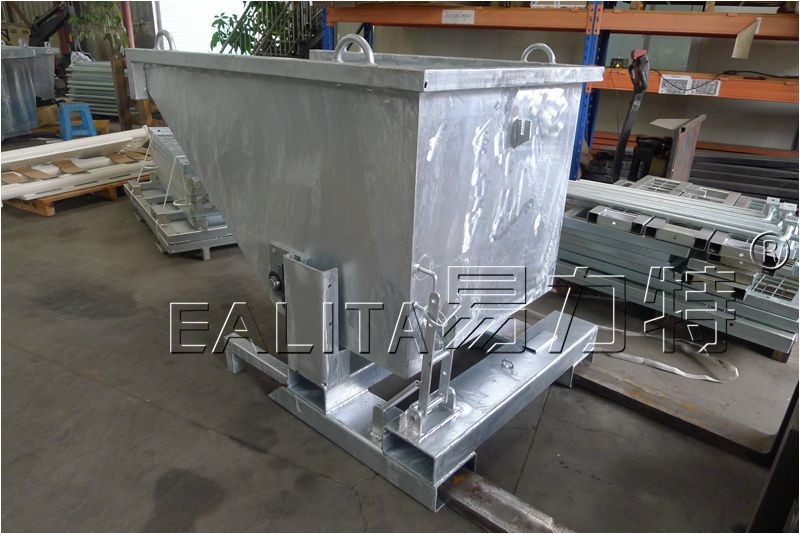

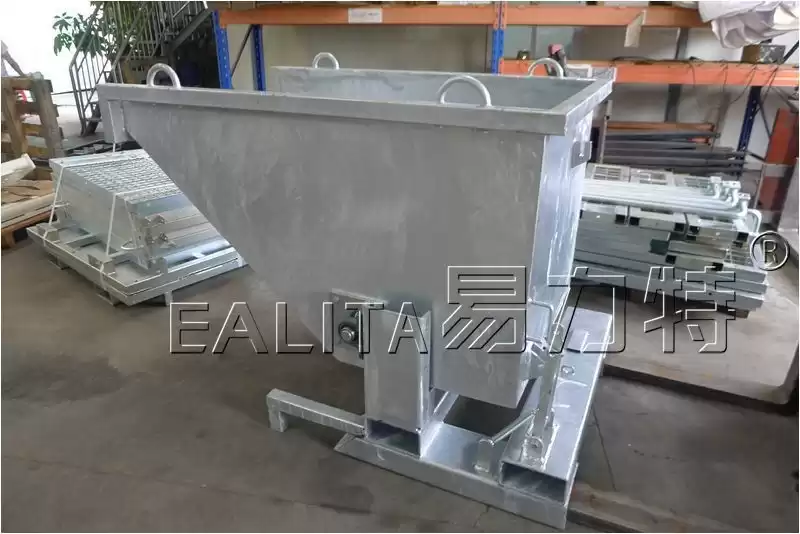

F-ROB9 Roll Over Bin is designed for a smooth tipping action with minimal impact during emptying.
- Side bearings prevent the bin being dislodged during tipping as is common with the roll over style bins.
- The cut away front design makes this bin ideal for tipping liquids. The release mechanism is activated by the
- Forklift operator pulling the pull chord from the driver's seat.
- Four-way fork pocket allows entry for sideways tipping action.
- These bins are standard in H.D. Galvanised finish.
Specifications
· Code: 03.01.03.0035
· Pocket size 185 x 65mm
· Pocket Centres - 850mm
· Working Load Limit (WLL) - 1500kg
· Unit Weight - 235kg
· Volume Capacity - 0.77m3
· HCG 605mm
· VCG 415mm
