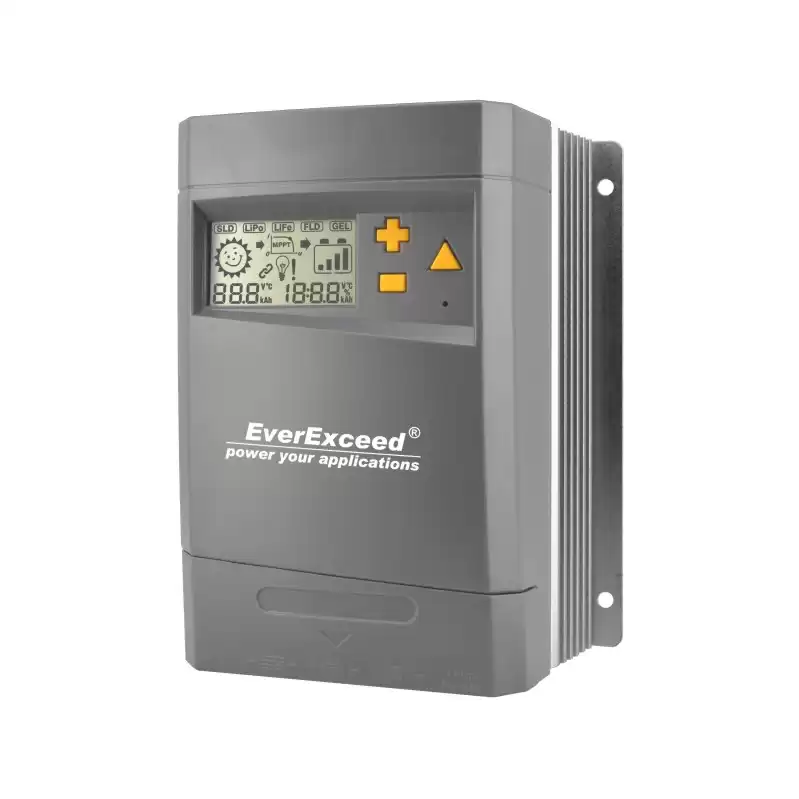

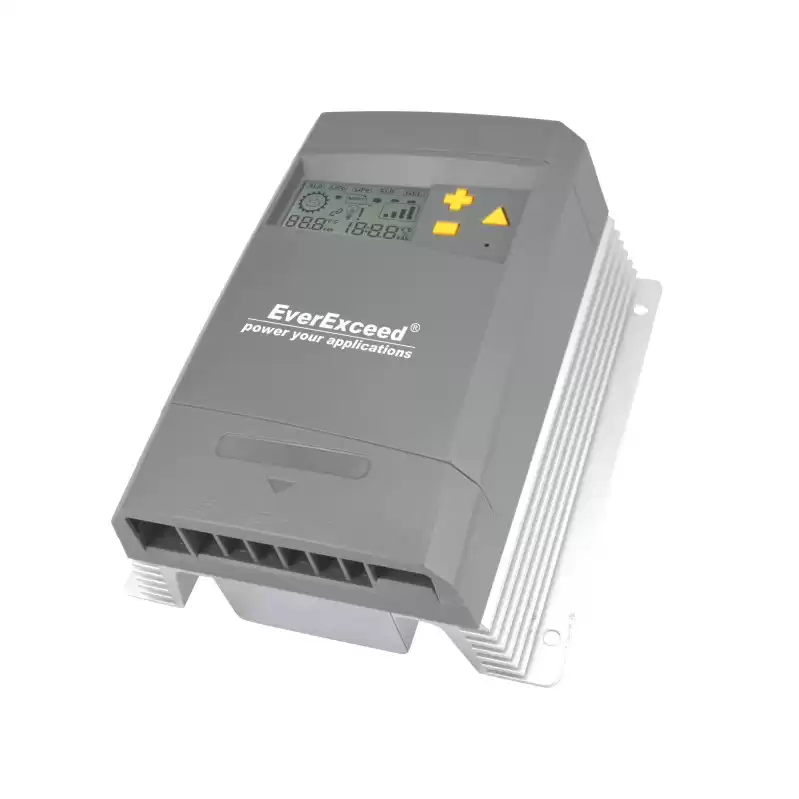

Titan Pro Series MPPT Solar Charge Controller

EverExceed's Titan Pro MPPT solar charge controller is an advanced maximum power point tracking (MPPT) battery charger for off-grid photovoltaic (PV) systems . The controller provides the industry's highest peak efficiency and significantly less power loss compared to other MPPT controllers along with unique safety features make it universal top-grade charge controller.
The Titan Pro MPPT features a smart tracking algorithm that maximizes the energy produce from the PV by rapidly finding the solar array peak power point with extremely fast sweeping of the entire I-V curve.



Technical Features:

High-efficient MPPT algorithm, MPPT efficiency 99.5%.
Proprietary tracking algorithm minimizes power losses.
Recognition of multiple power points during shading or mixed PV arrays. .
Excellent performance at sunrise and low solar isolation levels.
Automatic battery voltage recognition (compatible with 12V/24V).
Continuous operation at full power to 45°C without reducing power.
RS485 communication port for software.
Support Seal/Gel/Flooded/Lithium battery and User-defined.
Support PC and APP (android or iOS) monitoring.
High definition LCD display.
USB output(5V/1A)


Electronic protection function:
Input over voltage protection
Input low voltage protection
Output overvoltage protection
Output low voltage protection
Reverse connection protection
Over temperature protection
