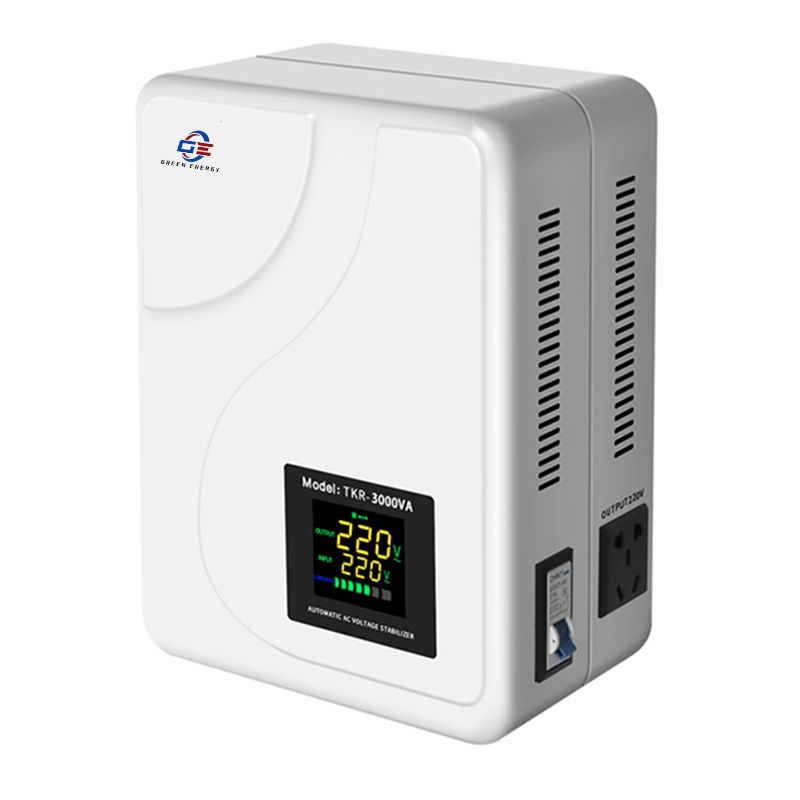

TKR Single-Phase Electronic Automatic AC High Precision Voltage Stabilizer
⇒ PRODUCT DESCRIPTION
PC (program-controlled computerized) series voltage stabilizer is a product with low energy consumption, over-voltage protection, Various protection functions such as under-voltage protection, over-power protection, over-temperature protection, and leakage protection are integrated into one, with selective delay, shock resistance, LED multi-display, and many new technologies such as energy saving and environmental protection are integrated into a new product with a new concept. . This series of regulated power supply is widely used and has strong adaptability. It is an ideal choice for reliable operation and safety protection of intelligent household appliances, industrial control equipment, various electronic instruments and meters! It has low power consumption and can be used continuously for a long time.
Main Features
Ultra wide range input voltage
Multiple on/off options
Standard output voltage
Over voltage protection
Under voltage protection
Overload tips
Overload protection
Over temperature protection
Multiple options for power control
Buzzer status prompt, protection alarm prompt

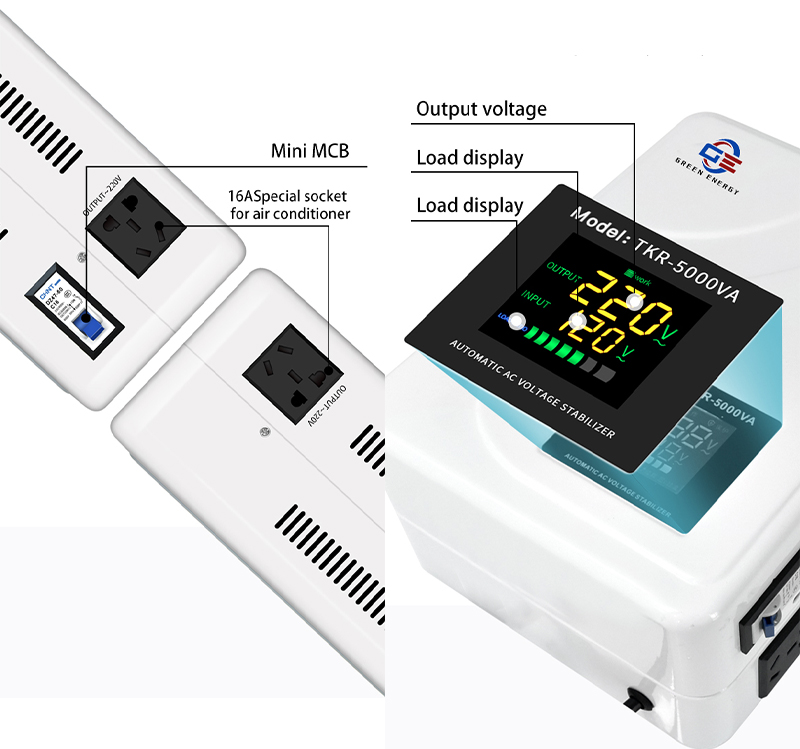

LED input voltage digital display
LED output voltage digital display
LED load utilization percentage digital display
LED status prompt display
LED protection information display
LED delay, timing, count display
Program-controlled transformation of 7 colorful bright fonts (monochrome fonts)
LED display multi-state alarm prompt
|
Frequency
|
50Hz/60Hz
|
|
Output delay time
|
5 seconds delay /255 seconds
|
|
Output overload alarm
|
Exceeding 100% of the rated output capacity
|
|
Output overload protection
|
Exceeding 120% of the rated output capacity
|
|
Output overvoltage protection
|
> AC244±4V
|
|
Output undervoltage protection
|
Optional
|
|
Overheat protection
|
Transformer coil temperature:120±5℃
|
|
LED input display range
|
0-450V (overflow range display: Err)
|
|
LED output display range
|
0- 450V (overflow range display: 000)
|
|
LED load display range
|
000-119% (overflow range display: OVL)
|
|
LED status display
|
Delay, Normal, Protection
|
|
LED protection information display
|
Overvoltage, under voltage, over load, overfill
|
|
LED backlight
|
Program-controlled transformation 7 color
font/fixed 7 color in a certain color
|
|
LED viewing angle
|
Traditional ON/OFF, New Self-Lock ON/OFF, New touch ON/SHOT
|
|
Delay display
|
5 seconds /255 seconds countdown
|
|
Product
|
Model
|
Rated Output Capacity(VA)
|
Rated Output Current(A)
|
Rated Output Voltage(V)
|
Output
Voltage
|
|

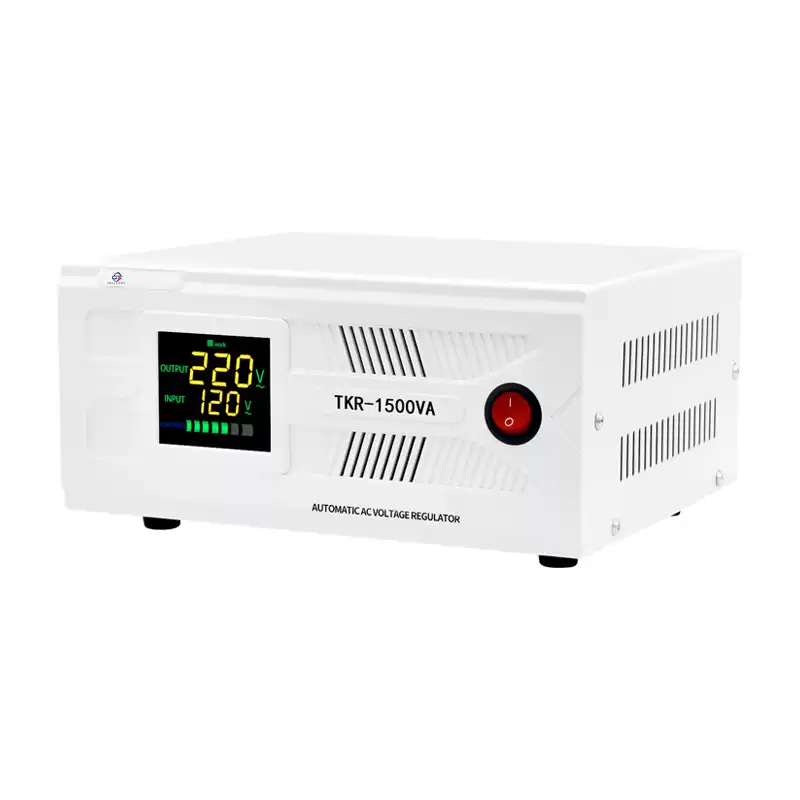

Desktop relay automatic AC regulator
(Input voltage: AC105-270V)
|
TKR500VA
|
500
|
2.3A
|
AC105-270V
|
220V±3%
|
|
TKR1000VA
|
1000
|
4.5A
|
|
TKR1500VA
|
1500
|
7.0A
|
|
TKR2000VA
|
2000
|
9.1A
|
|
Desktop relay automatic AC regulator
(Input voltage: AC105-270V)
|
TZM500VA
|
500
|
2.3A
|
AC105-270V
|
220V±10%
|
|
TZM1000VA
|
1000
|
4.5A
|
|
TZM1500VA
|
1500
|
7.0A
|
|
TZM2000VA
|
2000
|
9.1A
|
|

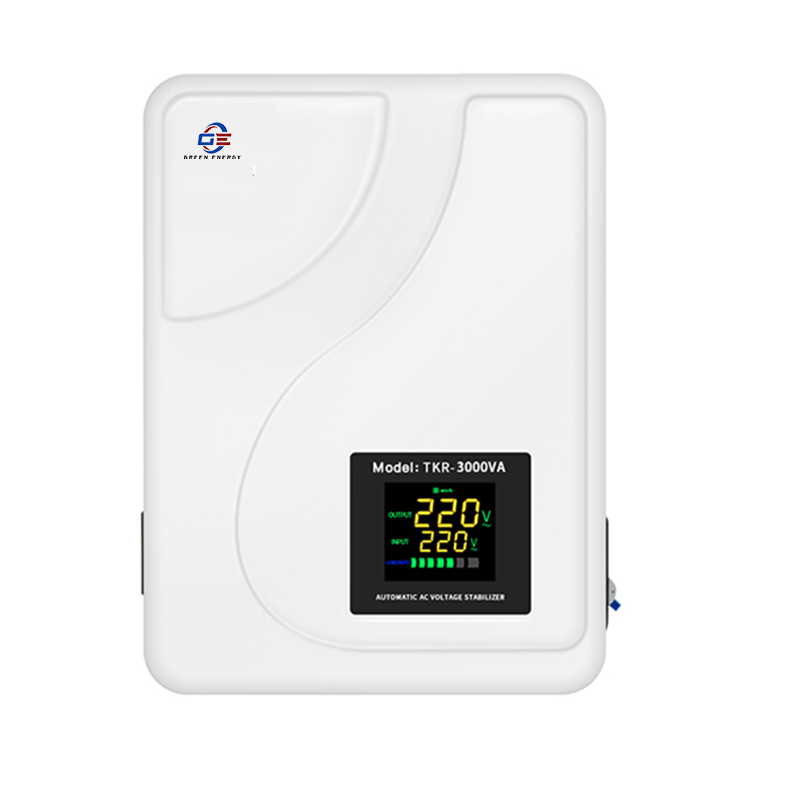

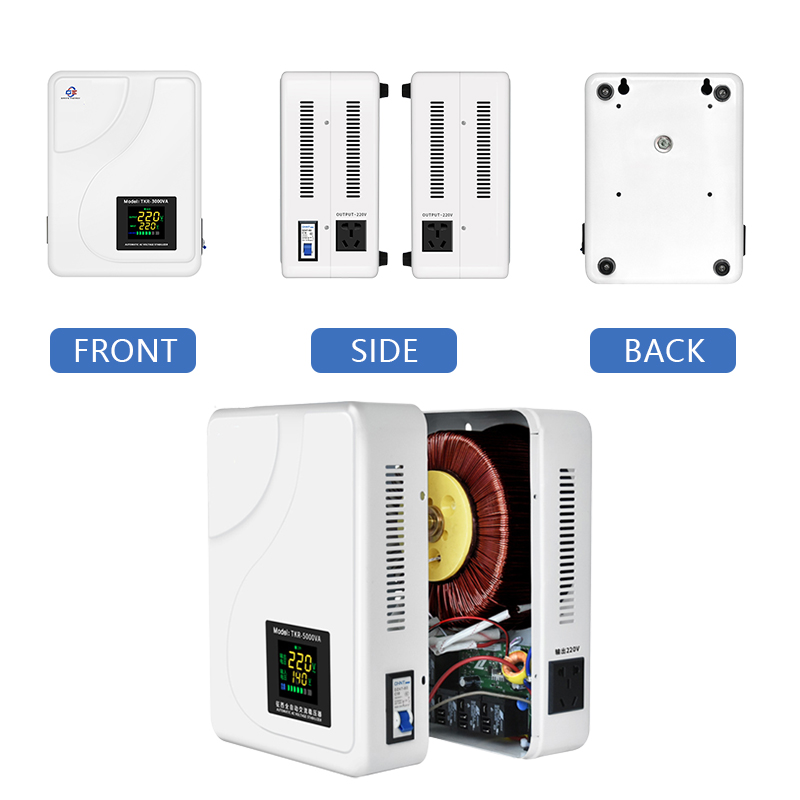

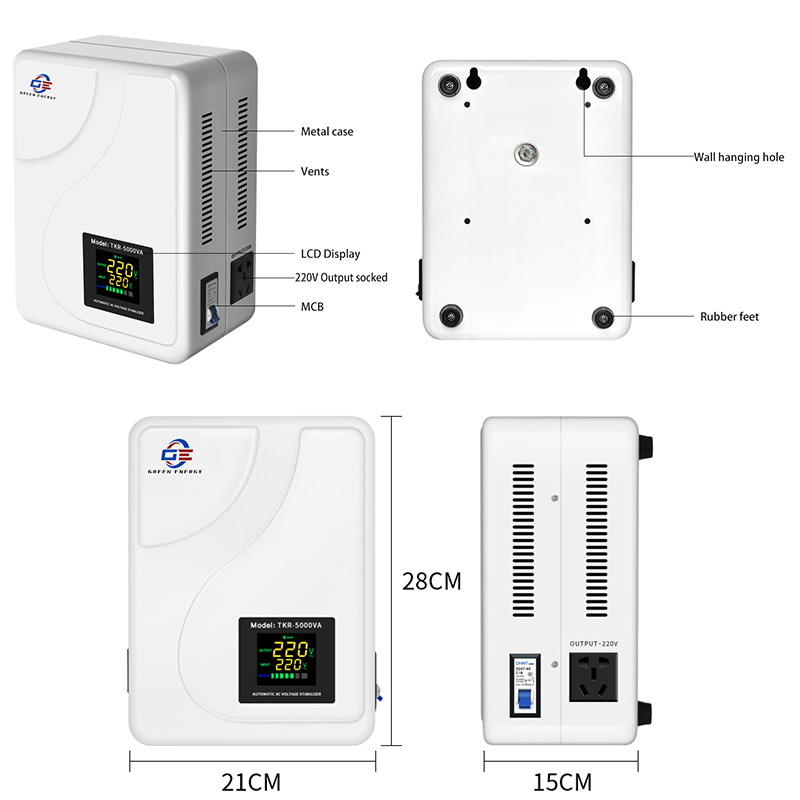

Hanging type relay automatic AC regulator
(Input voltage: AC105-270V)
|
TLR3000VA
|
3000
|
13.6A
|
AC105-270V
|
220V±10%
|
|
TLR5000VA
|
5000
|
22.7A
|
|
TLR8000VA
|
8000
|
36.4A
|
|
TLR10000VA
|
10000
|
45.5A
|
|
TLR12000VA
|
12000
|
54.5A
|

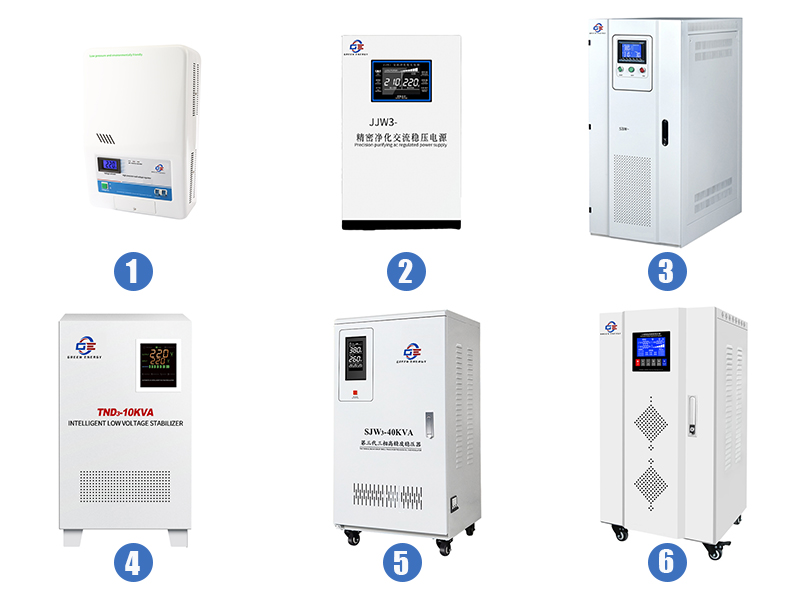

⇒ RELATED PRODUCT
