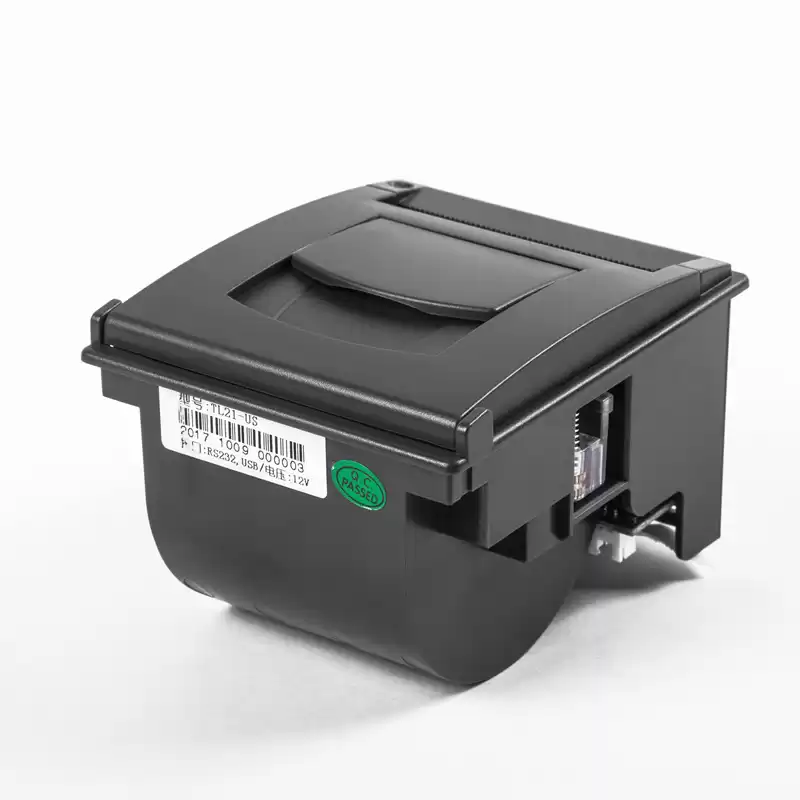

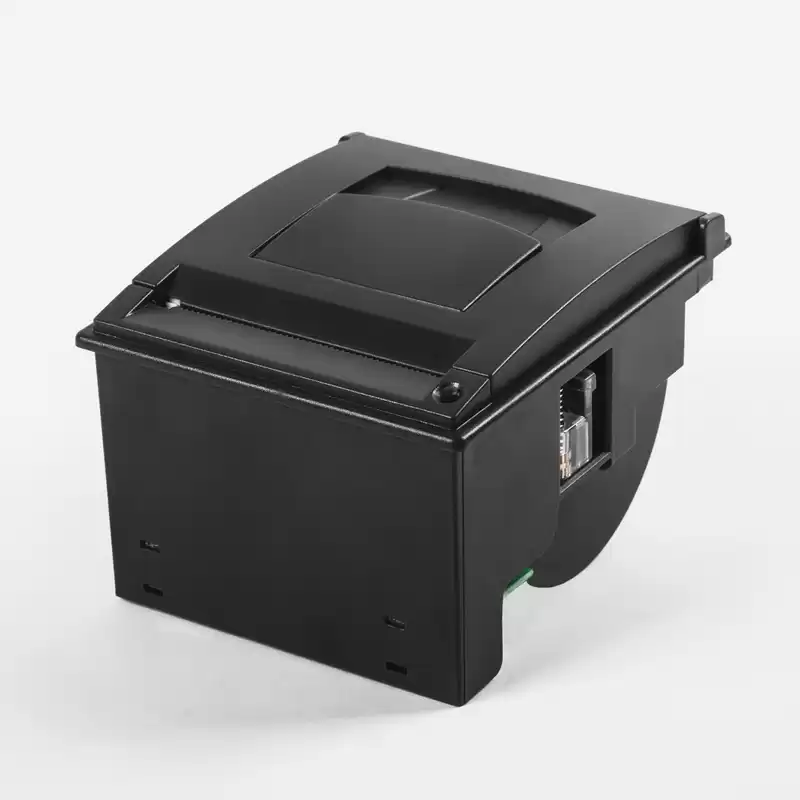

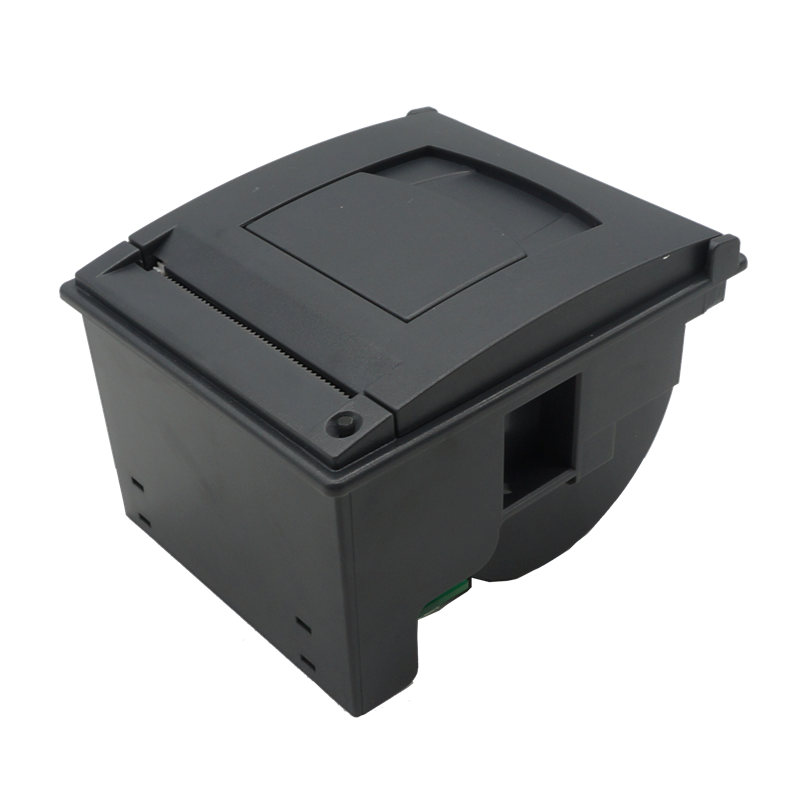

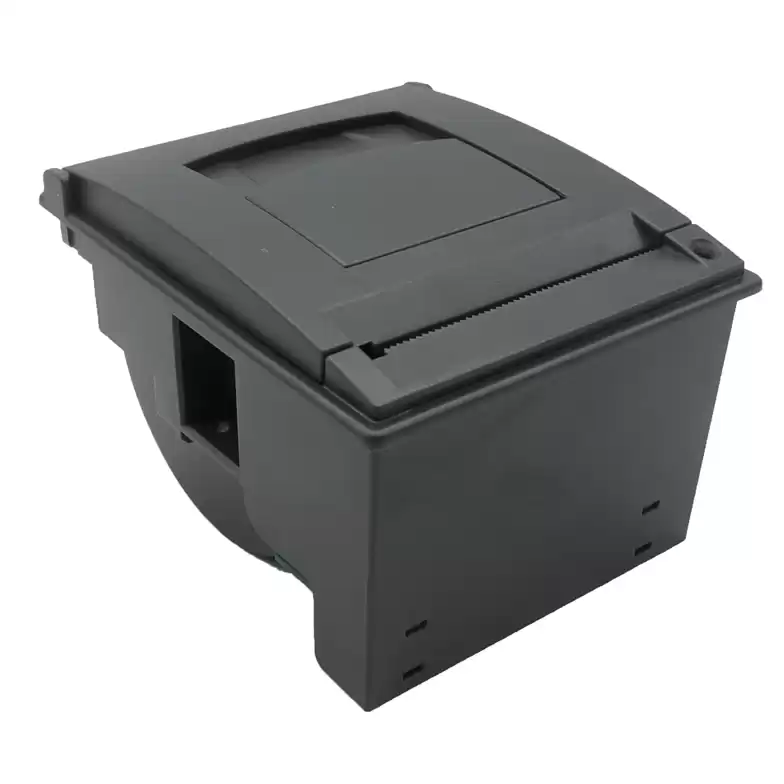

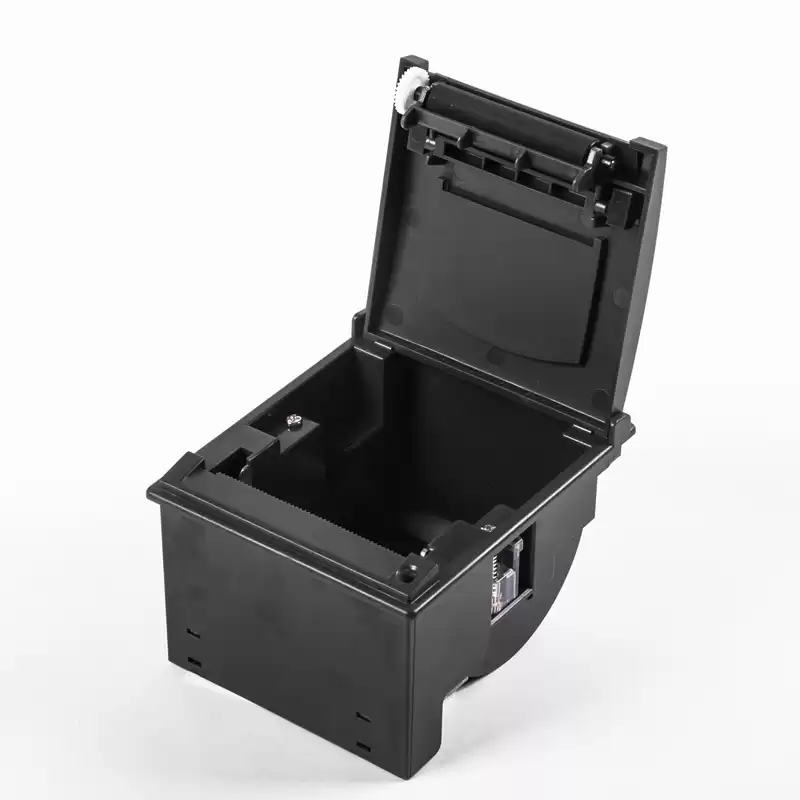

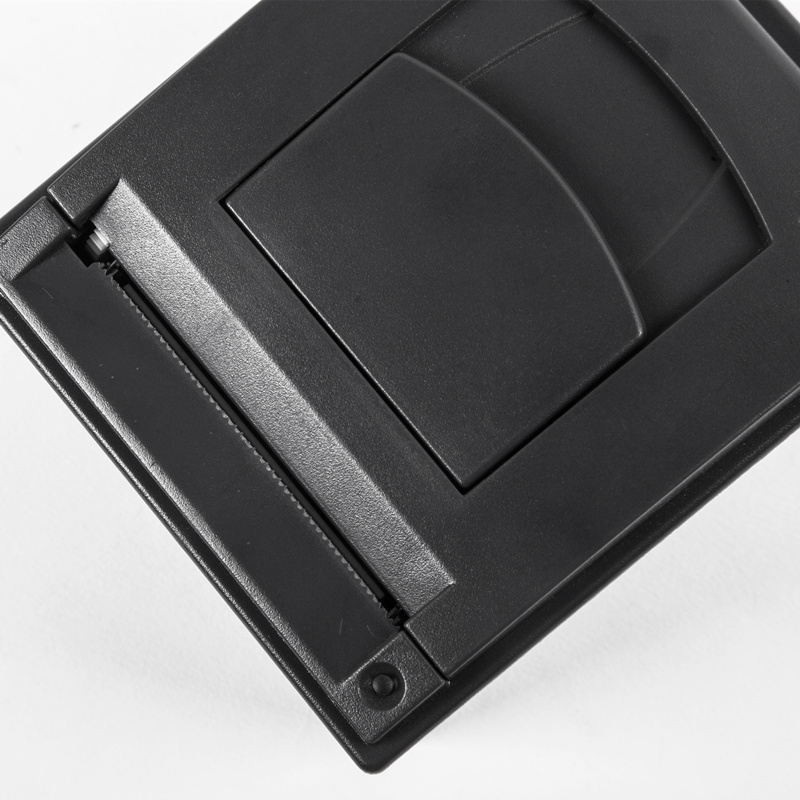

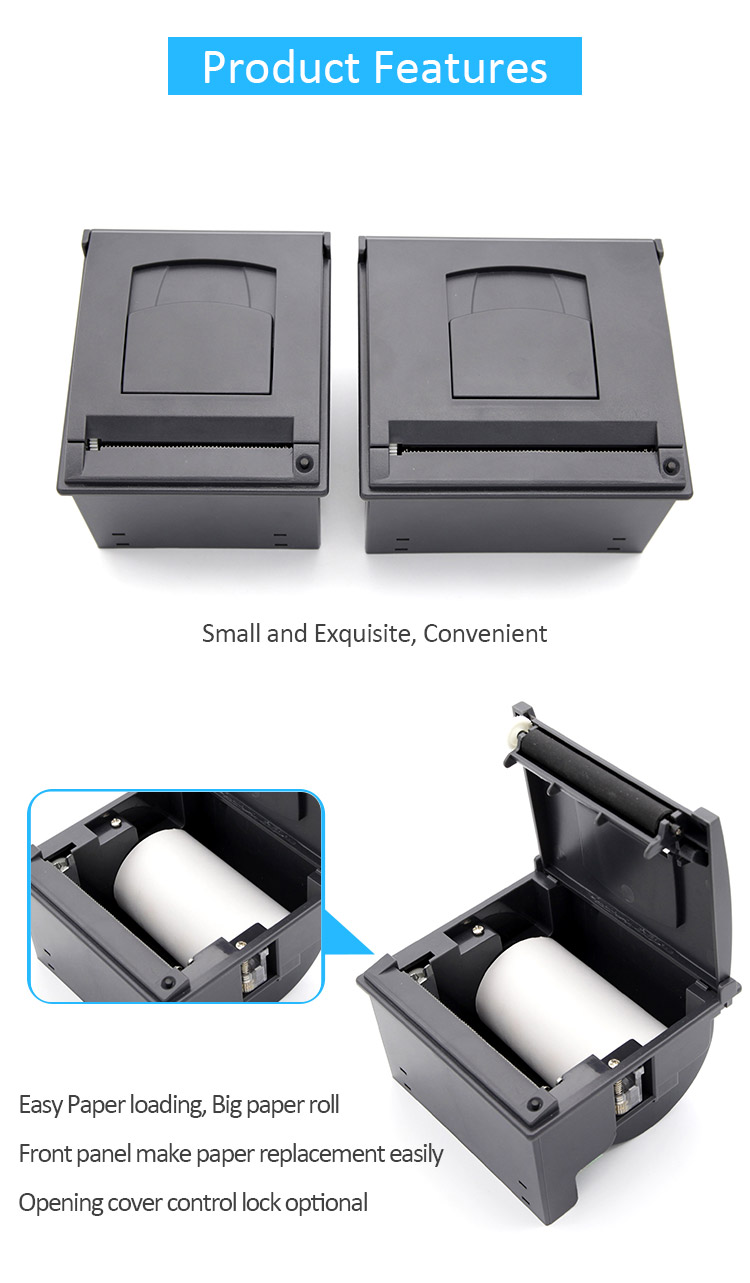

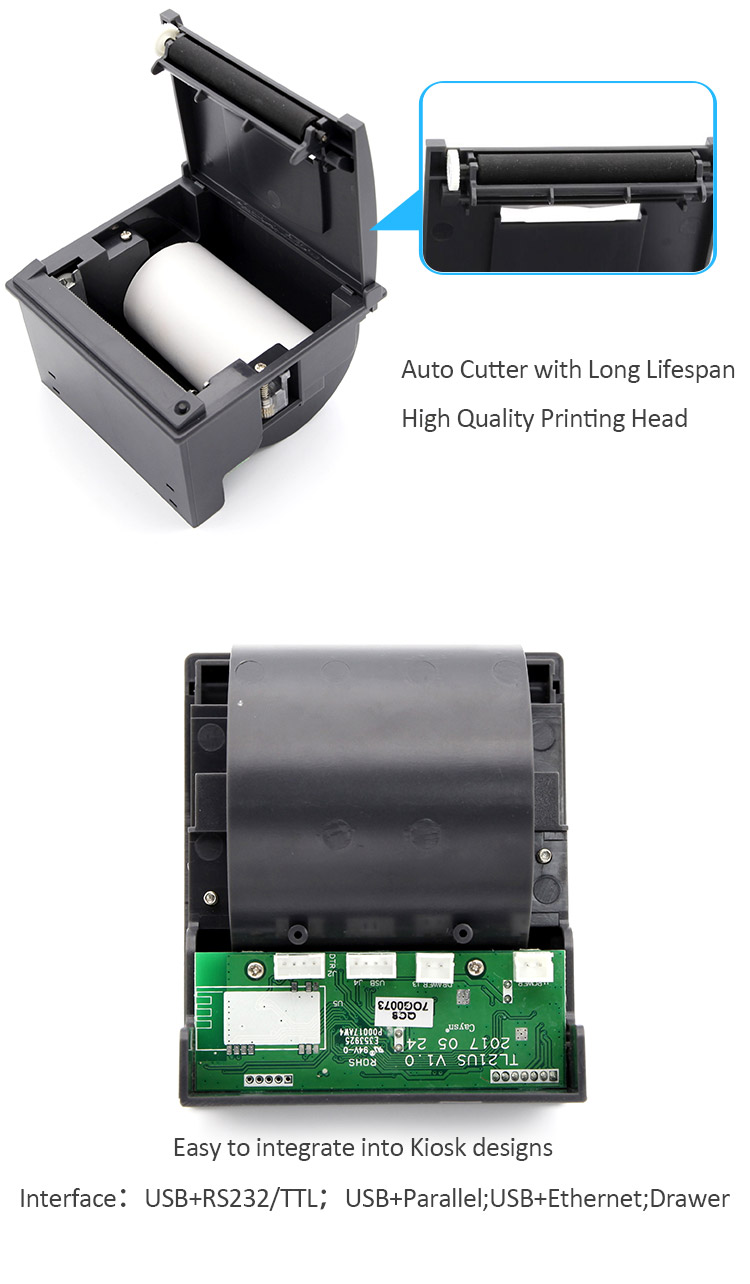

TL21 58mm mini pane thermal 2inch bluetooth embedded printer

Technical parameters

Item	TL21(2inch)
Printing method	Thermal printing
Resolution	203DPI, 8 dots/mm
Paper width	57.5±0.5mm
Printing width	48mm
Interfaces	USB+RS232/TTL+Bluetooth, Serial+Parallel+bluetooth, drawer
Paper tore	Manual
Command set	ESC/POS compatible commands
Print Font	ASCII Font A: 12×24/ASCII Font B: 9×24/Chinese: 24×24
Graphics printing	Support dots printing with different densities, raster bitmap print and downloaded bit image print
Code pages	Support Chinese, English, Japanese and other 45 kinds of international character sets
UTF-8	Support
Bar codes	UPC-A; UPC-E; EAN-8; EAN13; CODE39; ITF; CODEBAR; CODE128; CODE93; QR CODE

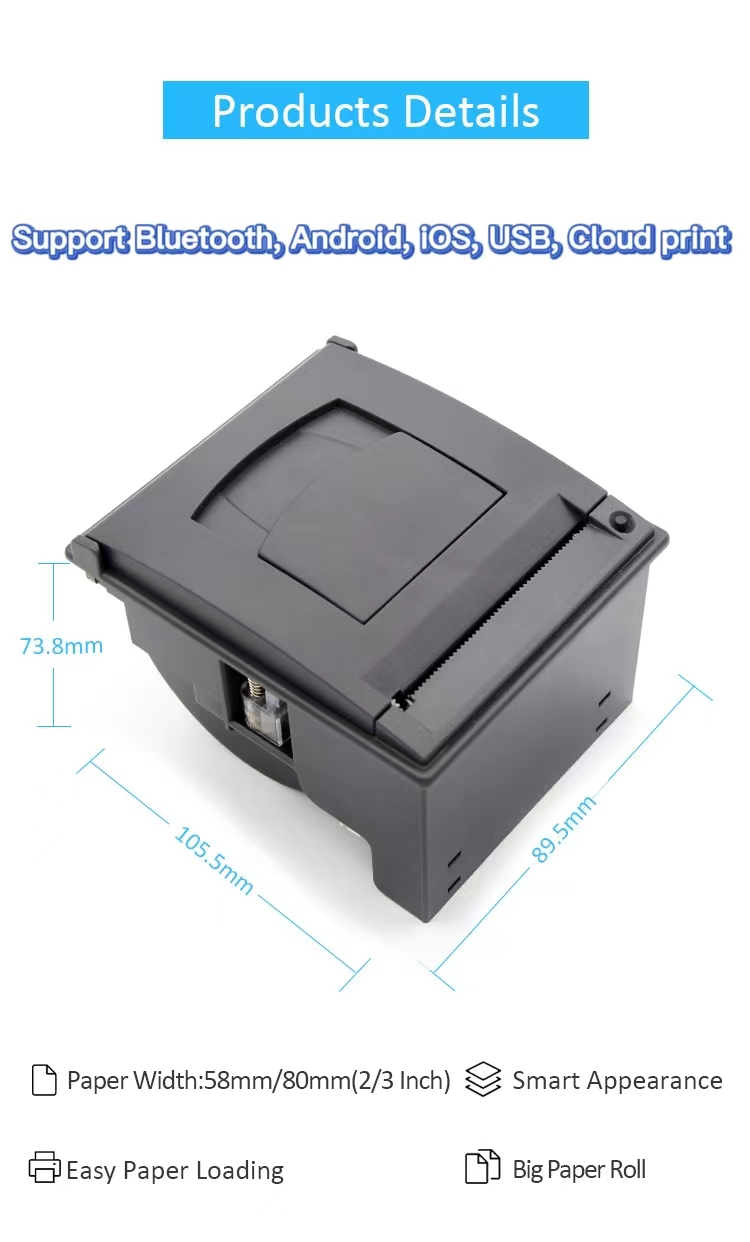

External dimension	105.5mm×89.5mm×73.8mm
Opening dimension	99.6mm×83.5mm(L×W)
Paper roll diameter	60mm(Max)
TPH life	50km
Power Supply	12V
