TMAX Brand 3T Lab Small Manual Hydraulic Press for Powder Materials Pressing
The powder tablet press can be used in sample preparation with calcium-iron analyzer, Fourier infrared spectrometer (IR), X-ray fluorescence spectrometer (XRF) and other analytical testing instruments; it has been widely used in scientific research, teaching, testing, catalysis, pharmaceuticals, and chemical industries. In addition, various powder materials such as potassium bromide (KBr), sodium chloride (NaCl), boric acid (H3BO3) and other powder materials can be pressed into shapes through specific tableting molds, and various types of For scientific research on specimens, cylinders, special-shaped bodies or other shapes; at the same time, the hydraulic press is also suitable for other workplaces that require corresponding pressure. It is used as a press to test the pressure resistance of various objects, etc., and is widely used , Can replace similar imported products.
The SYP series laboratory manual tablet press is a new generation of compression molding machine developed by TMAX to meet the current market demand and accept the suggestions and feedback of some college teachers. The machine has the characteristics of beautiful appearance, compact structure, small size, fast pressing, simple operation, convenient cleaning, etc.; it adopts national utility model patent technology, one-piece structure, oil cylinder, oil pool, main board, and piston are all on one main body. The sealed connection reduces the oil leakage point and reduces the oil leakage rate of the tablet press; the imported pressure sensor is used to greatly improve the pressure stability; the future cleaning and maintenance work of the hydraulic press is considered at the beginning of the design, which is more convenient The user maintains the equipment and is deeply loved by users at home and abroad.

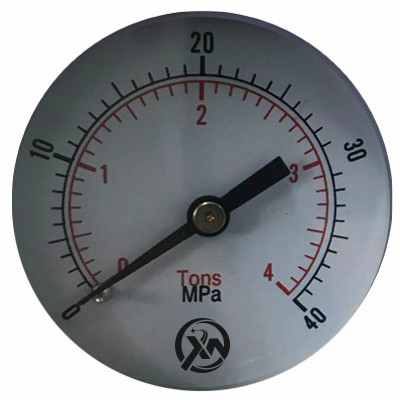

SYP-3B 3T hydraulic press adopts a 2-column design. Because of its small size and light weight, it is very suitable for use in a glove box. Small-size molds with a diameter of Ф5mm or less are also recommended to purchase a 3-ton tablet press to prepare samples. The machine adopts imported pressure sensor, XNNETS pointer pressure gauge, pressure tonnage, pressure MPa double scale display, the pressure does not need to be converted, simple and intuitive, very suitable for users with small tonnage requirements but strict pressure accuracy requirements.
Specification
|
Model
|
SYP-3B
|
SYP-3BS
|
|
Pressure gauge type
|
Pointer type, double scale display of pressure and pressure
|
Digital display, high-precision digital display pressure gauge
|
|
Optional digital display
|
XNNETS digital display 0.00-40.00MPa/0.01MPa (only "S" type)
|
|
Pressure range
|
0-3T(0-28.8MPa)
|
|
Pressure conversion
|
1T=9.6Mpa
|
|
Piston diameter
|
Chrome plated cylinder φ35mm
|
|
Max. Piston stroke
|
30mm
|
|
Pressurization mode
|
Manual pressurization
|
|
Pressure stability
|
≤1MPA/10Min
|
|
Mold pressure calculation formula
|
The area of the oil cylinder ÷ the area of the mold × the reading of the pressure gauge = the actual pressure of the mold (Mpa)
|
|
the whole frame
|
One-piece structure
|
|
Workstation diameter
|
Φ80mm
|
|
Number of columns
|
2 pillars
|
|
Column space
|
96×130mm (W/H)
|
|
over dimension
|
225×155×380mm(L×W×H)
|
|
Weight
|
28kg
|
|
Standard configuration
|
3T manual tablet press, mold option; "S" in the model is a digital pressure gauge
|
Remarks: Some of the indicators are unique to TMAX, which can be customized or improved according to customer needs.
Pressure conversion table
|
Model No.
|
SYP-3B type powder tablet press pressure conversion table
|
|
Actual output pressure
|
Pressure gauge system pressure
|
Pressure gauge type
|
|
0.2 T
|
1.90 MPa
|
|
|
0.4 T
|
3.80 MPa
|
|
0.6 T
|
5.70 MPa
|
|
0.8 T
|
7.60 MPa
|
|
1.0 T
|
9.50 MPa
|
|
1.5 T
|
14.2 MPa
|
|
2.0 T
|
19.0 MPa
|
|
2.5 T
|
23.7 MPa
|
|
3.0 T
|
28.8 MPa
|
|
Pressure calculation formula
|
The area of the oil cylinder/the area of the mold × the reading of the pressure gauge = the actual pressure of the mold (Mpa)
|
|
Note
|
The system pressure (ie pressure gauge reading) should not exceed 28.8MPa=3T, otherwise it will affect the service life of the equipment
|
Product Images
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
