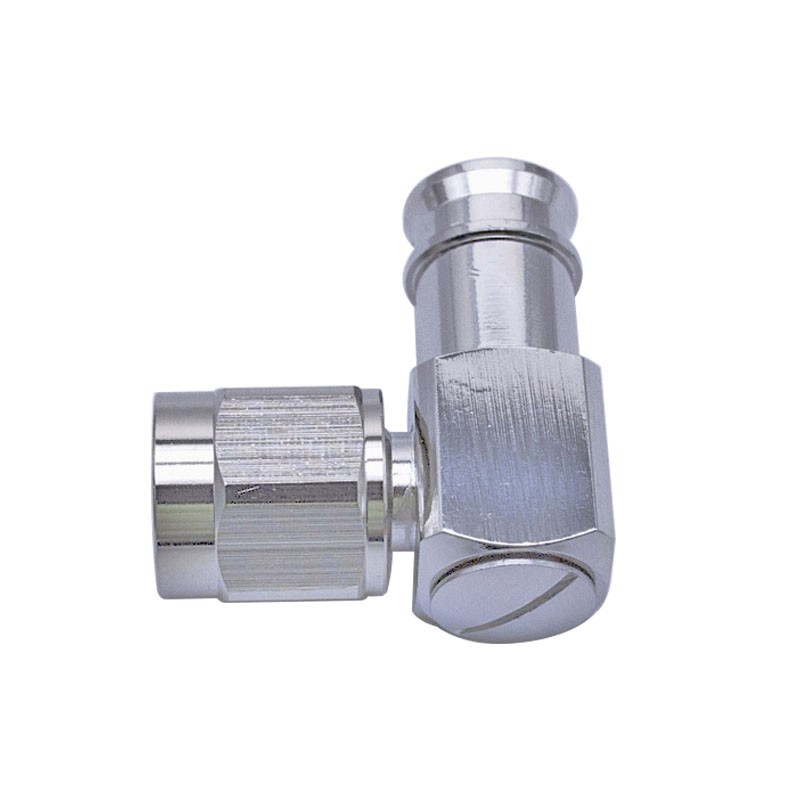

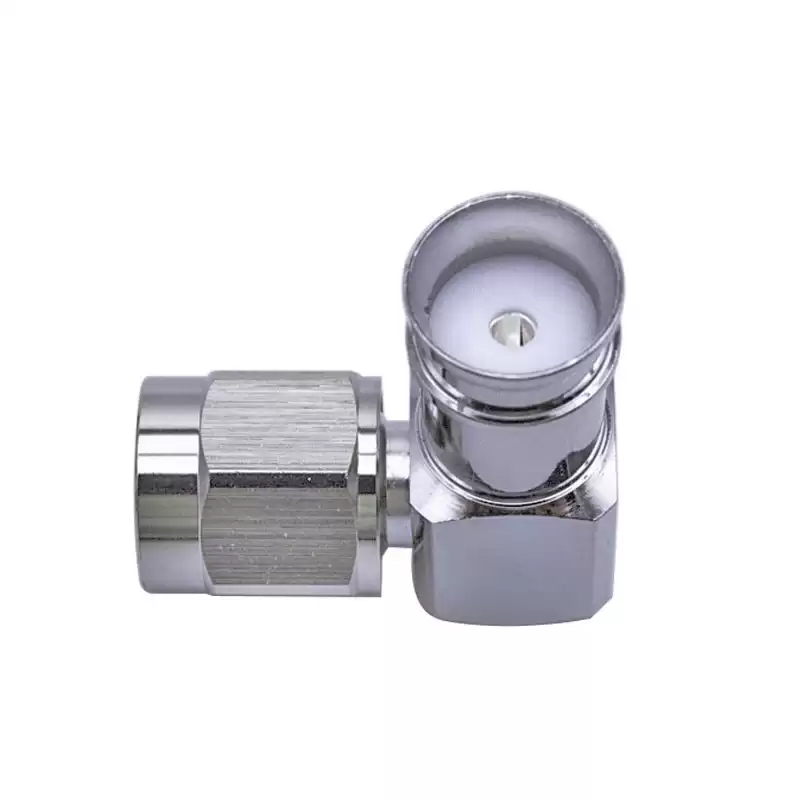

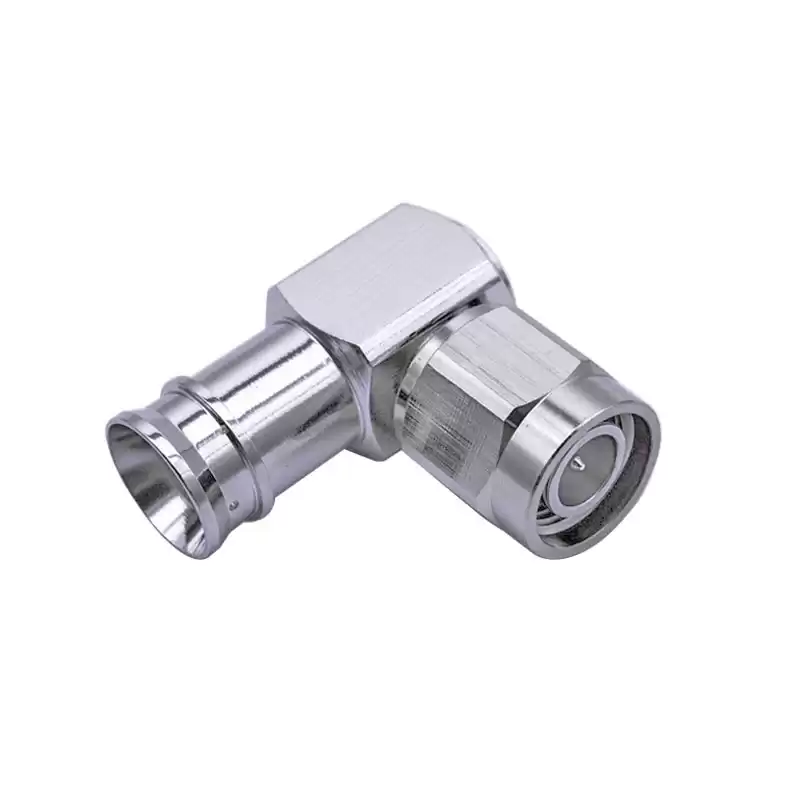

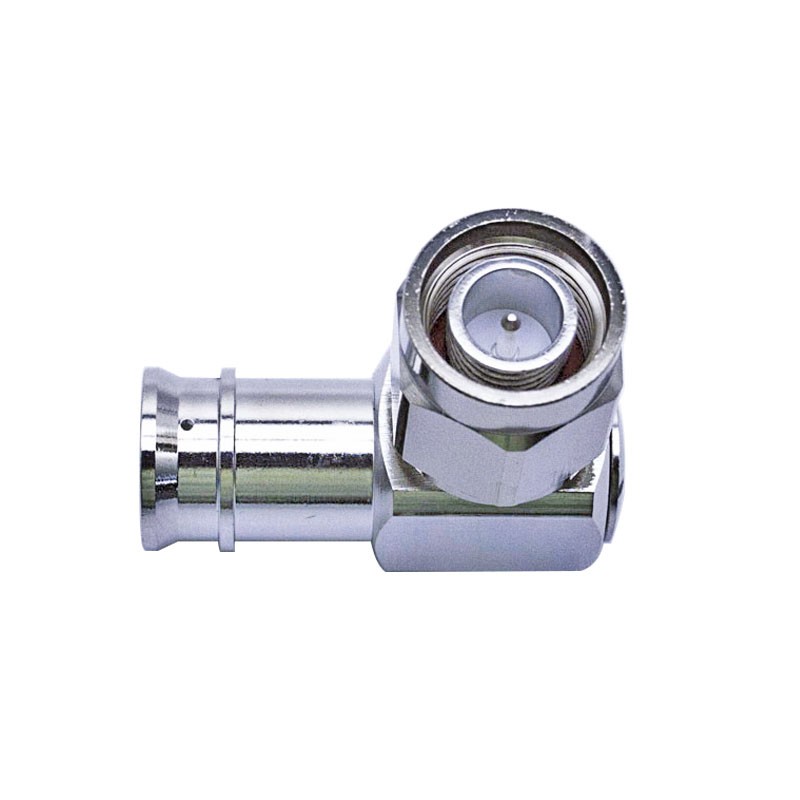

TNC Male Right Angle Connector Solder Attachment for 3/8'' Superflex Cable
The TNC connector series is a miniature, threaded weatherproof series with a constant 50 ohm impedance and a frequency range of DC to 11 GHz. The TNC series shares its contact design with the BNC series, utilizing a threaded coupling nut for secure mating and higher frequency performance than the BNC; this TNC male coaxial connector has an interface type of 3/8'' Superflex cable and a 50ohm impedance, attachment method uses shield/contact solder/solder, its right angle body is brass with nickel plating.
Specifications
| ELECTRICAL DATA |
|
| Impedance |
50Ω |
| Frequency Range |
6GHz |
| Dielectric withstanding voltage (at sea level) |
1500V,50Hz |
| Working Voltage (at sea level) |
500V rms,,50Hz |
| Insulation Resistance |
≥5000mΩ |
| Contact Resistance |
Inner conductor: ≤1.5mΩ |
| Outer conductor: ≤1mΩ |
| RF leakage(2-3GHZ) |
≥90dB |
| MECHANICAL DATA |
|
| Coupling nut torque |
Recommended: 46Ncm--69Ncm / 4.1 in. lbs--6.1 in.lbs |
| Proof torque: 170 Ncm / 15.0 in.lbs |
| Coupling nut retention force |
≥450N / 101.2lbs |
| Contact captivation |
≥27N / 6.1lbs |
| Durability (matings) |
≥500 |
| ENVIRONMENTAL DATA |
|
| Temperature range |
-65°C to +165°C |
| MATERIAL DATA |
|
| Bodies |
Brass--Ternary alloy plating |
| Pin contacts |
Brass--Au plating |
| Socket contacts |
Copper beryllium alloy--Au plating |
| Crimp ferrules |
Brass-- Ternary alloy plating |
| Insulator |
PTFE |
| Gaskets |
Silicone rubber |
Applications
- Industrial
- Military
- Antennas
- Broadband
- Wireless
