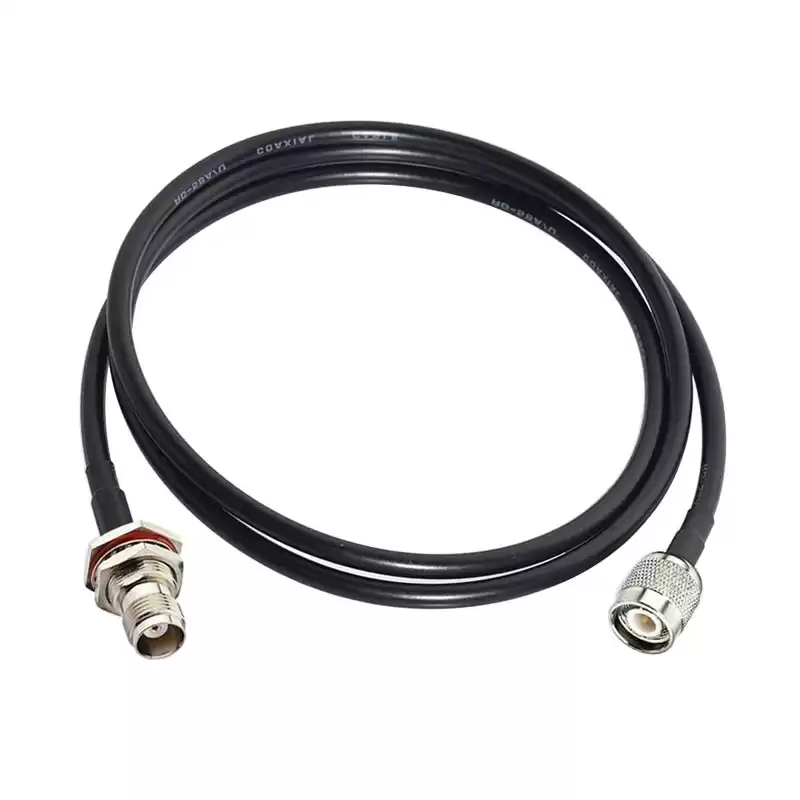

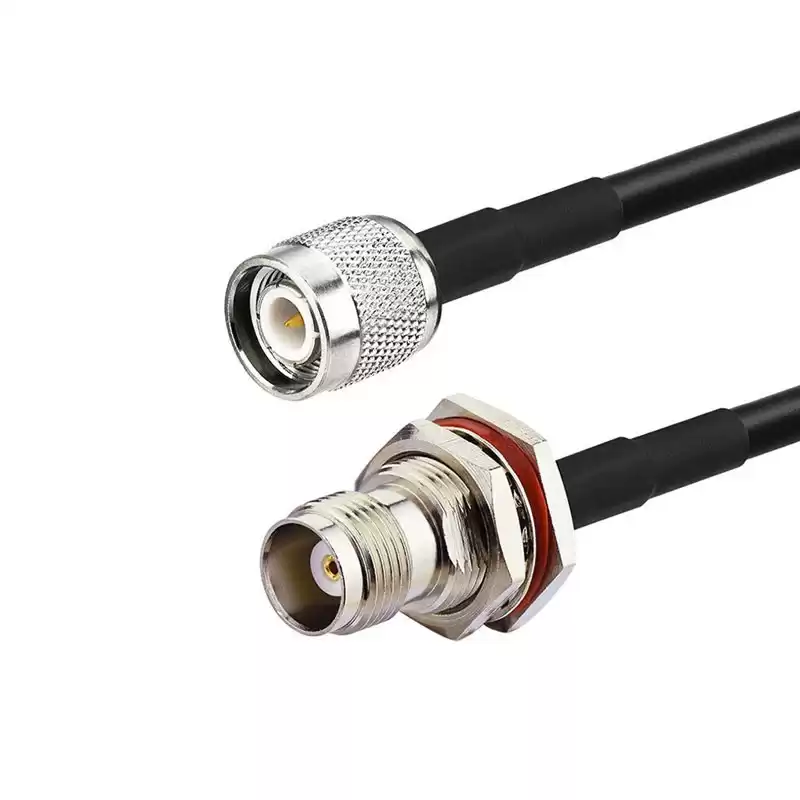

TNC Male to TNC Female Connector Cable Assembly with RG58 Coaxial Cable
The TNC cable assembly can use flexible, formable or semirigid coaxial cable such as LMR195、LMR240、LMR400、RG142、RG174、RG178、RG188、RG213、RG214、RG223、RG316、RG393、RG400、RG401、RG402、RG58、RG8; the body of TNC to TNC cable assembly is right angle or straight connectors which is female to female, female to male, male to female or male to male gender. This TNC male to TNC female cable assembly uses a 50ohm straight TNC for connector 1 and a 50ohm straight TNC for connector 2, Cable is a 50ohm flexible RG58.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |
TNC |
| Connector 1 Style |
Str Male |
| Cable Type |
RG58 |
| Connector 2 Series |
TNC |
| Connector 2 Style |
Str Female |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
Yes |
| Max Frequency |
3GHz |
| Working Temperature |
-65°C to +165°C |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- Automated Test Systems
- Airborne Systems
- Phased Arrays
- EW and Countermeasures
