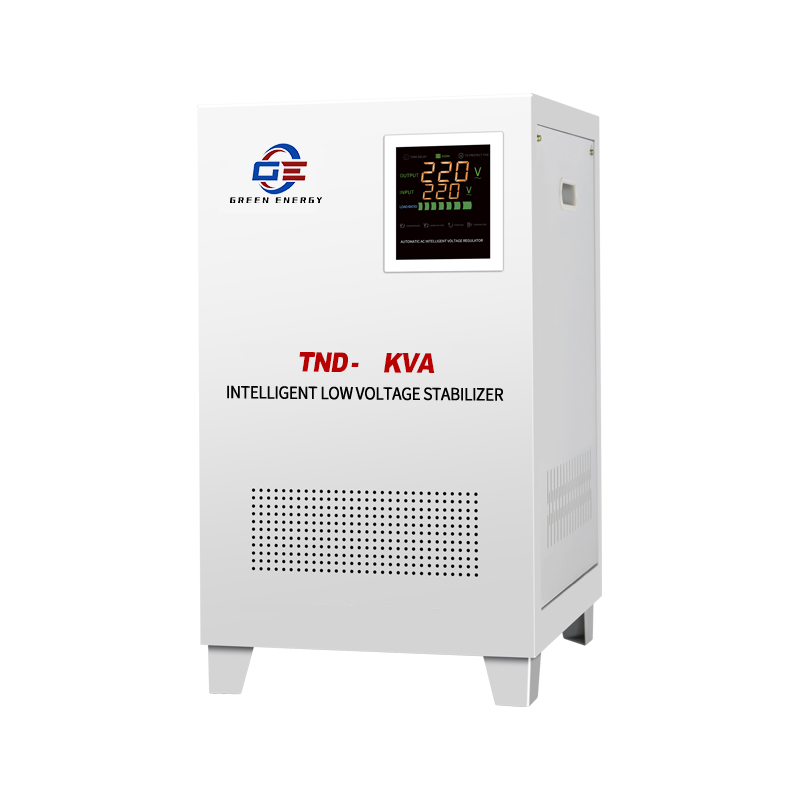

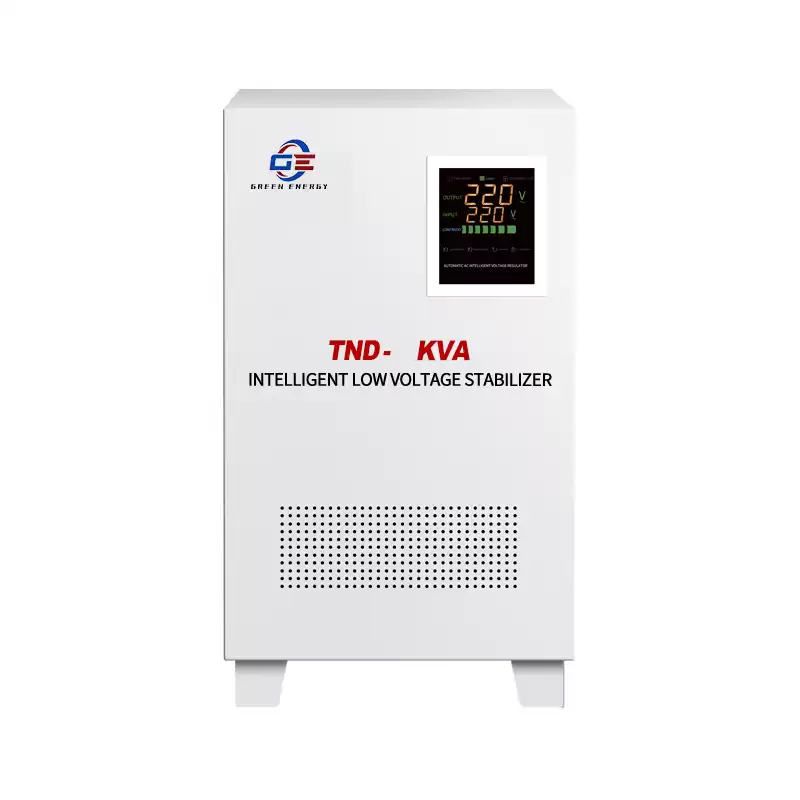

TKR Single-Phase Electronic Automatic AC High Precision Voltage Stabilizer
⇒ PRODUCT DESCRIPTION
TND series high-precision AC voltage stabilizer, with the function of mains pass-through. It has the advantages of many varieties, complete specifications and beautiful appearance. It has the advantages of undistorted waveform, high efficiency, reliable performance, and long-term operation. It has protection functions such as short delay and overvoltage. Long delay and undervoltage protection functions can be added according to user needs. The product can be widely used in any place where electricity is used, and is an ideal regulated power supply to ensure the normal operation of your electrical equipment. Suitable for office equipment, test equipment, medical equipment, industrial automation equipment, household appliances, lighting systems, communication systems, etc.
|
Input voltage
|
Regular models 140V-260/300V, ultra low voltage models 90-260/300V
|
|
Output voltage
|
0.5KVA-5KVA, 220V and 110V 10KVA-50KVA, 220V
|
|
Voltage regulation accuracy
|
220V±3%, 11V±6%
|
|
Frequency
|
50Hz/60Hz
|
|
Overvoltage protection value
|
Output voltage 260V±4V
|
|
Undervoltage protection value
|
Output voltage 186V±4V, regularly not set undervoltage protection
|
|
Load power factor
|
0.8
|
|
Adjust time
|
When the voltage change by10%<1S
|
|
Waveform distortion
|
No additional waveform distortion
|
|
Dielectric strength
|
1500V/1min
|
|
Insulation resistance
|
Single phase >5MΩ
|
|
Insulation class
|
Class E
|
|
Working environment
|
Temperature :-10℃ to +40℃, Humidity: <95%
|
|
Effectiveness
|
>95%
|
|
Temperature rise
|
<60℃
|

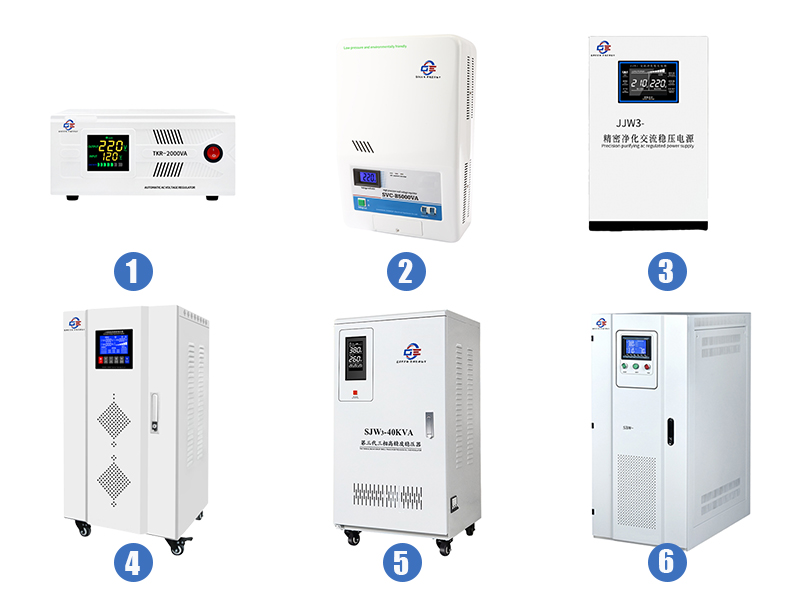

⇒ RELATED PRODUCT
