TOB-MCP85 Pneumatic Die Cutting Machine For Battery Electrode Cutting
SPECIFICATIONS
TOB-MCP85
pneumatic die cutter is suitable for die-cutting of positive and negative
electrodes of batteries, punching sheet type electrode by pneumatic method and
can be placed in the glove box.
Main
features:
Sheet type electrode feeding, knife template for die
cutting, can be placed in the glove box.
Easy to replace the cutter.
Long die life, normal use≥30,000 times.
No quality defects such as burrs, powder drop, and
indentation.
Adopts four pillar structures, up and down slip smooth
and high precision.
Exquisite appearance, easy to operate, safe and
reliable, small size.
|
Model
|
Pneumatic
Battery Electrode Die Cutter TOB-MCP85
|
|
Vertical
burr
|
≤12μm
|
|
Horizontal
burr
|
≤20μm
|
|
Max
punching size
|
L85*W65mm(can
be customized according to requirements)
|
|
Punching
accuracy
|
±0.1mm
|
|
Punching
pressure
|
Max.
1T (0.5MPa compressed air)
Punching
the battery electrode recommended pressure 500Kg
|
|
Stroke
|
35mm
|
|
Compressed
air
|
0.5MPa
If
placed in a glove box, the gas used is the same as that used in the glove
box.
|
|
Dimension(L*W*H)
|
350*230*300mm
|
|
Weight
|
32kg
|
|
Warranty
|
One
year limited warranty and lifetime support
|

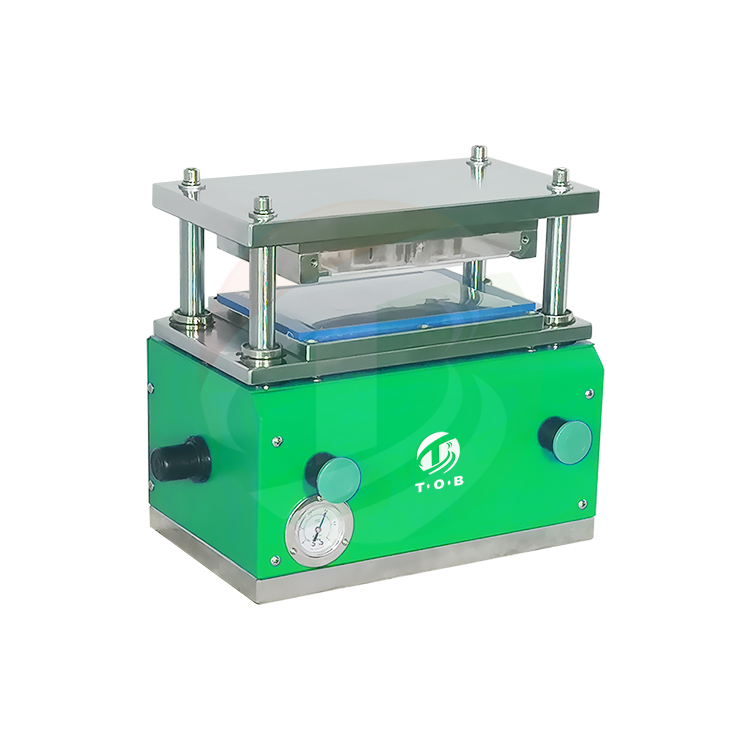

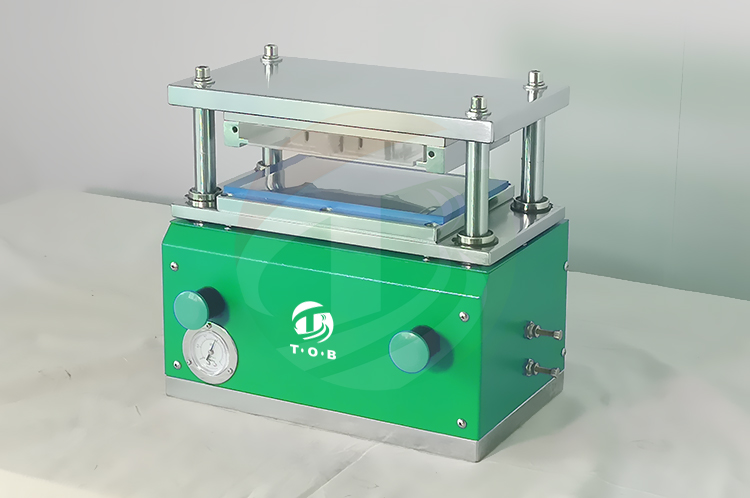

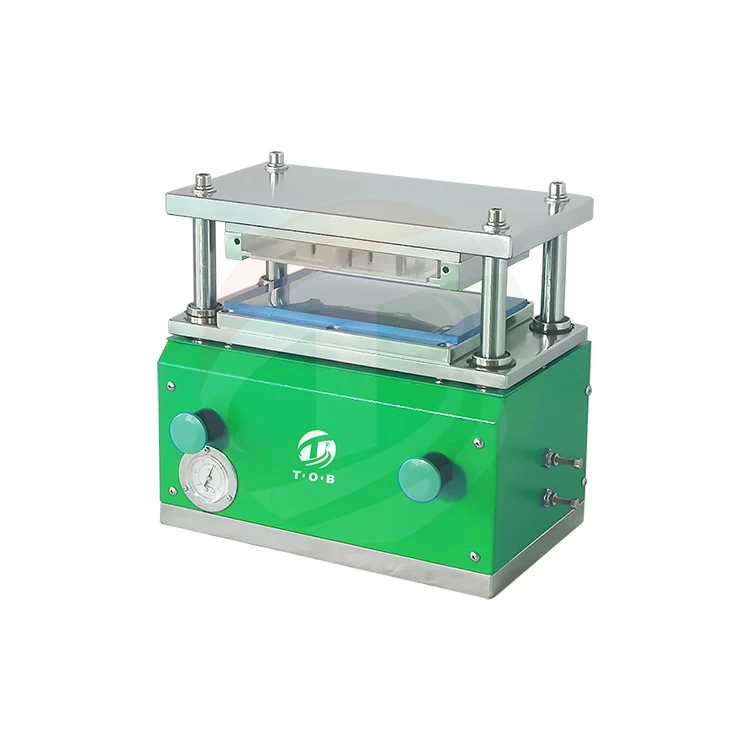

PRODUCT DISPLAY
