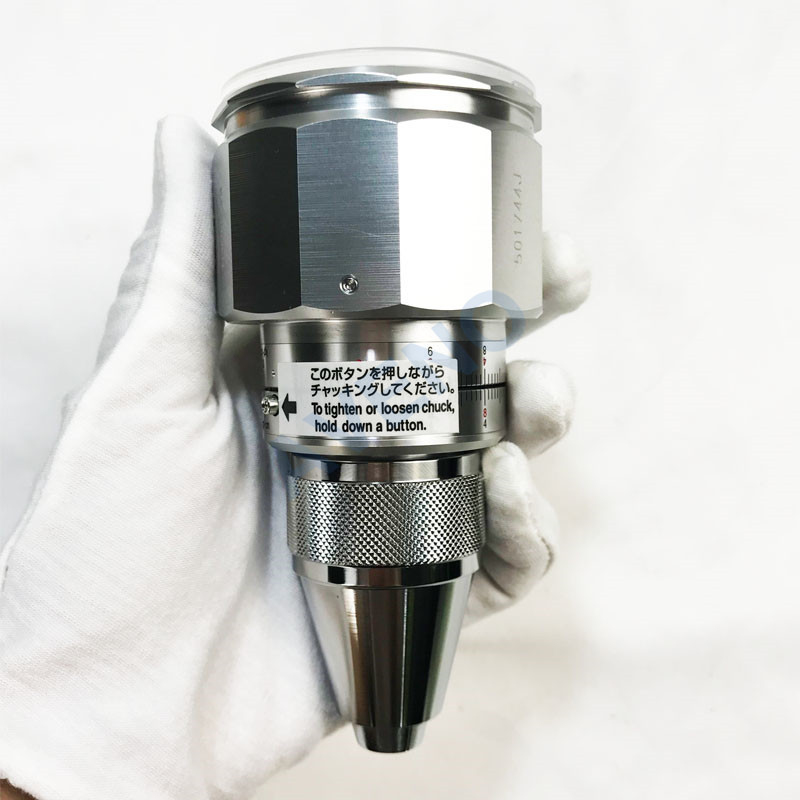

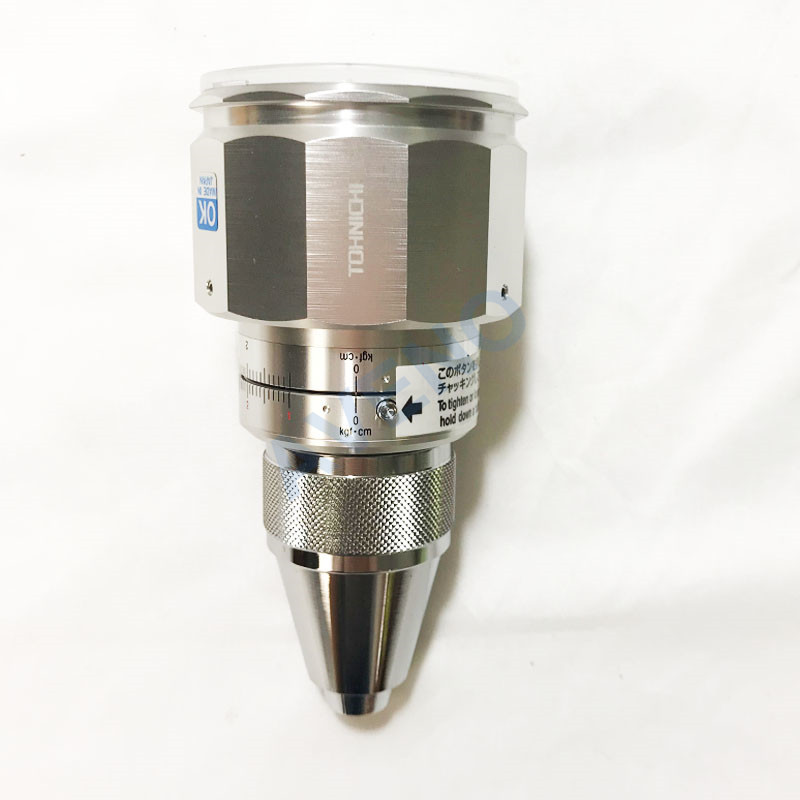

ATB22-TOHNICHI Torque Gauge
Application Of TOHNICHI Torque Gauge
TOHNICHI Torque Gauge is hand-held torque meter for the determination of micro-torque. Used to detect small torque, such as small motor, motor torque blocking, and torque tool calibration.
Standards Of TOHNICHI Torque Gauge
ISO8124-1 section 5.24.5
GB 6675-2 section 5.24.5
EN71-1 section 8.3
ASTM F963 section 8.8, 8.16, 8.24.4.3
16CFR 1500 section 51, 52, 53
Key Specification Of TOHNICHI Torque Gauge
|
Model
|
Test Range
|
Precision
|
|
45ATG
|
5-45 gf.cm
|
1 gf.cm
|
|
90ATG
|
10-90 gf.cm
|
2 gf.cm
|
|
150ATG
|
20-150 gf.cm
|
2 gf.cm
|
|
300ATG
|
30-300 gf.cm
|
5 gf.cm
|
|
600ATG
|
60-600 gf.cm
|
10 gf.cm
|
|
1200ATG
|
100-1200
gf.cm
|
25 gf.cm
|
|
2400ATG
|
300-2400
gf.cm
|
50 gf.cm
|
|
1.5BTG
|
0.2-1.5
kgf.cm
|
0.02 kgf.cm
|
|
2.4BTG
|
0.3-2.4
kgf.cm
|
0.05 kgf.cm
|
|
3.6BTG
|
0.4-3.6
kgf.cm
|
0.05 kgf.cm
|
|
6BTG
|
0.6-6 kgf.cm
|
0.1 kgf.cm
|
|

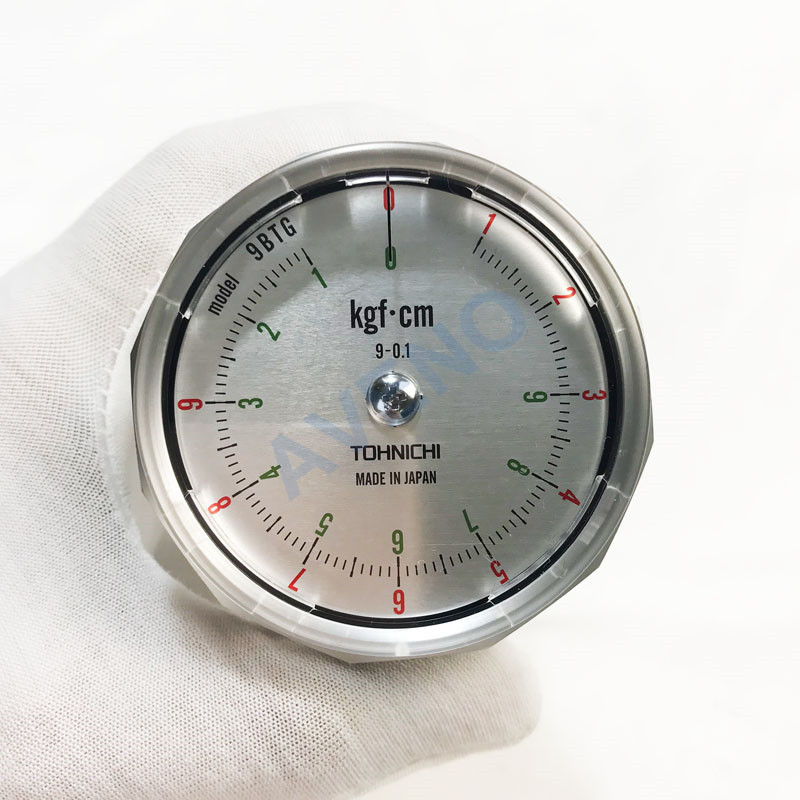

9BTG
|
1-9 kgf.cm
|
0.1 kgf.cm
|
|
15BTG
|
2-15
|
0.2 kgf.cm
|
