Toll Station Tensile Fabric Roof Structure In Architecture

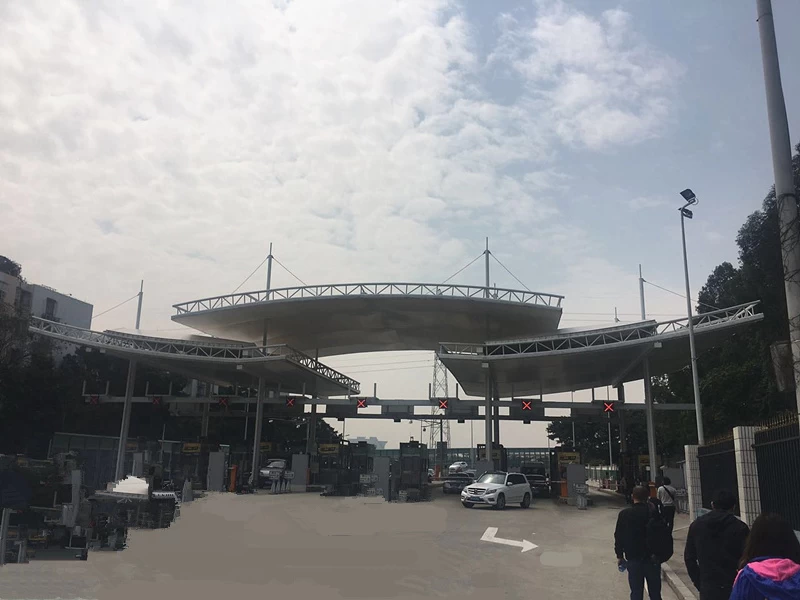

Canobbio Asiatex Highways Toll Plaza Tensile Structure. The project uses a tensioned frame hybrid fabric structure. It is composed of a steel frame with a span of 20 meters, a steel frame with a steel capacity of 10 tons, and a PTFE membrane with an area of 2, 500 square meters. The graceful shape and large span are the characteristics of this project.





  • Certification SGS/ISO

Toll Station Tensile Fabric Roof Structure In Architecture

Project Specification


Location
Guangzhou
Project Size 3000Square meters
Fabric Material PTFE
Completion Date 2011
Structure Type Light Steel Structure
Warranty 1Year


Project Design Concept

Project Summary

Canobbio Asiatex Highways Toll Plaza Tensile Structure. The project uses a tensioned frame hybrid fabric structure. It is composed of a steel frame with a span of 20 meters, a steel frame with a steel capacity of 10 tons, and a PTFE membrane with an area of 2, 500 square meters. The graceful shape and large span are the characteristics of this project.

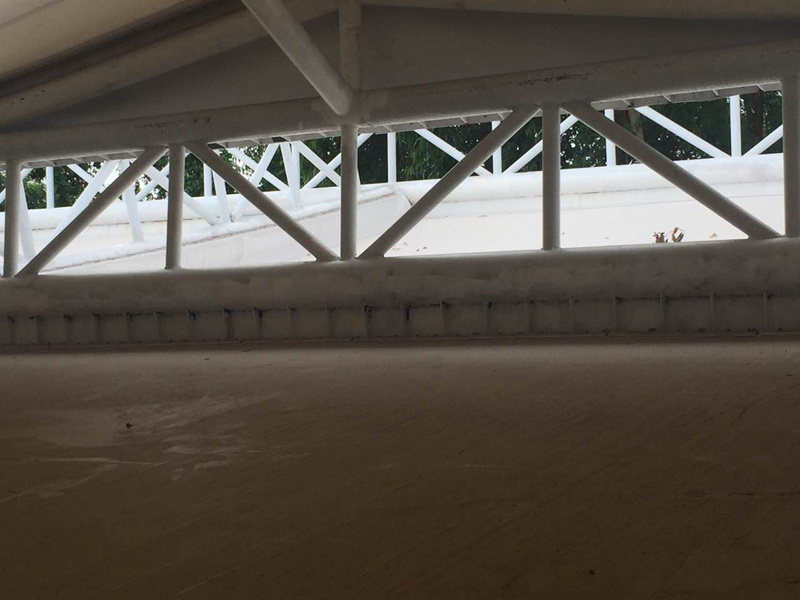

We use steel structure support, the material is stretched by the upper steel cable, and the German imported Heytex PTFE membrane is used to design the wave shape, which is stretched by the surrounding steel cable to show the artistic shape.


1.Concept|Design:Creative design solutions.

2.Design-assistance:Provide further design support to architects

3.Engineering:Engineering services provide a special structural examination.

4.Construction|Manufacturing:We are able to deliver on projects because of our skilled fabrication services.

5.Construction Installation:Professional manner and engineer to guide the installation

6.Post-construction services:Include structural reviews, special inspections, routine maintenance, structure modifications, repairs and industrial cleaning of membrane panels.



Why Choose Us


1).Pre-sell conmunication:Respect the customer's ideas and provide reasonable advice;

2).Professional team:We own a professional design and engeering team with over 20 years experiences;

3).Quality:We have real case show our product can withstand typhoon above level 12;

4).Service:7×24 Hour;

5).Price:Same price but higher quality.

Contact now,let us find a solution for you!
