Top 10 High Quality CNC Process FR4 Insulation Parts
What is Garolite G10 / FR4?
Garolite G10 / FR4 is a thermosetting fiberglass reinforced laminate first introduced in the 1950s.It is made of alkali-free electrical glass cloth impregnated with epoxy resin and treated with pressure and heat.The result is a rugged and stable product that meets UL 94v-0 flame retardant standards.
JY Machinery can provide G10 / FR4 in a variety of shapes and configurations to meet the needs of your project.Our company has various types of gluding machines, dryers, presses, laser cutters and sanders. Introducing advanced Korean engraving machins and automatic CNC machines. We carry out deep processing of different non-metallic materials according to customers’ pictures, CAD drawing or samples.
Request a Quote today.

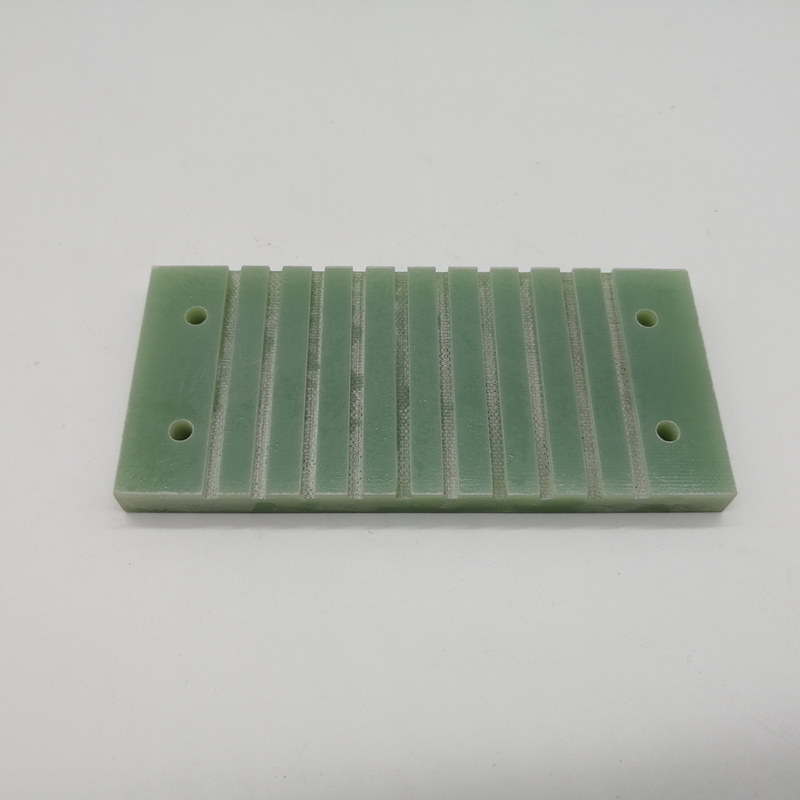

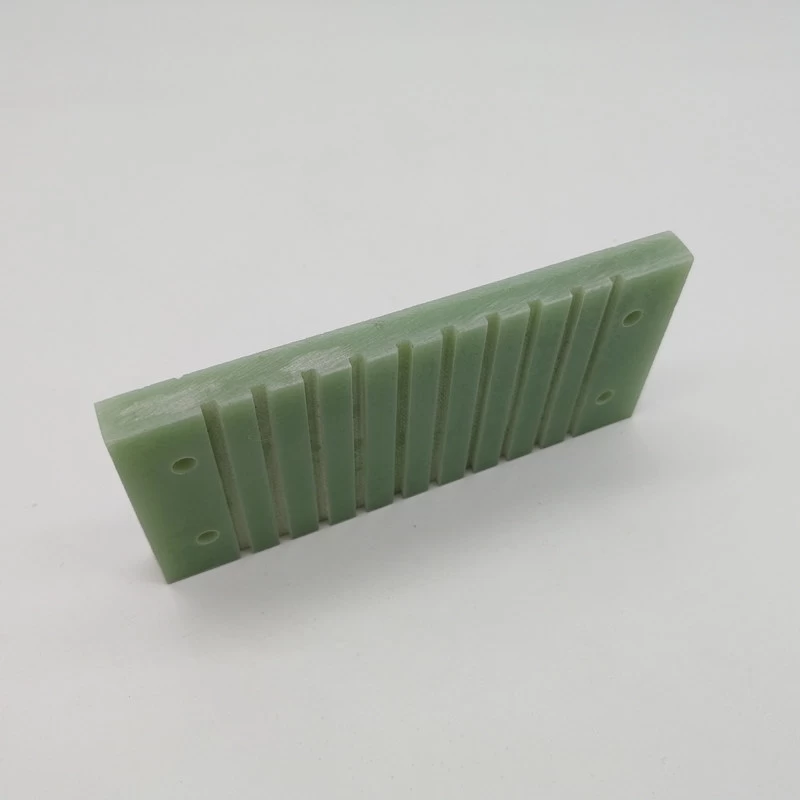

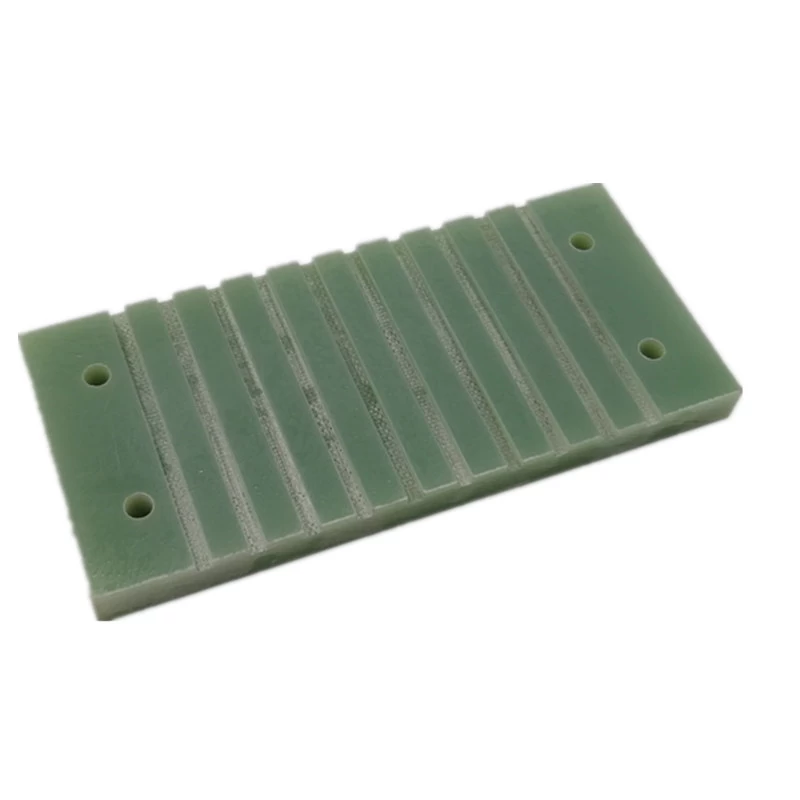

PRODUCT SHOW:
Product Parameter:
|
Item
|
Unit
|
Result
|
|
Density
|
g/cm³
|
1.9
|
|
standard color
|
|
yellow, green
|
|
Fire Retardancy Grade:
|
--
|
UL94-V0
|
|
Flame Resistance:
|
°C
|
170-180
|
|
Voltage Resistance(penetrating)
|
KV/mm
|
12
|
|
Arc Resistance
|
S
|
60-80
|
|
Volume resistivity:
|
Ω*cm
|
10 ^6
|
|
Surface resitance:
|
Ω*cm
|
10 ^6
|
|
Compressive Strength(Vertical):
|
MPA
|
≥350
|
|
Anti-impact intensity
|
KJ/ m2
|
≥33
|
|
Bending strength
|
kg/mm2
|
≥340
|
|
Dielectric constant (1MHz) :
|
/
|
5.4
|
|
Adhesive strength:
|
kg
|
700-900
|
|
Compressive strength(Horizontal):
|
kg/mm2
|
20-24
|
|
Water absorption rate:
|
%
|
0.07-0.12
|
OUR INSULATION PROUCTS RANGE:
•Epoxy Glass Fiber cloth laminated sheet series环氧玻璃布层压板系列
•Phenolic laminated sheet series酚醛层压板系列
•Polyester Laminated sheets series聚酯板材系列
•SMC/BMC/DMC Molded Parts团状模塑料
•Insulation Rods&Tubes绝缘管棒
•Pultruded Profiles拉挤型材
•Engineering Plastics Parts工程塑胶制品
OUR COMPANY:
JY Machinery has strong technical strength and adhere to“Technical Innovation as the guide”. After more than 10 years of development, our company
has a full range of insulated products. Sheets & Rods from thin to extra-thick to meet different needs of the customers. With the excellent quality and
service, we are the supplier of the well-known ernterprices like ABB, Siemens, etc and provide technical support and insulation material supply for many
big metro projects, like Doha, Beijing, Hanghzou, Ningbo metros. Our products are widely used in rail transit, power transmission and transformation, new
energy, aerospace, shipbuilding, military, electronics, etc. At present, the products has been exported to many countries and has won high praise of
customers at home and abroad.
We strive to create the most professional manufacturers of insulating materials and non-metal materials processing enterprise. Find the best solution for
your various applications. Welcome to speak with JY MACHINERY for setting up win-win partnership.
Our Services:
1. Your inquiry related to our products or prices will be replied within 24hours.
2. Experienced staffs to answer all your enquires in fluent English with professional knowledge.
3. What we supplied for you is not only the products but also the best service and confidence.
4. Protection of all your private business information.
5. One time cooperation, long time partners.
6. In case of any quality problem, we will firstly compenstate customer and not let the customer has any lost.
7. We will provide you any update news about your order status.
