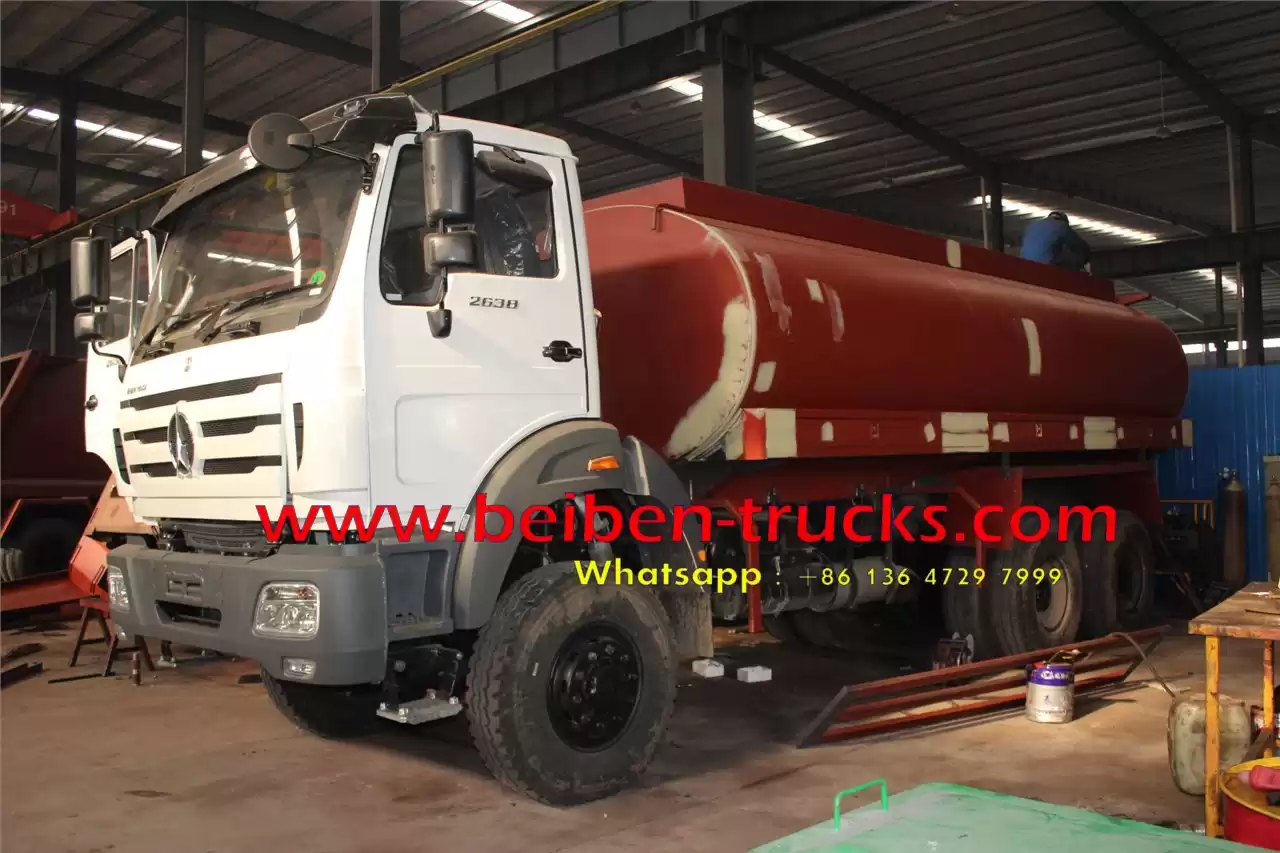

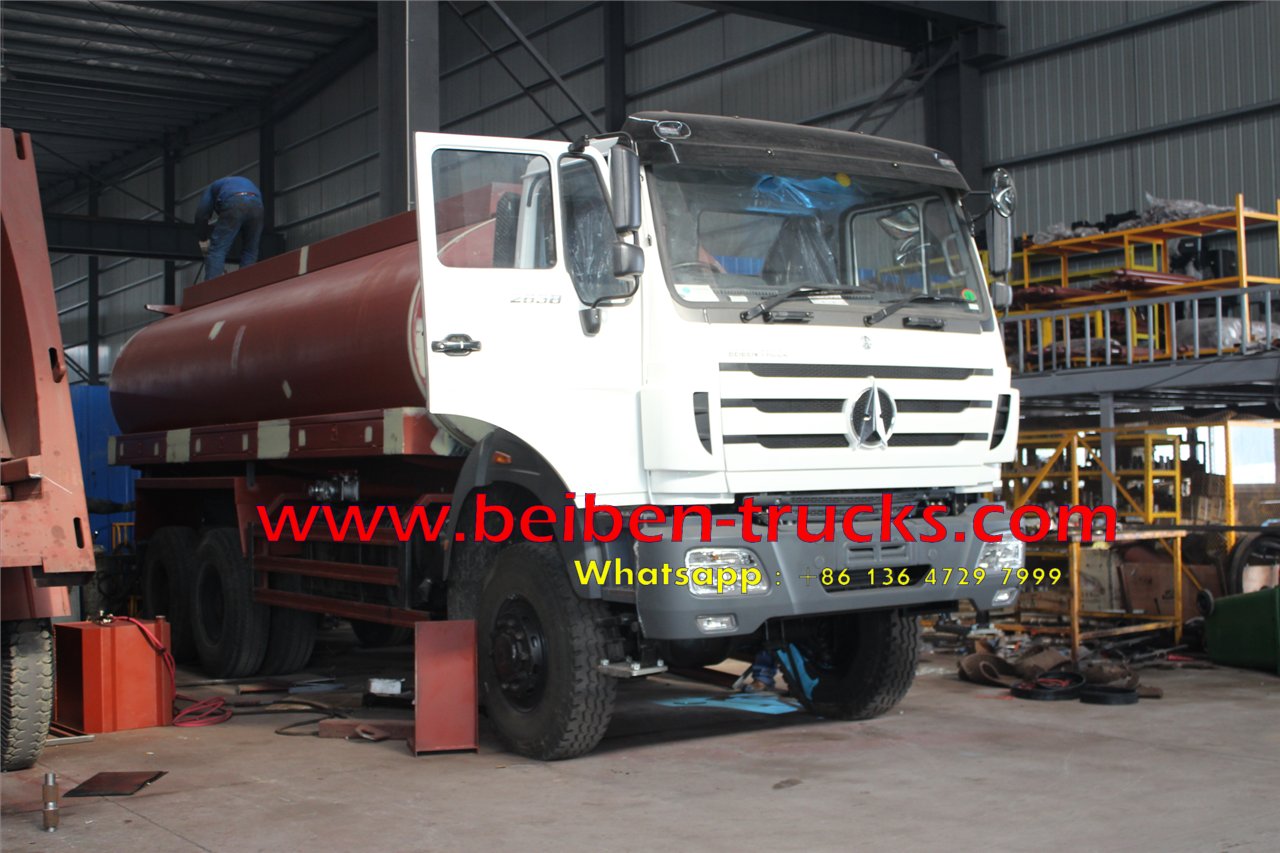

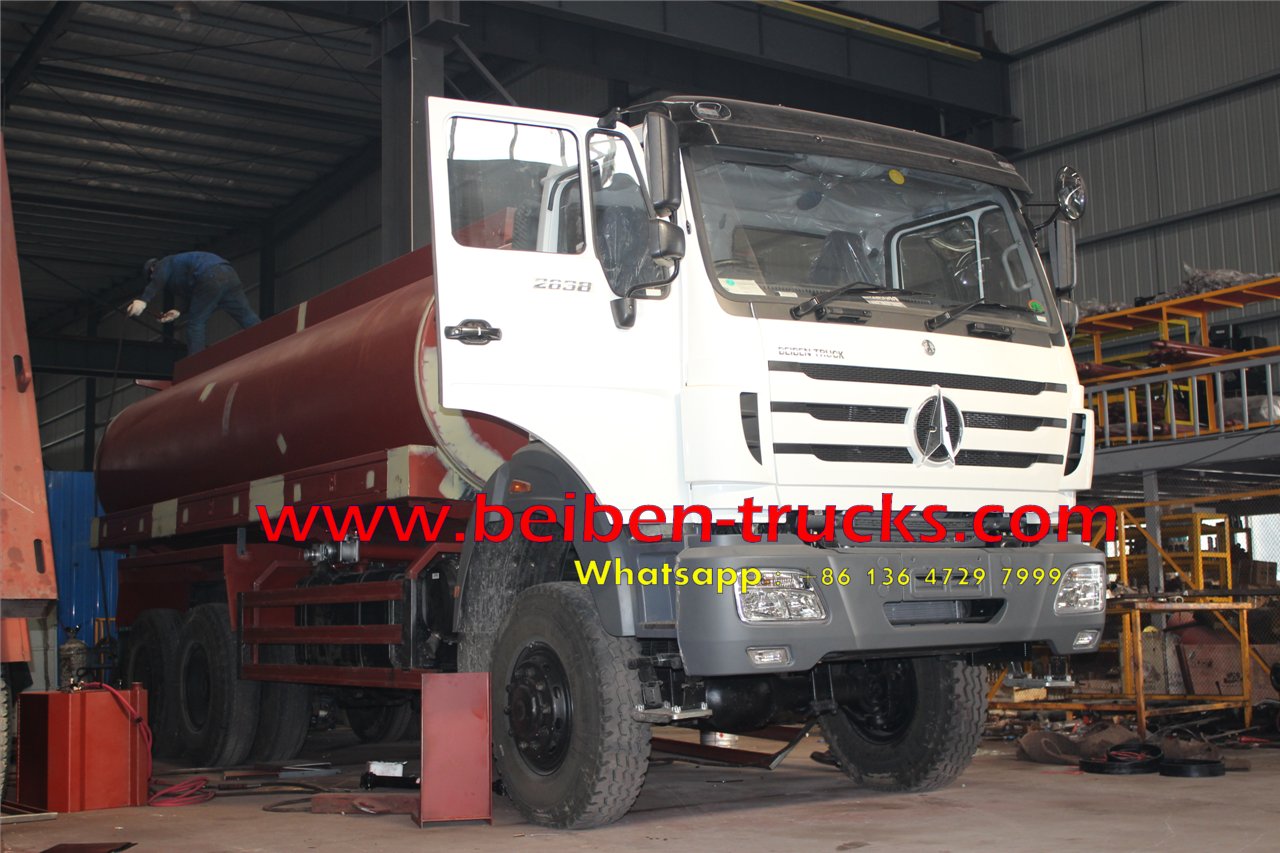

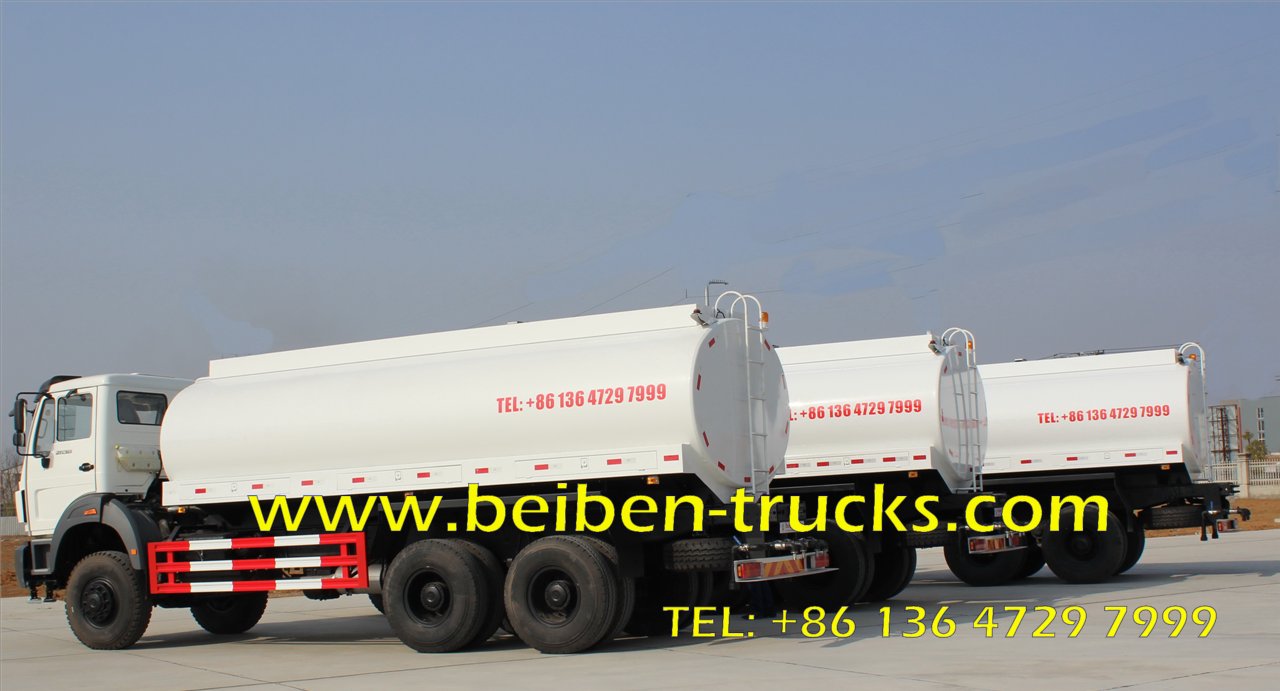

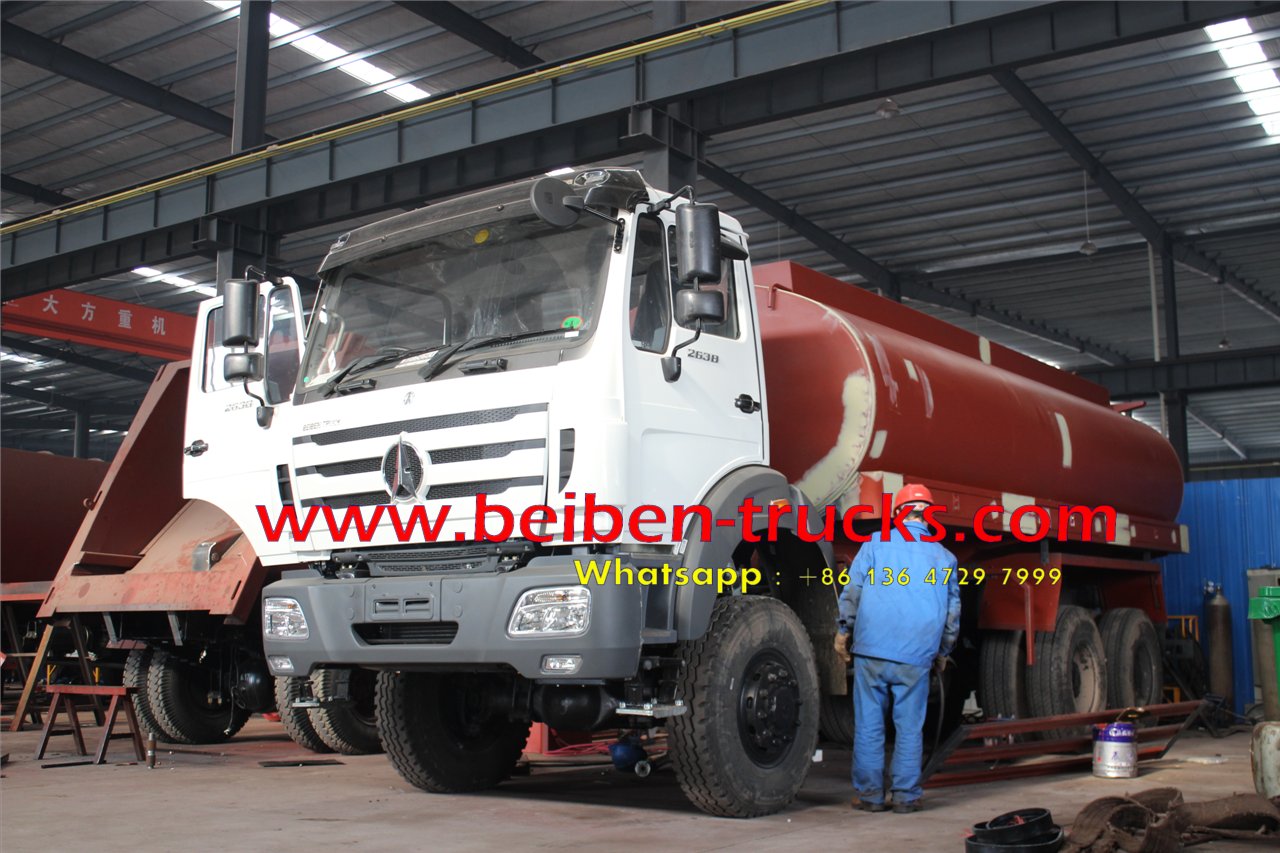

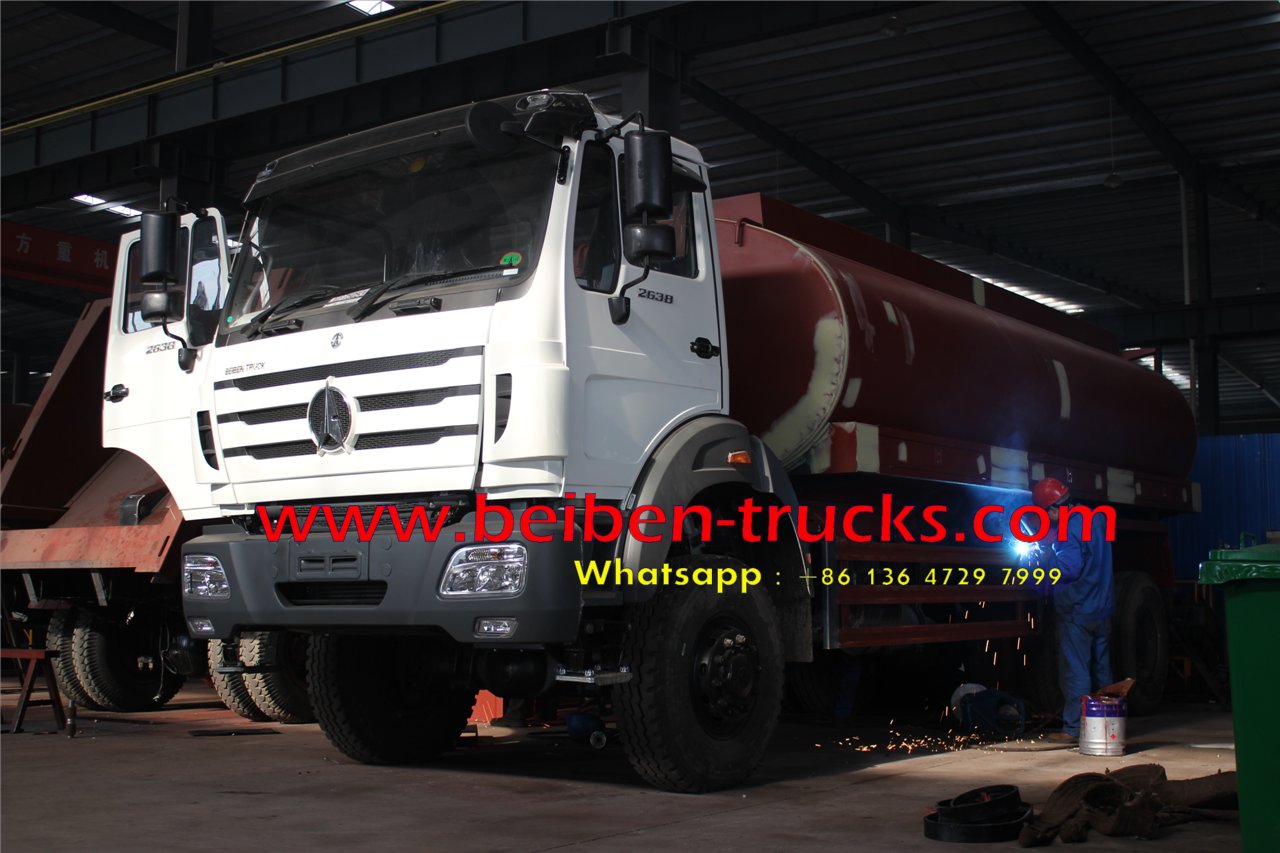

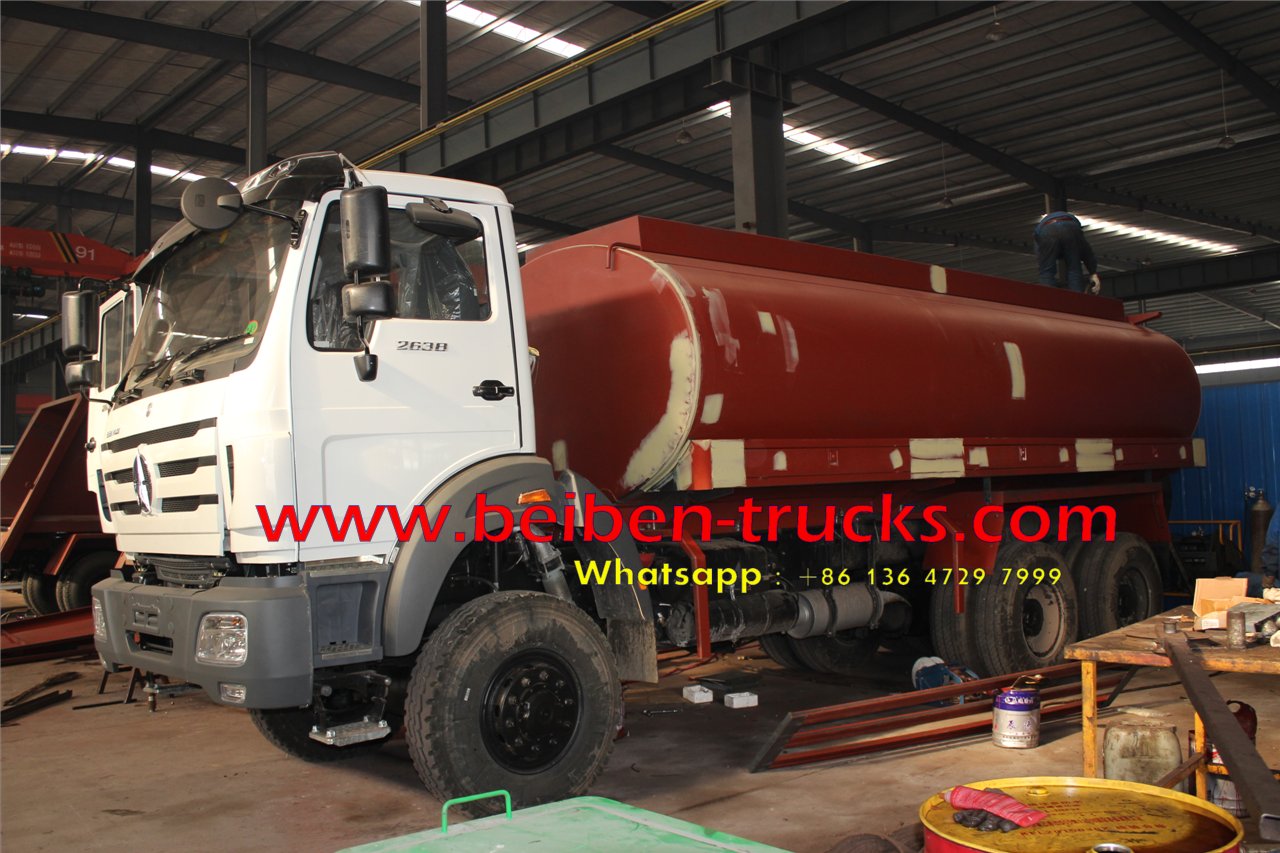

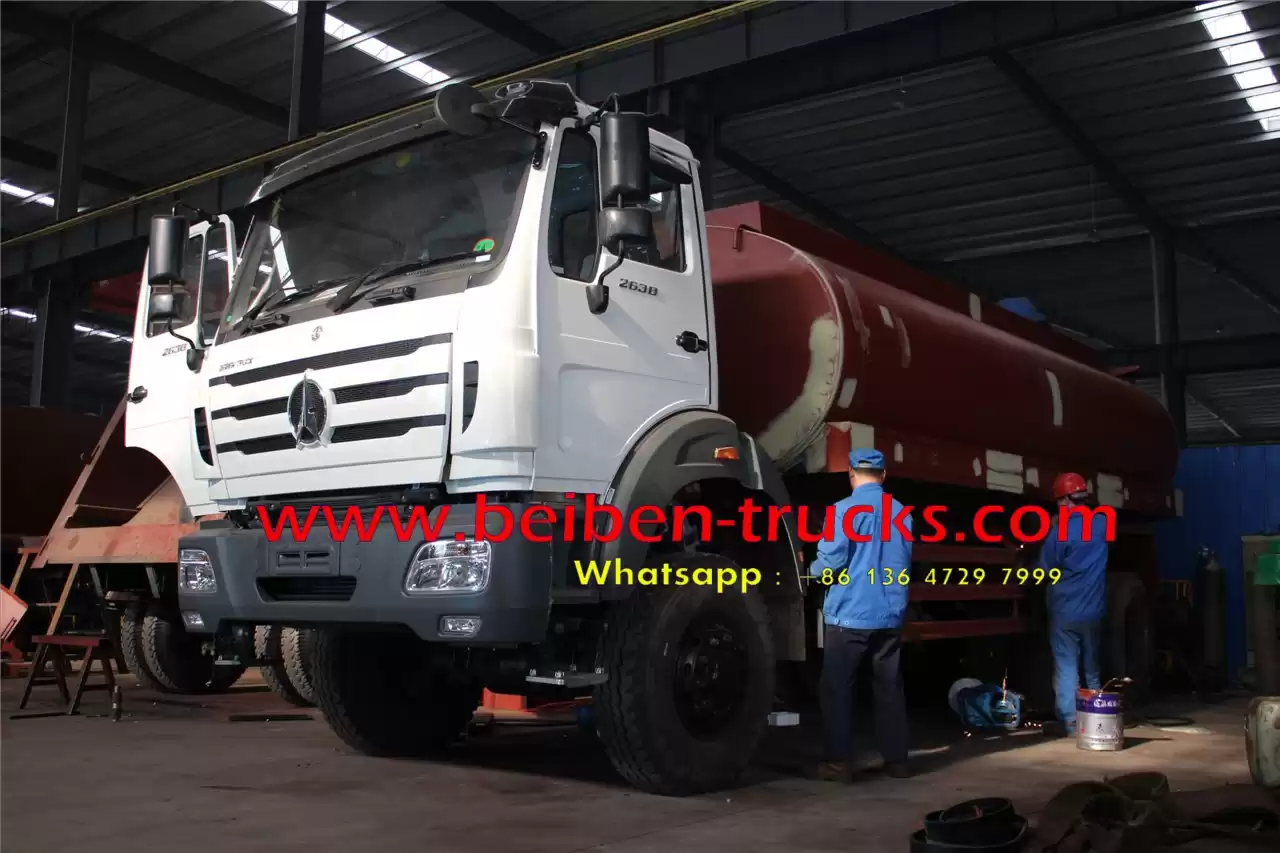

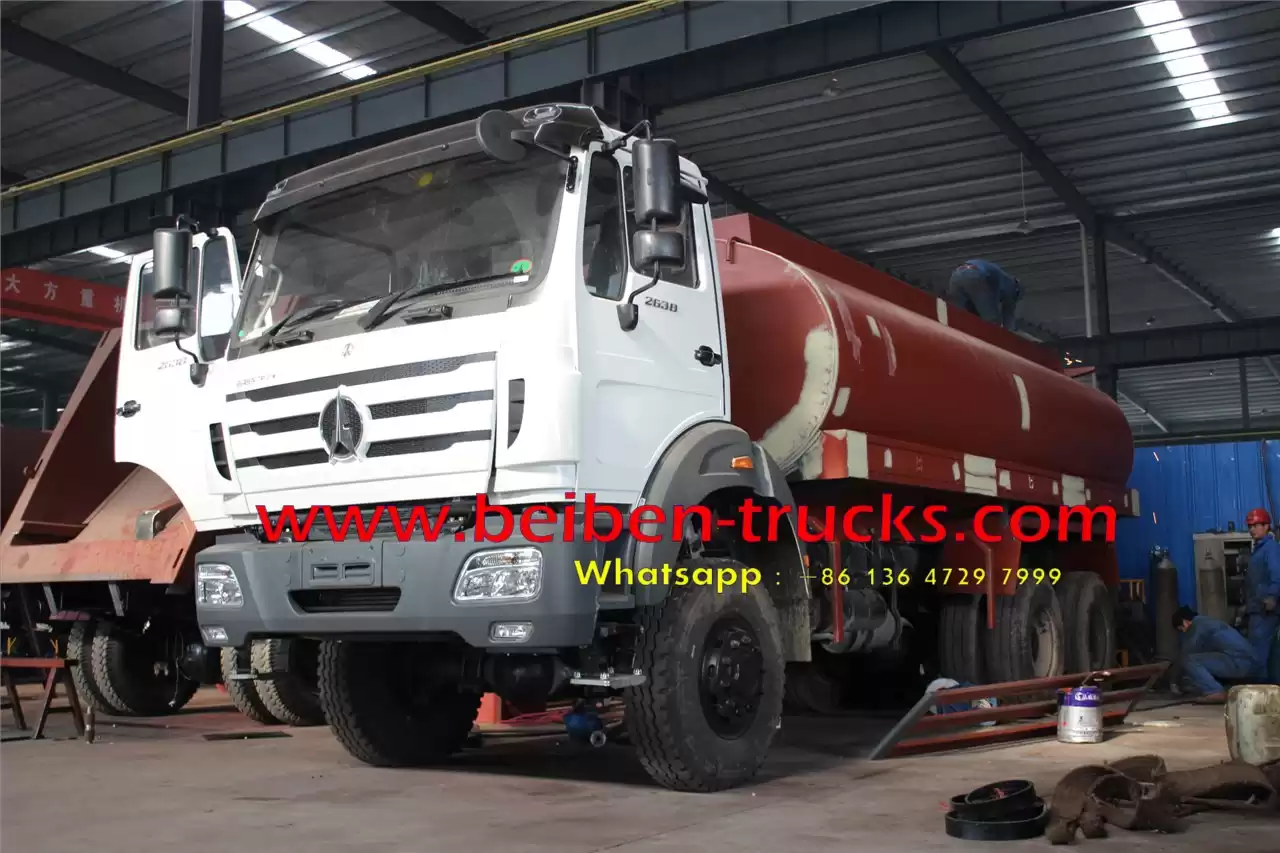

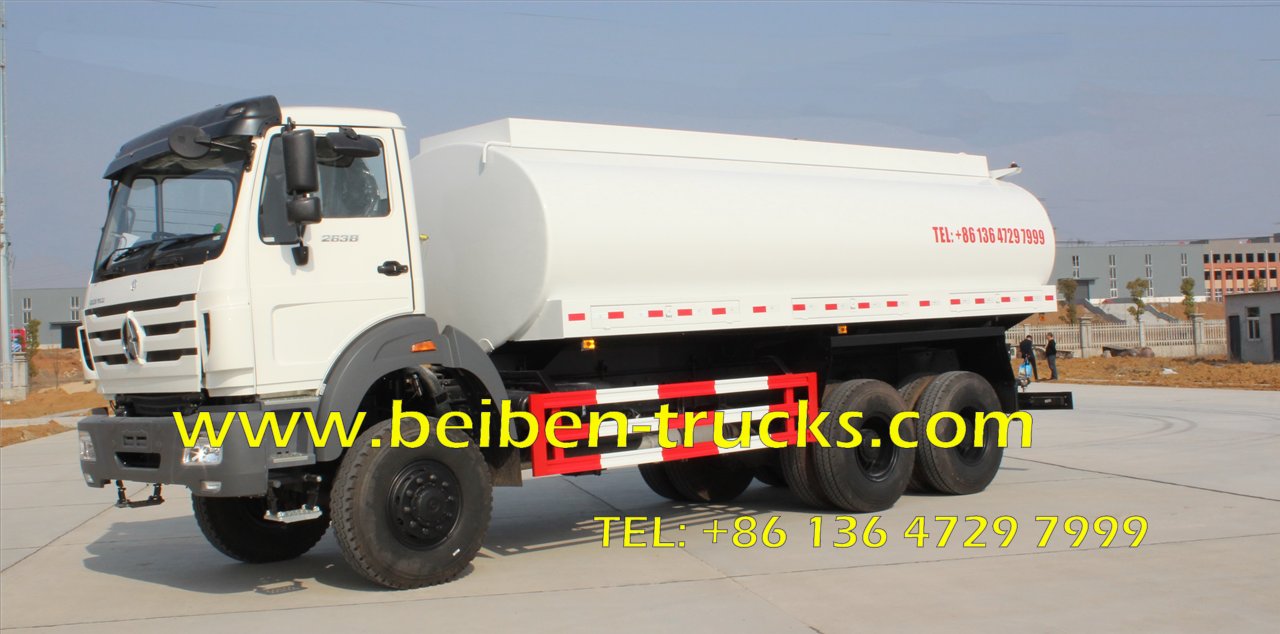

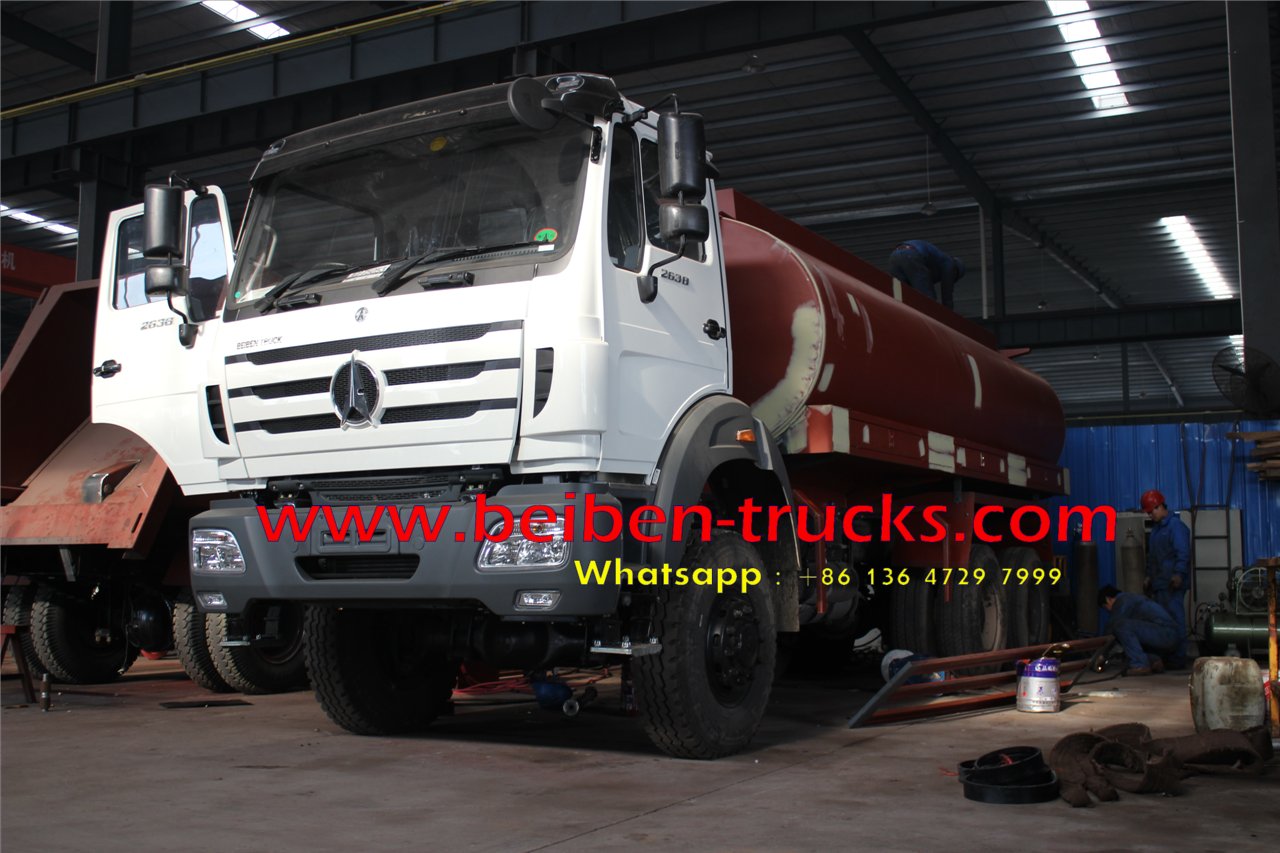

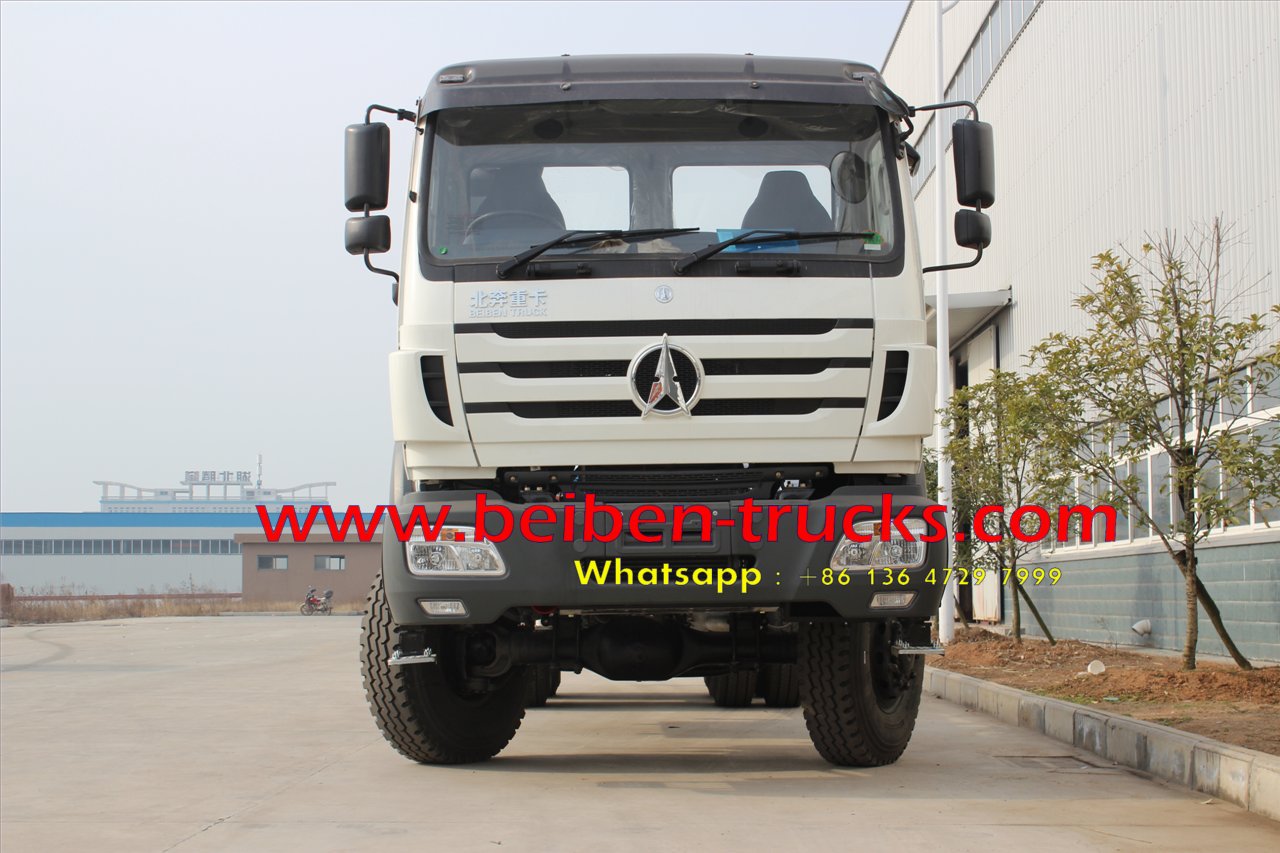

top china brand beiben 2638 off road water truck for sale

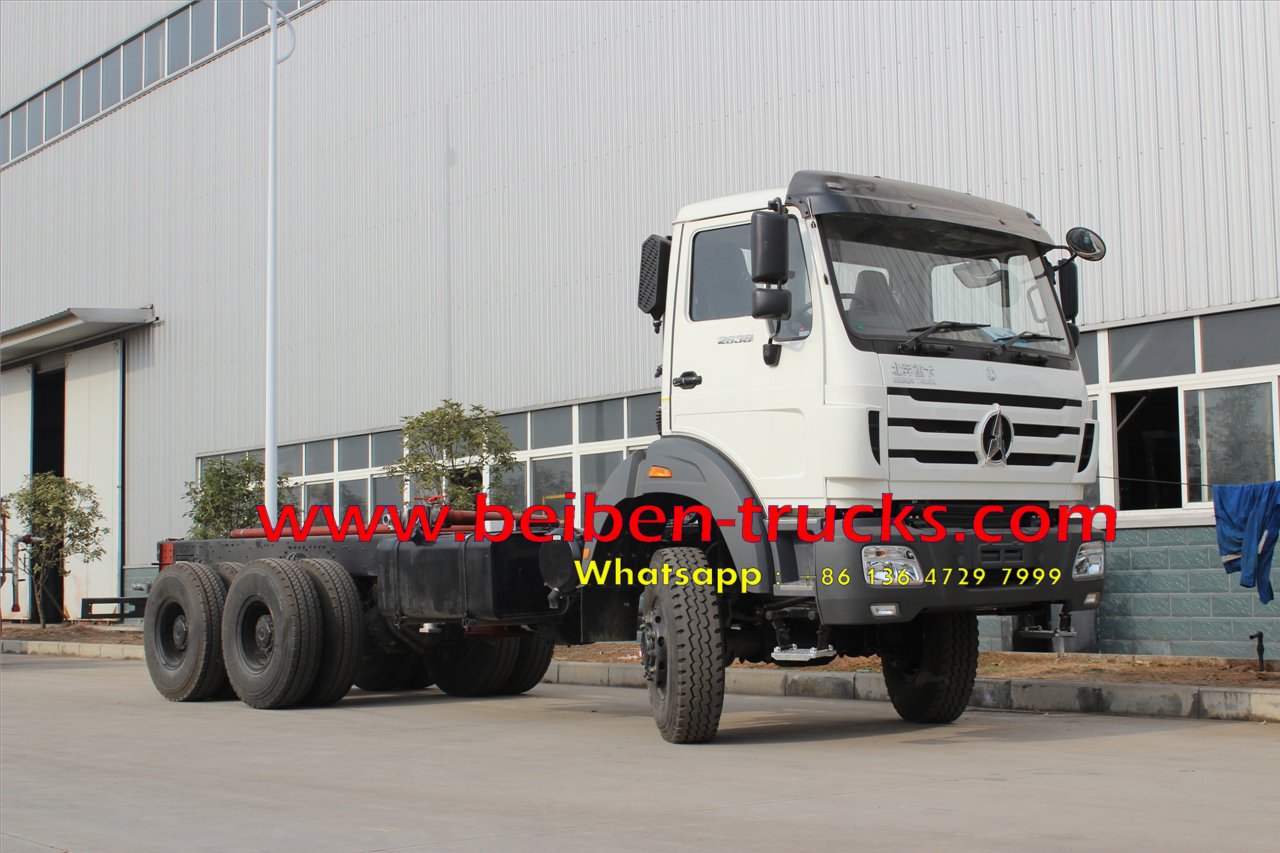

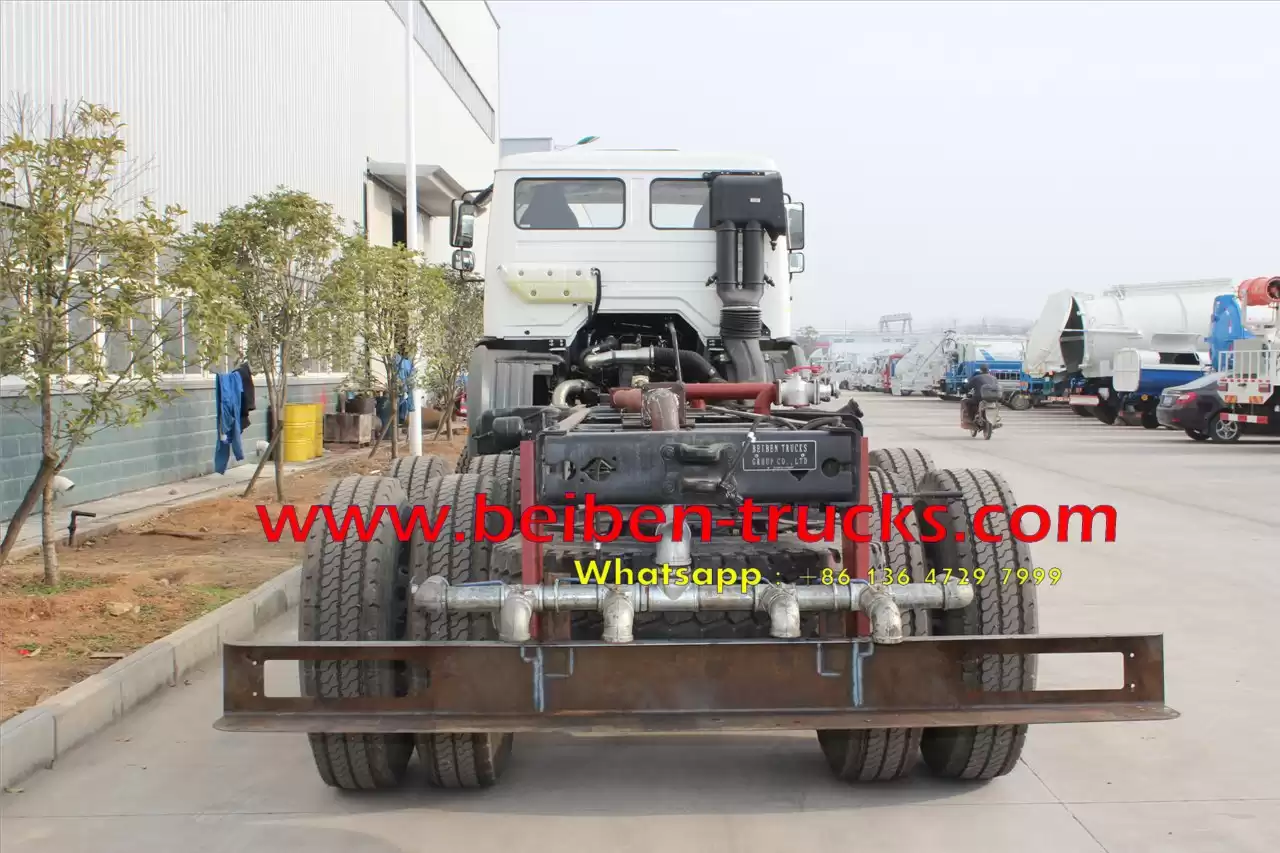

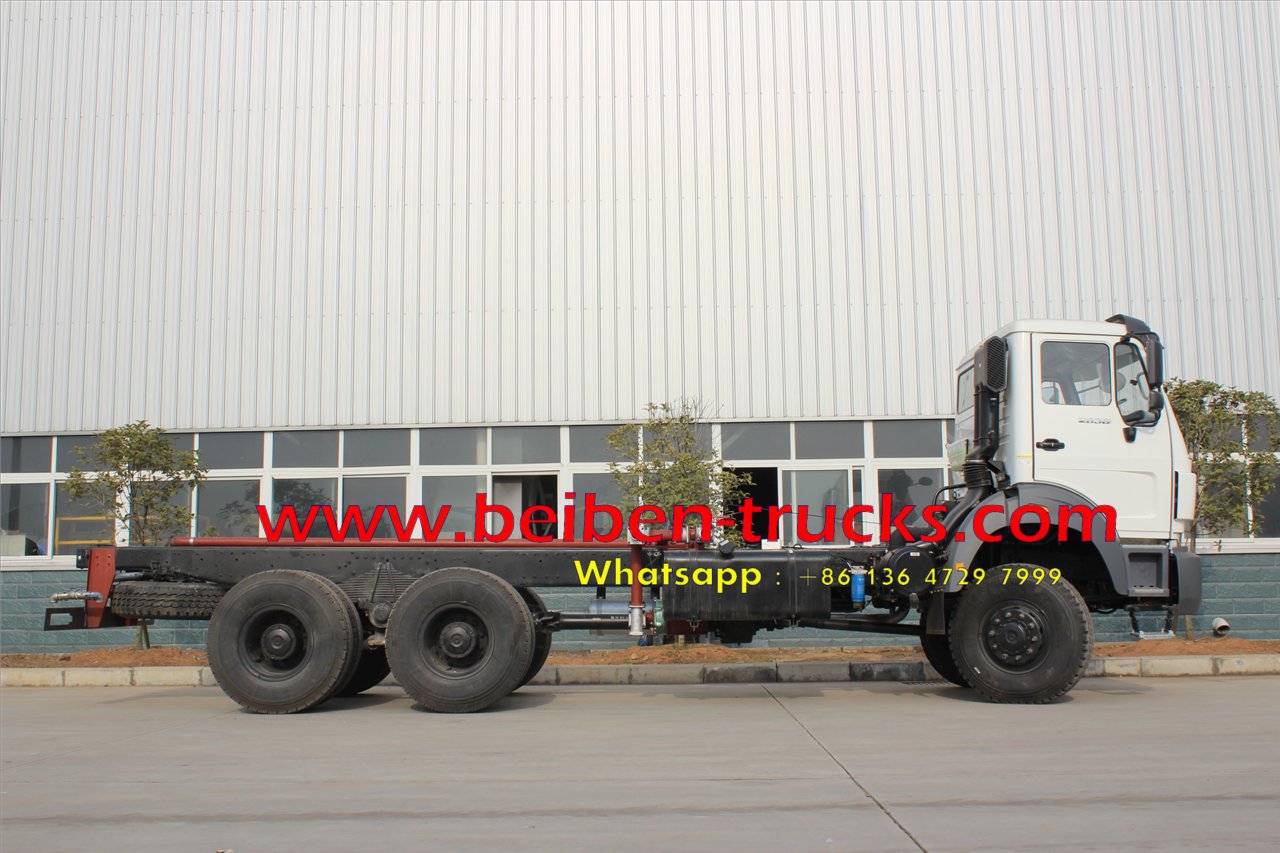

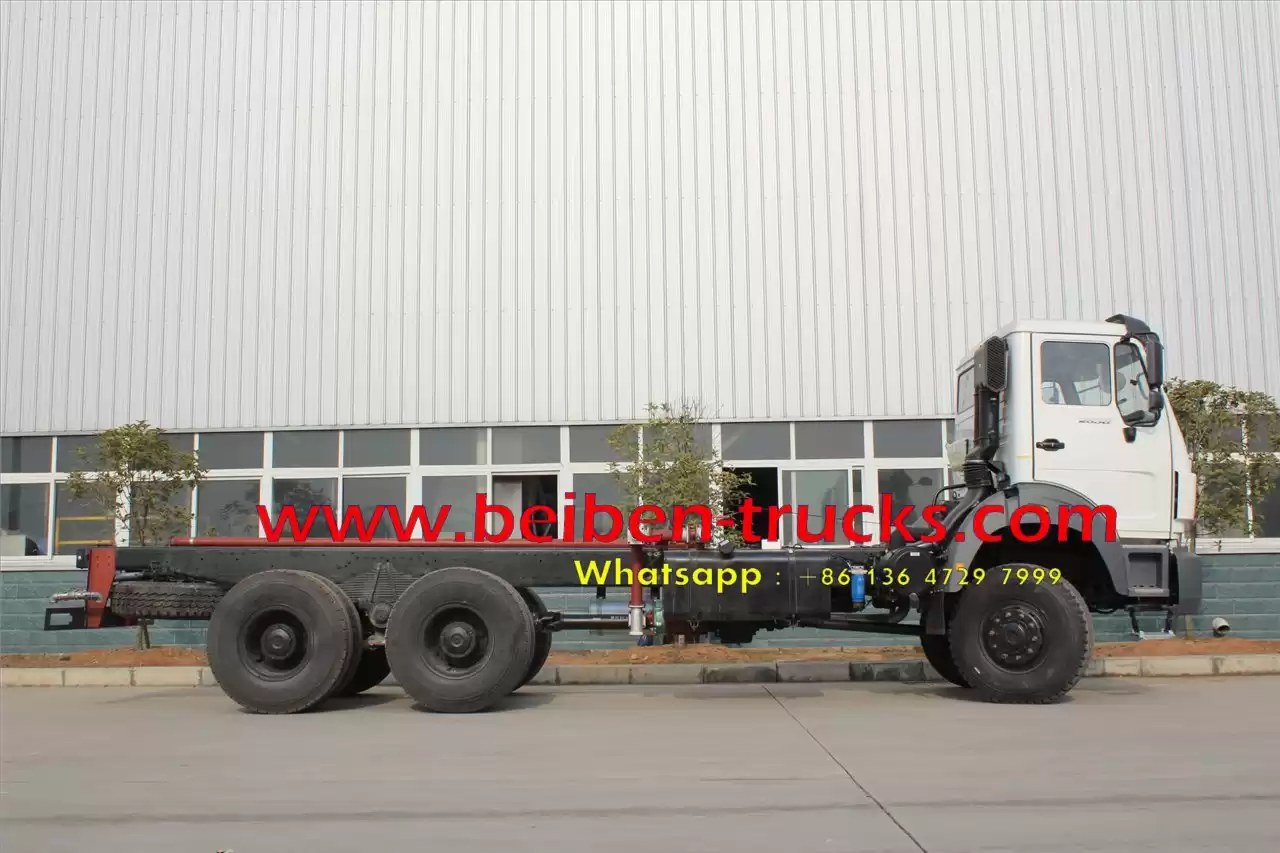

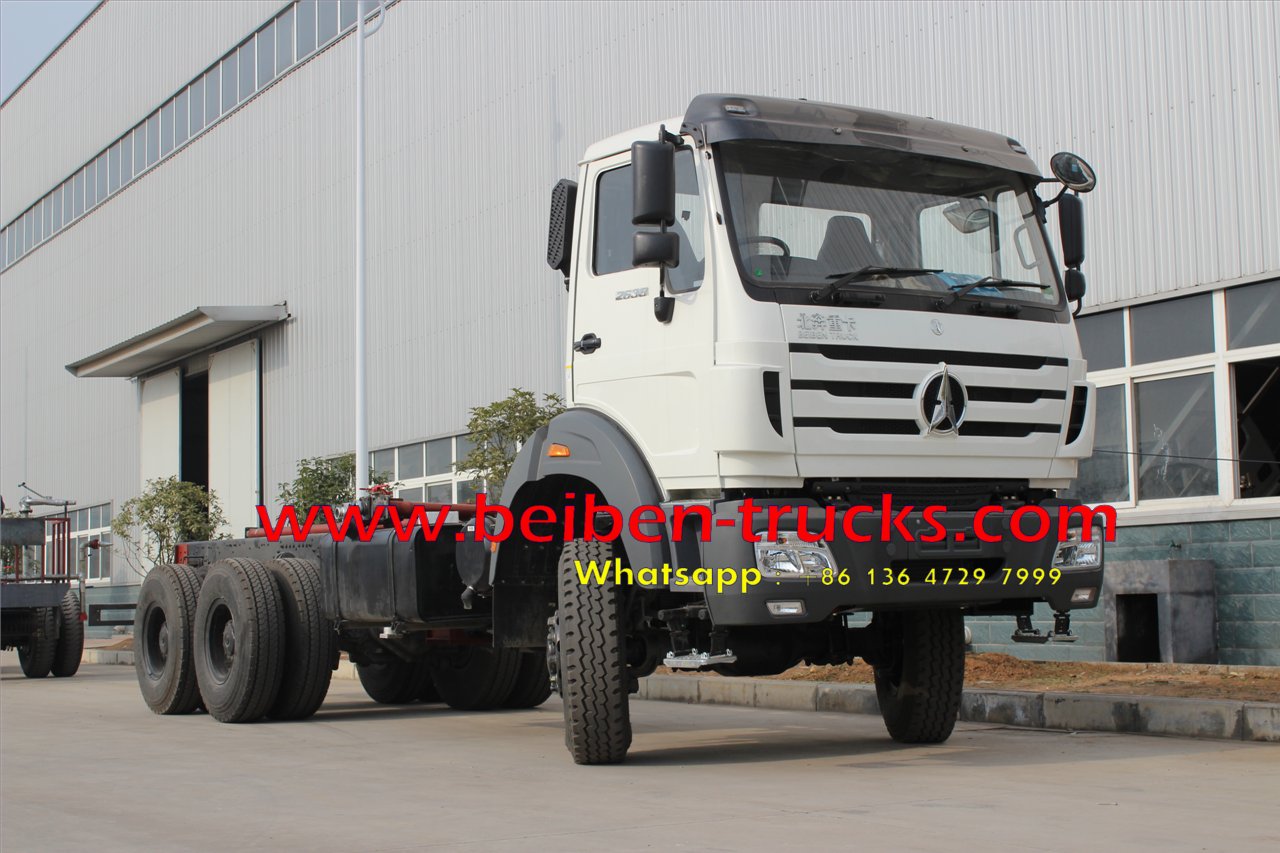

beiben ND1250F44J 6*6 truck chassis, 4450+1350 mm wheelbase, 20 CBM water tanker capacity, benz technology axle and cabin, WD615.80 engine 380 hp , fast 9 shift transmission, Germany ZF8098 steering RHD system.



Top china brand beiben 2638 off road water truck for sale

top china brand beiben 2638 off road water truck for sale

beiben ND1250F44J 6*6 truck chassis, 4450+1350 mm wheelbase, 20 CBM water tanker capacity, benz technology axle and cabin, WD615.80 engine 380 hp , fast 9 shift transmission, Germany ZF8098 steering RHD system.

Product Description




ND1250F44
Engine Maker: beiben trucks
Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling,turbo-charging & intercooling
Engine model: WD615.38
Maximum output: 380@2200rpm
Max torque: 1350NM@1100-1600rpm
Bore/Stroke(mm):126/130
Mean Position Speed: 9.53m/s
Compression ratio:15.5:1
Displacement: 9.726L
Specific fuel consumption: 198g/Kwh
Clutch  Φ430 Diaphragm type
Transmission  Fast 9JS160T
Front Axle Benz 7 T front axle
Rear Axle Benz 16 T rear axle with wheel reducer,

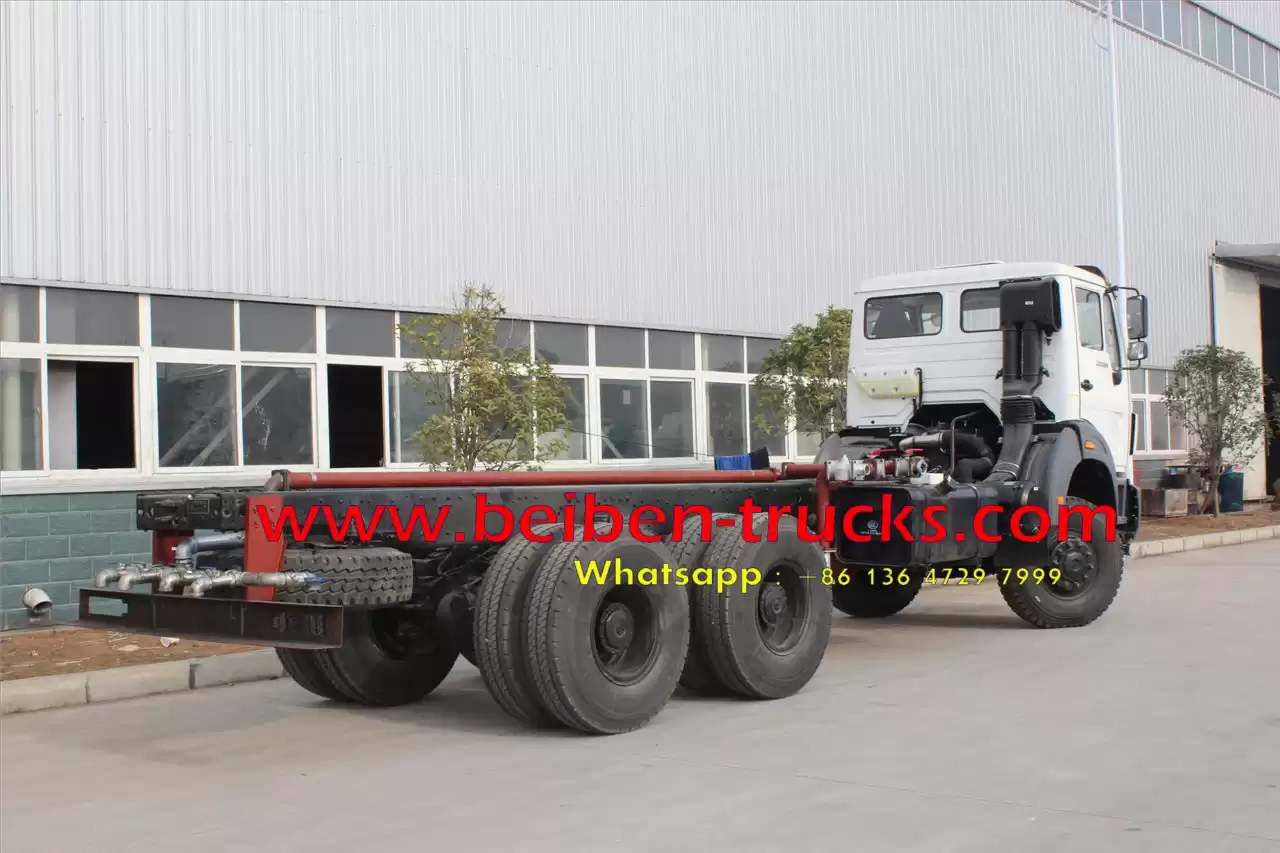

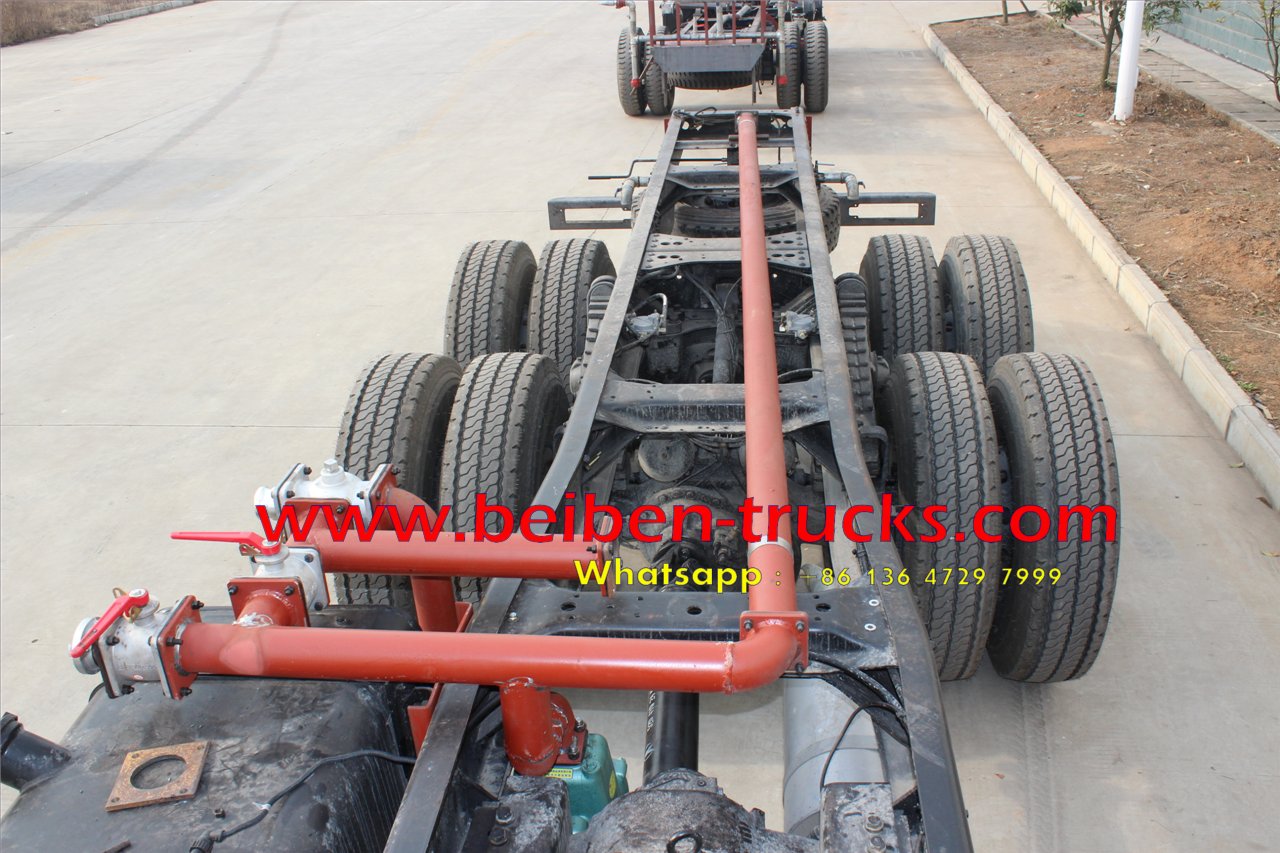

Chassis Frame: U-profile parallel ladder with U-profile riveted cross members
From suspension:9 semi-elliptic leaf springs and stabilizer
Spare wheel carrier: with one spare wheel
Fuel tank: with one 300L lockable fuel tanks
Steering ZF8098 integral type power-steering
Wheel & Types Spring: 10/12,4/12
Tyre: 12.00-20 bias tire
Radial tire is optional
Driver's cab  HW 76 , flat head, tippable, one sleeper with A/C
Fuel consumption (L/100km): 36
Dimensions in (mm) Wheel base   :  44500+1350
Dimension(mm): 9800*2500*3400
Max. speed (km/h): 102
Max. gradeability(%): 25
Front overhang (mm): 1500
Rear overhang (mm): 2625
Rear track (mm): 1830
Approach angle: 16 degree
Departure angle: 15 degree

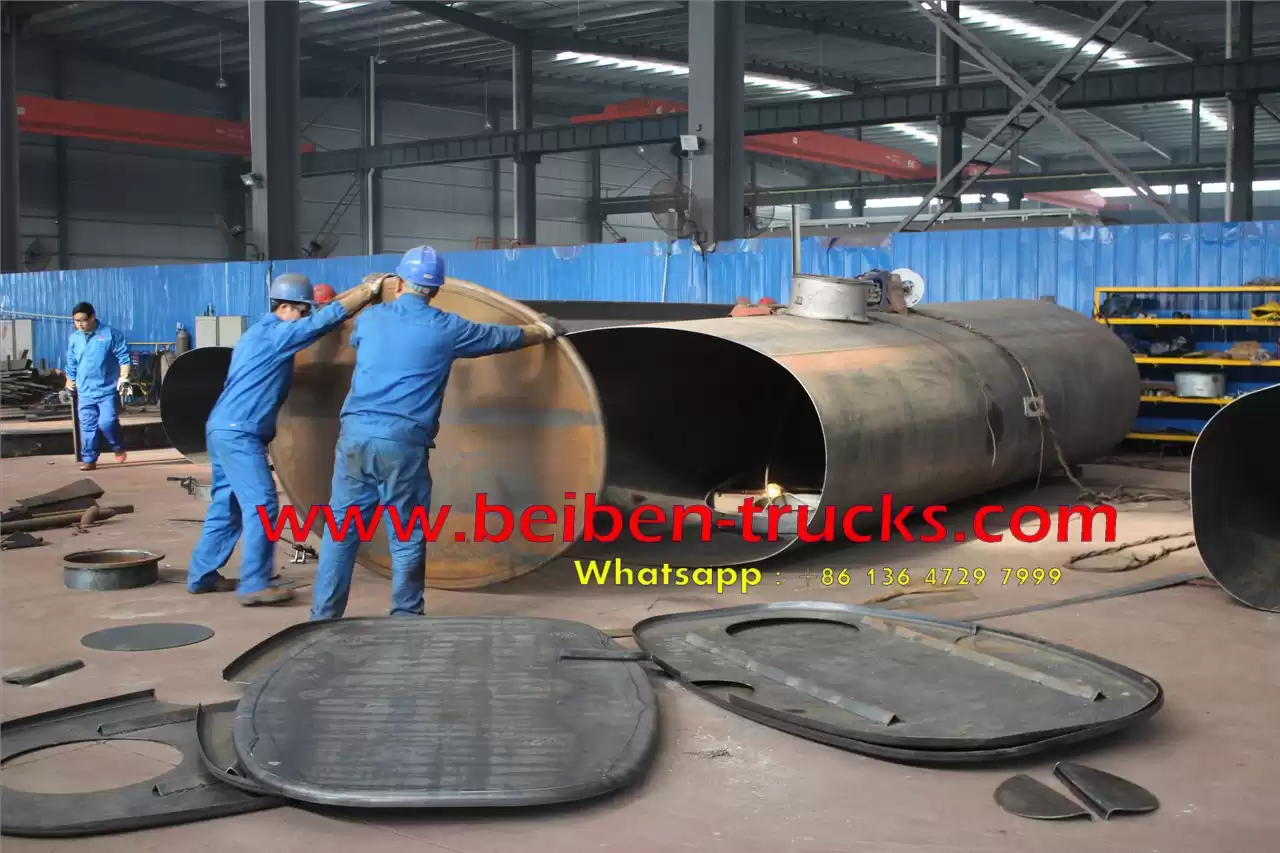

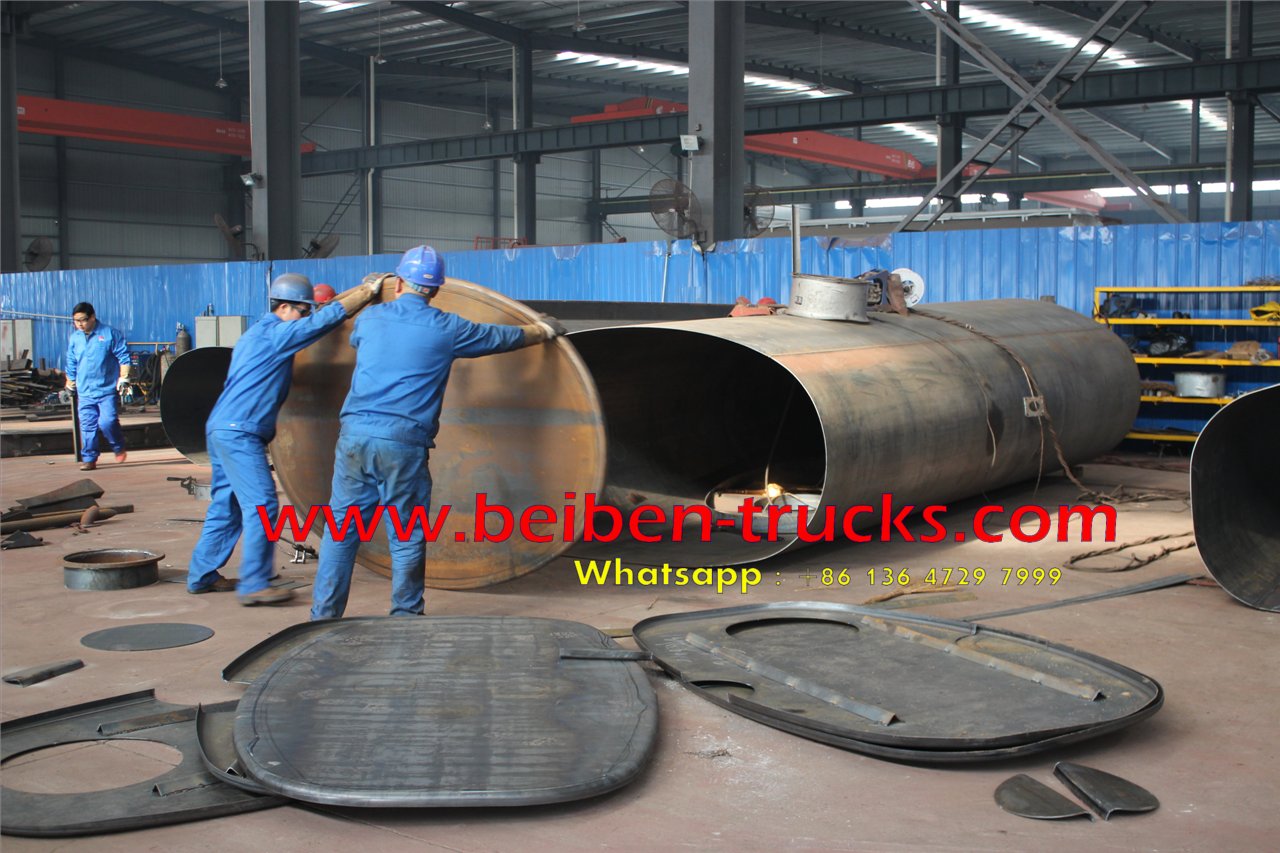

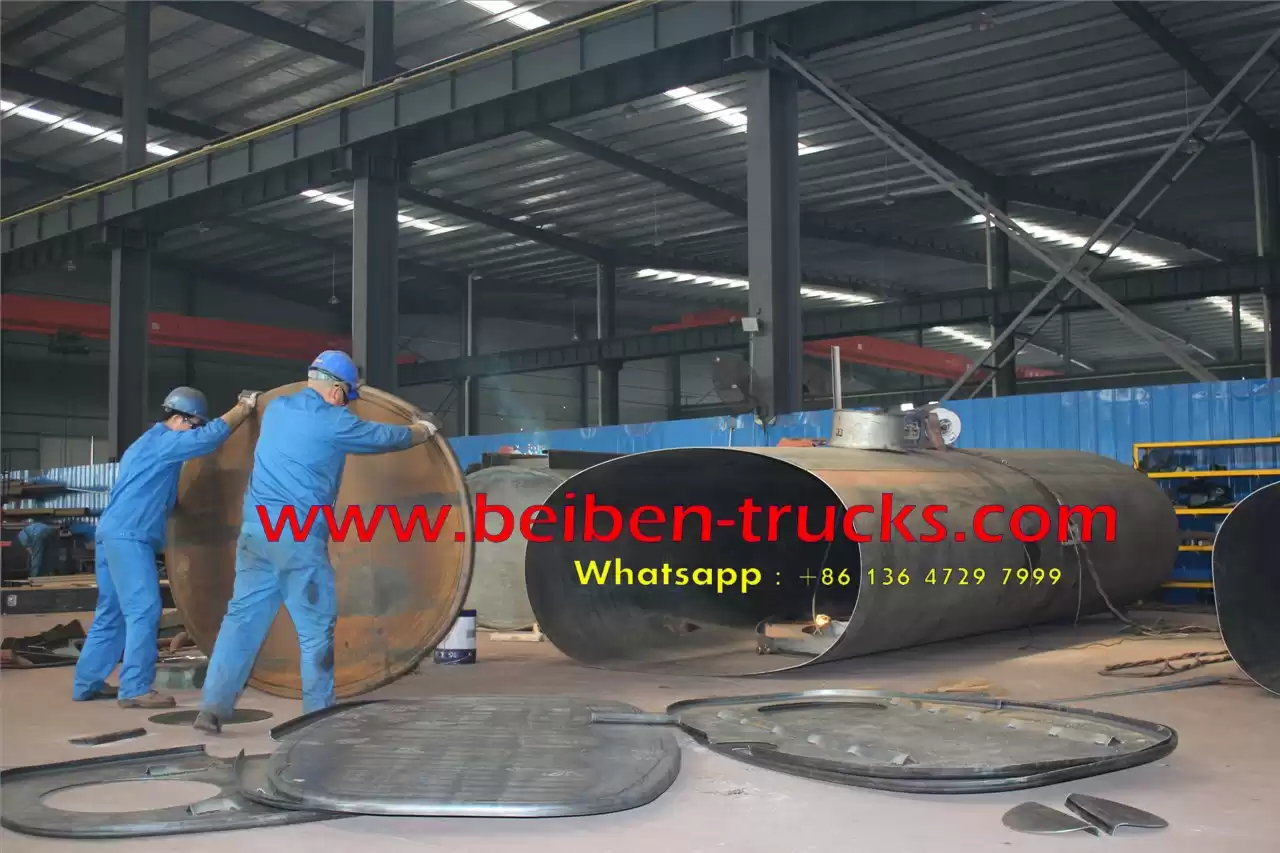

Stainless Steel BODY Capacity: 20CBM
Length: 6.7m
Thickness of steel: 4mm
