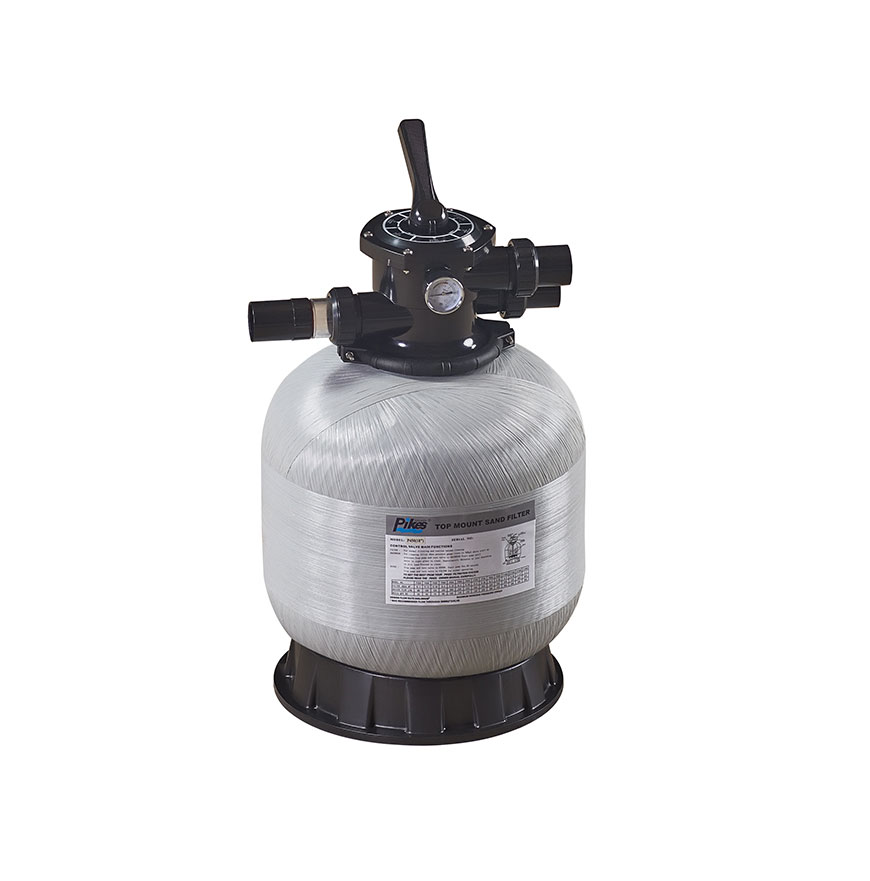

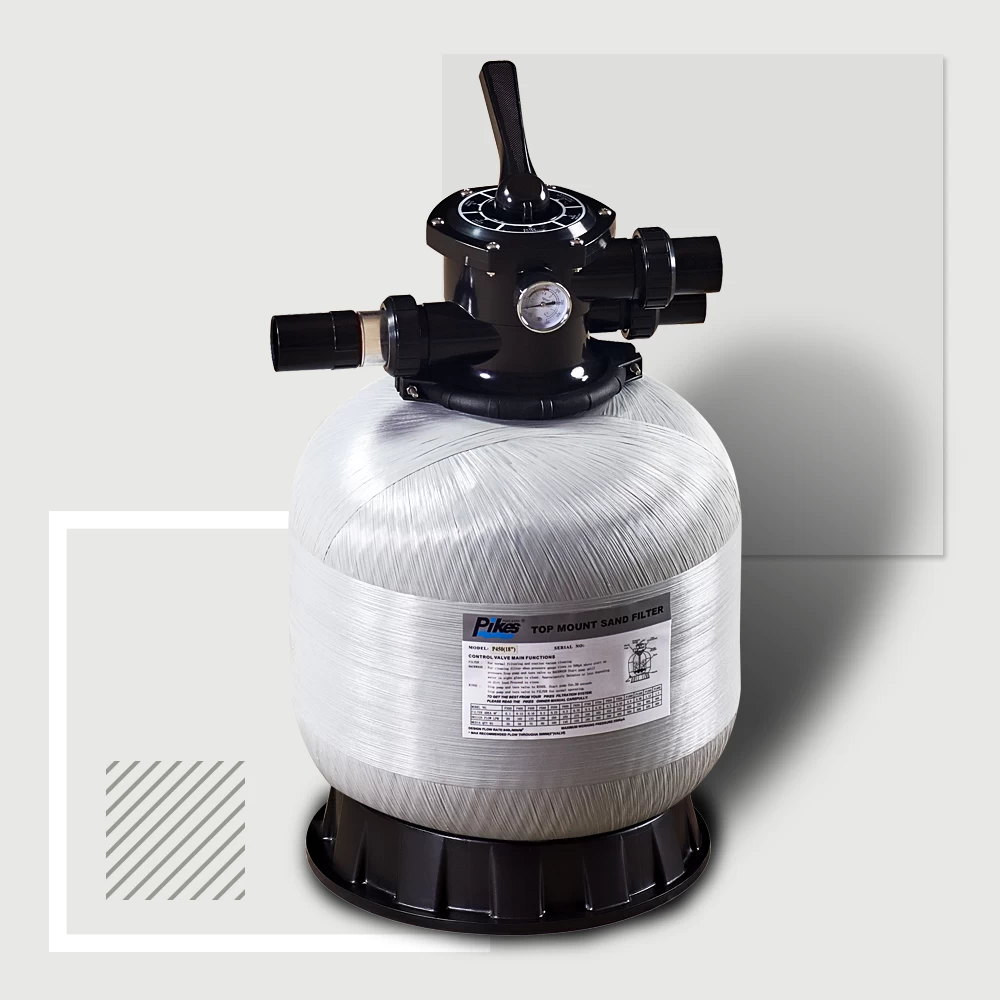

Top mount fiberglass sand filter P350-700

Top mount fiberglass sand filter P350-700 uses a glass fiber and polyester technology,can be a long time in the sun to operate, but also can adapt to different weather.

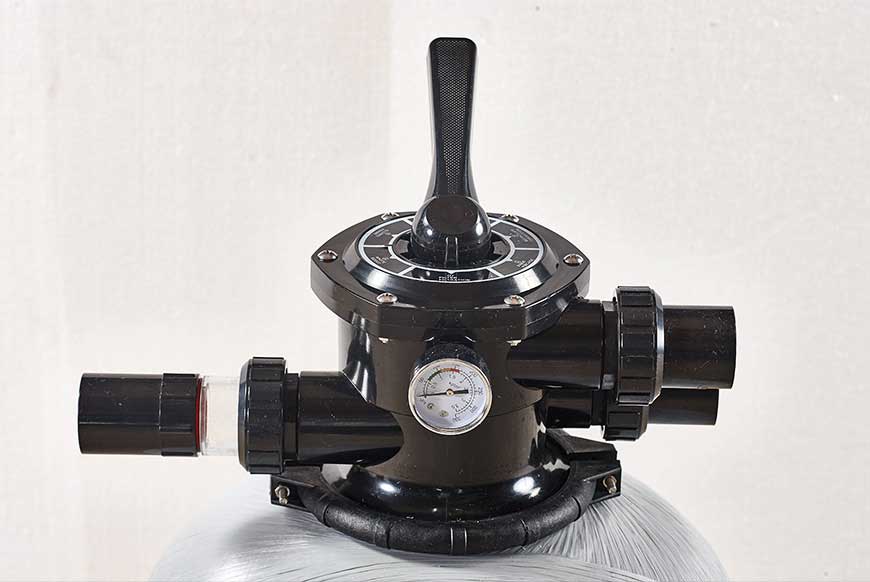

    Fiberglass pool sand filter can be a long time in the sun to operate, but also can adapt to different weather, because it uses a glass fiber and polyester technology, the top of the configuration of a multi-functional 6-way valve, all with ABS material;

    The more things are trapped in the filter bed, the clearer the water filtered by the sand cylinder and the higher the efficiency of the sand cylinder. All the procedures have multi-directional valve operation and regular recoil and blow-down.

Model : P400 - P700

fiberglass swimming pool sand filter

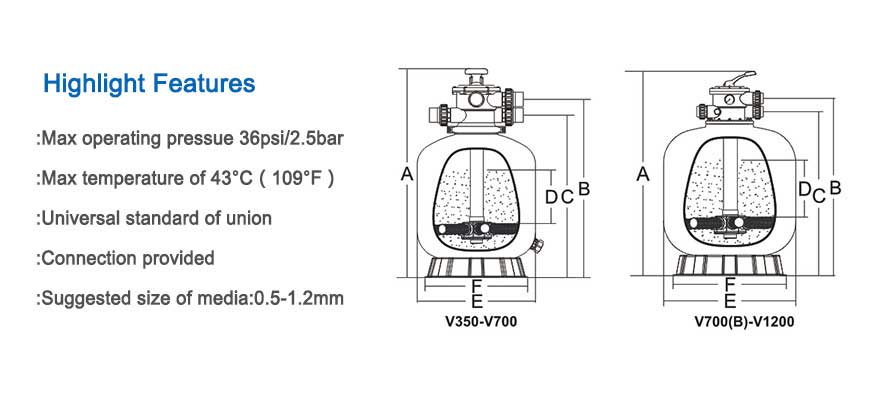

Technical Characteristics
Mode Filter Area (㎡) Vatve Connections
Max Flow Rate Gravel (kg) A mm B mm
P400 0.13 1.5inch   50mm 8m³/h 35 760 400
P450 0.16 1.5inch   50mm
10m³/h
45 815 450
P525 0.22
1.5inch   50mm
12m³/h
85 880 525
P625 0.30 1.5inch   50mm
16m³/h
150 1005 625
P700 0.40 1.5inch   50mm
20m³/h
210 1100 700


fiberglass swimming pool sand filter


fiberglass swimming pool sand filter


fiberglass swimming pool sand filter
We have a experience and expertise together with our devoted staffs.
Our goal is " Quality is our culture and we will try best to provide the unsurpassed customer service"
