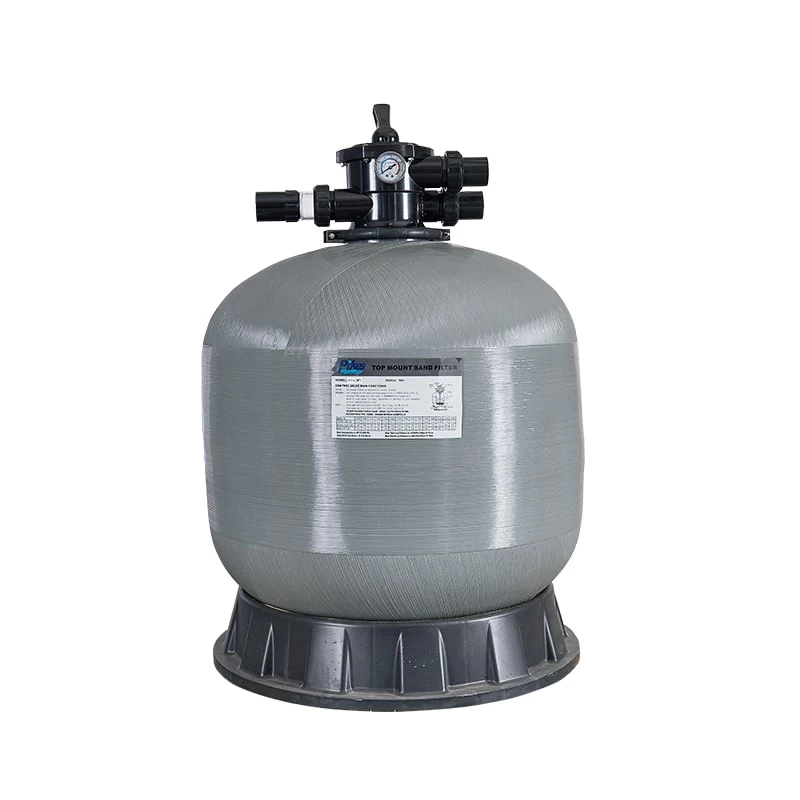

Top mount fiberglass sand filter tank

Top mount fiberglass sand filter are equipped with a six-position, with 2'' multi-port value, is still the most popular standard in the industry.



    Swimming pool sand filter is still the most popular standard in the industry after all.With UV-resistant surface finish, it is able to operate under prolong sunlight for years of reliability.Swimming Pool sand filter with 2'' multi-port value.

Top Mount Pool Sand Filter


Technical Characteristics
Mode Filter Area (㎡) Vatve Connections
Max Flow Rate Gravel (kg) A mm B mm
P400 0.13 1.5inch   50mm
8m³/h
35 760 400
P450 0.16 1.5inch   50mm
10m³/h
45 815 450
P525 1.22 1.5inch   50mm
12m³/h
85 880 525
P625 0.30 1.5inch   50mm
16m³/h
150 1005 625
P700 0.40 1.5inch   50mm
20m³/h
210 1100 700
P700B 0.40 2.0inch   63mm 21m³/h 215 1150 700
P750 0.45 2.0inch   63mm
23m³/h
300 1180 750
P800 0.50
2.0inch   63mm
25m³/h
355 1310 800
P900 0.64 2.0inch  63mm
31m³/h
470 1380 900
P1000 0.79 2.0inch   63mm
36m³/h
620 1495 1000
P1100 0.96 2.0inch   63mm
42m³/h
800 1580 1100
P1200 1.13 2.0inch   63mm
45m³/h
900 1600 1200
P1400 1.54 2.0inch   63mm
56m³/h
1350 1810 1400



Top Mount Pool Sand Filter


Top Mount Pool Sand Filter


Top Mount Pool Sand Filter








Instruction of install our swimming pool sand filter :
INSTALLATION
Installation had been made simple, the only tools
needed is a screwdriver and pipe sealant for plastic.
Locate the Filter on hard, level surface, preferably in a dry, shaded, and well-ventilated area.
1/ Place the empty tank in position.
2/ Fill the tank with water to the level that covers the laterals

about 1/3 of the tank is recommended. This will avoid damages to the laterals by the force of the sand when pouring into the filter.
