Top Mount Zinc Alloy Twin Lever Engine Throttle Control
DESCRIPTION
|
Suitable for most boat/engine combinations, control shift and throttle applications
|
throttle andshift control on one handle
|
Single lever YK9S andTwin YK9D available YK9D controls up to 2 engines.
|
|
Can adjustcontrol handle on"push" or "pull" mode to
accelerate accord with engine's need.
|
|
Zinc alloy housing in whole, chrome plated, 304 stainless steel as interior part material, waterproofing and antirust
withinnovative design.
|
Ergonomically designed. neat installation.
|
Combined with cable series 080, end c, can be any length within 20 meters.
|

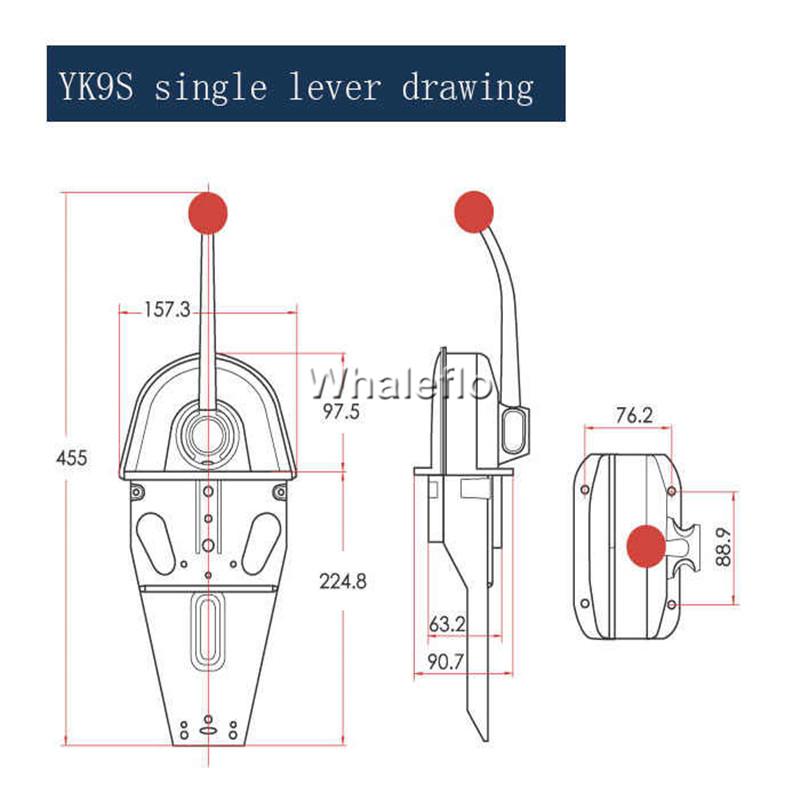

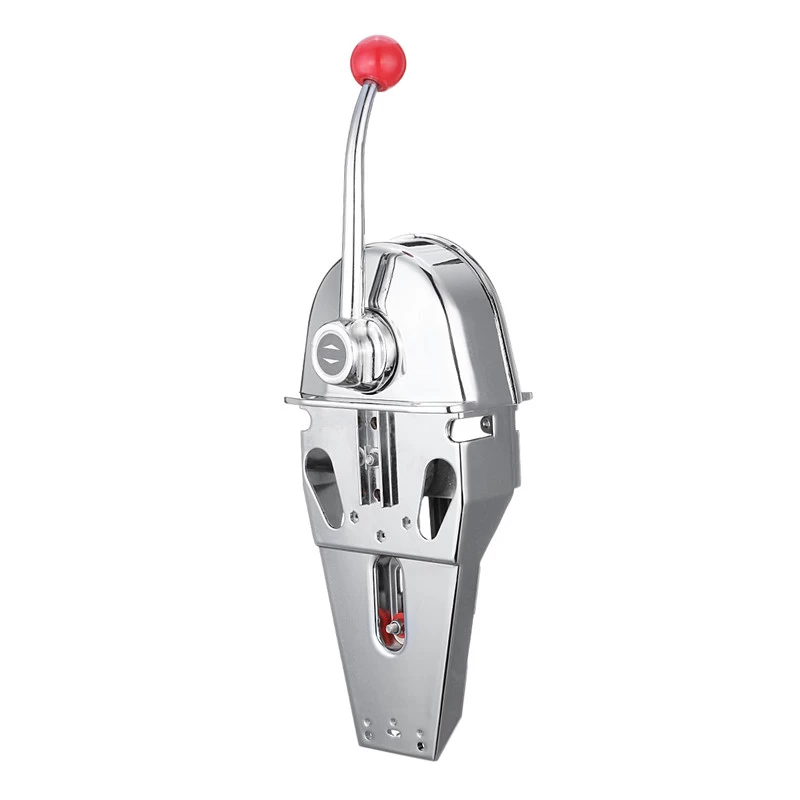

Single Lever Engine Throttle Control

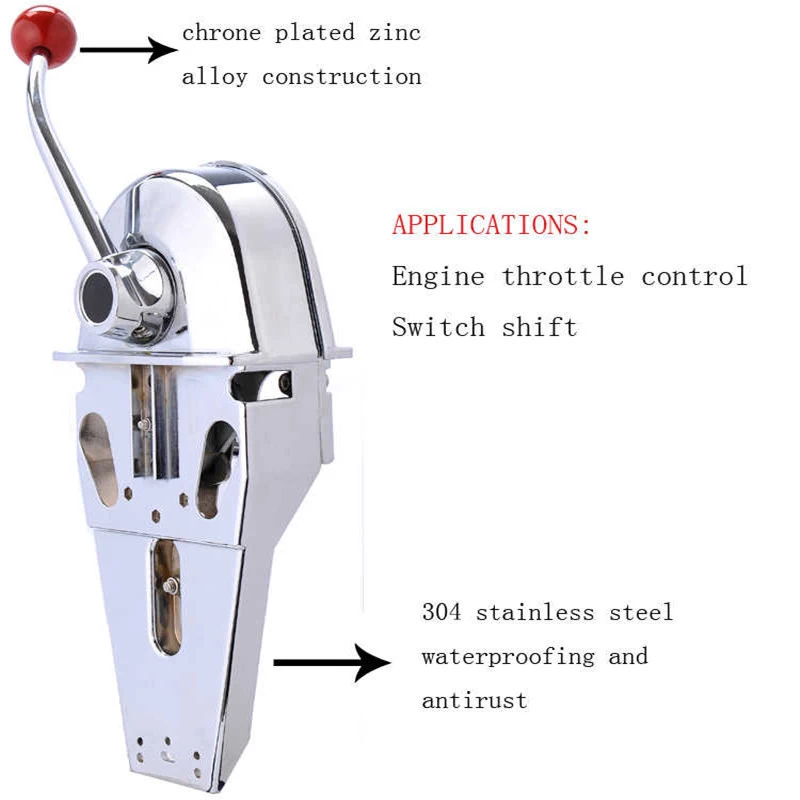

Material:
Housing part:chrome plated zinc alloy construction
Interior part:304 stainless steel
Waterproofing and antirust
Suggested Connection cable systems:
YK9S connect with 2 pieces 3300/33C type control cables
YK9D connect with 4 pieces 3300/33C type control cables
Cable length:within 23 meters
Cable stroke:90mm
Pull force:1400N max
Push force:190N max
Applications:
Engine throttle control
Switch shift
Features:
Usually work for inborad engine
Throttle and shift on one handle.YK9S for 1 engine and Yk9D for 2 engines
Single lever connect with 2 pieces cable,dual lever connect with 4 pieces cable
Neutral warm-up is done by pulling out the hand levers in the neutral position
Built-in friction drag helps reduce slippage and throttle creep while underway
