Top Quality FTTH Fiber Optical Light Source S100

Smart Switchable Power Supplies.

Support various removable optical output connectors.



Introduction

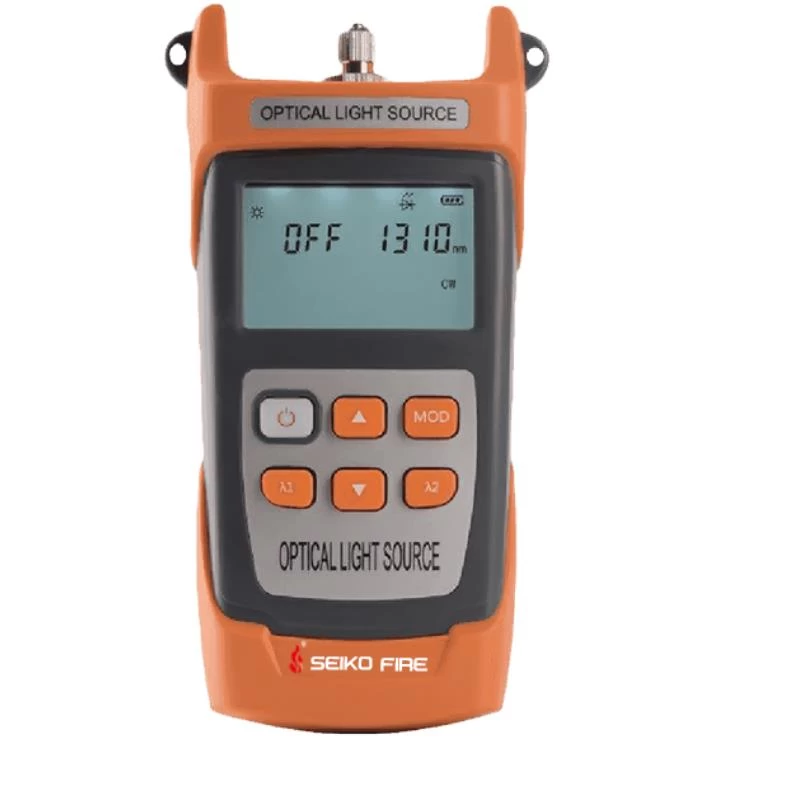

Light Source S100 is advanced two-color integrated mold process for extra durability, Top dustproof over protects the fiber output connector.


Features

  • Support cw and a variety of modulation light output
  • Output optical power adjustable, Adjustment range 6dB, step 1dB (optional).
  • Support automatic shutdown
  • Backlight intelligent control
  • Supports single wavelength, combined wavelength customization (1490nm, 1625nm)


Specifications

Center wavelength

850/1300(MM)

1310/1550(SM)

Optical Connector

FC/SC/ST

Wavelength

850/1300/1310/1490/1550/1625/1650nm

Power stability (dB)

0.02

Laser type

FP-LD

Output power

≥-5dBm

Short-term stability

±0.05dB/15min

Long-term stability

±0.15dB/8h

Way of working

CW, 270Hz/1kHz/2kHz

Operating temperature

-10~+60

Storage temperature

-30~+70

Working humidity

5%~95%RH

Continuous working time

≥80h

Structure size

100mm×50mm×186mm

Power

Three section 5 batteries/Lithium battery (optional)

Instrument net weight

240g
