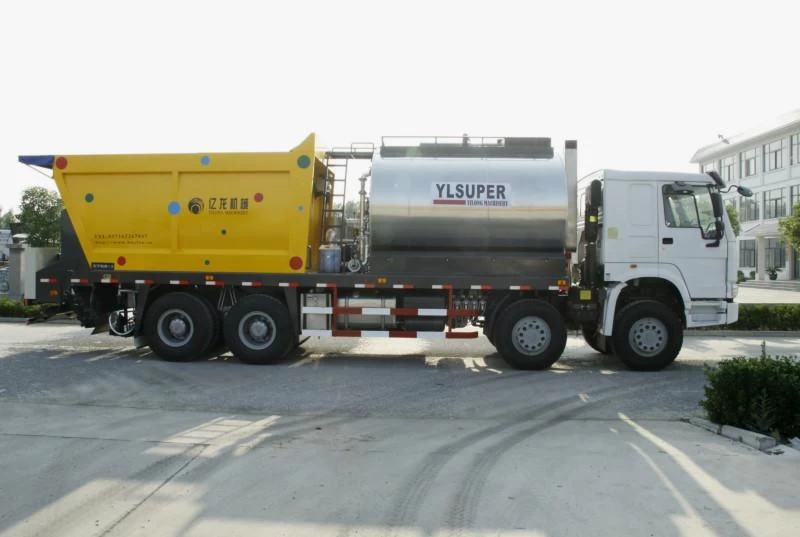

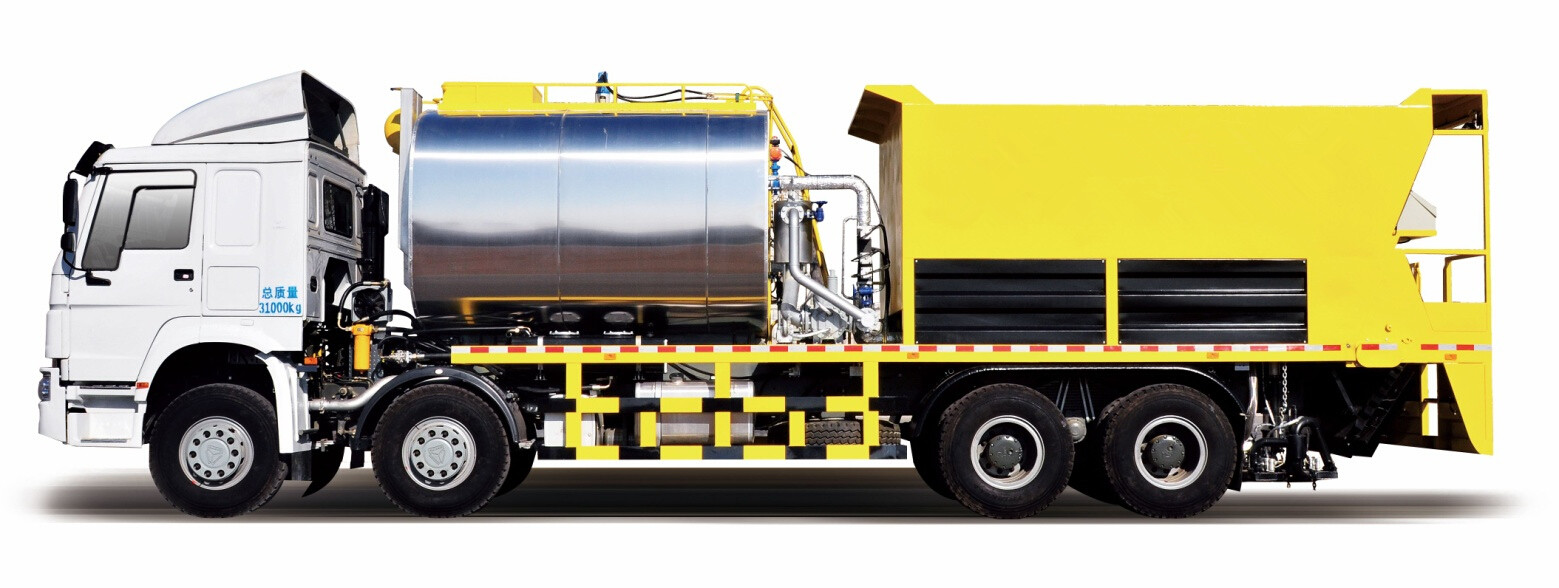

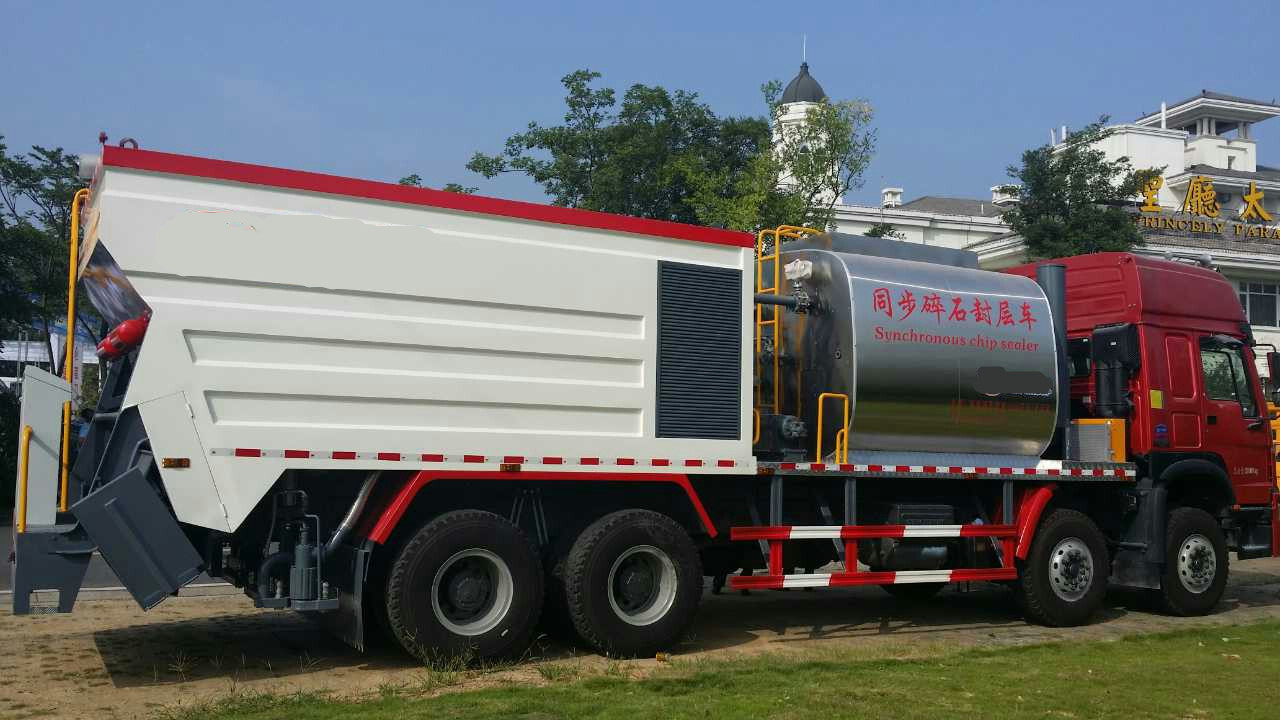

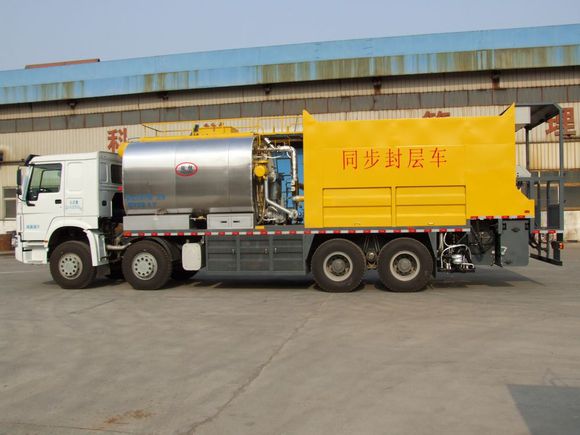

Top quality ISUZU Truck
mounted spreader spraying/Synchronous Chip Sealer for Road
Brief Introduction
ISUZU Bitumen Crush Stone Paver Truck also called as Asphalt Penetration
Macadam Chip Sealer, developed by our company is the special machinery for
asphalt pavement construction and can be widely applied into the highway
operation work of fast synchronous spraying. It features cost-saving, surface
wear-resistant, anti-skidding and waterproof. The normal traffic could be
resumed soon after the construction. It applies to the construction of the
highways at different levels.
Advantages
1. The accurate spraying volume promised the perfect realization of asphalt
spraying threefold with good evenness.
2. The complete computer touch screen with video monitoring system makes it
possible for us to observe the whole working process.
3. The intense spray system and asphalt aggregate stone collinear spraying
system ensure that the asphalt and the building stones will be simultaneously
sprayed.
4. ISUZU synchronous chip sealer has the most effective heating and circulating
thermal system to smooth the pipelines and nozzles. Thus, there is no need to
clean them.
5. The nozzles and aggregate doors are controlled by pneumatic system. Each
aggregate door and nozzle could be independently controlled by the computer.
6. ISUZU synchronous chip sealer could automatically feed and discharge asphalt
to improve its working efficiency.
7. It is characterized by its compact size and good-looking appearance.
Technical Parameters
|
Item
|
Parameter
|
|
Name
|
ISUZU Synchronous Chip Sealer
|
|
Model
|
PT5311TFC
|
|
Outline
Dimension of the Whole Vehicle (L×W×H, mm)
|
12000×2490×3630
|
|
Tank Capacity (m3)
|
8
|
|
Aggregate Bin
Capacity (m3)
|
12
|
|
Chassis Model
|
ISUZU FYH
|
|
Vehicle Pattern
|
Flathead, 8×4 rear drive
|
|
Tire
Specification
|
12.00R20
|
|
Approach Angle
/Departure Angle
|
16°/14°
|
|
Engine Rated
Power/ Rotation Speed(kw/r/min)
|
257/2200
|
|
Fuel Type
|
Diesel
|
|
Seating Capacity
(including the driver)
|
2
|
|
Top Speed(km/h)
|
90
|
|
Complete Vehicle
Weight (kg)
|
31000
|
|
Load Rating
Weight (kg)
|
11470
|
|
Working Speed
(km/h)
|
3.0-6.5
|
|
Max. Spray Width
(m)
|
4
|
|
Asphalt Spray
Volume (L/m2)
|
0.5~3.0
|
|
Max. Speed of
Stone Chips Roller (r/min)
|
130
|
|
Max. Spray Width
of Stone Chips (m)
|
4
|
|
Max. Pressure of
Hydraulic System (MPa)
|
20
|
