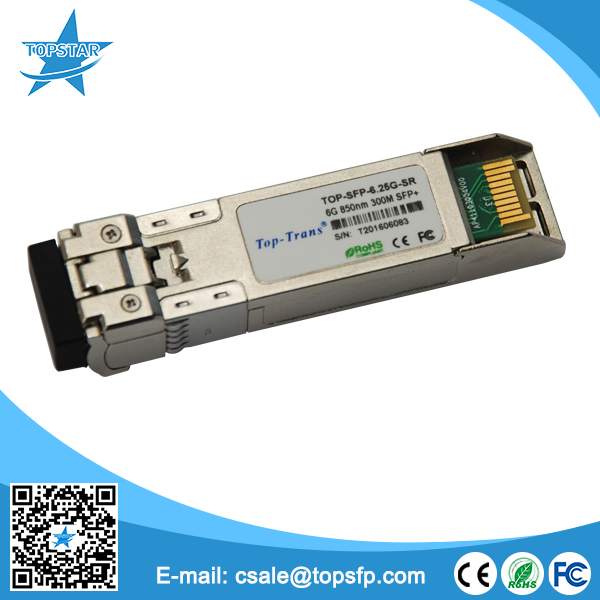

Top-trans 6.25G 850nm 300m SR SFP Transceiver
Features
Optical interface compliant to IEEE 802.3ae 6GBASE-SR, compliant to CPRI, OBSAI
Electrical interface compliant to SFF-8431
Hot Pluggable
850nm VCSEL transmitter, PIN photo-detector
Maximum link length of 300m on 2000MHz/km MMF
Operating case temperature: 0 to 70℃
Low power consumption
All-metal housing for superior EMI performance
Advanced firmware allow customer system encryption information to be stored in transceiver
Cost effective SFP+ solution, enables higher port densities and greater bandwidth
Multi-Rate support from 2G fiber channel to 6G ethernet
Dual LC connector
Compatible with Huawei/ Nokia/ Ericsson
Applications
6GBASE-SR at 6Gbps
6GBASE-SW at 6Gbps
Other optical links
