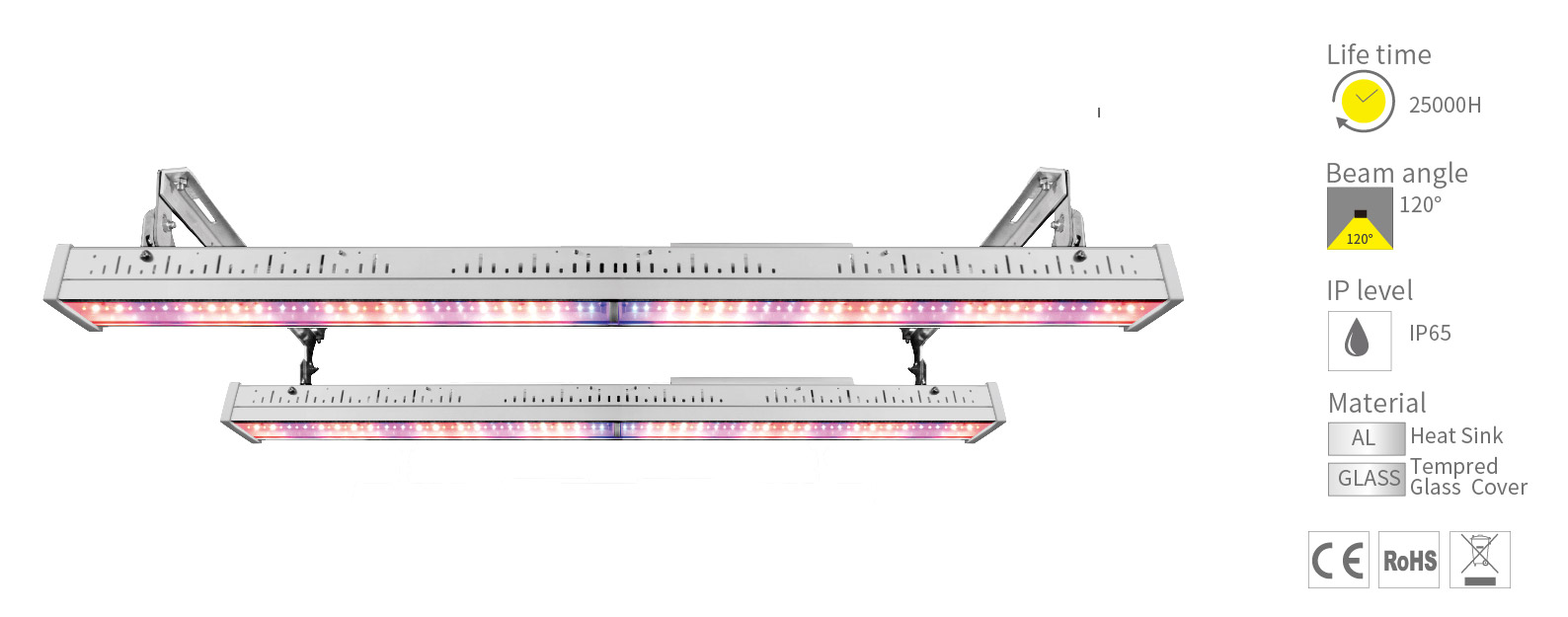

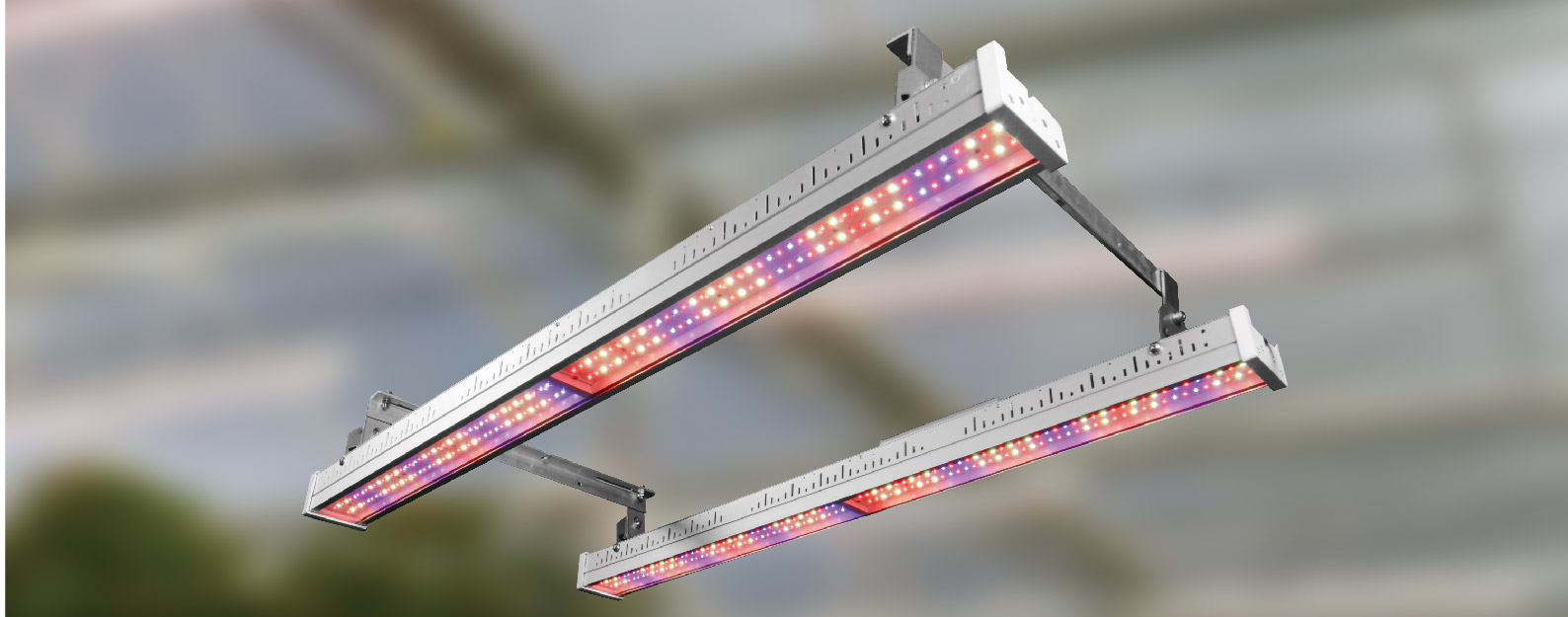

TOPLIGHT-G3 is a member of the horticulture
product line from Sanan’s product release in 2020. It upgrades the optics, and mounting design base on G2 series.
This product provides a more efficient and
longer lifetime solution than traditional HPS.
Help farmers reduce costs and improve crop
yield and quality.
A more concise cable with customizable and
chainable design to match different applications.

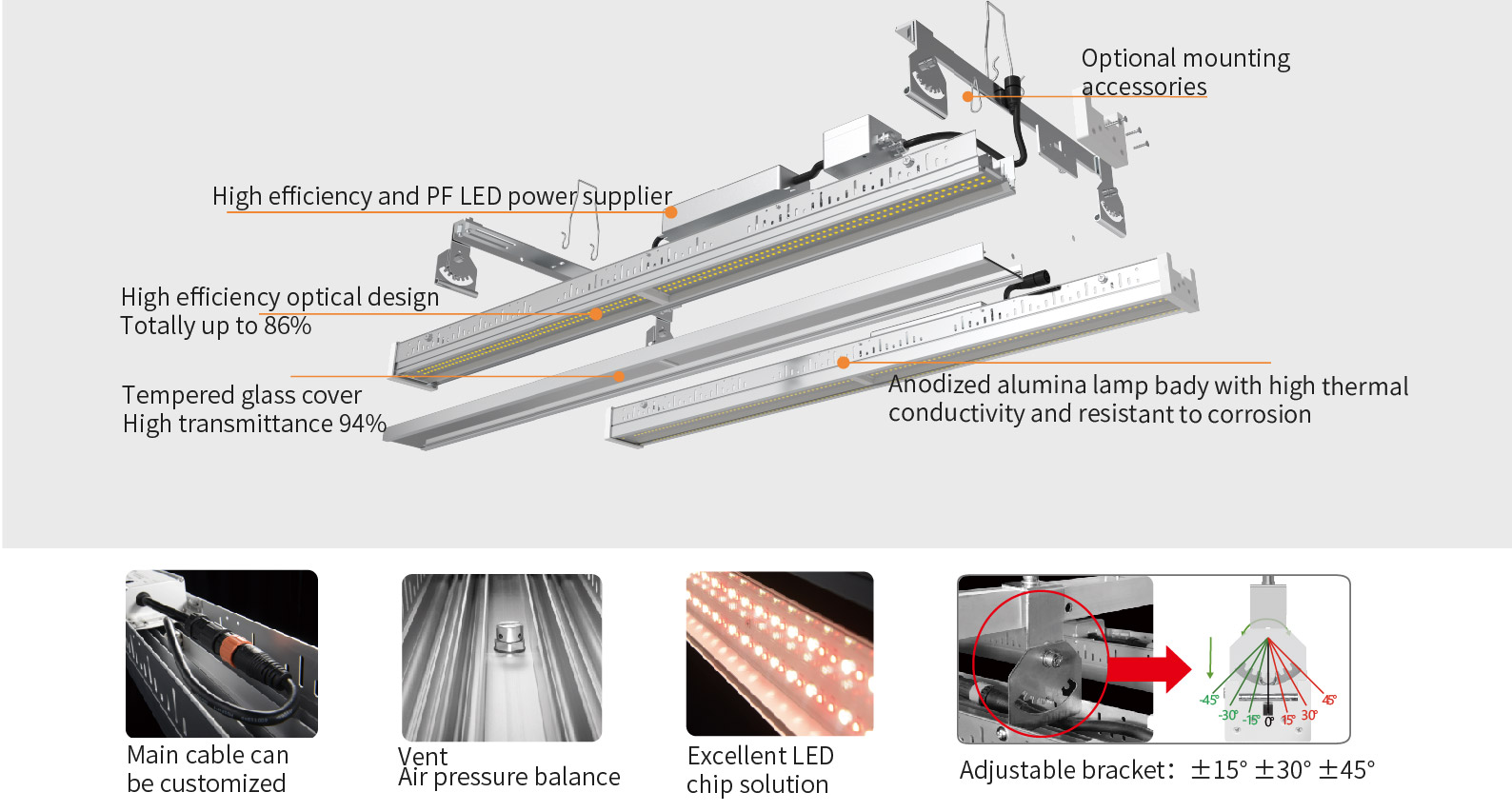

Features
-
Adjustable
angle bracket, flexible adjustment of beam angleHigh
efficiency optical design
-
Tempered
glass cover and IP65 waterproof level, easy to clean
-
Customized
cable design for different replacement or new project
-
Anodized
alumina lamp body with high thermal conductivity and resistant
to corrosion
Spectrum
Light Distribution Curve

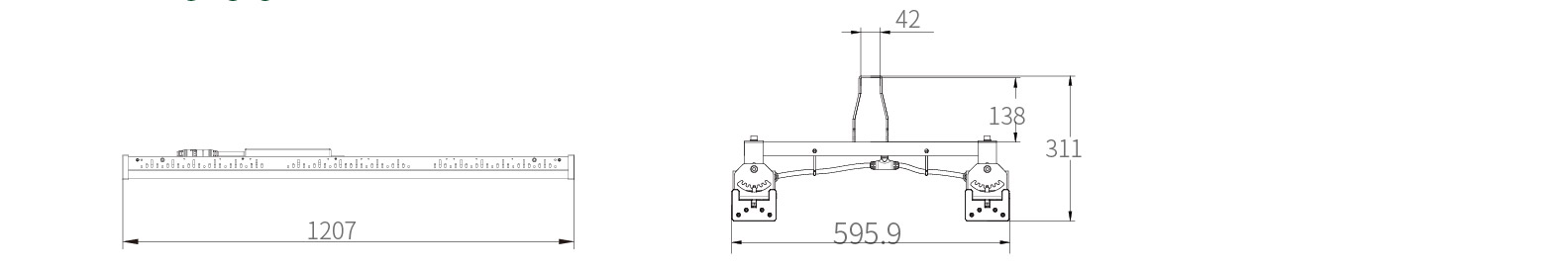

Dimension

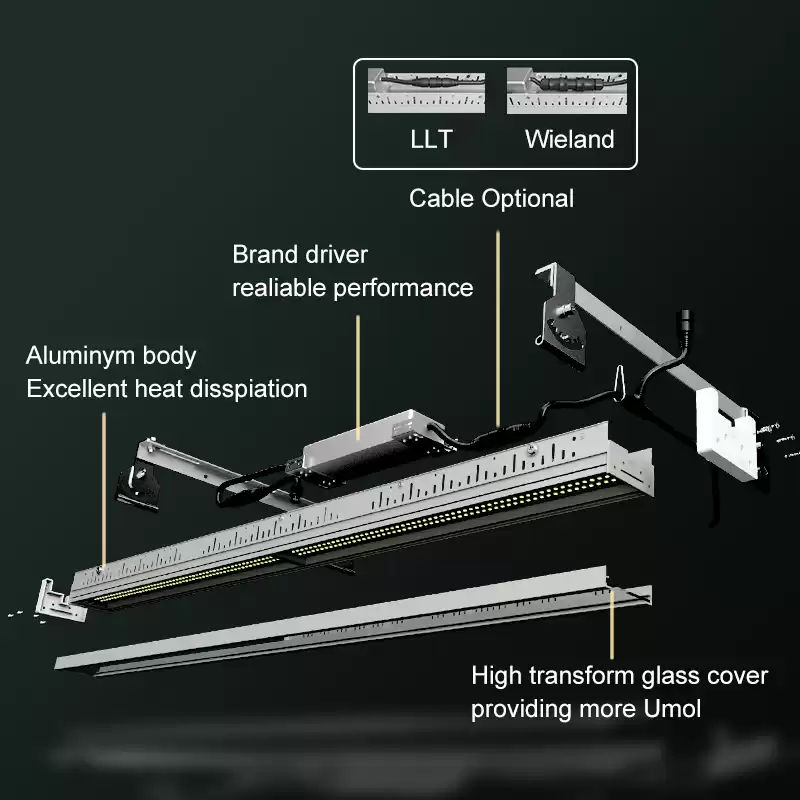

Exploded Drawing

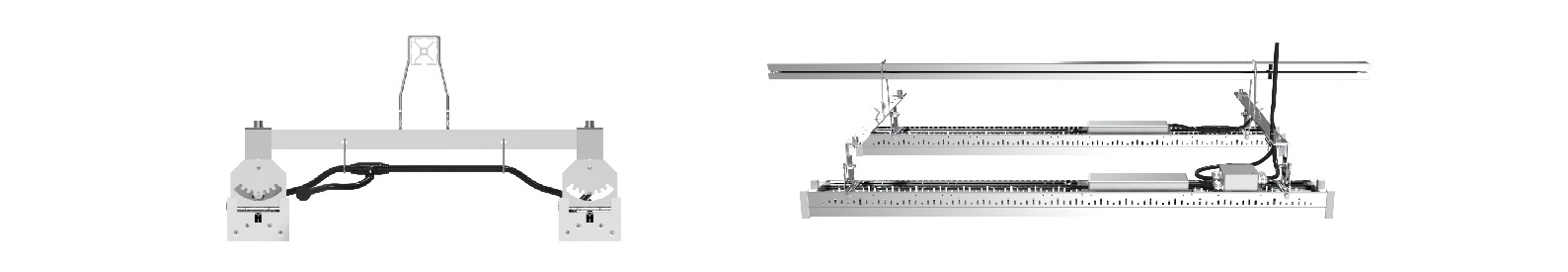

Installation

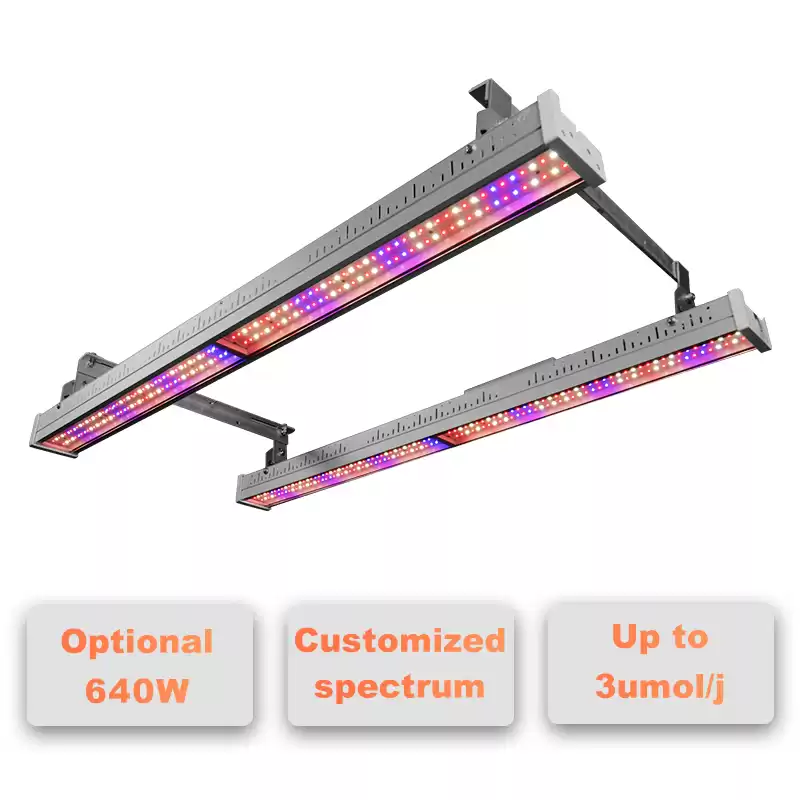

Double light connection & adjustable bracketInstallation
Parameter
|
Type
|
Toplight-G3
|
|
Models
|
N320L4-N-K23-XX
|
|
Voltage
|
100-240V
|
|
100-277V（NA market)
|
|
Power
|
320W
|
|
Spectrum
|
Full Spectrum
|
|
PF
|
>0.9
|
|
PPF(380-780nm)
|
up to 850umol/s
|
|
PPE
|
up to 2.7umol/J
|
|
Beam Angle
|
120°
|
|
Operating Ambient Temperature
|
-20℃~40℃
|
|
Dimming
|
No-DIM / 0-10V / PWM
|
|
Lifetime
|
25000H
|
|
IP Rating
|
IP65
|
|
Dimension（mm)
|
L1207*W95.5*H67.6
|
|
Material
|
AL+Glass
|
|
Installation
|
Hanging with steel cable
or C-profiles
|
|
N.W.
|
3pcs/Carton 13.8kg
|
|
G.W.(Outer)
|
3pcs/Carton 16.08kg
|

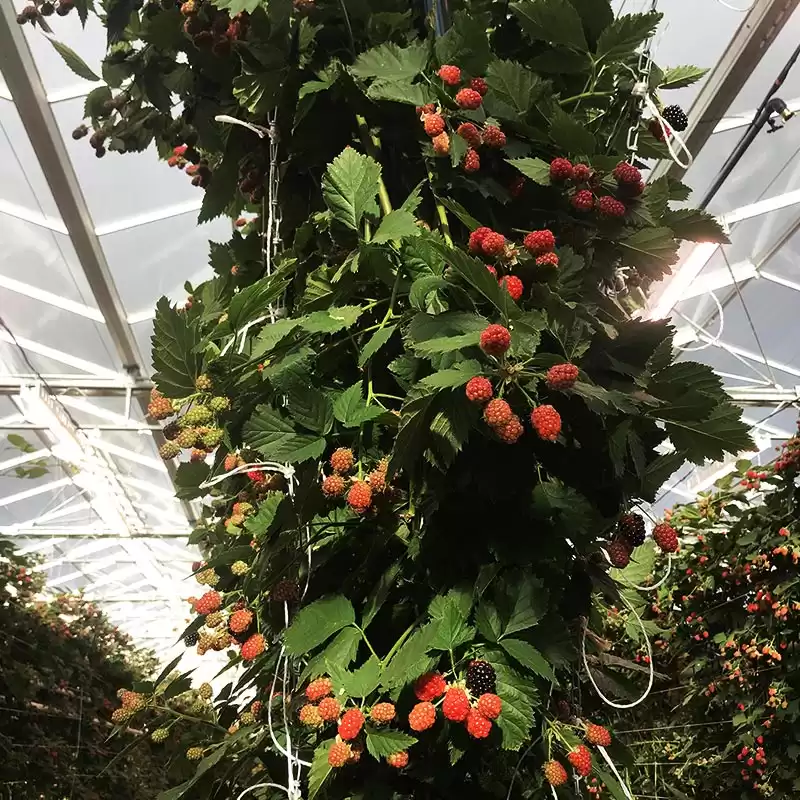

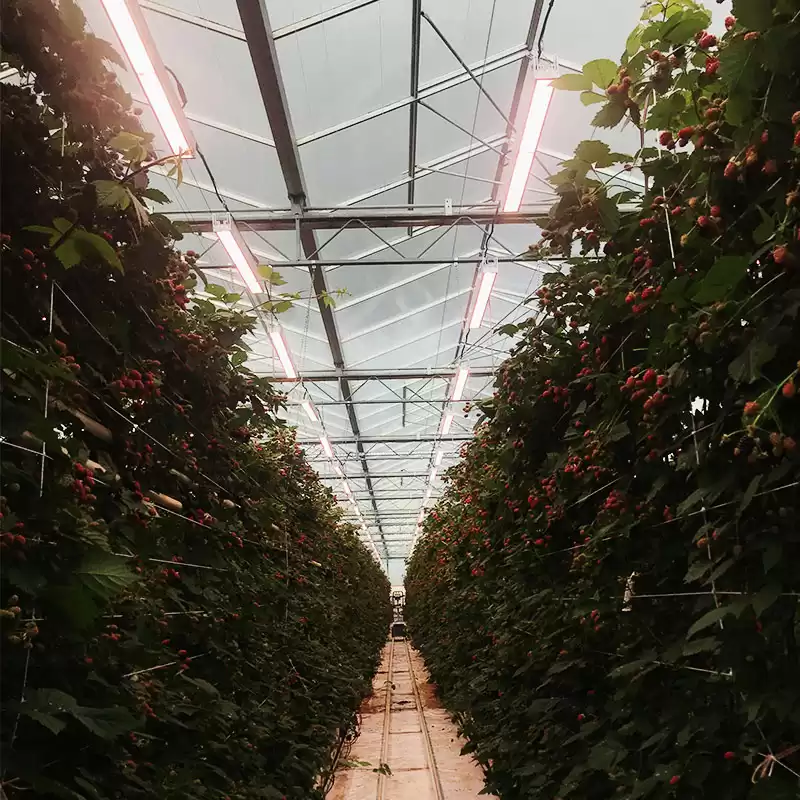

Application
About San’an
Strict Quality Control
SANAN’s Testing Center was set up in April 2013(Xiamen), specializing in LED application test. It’s certificated by UL / TUV / CNAS / DEKRA to become as a third-party testing institution complying with ISO17025. Taking quality as the top consideration, San’an Technology ensures product quality in every step from R&D through out to productive process
Energy Saving and Customized Design
FAQS:
Q: What is your MOQ?
A: MOQ is 1000 pcs. But we also accept test orders less than 1000 pcs quantity in the first time.
Q: How about the delivery time?
A: According to your order. Generally, we can finish your order in 30 days.
Q: What is your Toplight G3-2in1 LED Light fixture warranty?
A: 12 months for parts and labor against quality defects.
Q: Do you accept OEM or ODM?
A: Yes, of course, and we offer one-stop service for product design, mould design, mould manufacturing,injection, assembly and other aspects.
