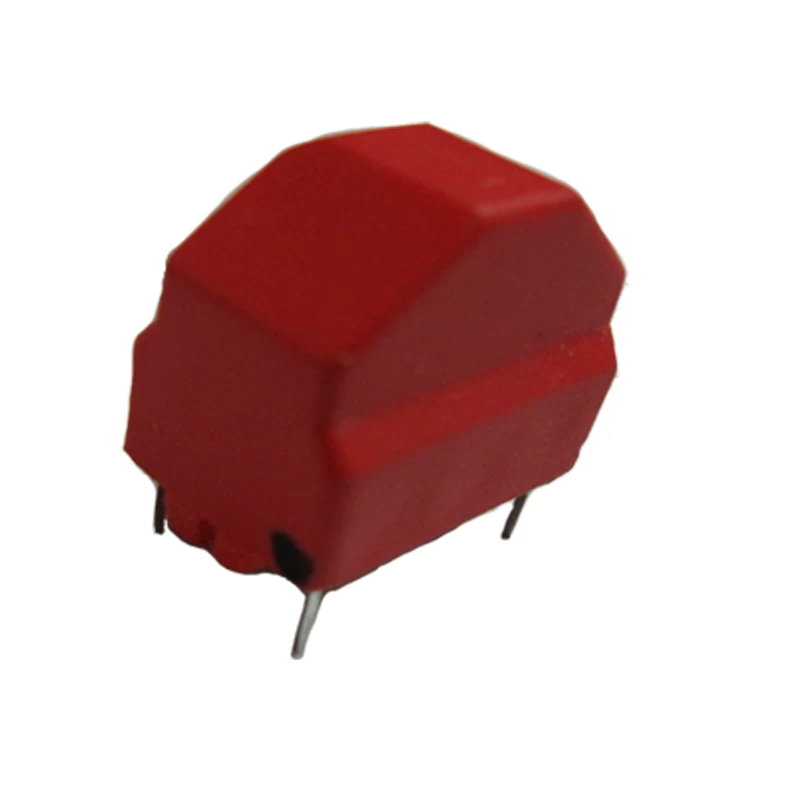

Toroidal Encapsulated Common Mode Inductor with High Current and Low Resistance

Customized encapsulated common mode chokes. Testing frequency:1KHz/0.25V. Operating temperature: -40°C~+105°C. Mainly used in power system, LCD panels, DC converters, RFI suppression. It has large current, high frequency and low power loss.



We are ISO9001 certification factory, manufacturing various common mode chokes, drum core inductor, rod core inductor, large current inductor, air coil inductor, three/four phase common mode choke, dimmer choke for EMI suppression. All coil products accept custom design.


Quick Details

Part Number: MCT Case Potting31C Series Common Mode Choke



Brand name: MCT

Type: Choke Inductor



Custom made: Available

Testing frequency: 1KHz/0.25V



Logo: Can be customized

Operating temperature:-40°C~+105°C.



Shipping: Air, Ship, etc

Certification: ISO9001,ROHS,CE



MOQ: Any quantity

Lead time: 25 days after payment



OEM: Available



Part Information

Product Name: Toroidal Encapsulated Common Mode Inductor with High Current and Low Resistance
Applications: Low Frequency AC Reactor. PC USB interface cable. Solar Power System. LCD panels. Power Conditioning System. Wind Power System. Automatic Drive Machine. RFI Suppression Choke

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

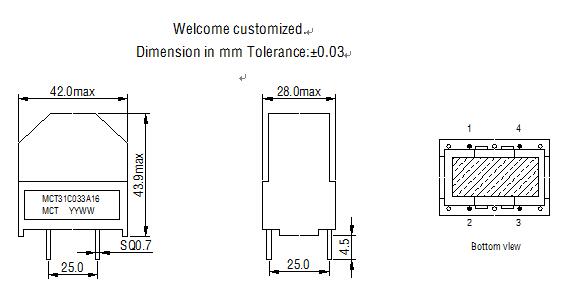

Product Specification

Factory Direct Selling High Quality Encapsulated Common Mode Choke

Typical Electrical Parameter

MCT Part No.

Inductance(mH) min

DC Resistance(Ω)max

Rated Current(A)

MCT31C033A16

33.0

0.35

1.6

MCT31C025A20

25.0

0.25

2.0

MCT31C018A25

18.0

0.20

2.5

MCT31C010A30

10.0

0.13

3.0

MCT31C006A40

6.80

0.08

4.0

MCT31C003A60

3.30

0.04

6.0

MCT31C001A80

1.80

0.02

8.0

MCT31C001AA0

1.00

0.01

10.0


We can design for you, if you have any request, please contact us, we will give you fast reply.
