Hefei Mycoil Technology Co.,LTD produce and design varies types toroidal transformers, such as toroidal transformer for solar power(MCT designs it with high efficiency and low noise), toroidal transformers for industrial control(MCT designs it with high efficiency >95%, high reliability), toroidal transformer for computers(MCT designs it with light weight, low profile and high reliability), toroidal transformer for lighting(MCT designs it with low temperature rise, high efficiency, high reliability), other toroidal transformers. Our toroidal transformer has many applications, such as audio equipment, medical equipment, computers, telecommunications, new energy, electronic devices.
The MCTT series of toroidal transformers offer power ranges from 30 VA to 2000 VA inclusive. These standard transformer products share common lead lengths, colors, mounting configurations and more, The STP series are designed to comply with international safety standards.
Quick Details
|
Part No: Toroidal Transformer Power in 30 VA to 2000 VA
|
|
Brand name: MCT
|
|
Dual Primaries - 2 x 115 V - 50/400 Hz
|
|
Custom made: Available
|
|
Power - 100 VA to 2000 VA
|
|
Logo: Can be customized
|
|
Connections: 12.0” color-coded stranded leads
|
|
Packing: Carton,can custom
|
|
Insulation System - Class B, 130º C
|
|
OEM: Available
|
|
Certification: ISO9001,ROHS,CE
|
|
Shipping: Air, Ship, etc
|
|
Lead time: 25 days after payment
|
|
MOQ: Any quantity
|
Part Information
Product Name: Toroidal Transformer Power In the Round 30 VA to 2000 VA
Product Benefits: Minimal core losses, Low profile, Power/mass efficient, Reduced EMI, Low dB, ROHS compliant.
Applications: Switching power supplies, chargers, audio equipment, medical equipment, solar inverter, electronic devices, SMPS
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product General Specifications
Dual Secondaries - Standard outputs 2 x 115V with multiple output
Supplied with mounting hardware set; screw, nut, top plate and 2 rubber pads.
Component certifications for North American and IEC/EN standards available on request.

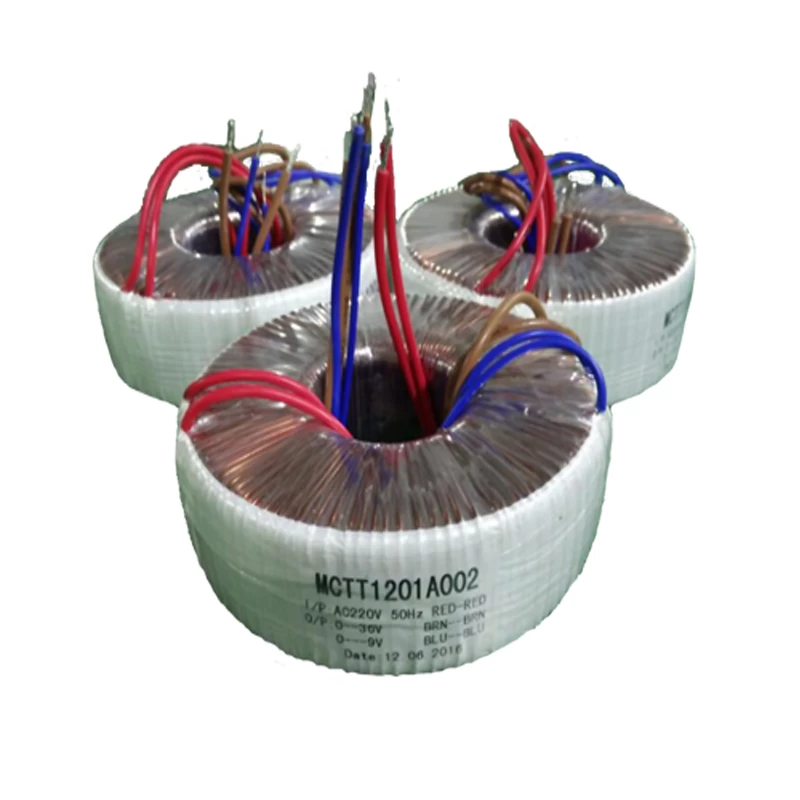

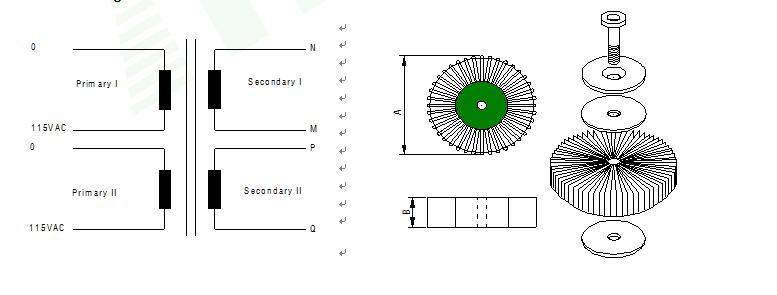

Electrical data table
|
Part Number
|
Power Range
|
Dimensions2
Inches (mm)
|
Weight
|
Recommended Fastener Size
|
|
VA
|
A
|
B
|
lbs (kg)
|
|
MCTT050XAXXX
|
50
|
3.5 (88)
|
1.5 (38)
|
1.86 (0.84)
|
#8
|
|
MCTT100XAXXX
|
100
|
4.2 (105)
|
1.4 (35)
|
2.86 (1.3)
|
#8
|
|
MCTT150XAXXX
|
150
|
4.6 (116)
|
1.7 (42)
|
4.40 (2.0)
|
#10
|
|
MCTT200XAXXX
|
200
|
4.8 (120)
|
1.9 (48
|
5.30 (2.4)
|
1/4”
|
|
MCTT250XAXXX
|
250
|
5.0 (127)
|
2.0 (50)
|
6.40 (2.9)
|
1/4”
|
|
MCTT300XAXXX
|
300
|
5.1 (128)
|
2.2 (55)
|
7.0 (3.2)
|
1/4”
|
|
MCTT400XAXXX
|
400
|
5.3 (133
|
2.8 (70)
|
10.3 (4.7)
|
5/16”
|
|
MCTT500XAXXX
|
500
|
5.6 (140)
|
2.9 (72)
|
12.1 (5.5)
|
3/8”
|
|
MCTT600XAXXX
|
600
|
6.1 (155)
|
2.9 (72)
|
14.8 (6.7)
|
3/8”
|
|
MCTT800XAXXX
|
800
|
6.7 (170)
|
2.9 (72)
|
18.0 (8.2)
|
3/8”
|
|
MCTT103XAXXX
|
1000
|
7.1 (180)
|
3.1 (78)
|
22.1 (10.0)
|
3/8”
|
|
MCTT123XAXXX
|
1200
|
7.8 (198)
|
3.2 (80
|
29.5 (13.4)
|
3/8”
|
|
MCTT163XAXXX
|
1600
|
8.3 (210)
|
3.4 (86)
|
35.3 (16.0)
|
1/2”
|
|
MCTT203XAXXX
|
2000
|
9.2 (232)
|
3.6 (90)
|
44.1 (20.0)
|
1/2”
|

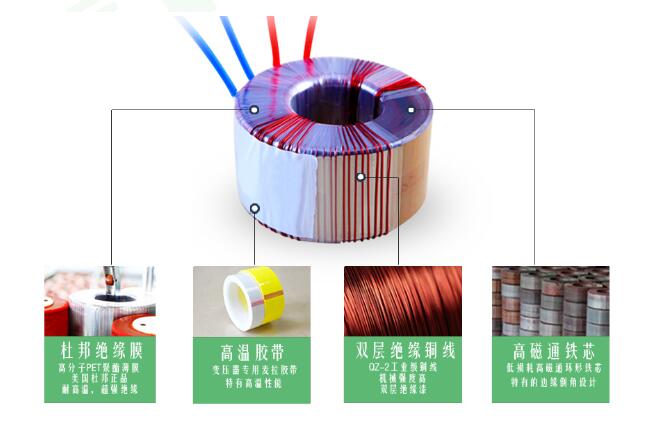

Structure Analysis
