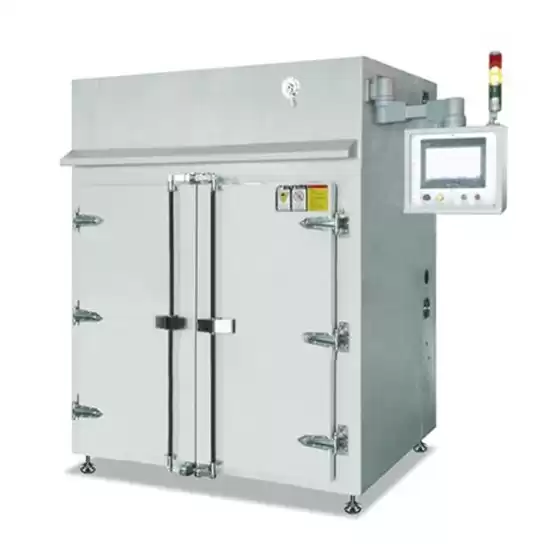

Touch Screen Control Automatic Vacuum Drying Oven for Supercapacitors Drying

Specifications

Temperature range	Ambient temperature:  + 0 ～ + 180 ℃
Temperature resolution	0.1 ℃
Temperature fluctuation	≤± 2 ℃
Temperature uniformity	≤± 2 ℃
Heating time	Ambient temperature ~ 140 ℃, heating time ≤ 30min, temperature overshoot < 5 ℃, over temperature alarm device.
Vacuum degree	Vacuum degree of vacuum tank liner: no load ≤ 0.007 mbar, leakage rate of box ≤ 1X10-6 mbar * 1 / s (according to vacuum capacity of vacuum pump)
Capacity	The maximum baking capacity of one set is 180 capacitors (calculated as 60.138).
Working voltage	Three phase 380V / 50Hz
Total power	8kw
Weight	600kg
Size of vacuum box	580 (L) × 420 (W) × 380mm (H)
Overall dimensions	width 1600 * depth 1300 * height 2000mm

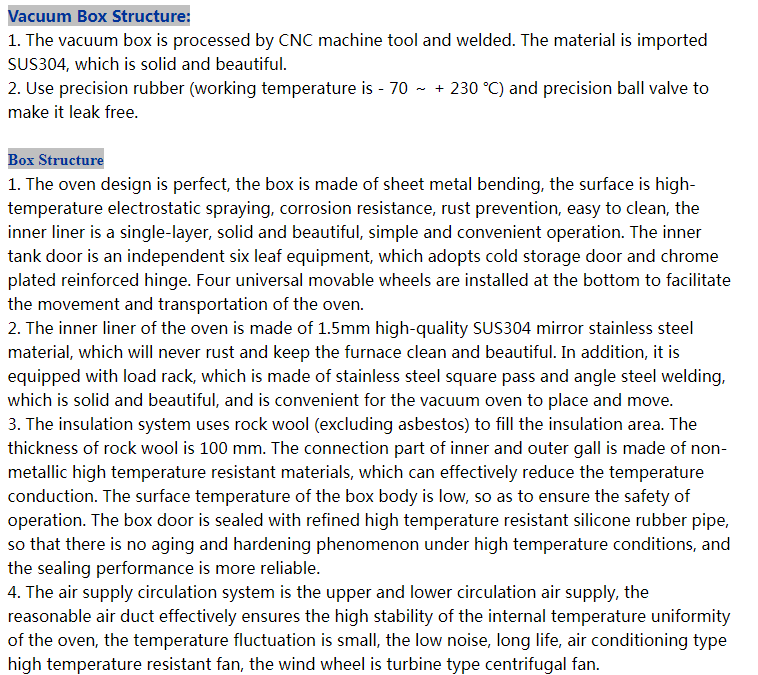

Vacuum box structure
1. The vacuum box is processed by CNC machine tool and welded. The material is imported SUS304, which is solid and beautiful.
2. Use precision rubber (working temperature is - 70 ～ + 230 ℃) and precision ball valve to make it leak free
