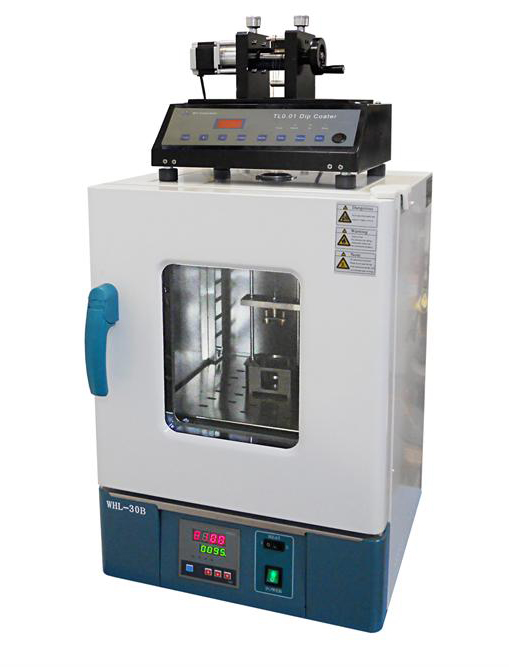

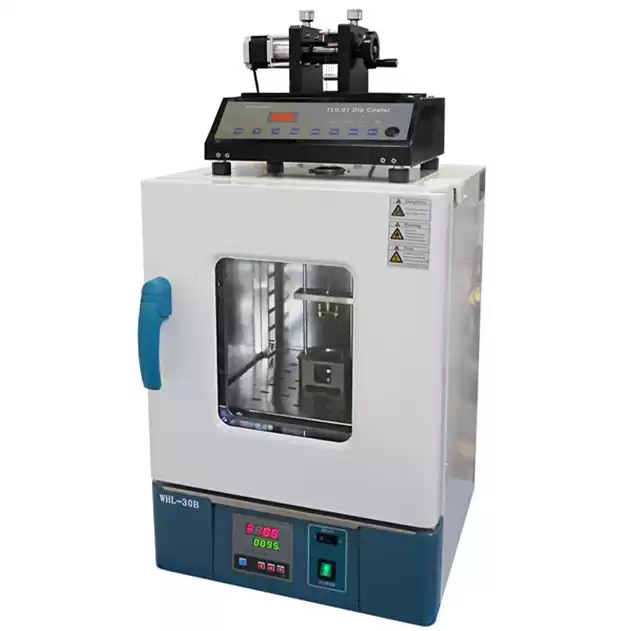

Touch Screen Programmable (1-200 Mm/Min) Dip Coater With Drying Oven Up To 100°C

PTL-MMB02 is a CE Certified Millimeter Grade Desktop Programmable Dip Coater (1-200 mm/min) with "touch-screen" digital control. Dipping rate, pulling rate, dwell time, and cycle life can be setup by touch screen controller and run dip coating automatically in the temperature controllable oven. It is designed for R&D Lab to prepare various optical or epitaxial films from liquid solution.

Specifications：

Working Voltage	110/220V AC selectable
Travelling Distance	0-60 mm Adjustable
Dipping/Pulling Speed	1-200 mm/min Programmable with accuracy within +/- 0.05%
Controller	6" LCD color touch screen controller
Sample Holder	Two screw sample clips are installed in the sample holder in order to carry the samples sliding up and down through two guide rods
Solution Container	One 150mL beaker is included
Beaker Holder	The beaker which contains the coating material (coating solution) will be placed into the slot of the beaker holder.
Max. Sample Size	3"(L) x 2"(W)
Sample Weight	Less than 250g
Dipping/Pulling Motor	Stepping Motor
Oven	· Working Voltage: 110/220V AC selectable in Personalization · Max. Power Consumption: 600W · Temperature:   50-100°C controlled by digital controller with +/- 1°C accuracy. · Chamber Dimensions: 280mm(L) x 280mm(W) x 280mm(H) · Inner Material: Stainless Steel · Product Dimensions: 406mm(L) x 406mm(W) x 610mm(H)

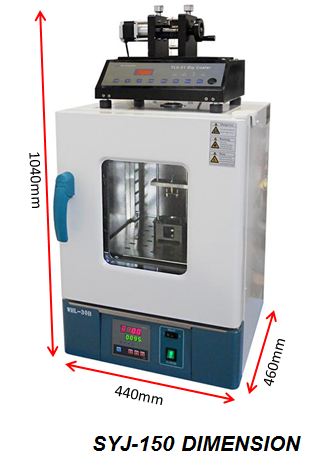

Product Dimensions	440mm(L) x 460mm(W) x 1040mm(H)
Compliance	CE Certified
Warranty	One year limited with lifetime support
Application Notes	· For pulling multi sample, please consider  6-Position Programmable Desktop Dip Coater  · In order to get better film coating, the substrate shall be treated by plasma cleaner · Use ultrasonic processor to disperse nano powder or homogenize solution to get better coating · Liquid solution is placed in the controlled temperature oven with +/-1°C tolerance from room temperature to 100°C. Please keep warm at least half hour after the temperature reach the set point on the digital temperature meter to ensure an equilibrium temperature distribution in the liquid solution
Shipping Weight	140 lbs
Shipping Dimensions	48"(L) x40"(W) x40"(H)
